Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 3 illustrations

Illustrations

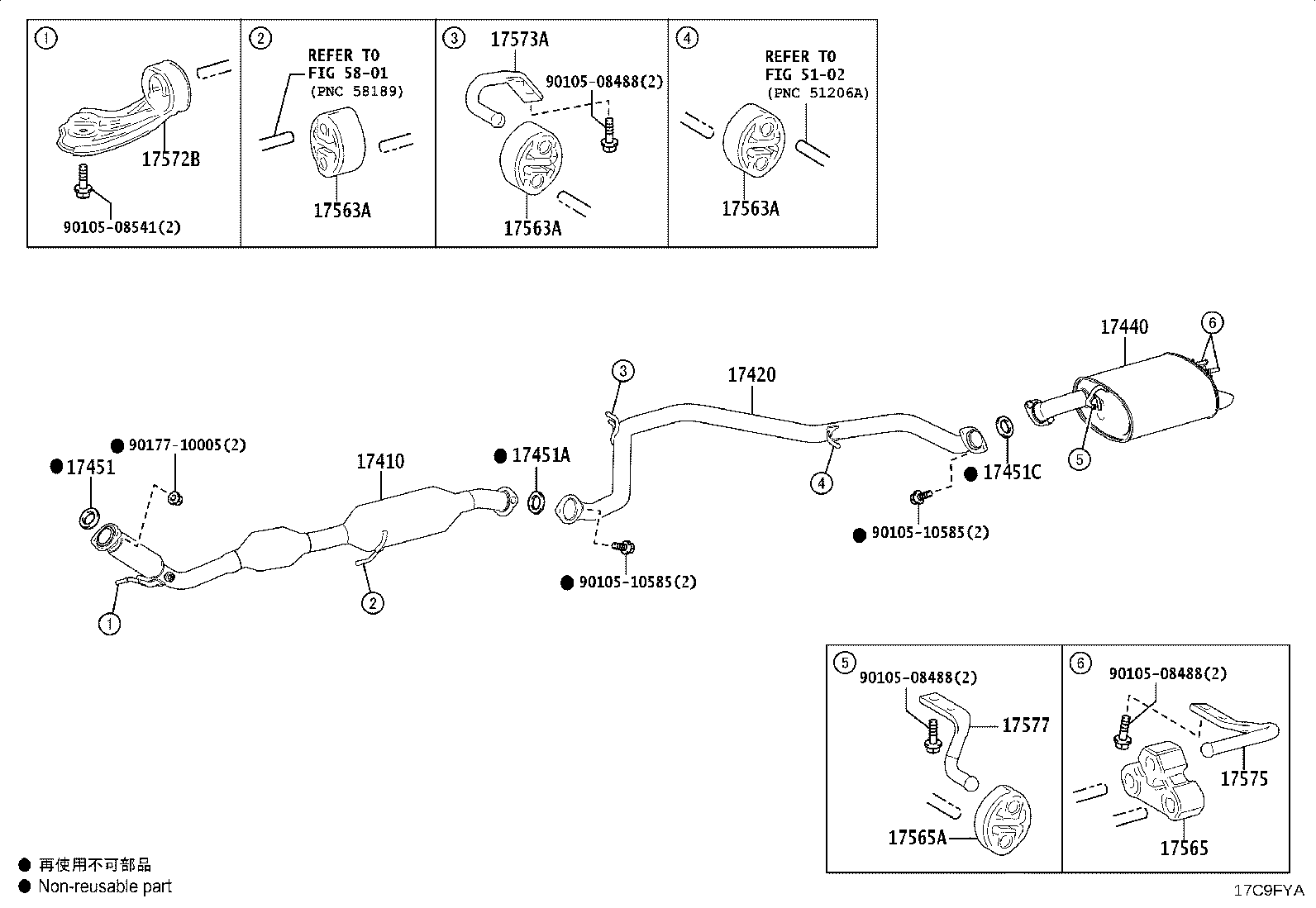

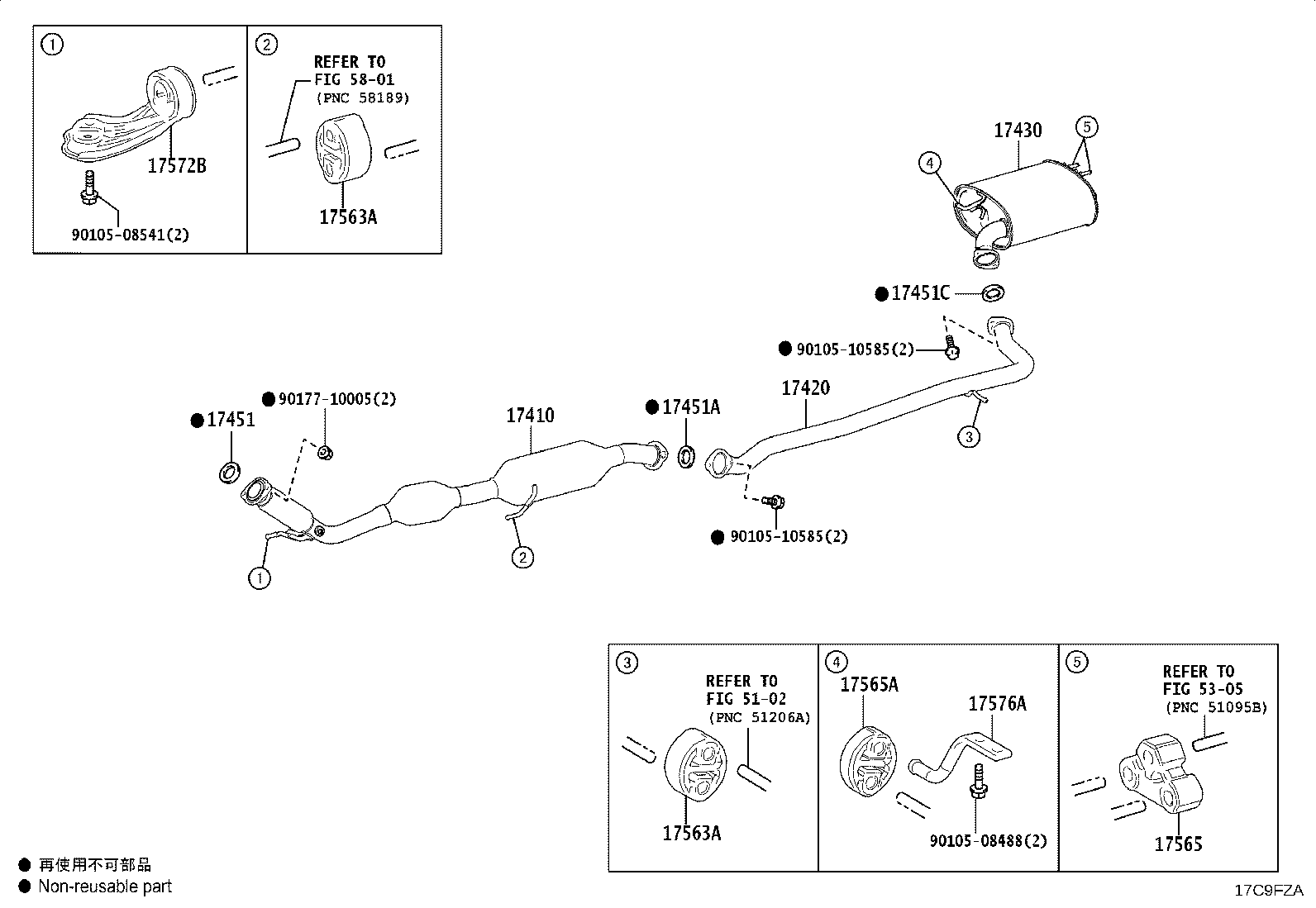

Figure 17C9FXA 17C9FXA 2024-06 → — Figure 17C9FYA 17C9FYA 2024-06 → — Figure 17C9FZA 17C9FZA 2024-06 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17440 Pipe, Exhaust Tail, LH
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17563A Support, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17575 Bracket, Exhaust Pipe Support, NO.5
17576A Bracket, Exhaust Pipe Support, NO.6
17577 Bracket, Exhaust Pipe Support, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
