Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

13 part groups · 2 illustrations

Illustrations

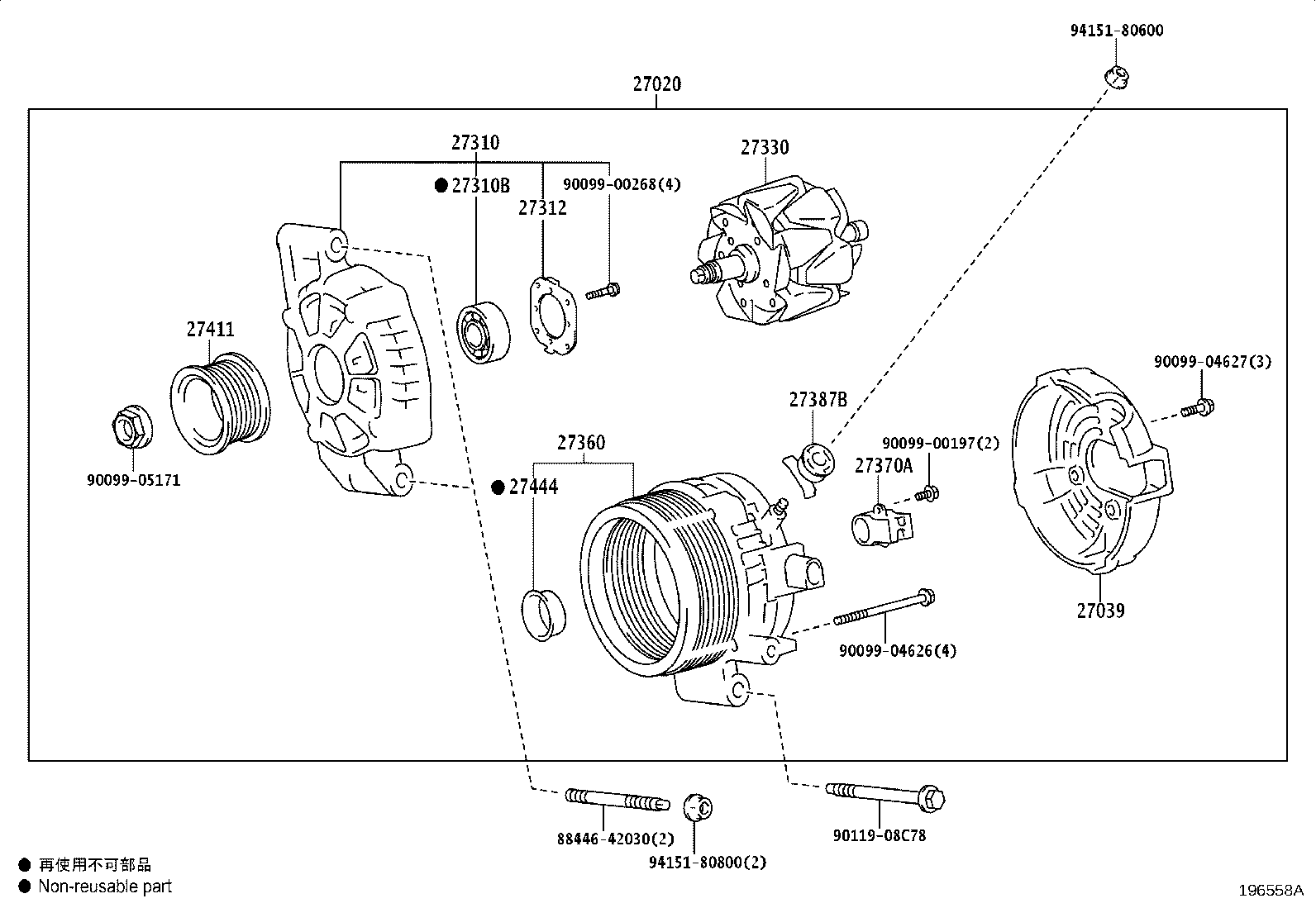

Figure 196557A 196557A 2024-06 → — Figure 196558A 196558A 2024-06 → —

Part groups

PNCDescription
27020 Alternator Assy
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27360 Coil Assy, Alternator
27370A Holder Assy, Alternator Brush
27387B Insulator, Alternator Terminal
27411 Pulley, Alternator
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27444 Packing, Alternator Bearing Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
