Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

5 part groups · 2 illustrations

Illustrations

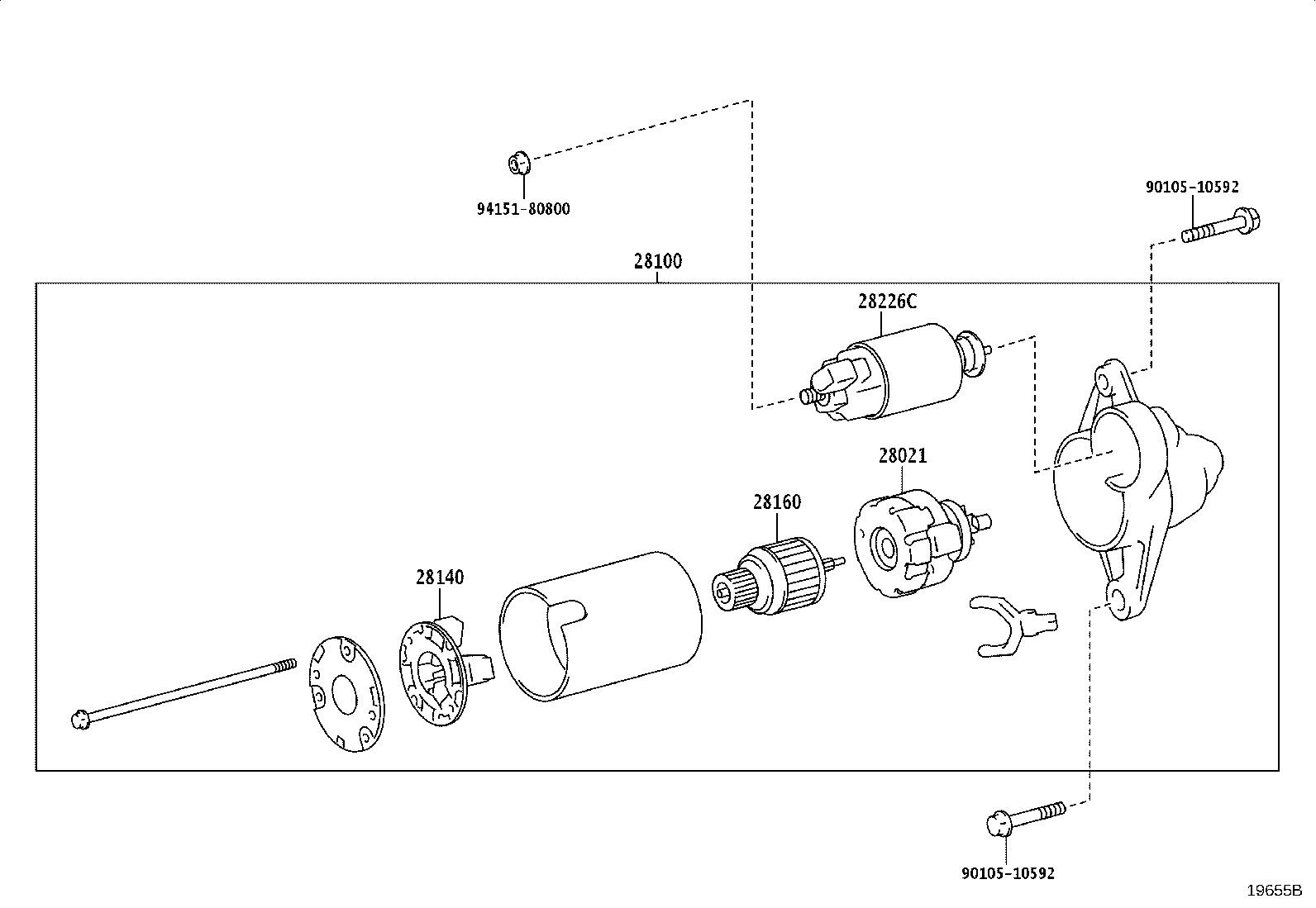

Figure 19655A 19655A 2024-06 → — Figure 19655B 19655B 2024-06 → —

Part groups

PNCDescription
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28140 Holder Assy, Starter Brush
28160 Armature Assy, Starter
28226C Starter Kit, Repair Service, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
