Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

8 part groups · 4 illustrations

Illustrations

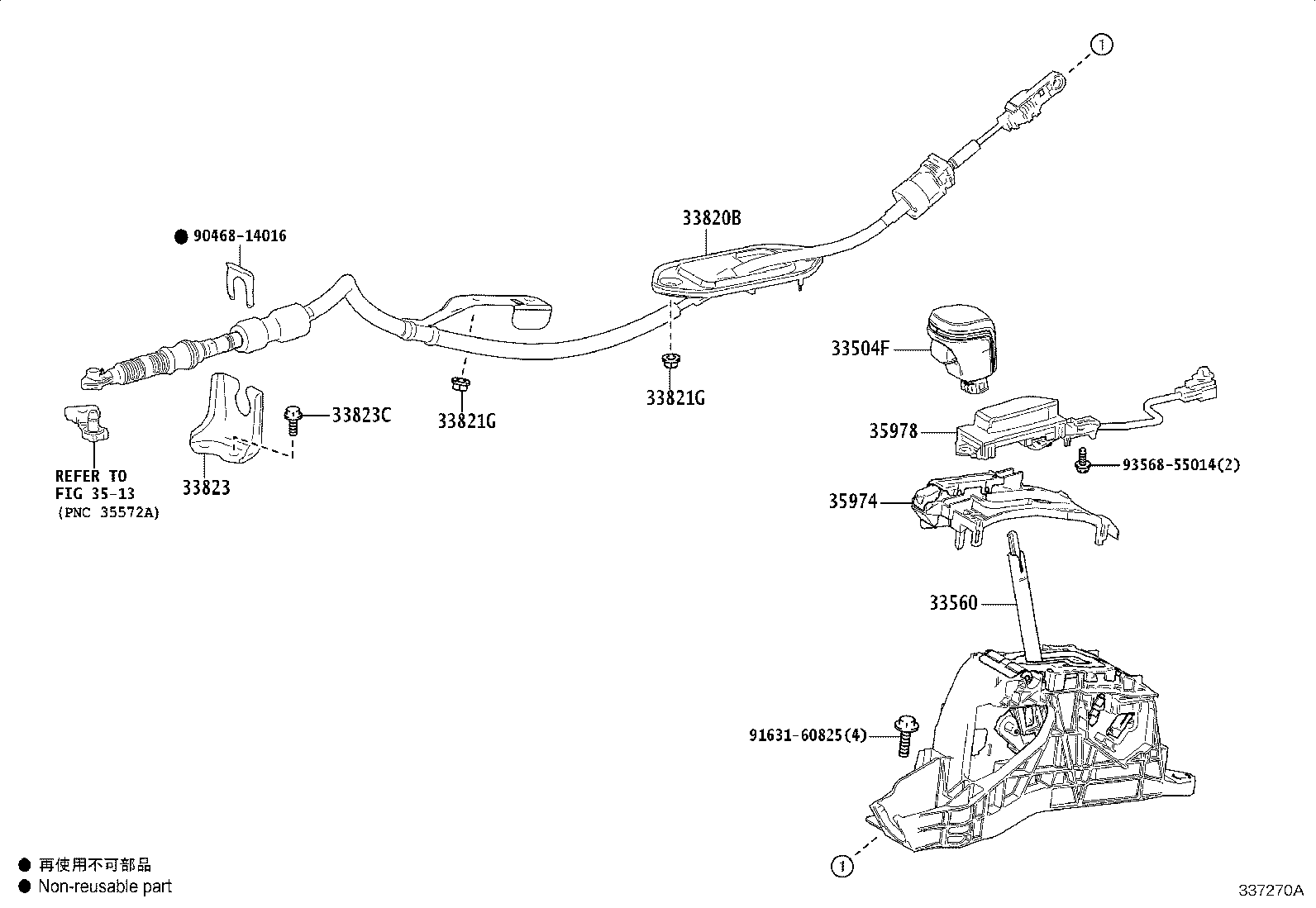

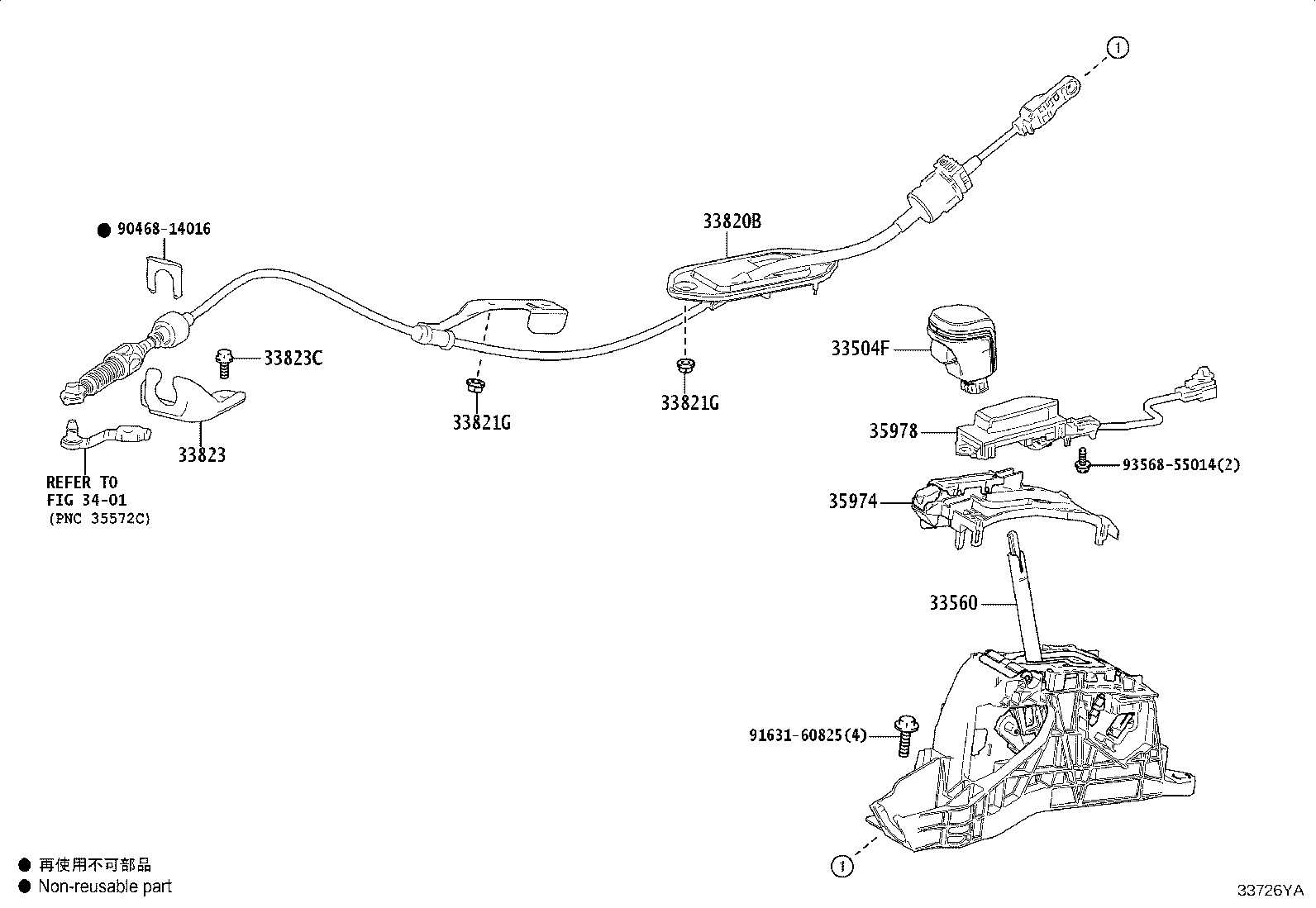

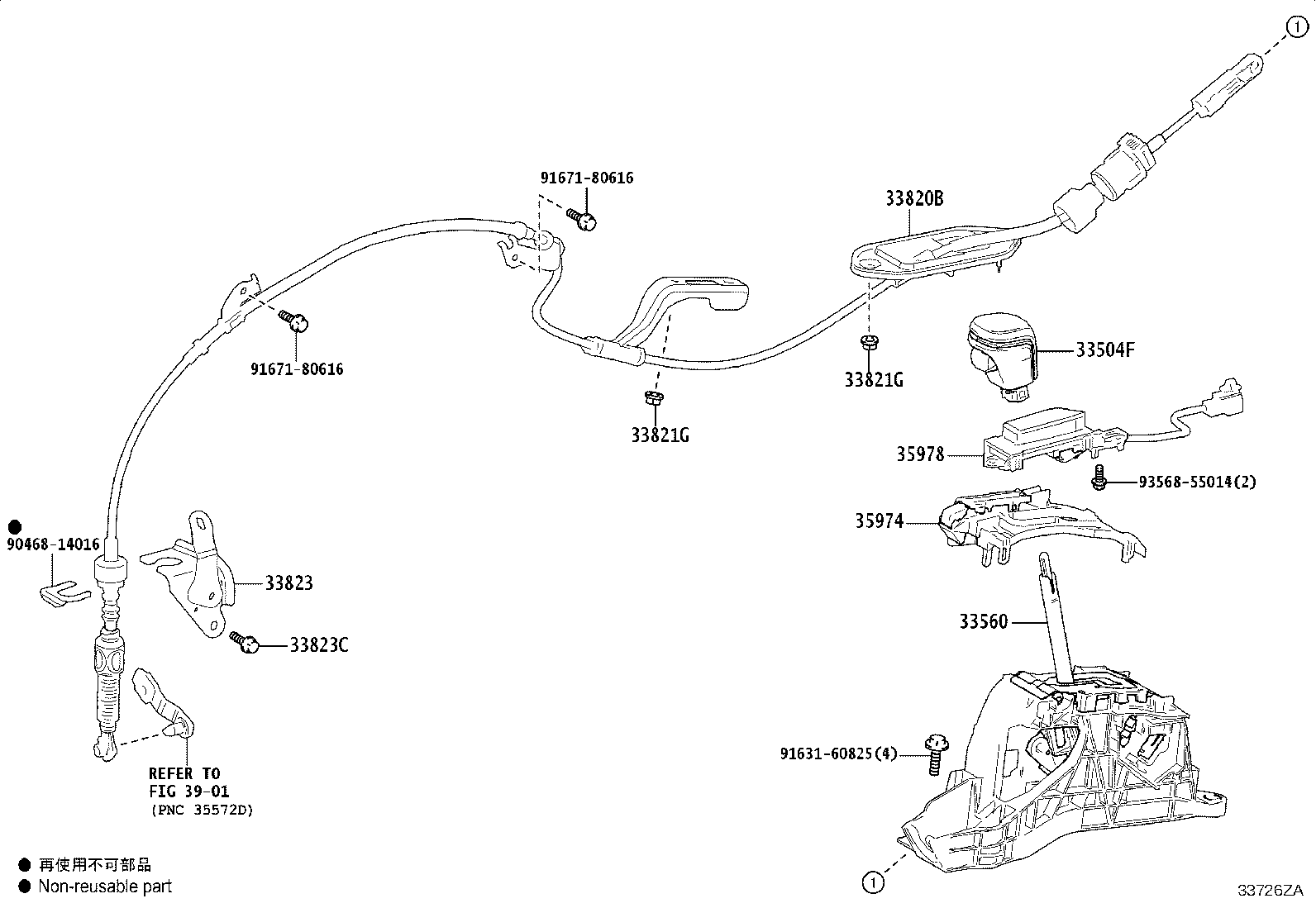

Figure 33726WA 33726WA 2024-06 → — Figure 337270A 337270A 2024-06 → — Figure 33726ZA 33726ZA 2024-06 → — Figure 33726YA 33726YA 2024-06 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
