Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

19 part groups · 2 illustrations

Illustrations

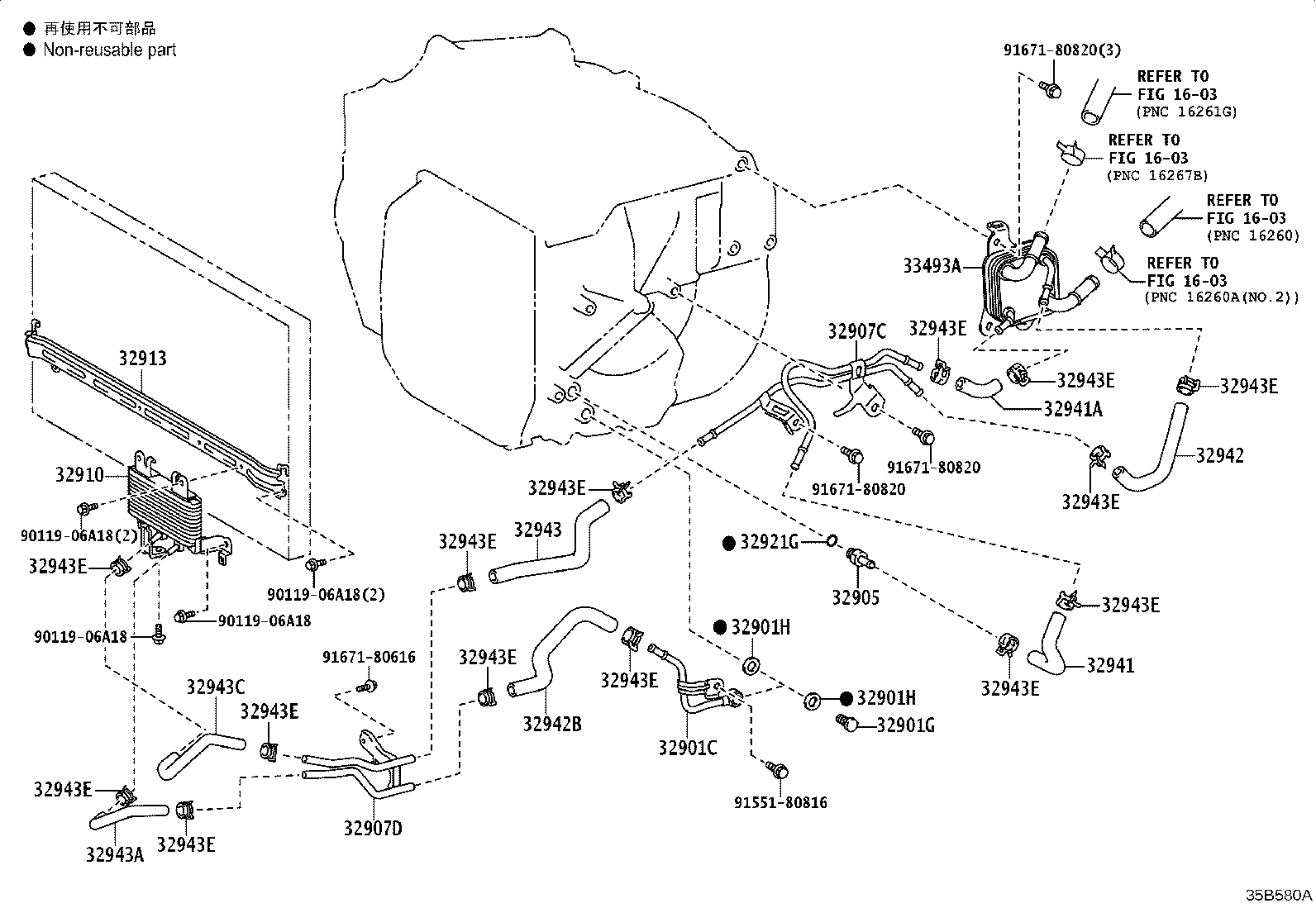

Figure 35B57ZA 35B57ZA 2024-06 → — Figure 35B580A 35B580A 2024-06 → —

Part groups

PNCDescription
32901C Union Sub-assy, Oil Cooler
32901G Bolt, Union(FOR OIL COOLER)
32901H Gasket(FOR OIL COOLER UNION)
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32907D Tube Sub-assy, Oil Cooler W/O Hose, NO.2
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942B Hose, Oil Cooler Outlet, NO.3
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943C Hose, Transmission Oil Cooler, NO.3
32943E Clip, NO.3(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
