Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

14 part groups · 2 illustrations

Illustrations

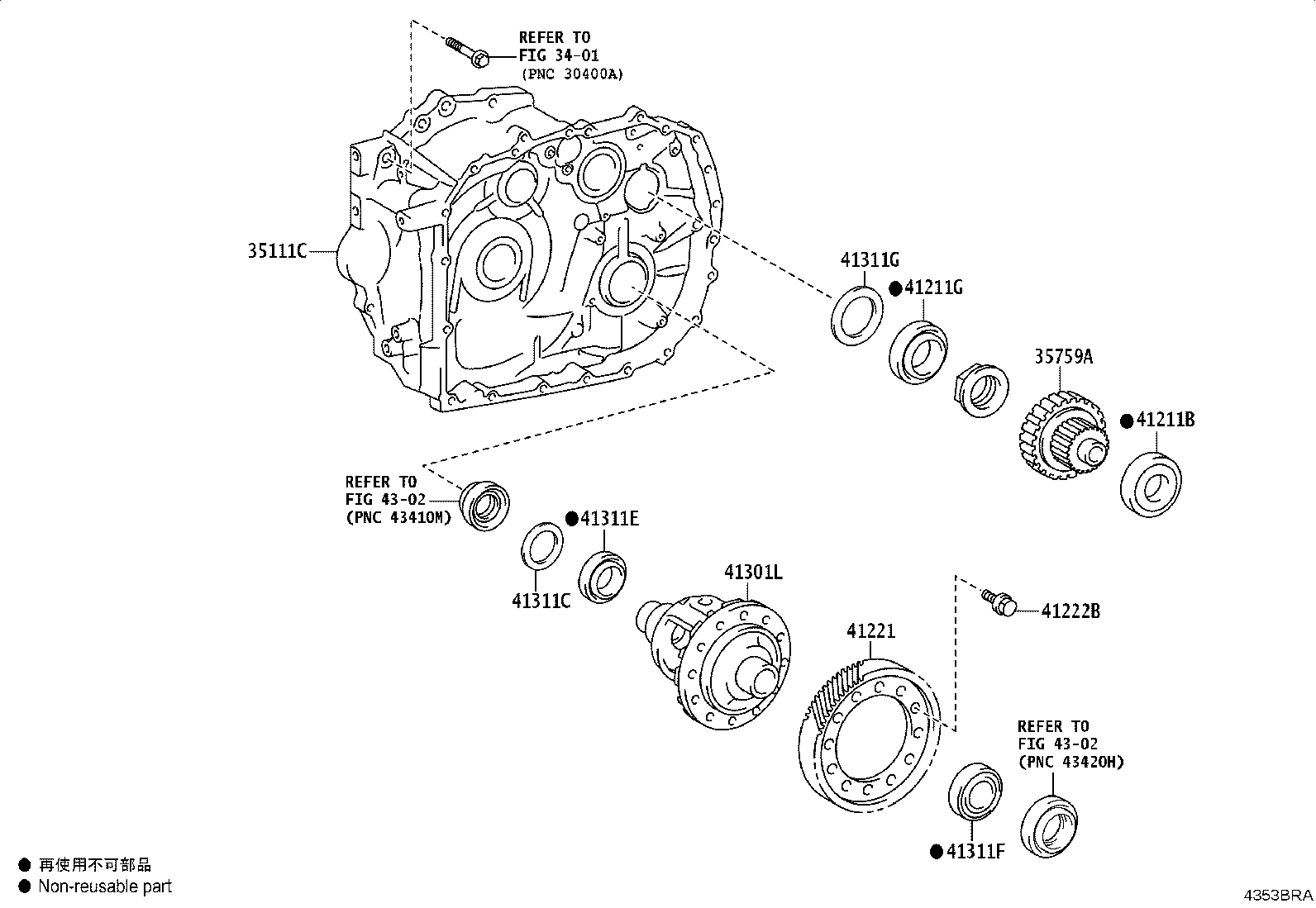

Figure 4353BO 4353BO 2024-06 → — Figure 4353BRA 4353BRA 2024-06 → —

Part groups

PNCDescription
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
35759A Gear, Reduction Driven
41211B Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
41211G Bearing, Thrust Needle Roller(FOR FRONT DRIVE PINION LH)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41221 Gear, Front Differential Ring
41222B Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
41300 Case Assy, Front Differential, W/Ring Gear
41301L Case Sub-assy, Front Differential, NO.1
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41311G Washer, Plate (FOR FRONT DIFFERENTIAL CASE FRONT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
