Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

8 part groups · 4 illustrations

Illustrations

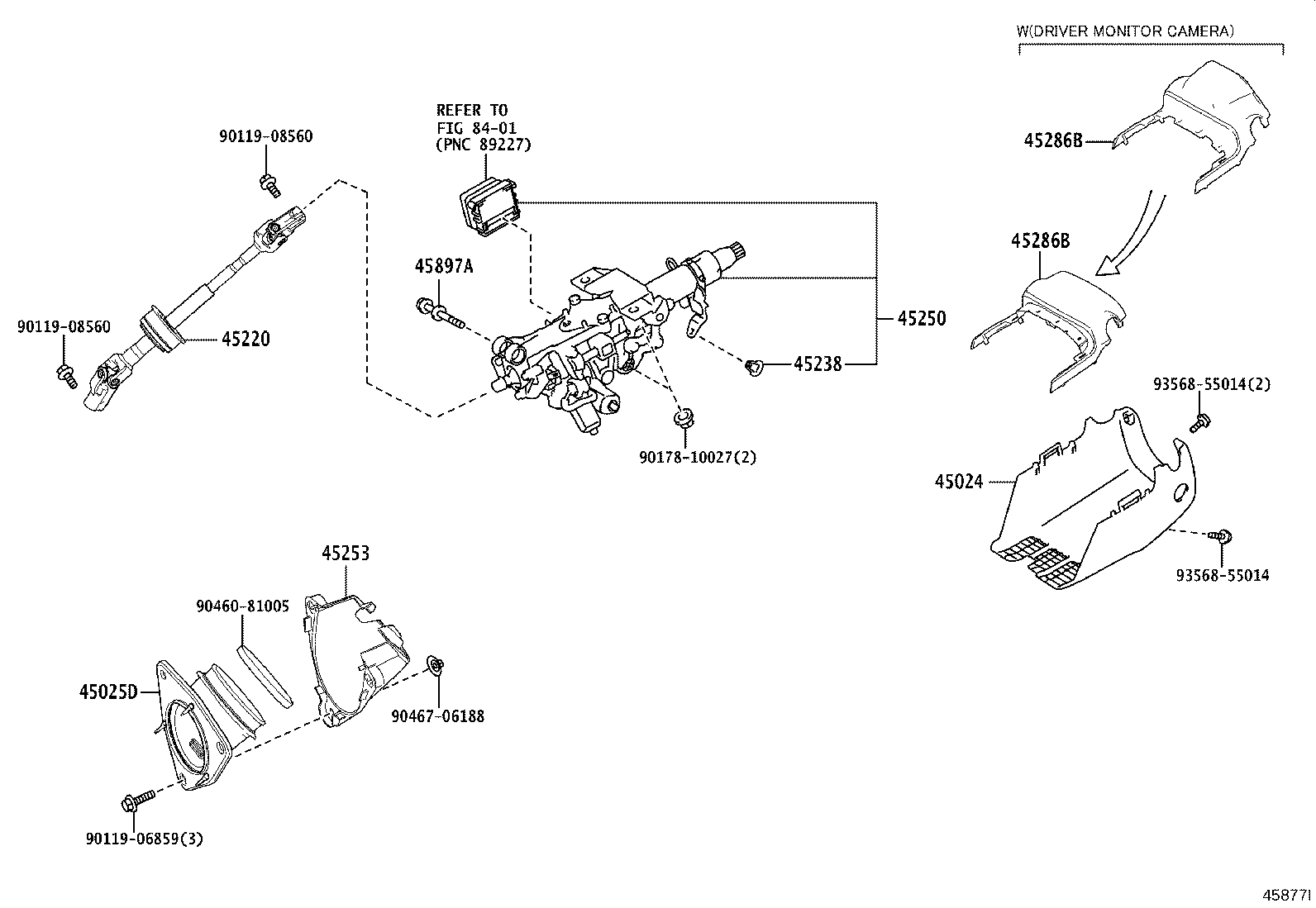

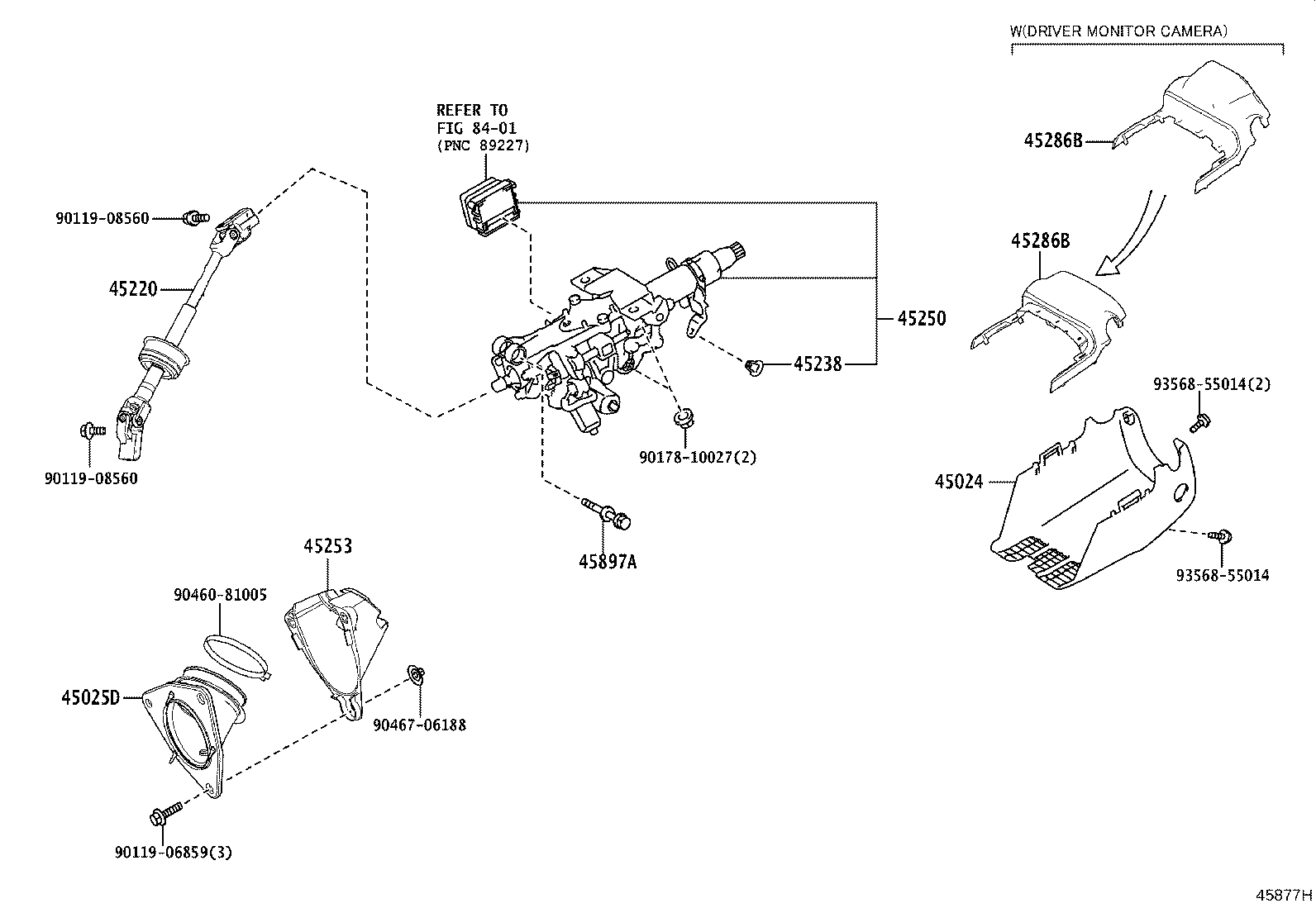

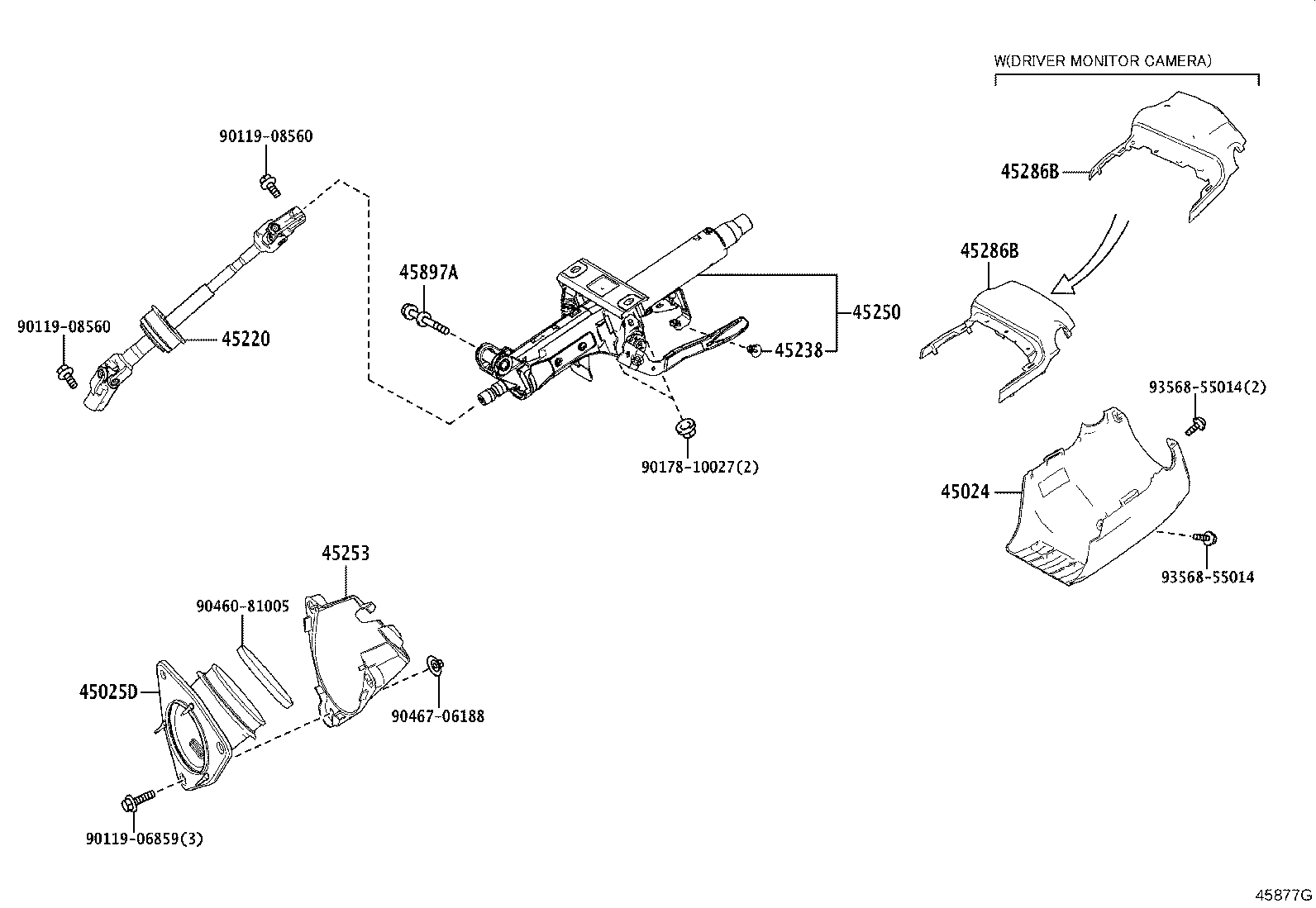

Figure 45877F 45877F 2024-06 → — Figure 45877G 45877G 2024-06 → — Figure 45877H 45877H 2024-06 → — Figure 45877I 45877I 2024-06 → —

Part groups

PNCDescription
45024 Cover Sub-assy, Steering Column, Lower
45025D Cover Sub-assy, Steering Column Hole, NO.1
45220 Shaft Assy, Steering Intermediate
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45286B Cover, Steering Column, Upr
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
