Toyota Camry
2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe
Supported model
Data version 2024-06

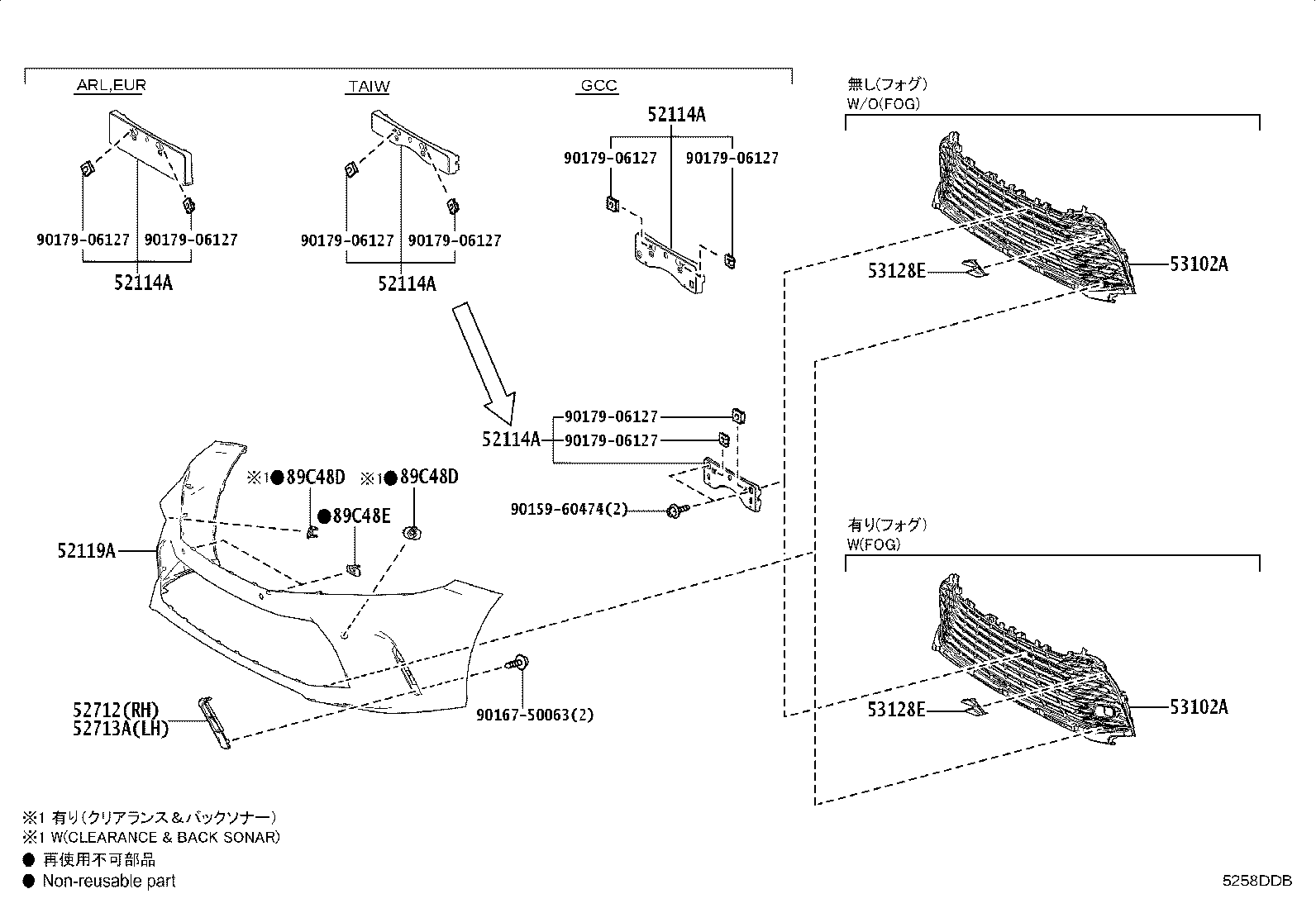

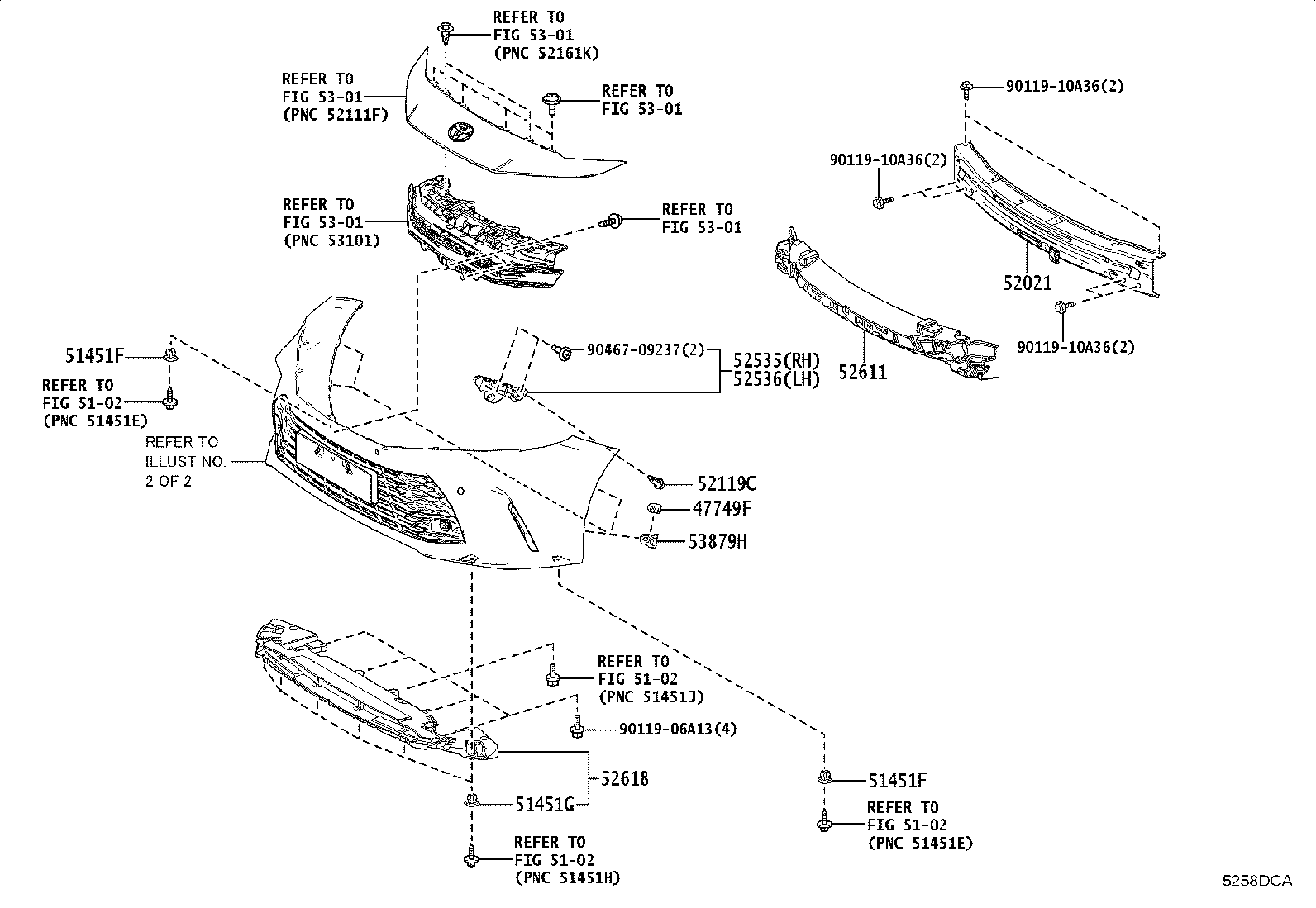

Front Bumper & Bumper Stay
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749F | Clip, Pin Hold |
| 51451F | Grommet, NO.1 |
| 51451G | Grommet, NO.2 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119C | Clip, Front Bumper Cover |
| 52131A | Reinforcement, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52712 | Moulding, Front Bumper Side, RH |
| 52713A | Moulding, Front Bumper Side, LH |
| 53102A | Grille Sub-assy, Radiator, Lwr |
| 53128E | Grille, Radiator, Lower Side LH |
| 53879H | Retainer, Front Fender Liner |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
