Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

33 part groups · 2 illustrations

Illustrations

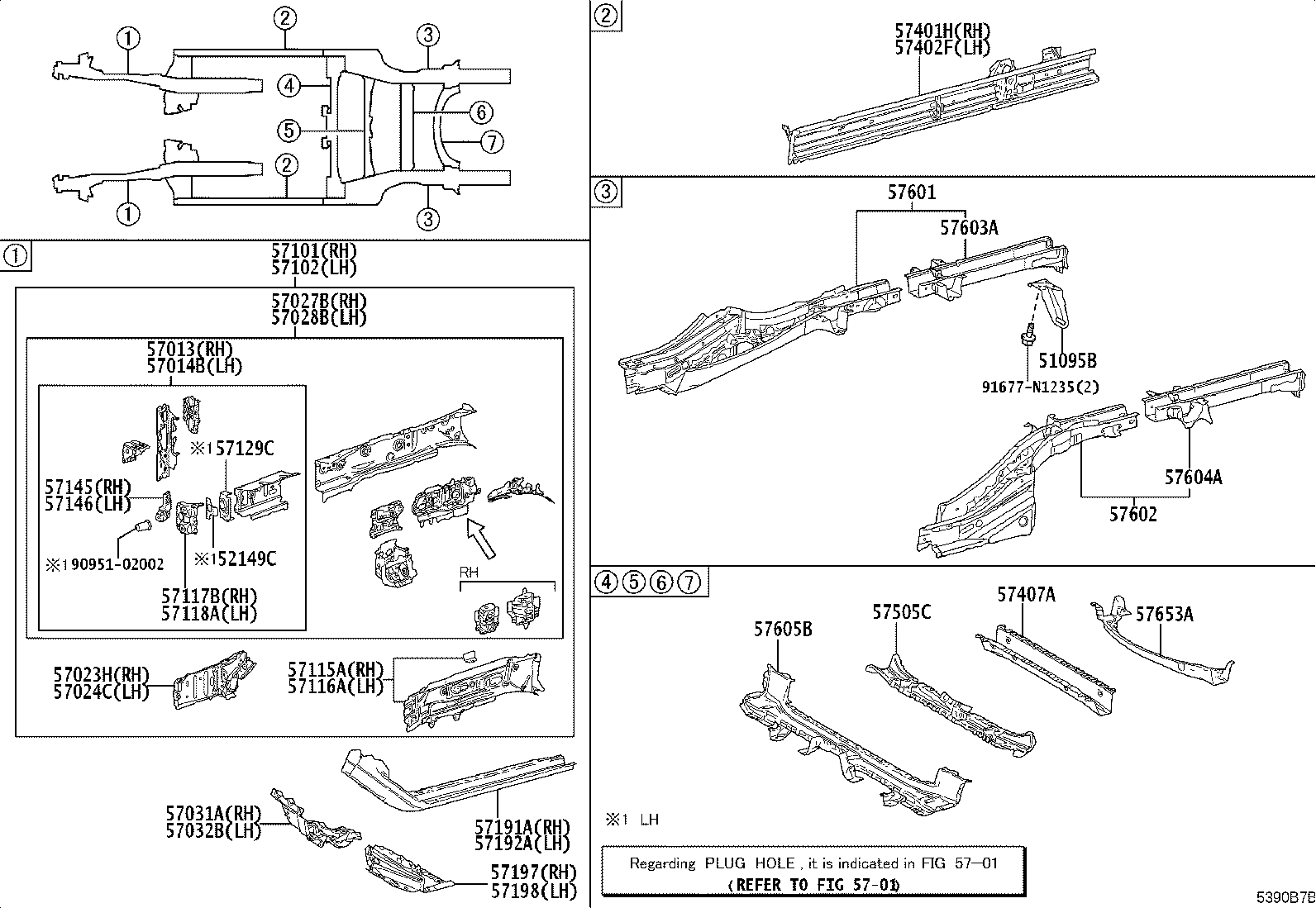

Figure 5390B6B 5390B6B 2024-06 → — Figure 5390B7B 5390B7B 2024-06 → —

Part groups

PNCDescription
51095B Hook Sub-assy, Transport, Rear RH
52149C Stopper, Front Bumper Reinforcement, LH
57013 Bracket Sub-assy, Front Side Member, RH
57014B Bracket Sub-assy, Front Side Member, LH
57023H Bracket Sub-assy, Body Mounting, NO.2 RH
57024C Bracket Sub-assy, Body Mounting, NO.2 LH
57027B Member Sub-assy, Front Side, Inner RH
57028B Member Sub-assy, Front Side, Inner LH
57031A Reinforce Sub-assy, Front Side Member, NO.2 RH
57032B Reinforcement Sub-assy, Front Side Member, NO.2 LH
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57115A Plate, Front Side Member, Outer RH
57116A Plate, Front Side Member, Outer LH
57117B Reinforcement, Front Bumper Mounting, RH
57118A Reinforcement, Front Bumper Mounting, LH
57129C Plate, Front Side Member, Front LH
57145 Plate, Front Side Member, Center RH
57146 Plate, Front Side Member, Center LH
57191A Member, Front Side, Inner Rear RH
57192A Member, Front Side, Inner Rear LH
57197 Box, Torque, Front RH
57198 Box, Torque, Front LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57407A Member Sub-assy, Center Floor Cross
57505C Reinforcement Sub-assy, Front Floor Under
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57653A Member, Rear Floor Cross, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
