Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

43 part groups · 8 illustrations

Illustrations

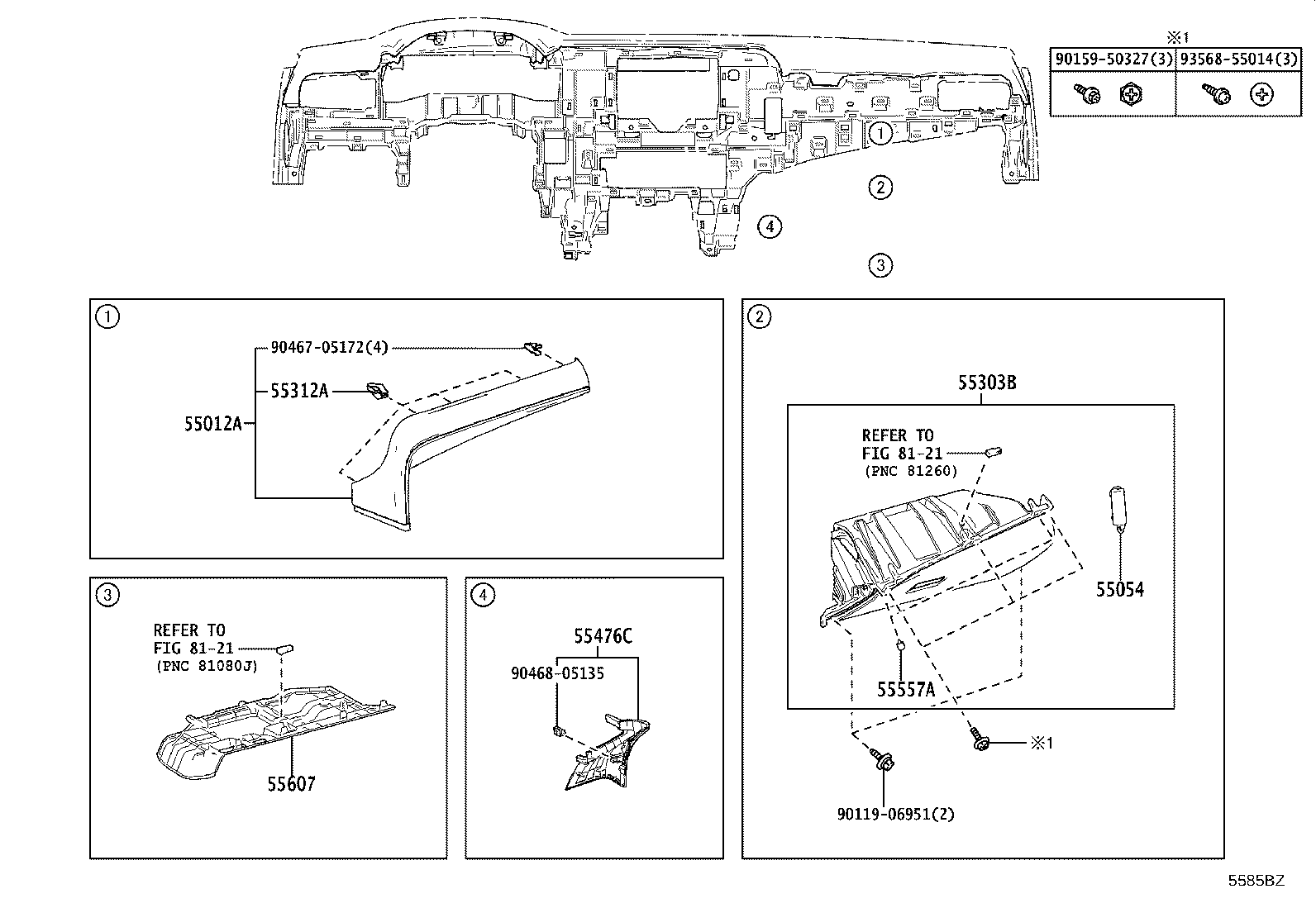

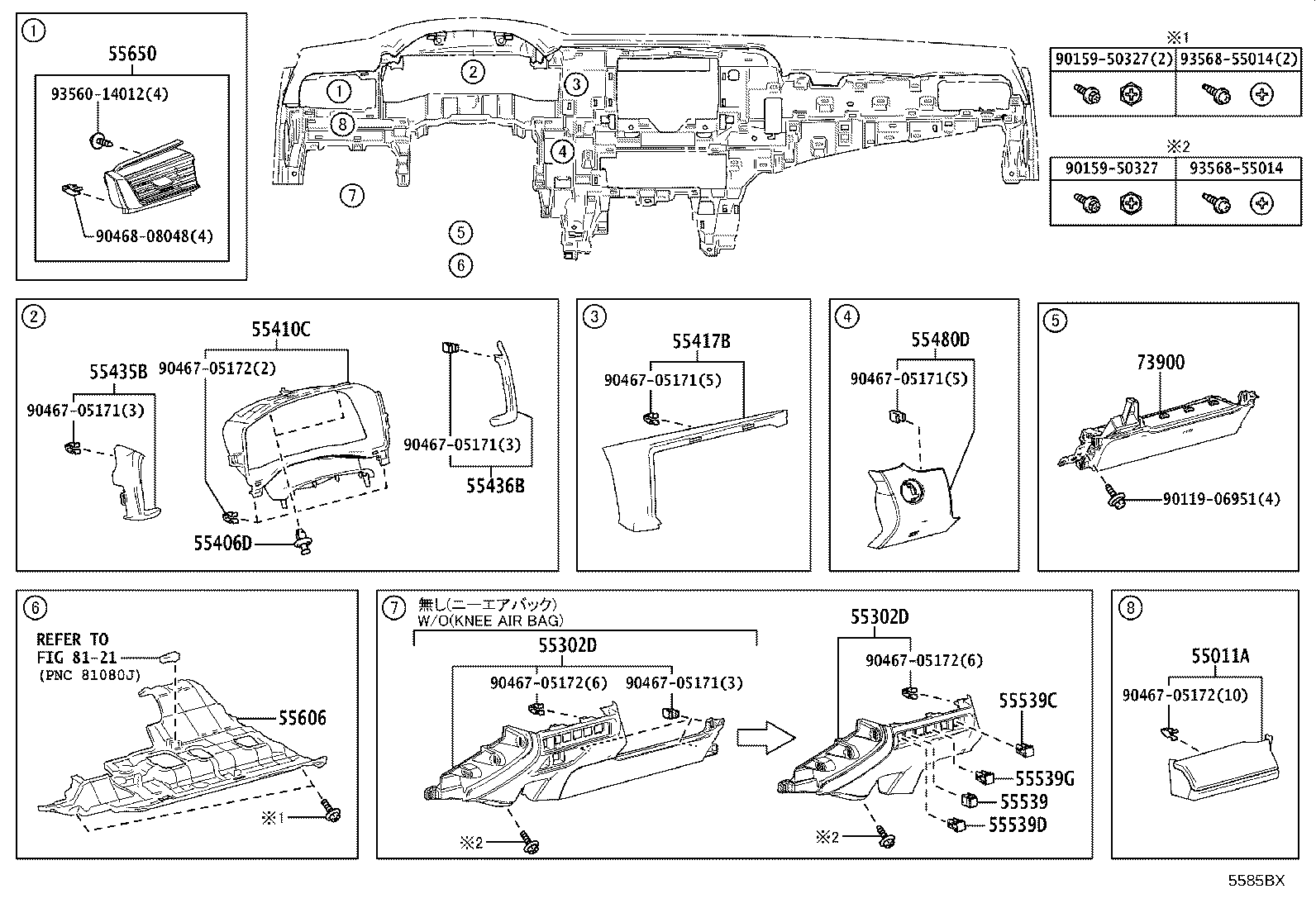

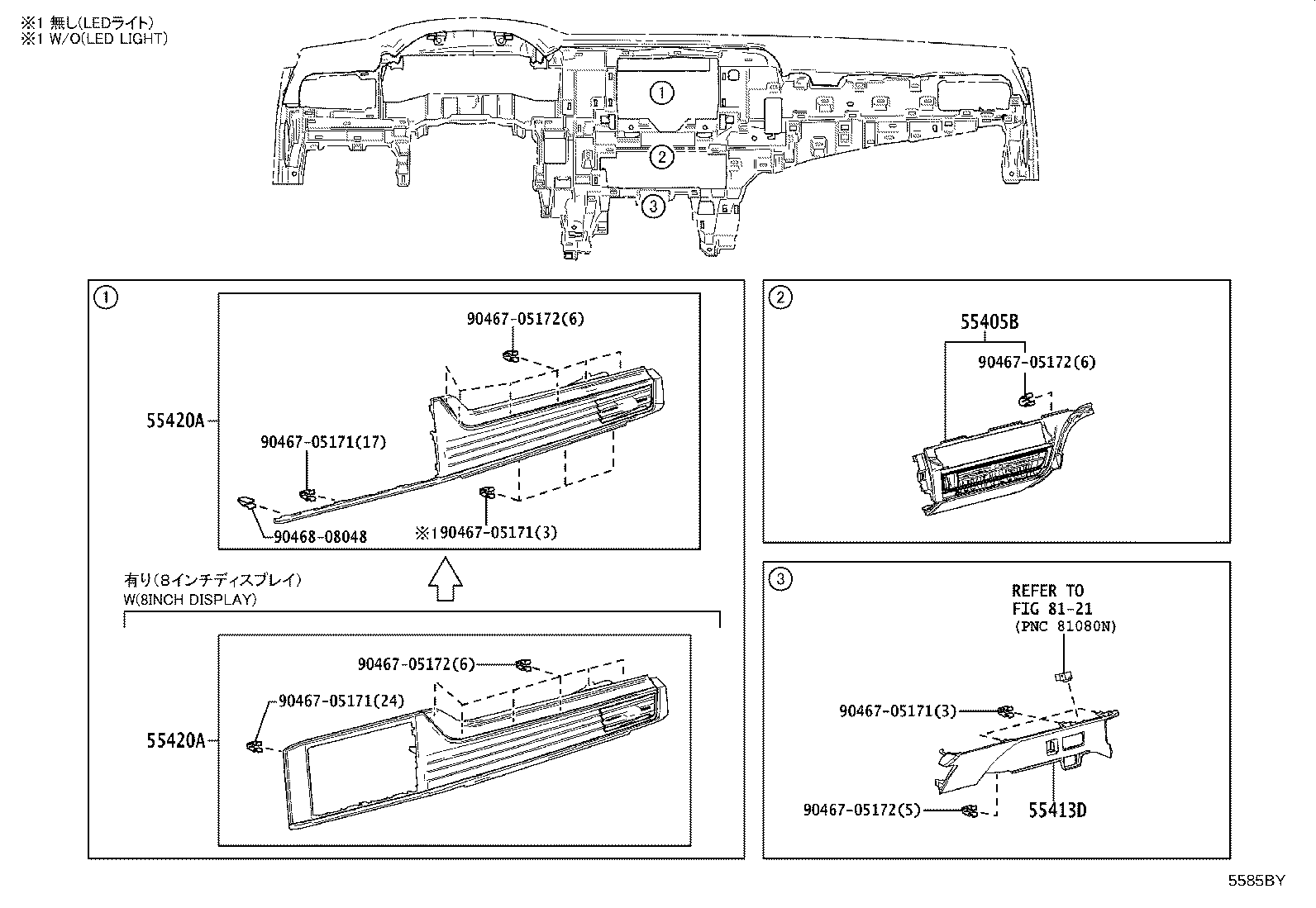

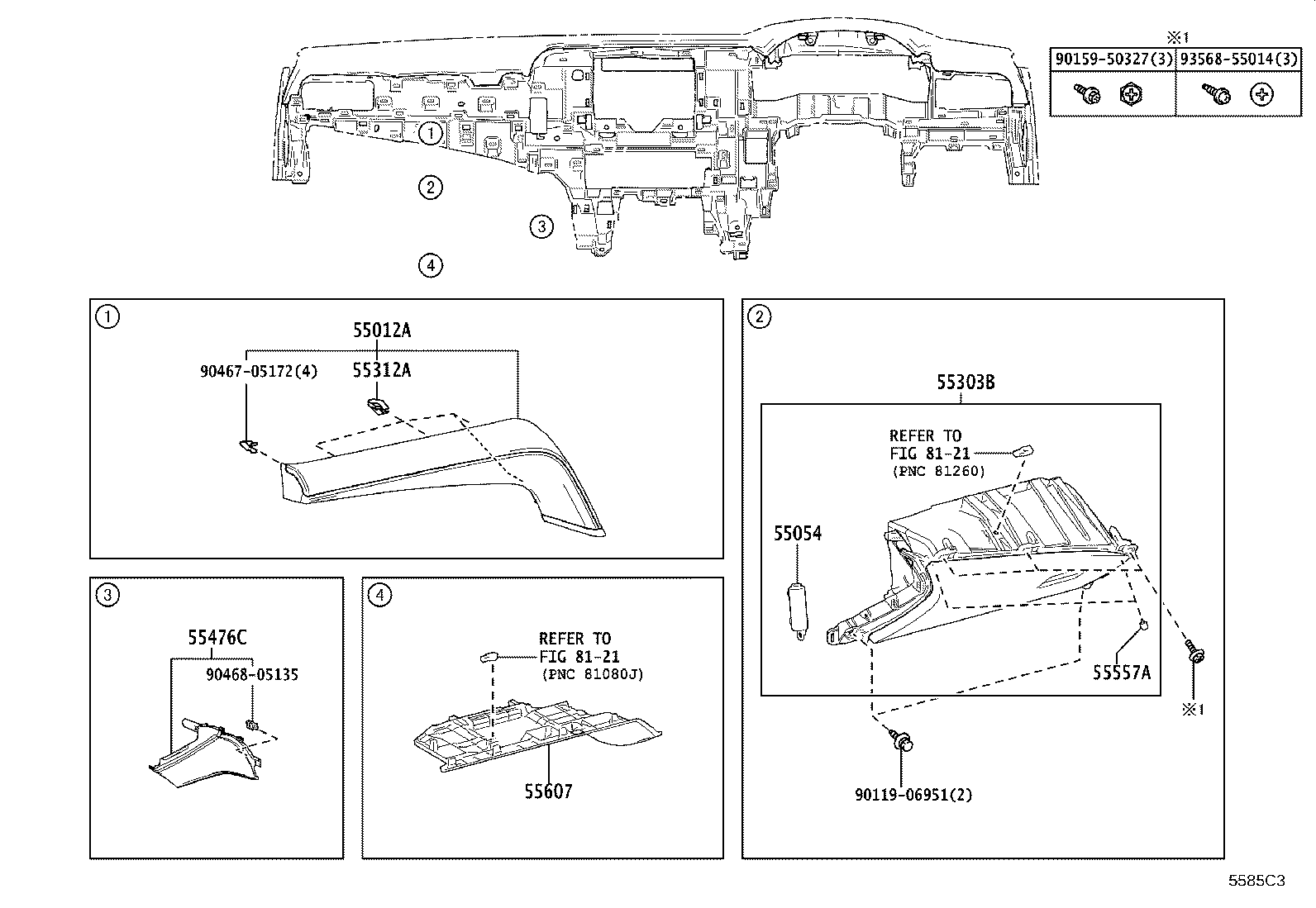

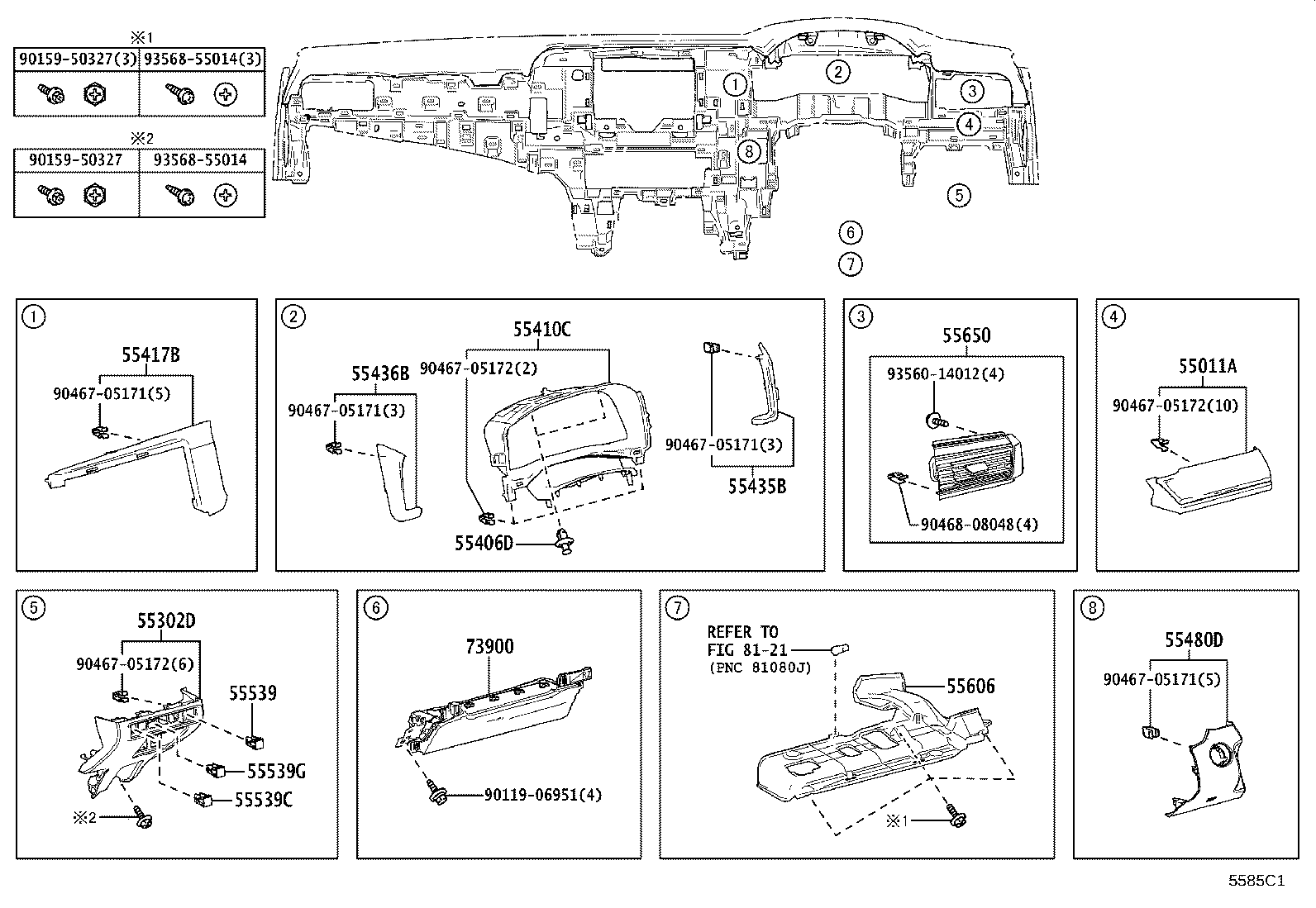

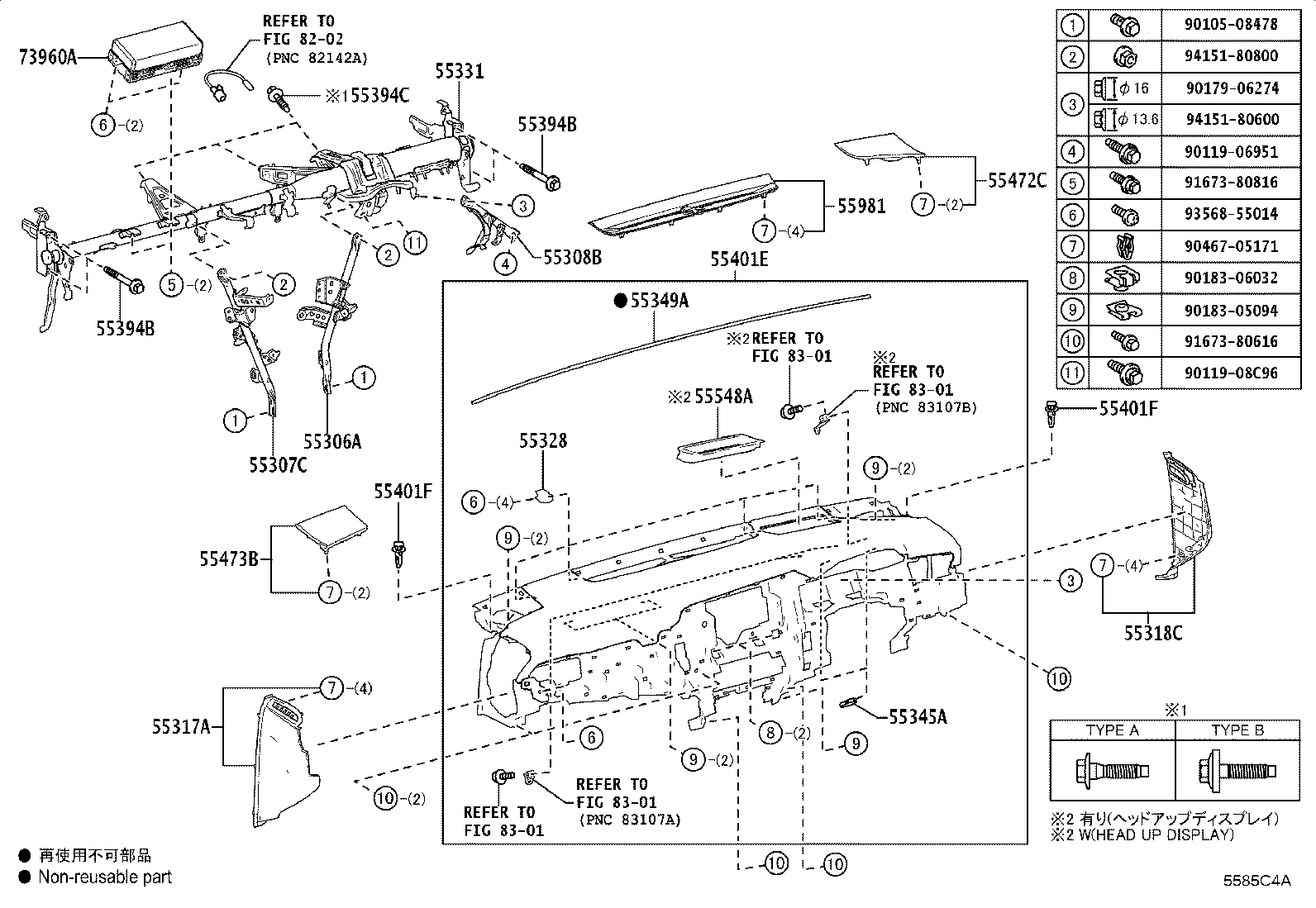

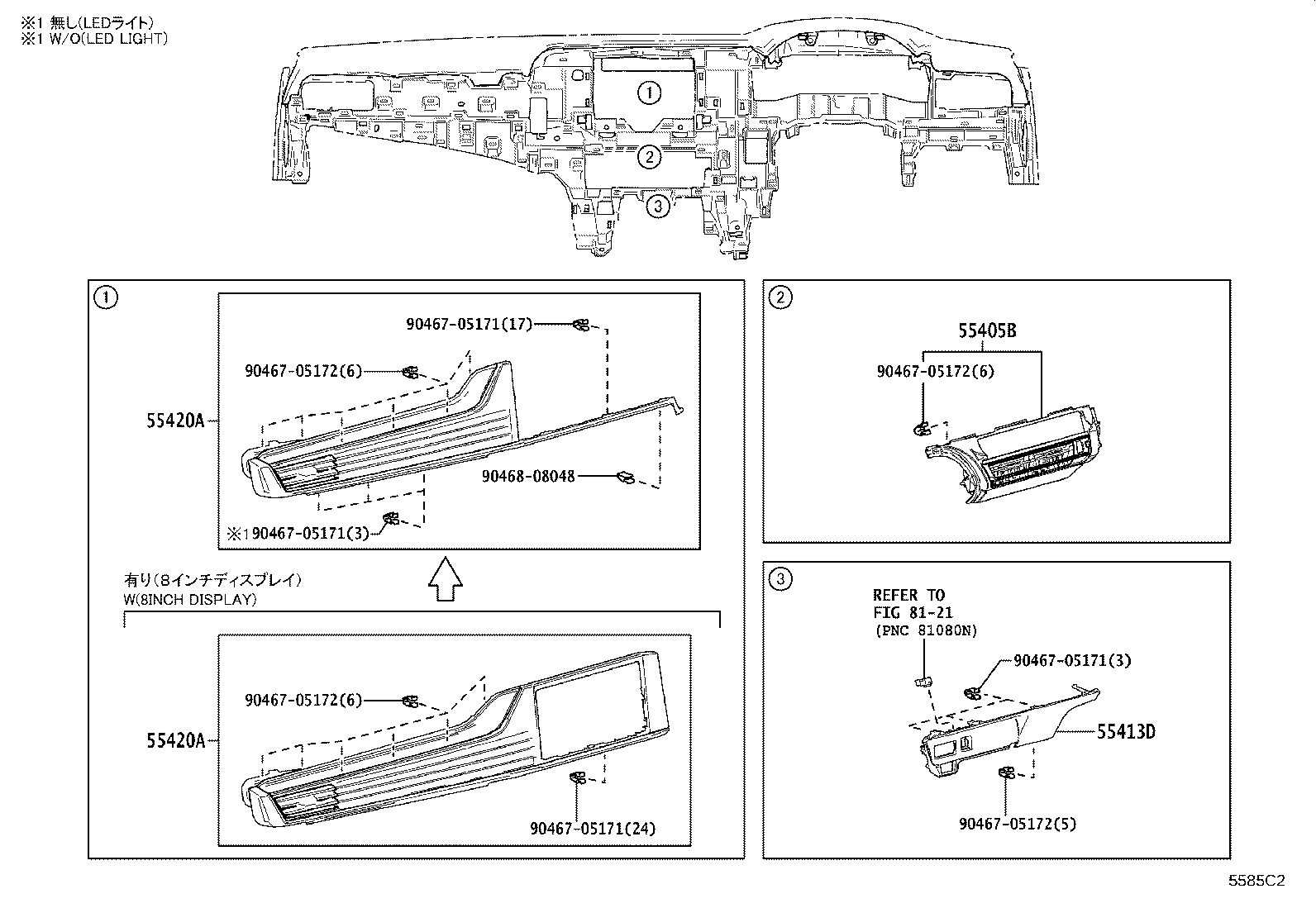

Figure 5585C0A 5585C0A 2024-06 → — Figure 5585BX 5585BX 2024-06 → — Figure 5585BY 5585BY 2024-06 → — Figure 5585BZ 5585BZ 2024-06 → — Figure 5585C4A 5585C4A 2024-06 → — Figure 5585C1 5585C1 2024-06 → — Figure 5585C2 5585C2 2024-06 → — Figure 5585C3 5585C3 2024-06 → —

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55054 Stopper Sub-assy, Glove Compartment Door
55302D Panel Sub-assy, Instrument, Lower, NO.1
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55312A Clip, Instrument Panel
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55331 Reinforcement, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55349A Cushion, Instrument Panel
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55410C Panel Assy, Instrument Cluster Finish
55413D Panel, Instrument Cluster Finish, Center Lower
55417B Retainer, Radio Tuner Finish
55420A Panel Assy, Instrument Cluster Finish, Center
55435B Cluster, Meter Hood, NO.1
55436B Cluster, Meter Hood, NO.2
55472C Panel, Instrument Panel Speaker, NO.1
55473B Panel, Instrument Panel Speaker, NO.2
55476C Garnish, Instrument Panel Finish Plate
55480D Panel Assy, Instrument Panel Finish, Lwr
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539G Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55981 Garnish, Defroster Nozzle, NO.1
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
