Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

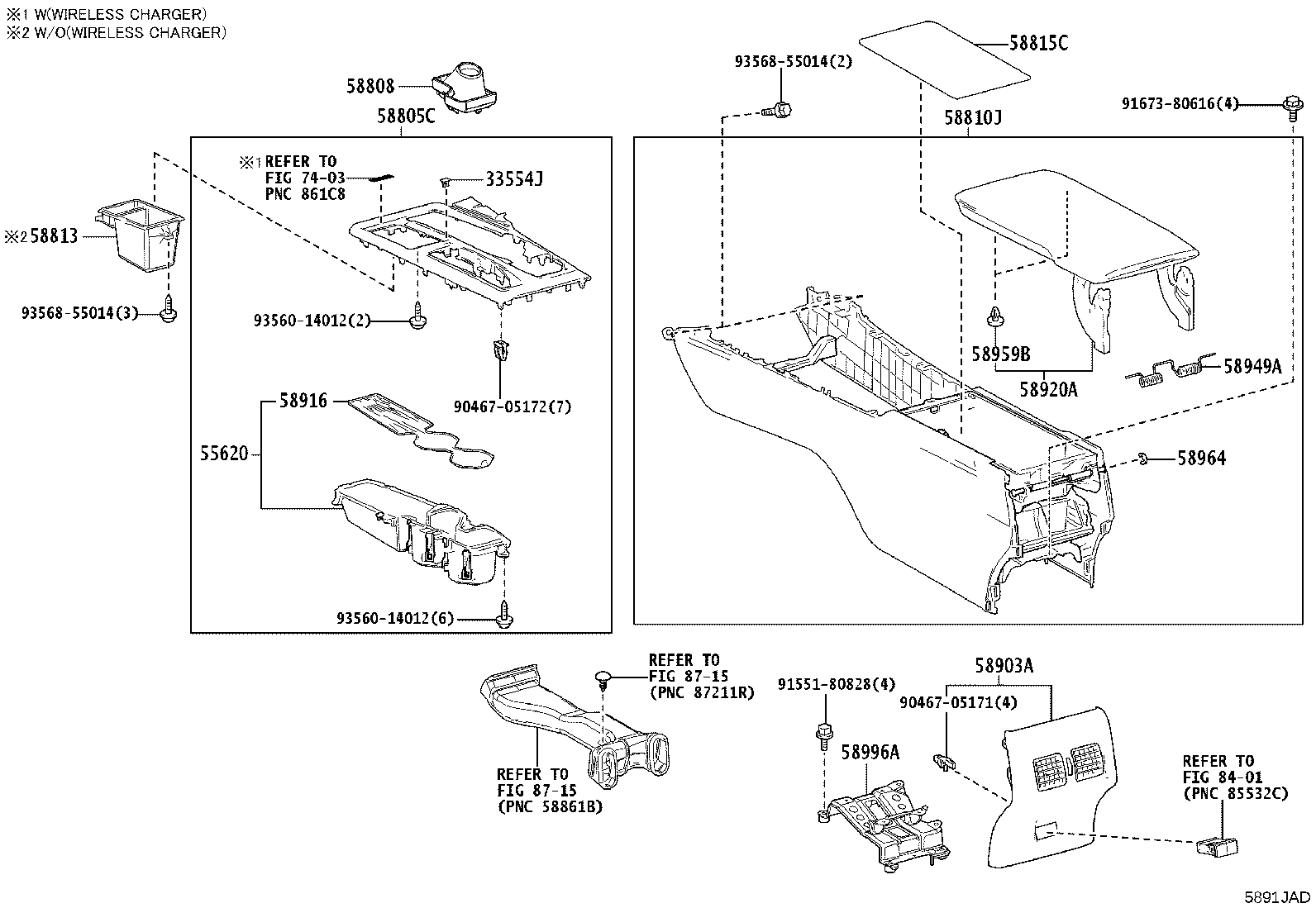

Figure 5891J9D 5891J9D 2024-06 → — Figure 5891JAD 5891JAD 2024-06 → —

Part groups

PNCDescription
33554J Cover, Shift Lock Release Button
55620 Holder Assy, Instrument Panel Cup
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58813 Box, Console, Upper
58815C Carpet, Console Box
58903A Panel Sub-assy, Console Rear End
58916 Mat, Box Bottom
58920A Armrest Assy, Rear Console
58949A Spring, Console Box Mounting Bracket
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
