Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 3 illustrations

Illustrations

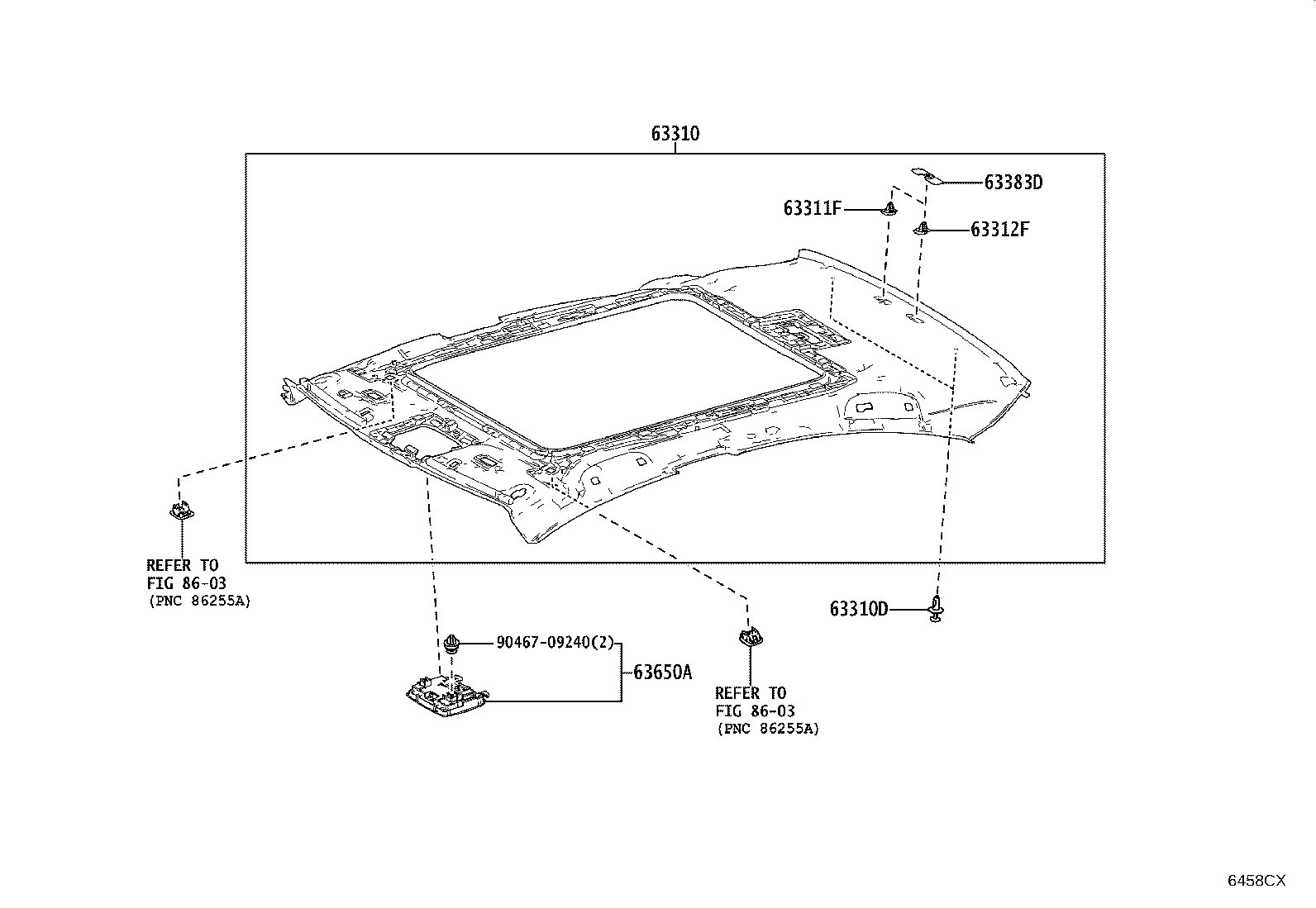

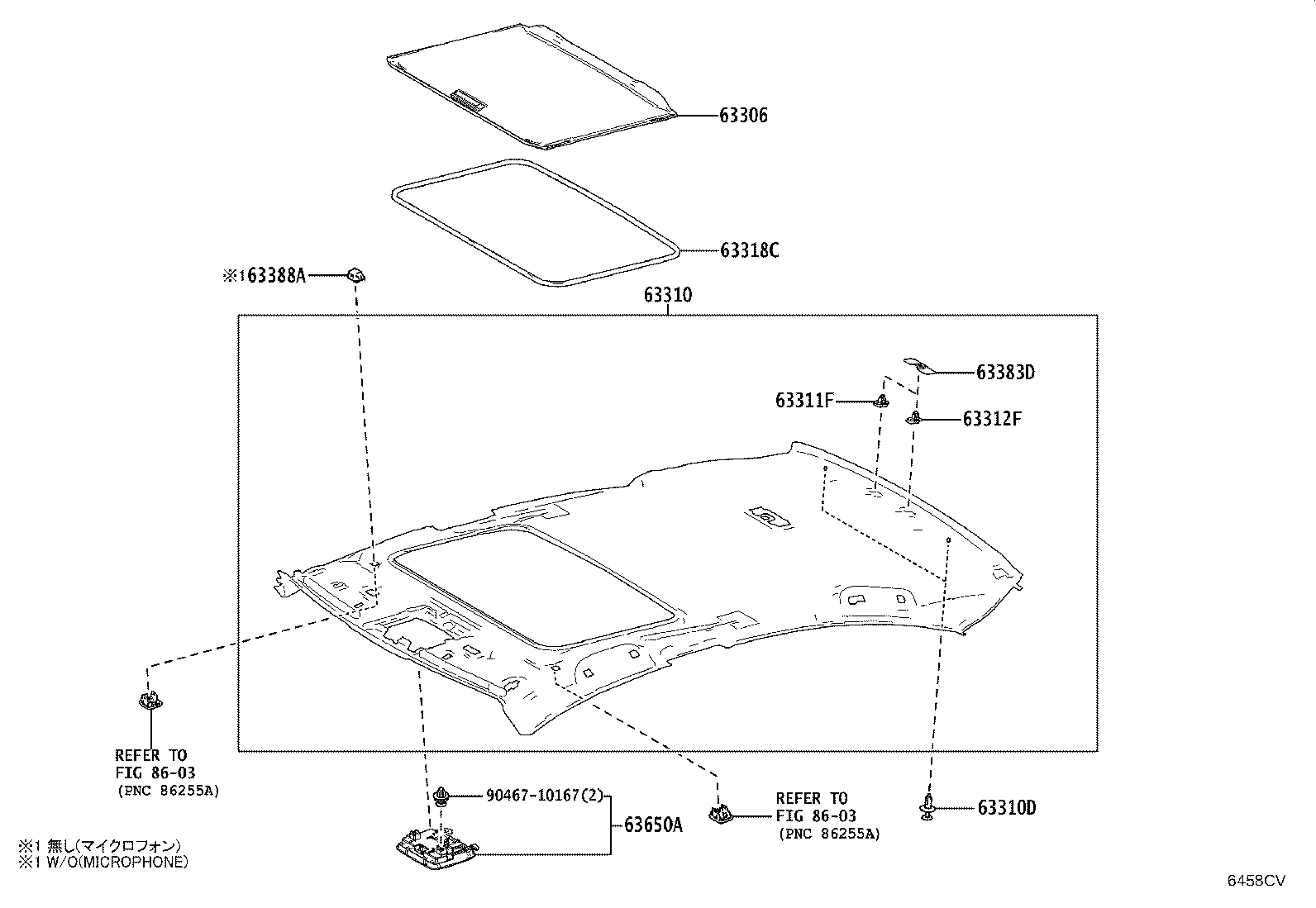

Figure 6458CU 6458CU 2024-06 → — Figure 6458CV 6458CV 2024-06 → — Figure 6458CX 6458CX 2024-06 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63318C Moulding, Sun Roof Opening Trim
63342 Pad, Roof Silencer, NO.2
63344A Silencer, Roof, NO.4
63383D Retainer, Roof Headlining, Rear
63388A Cover, Roof Headlining Holder
63650A Box Assy, Roof Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
