Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

94 part groups · 18 illustrations

Illustrations

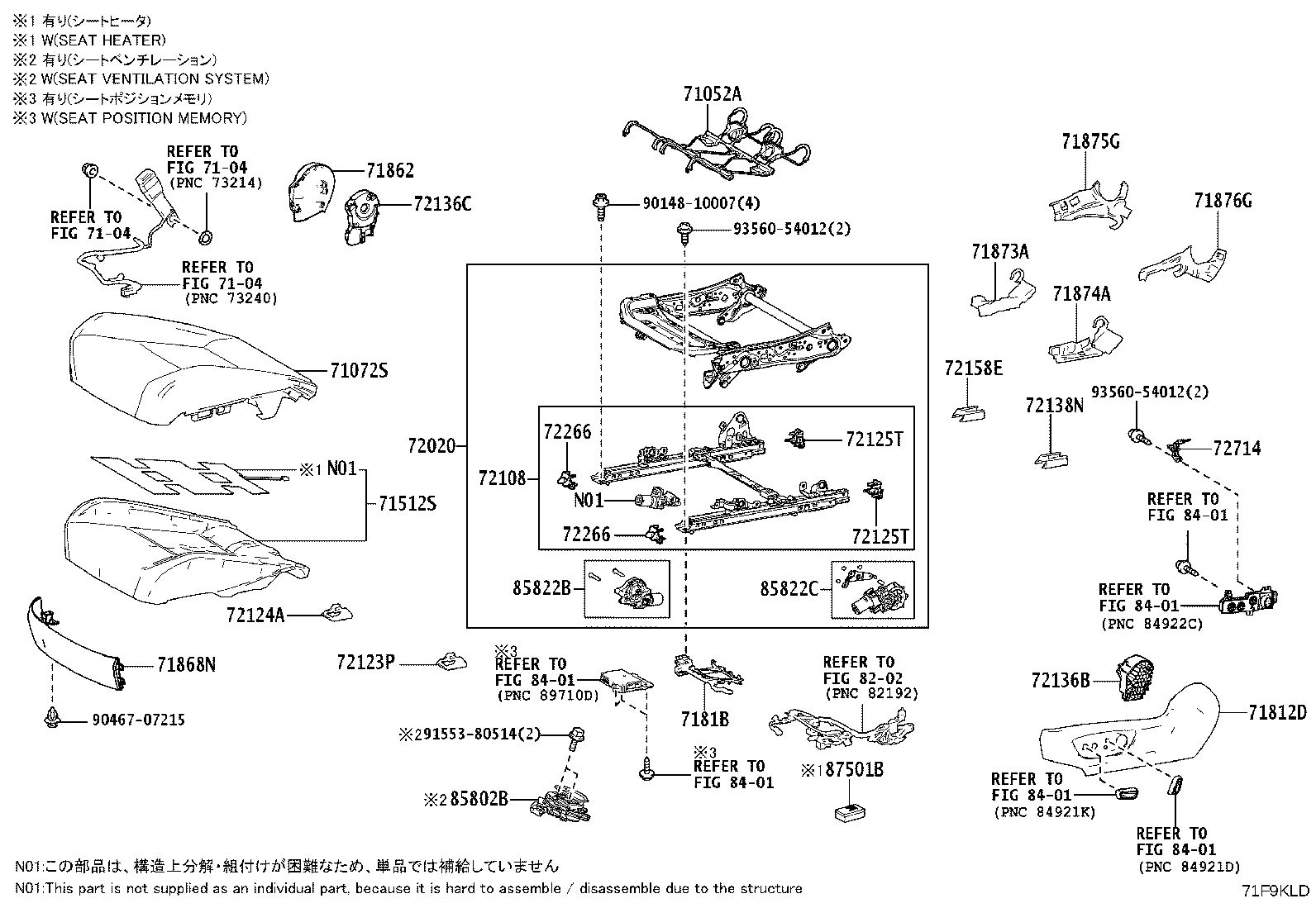

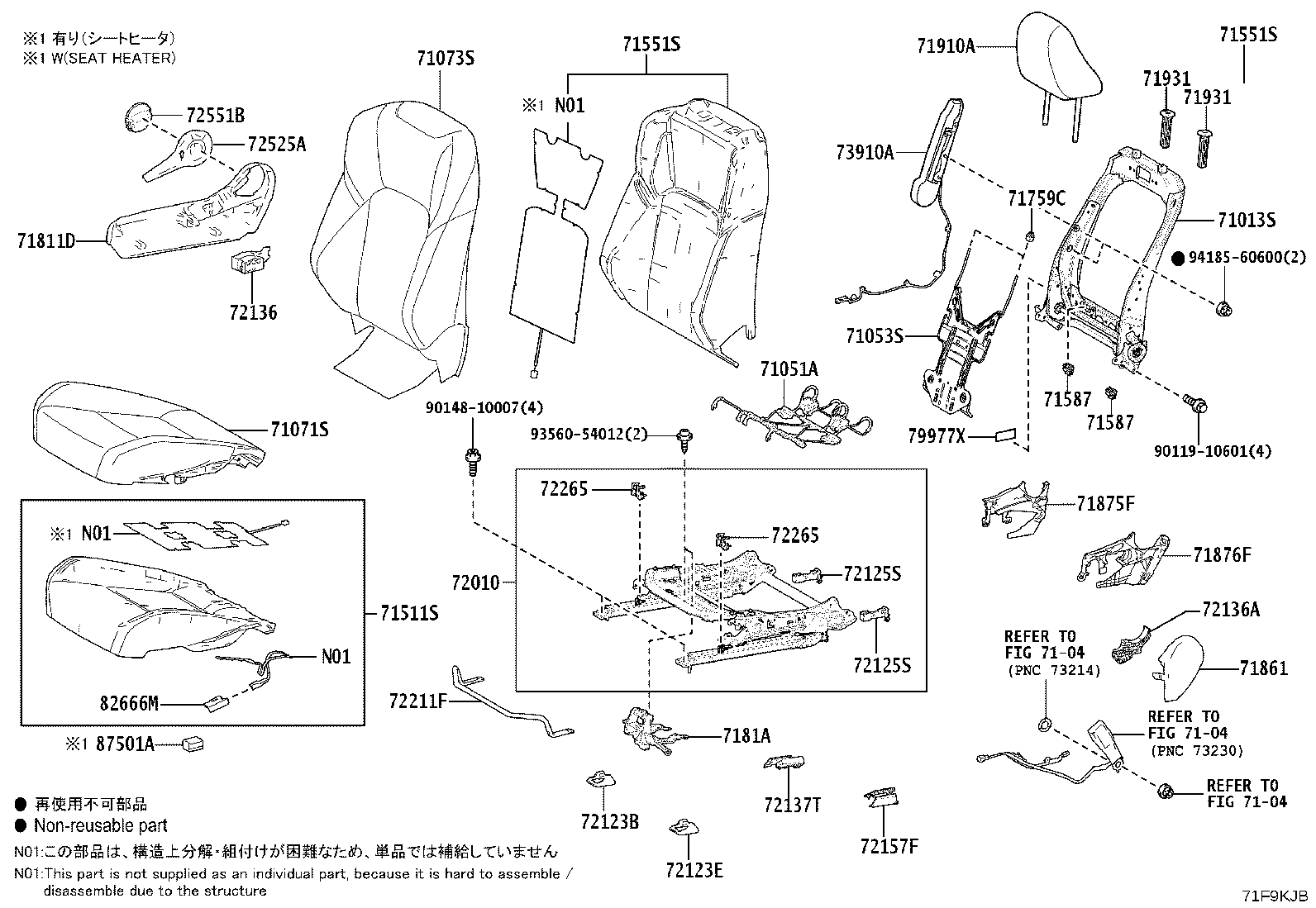

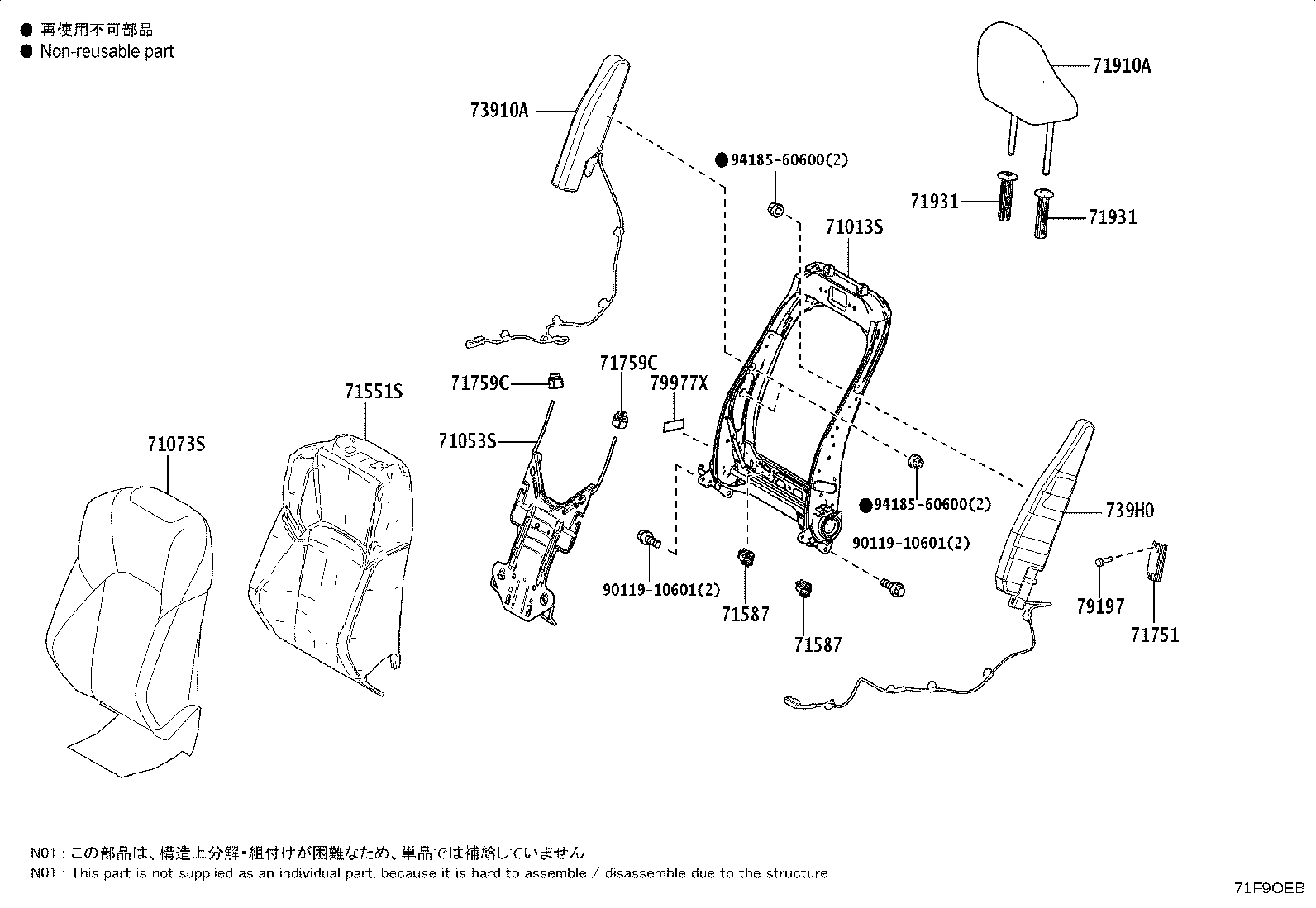

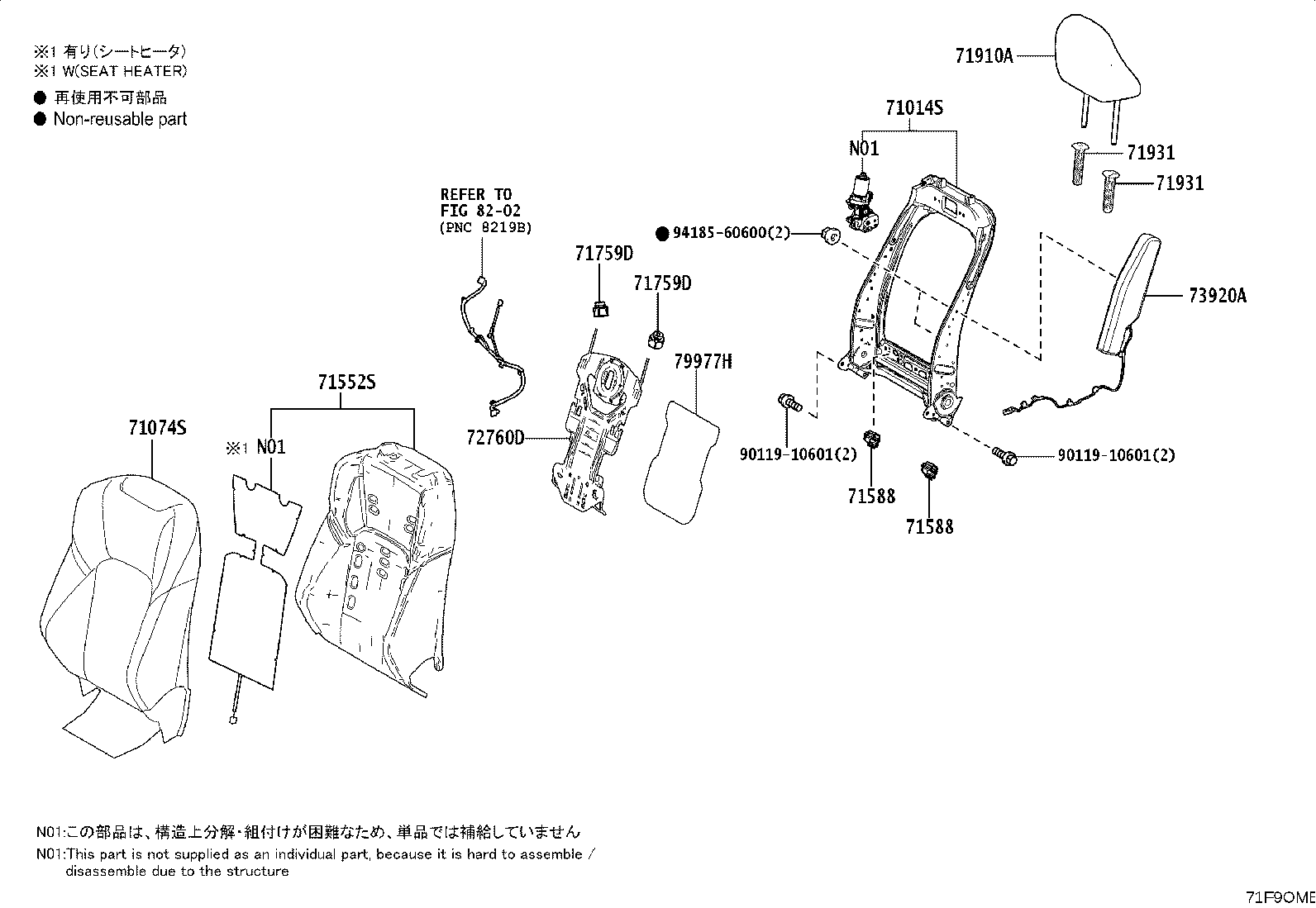

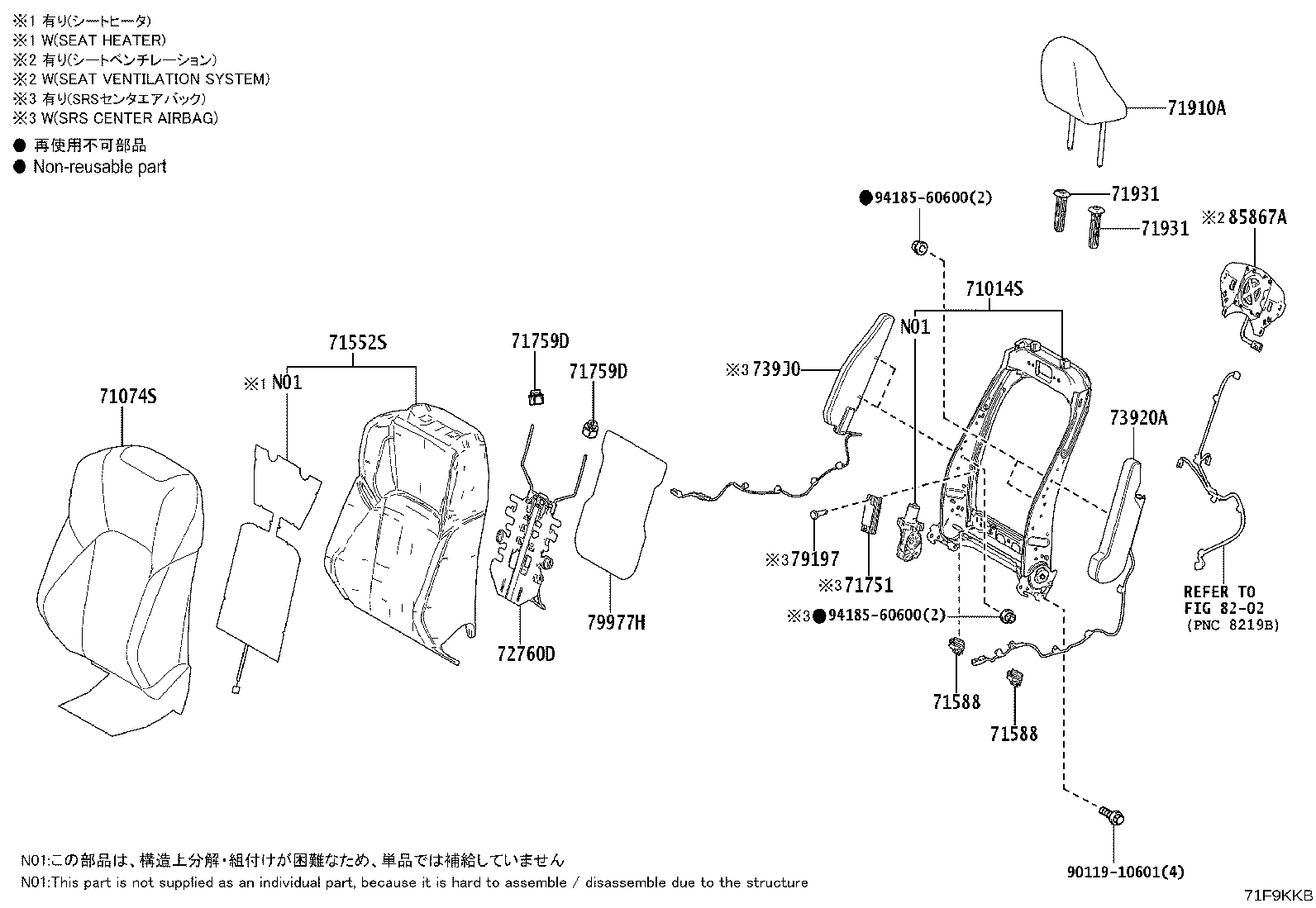

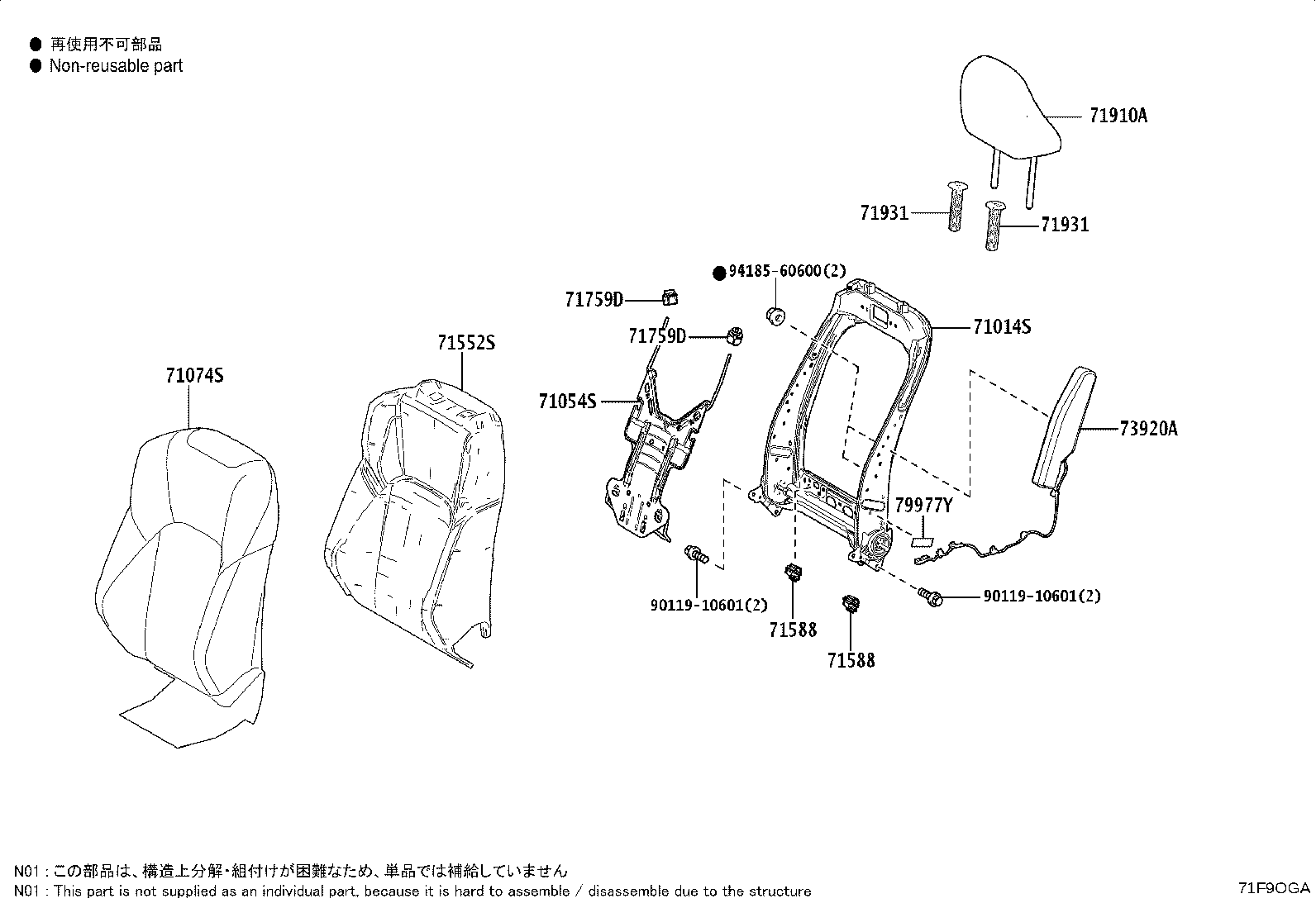

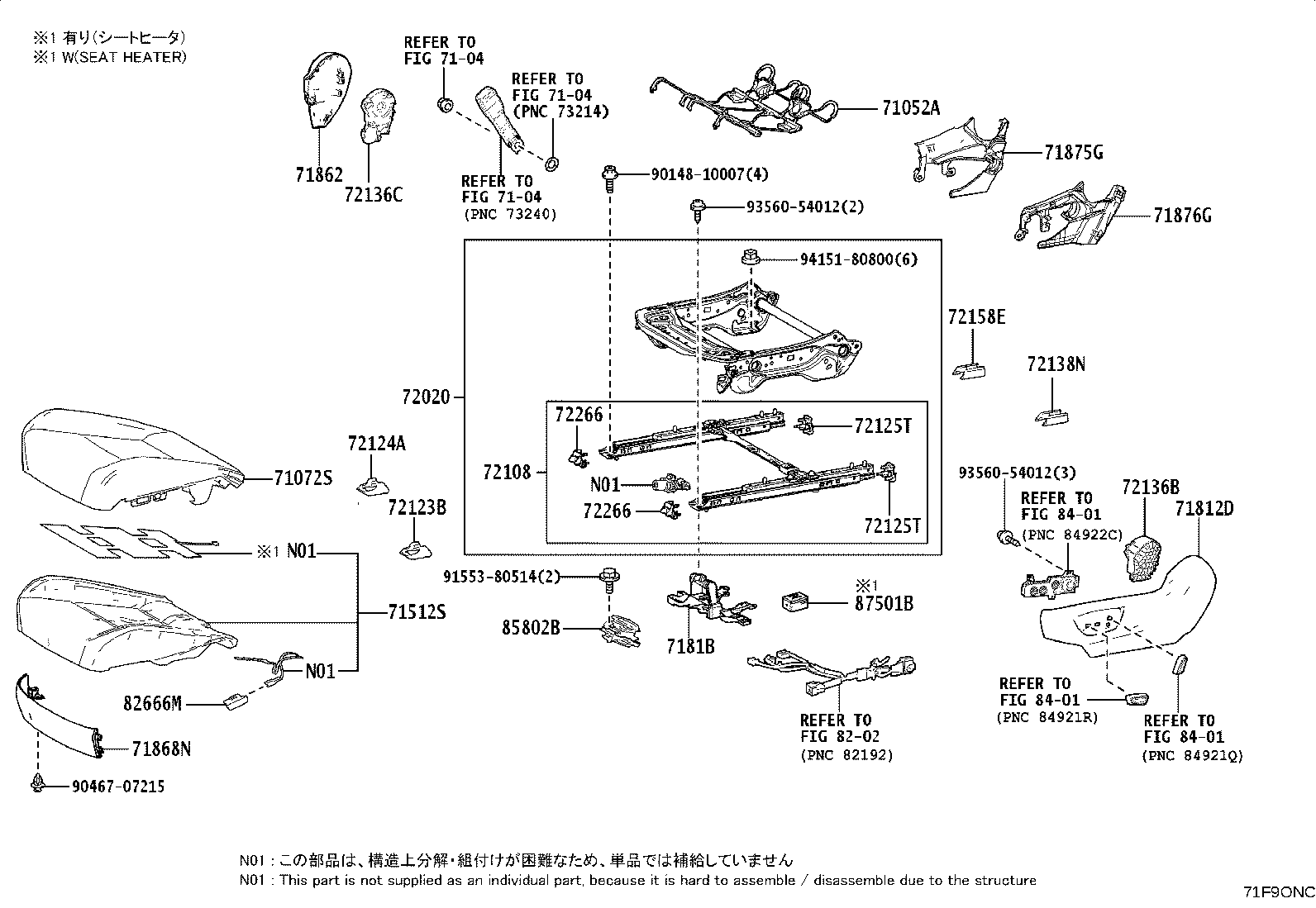

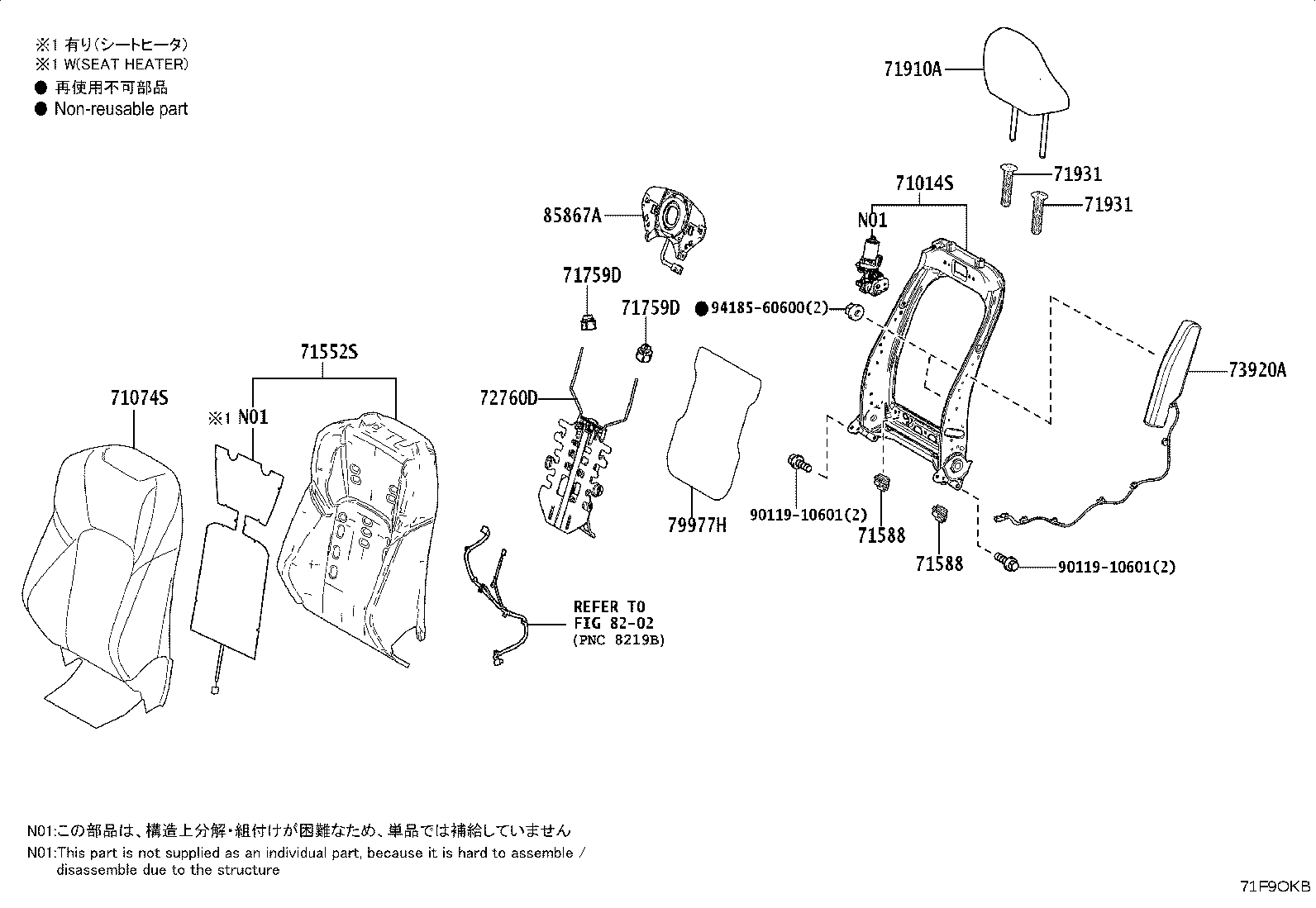

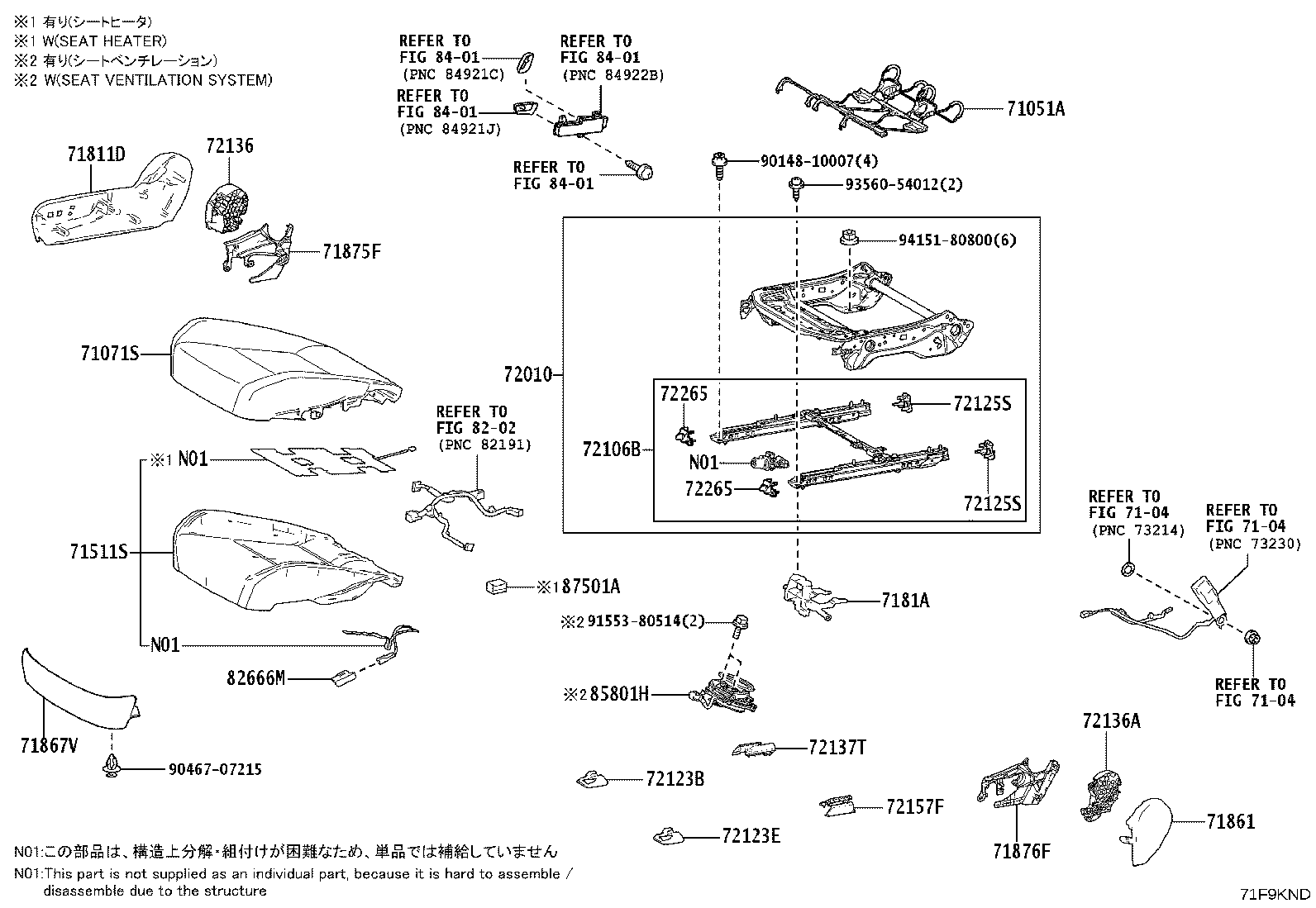

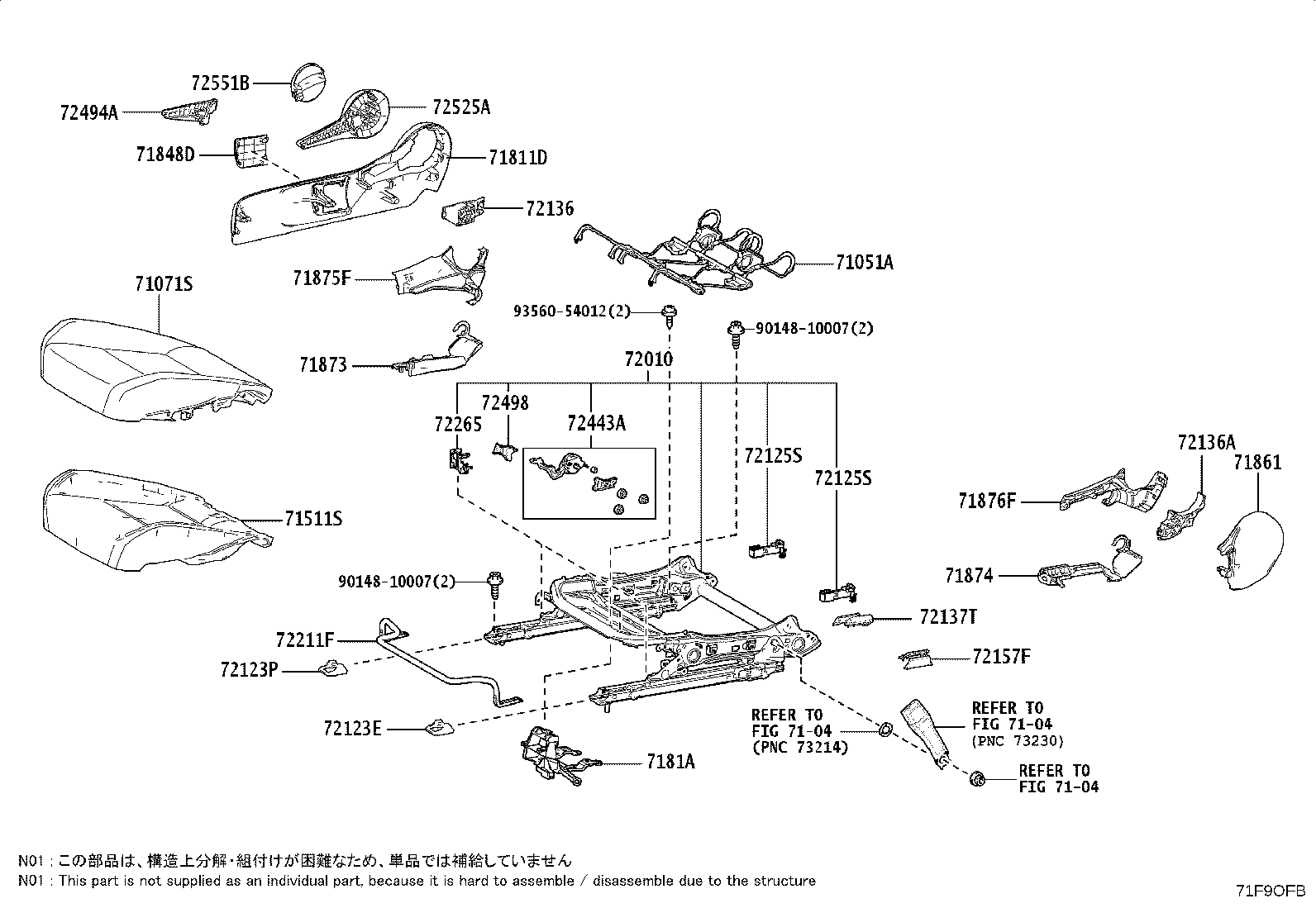

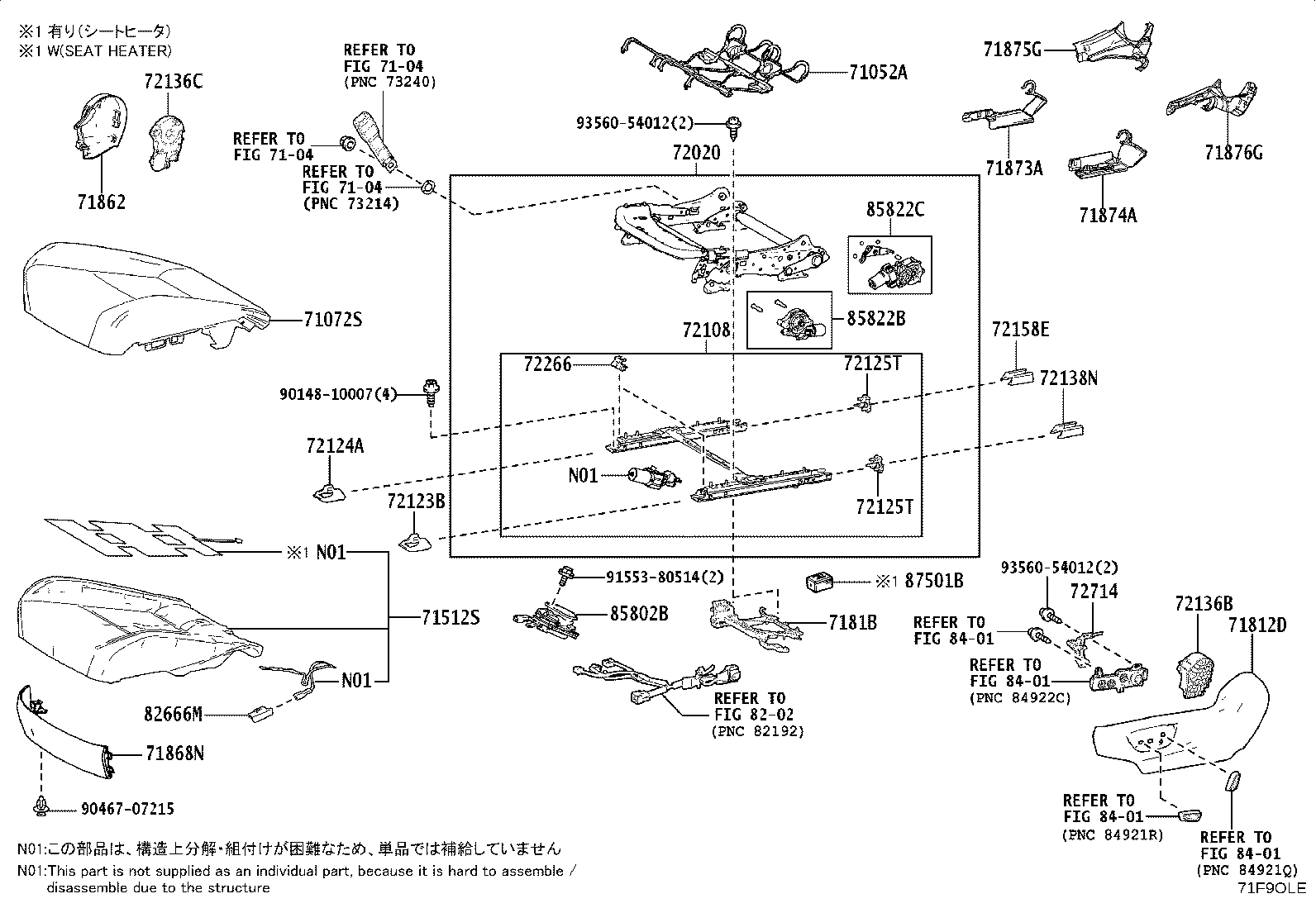

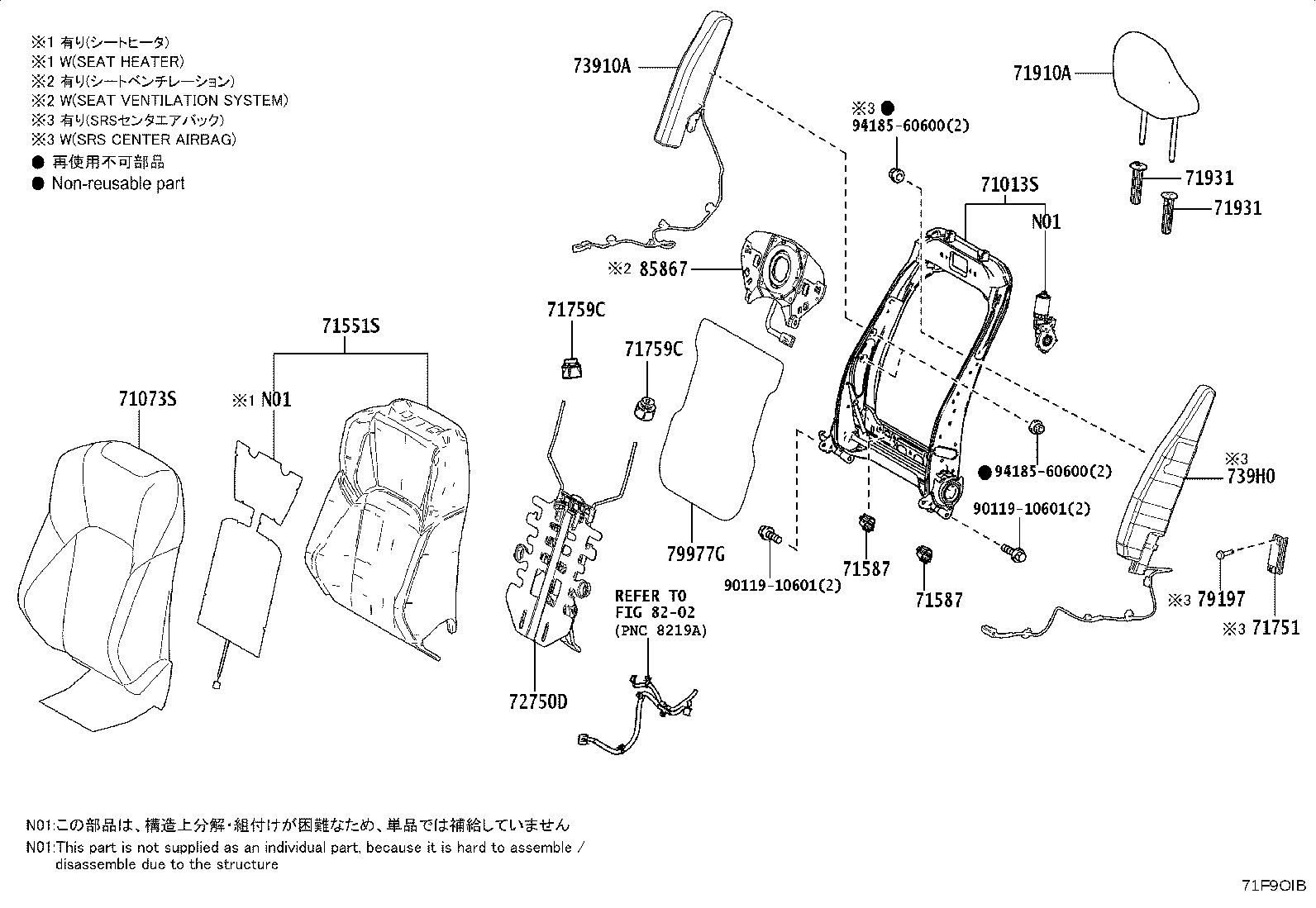

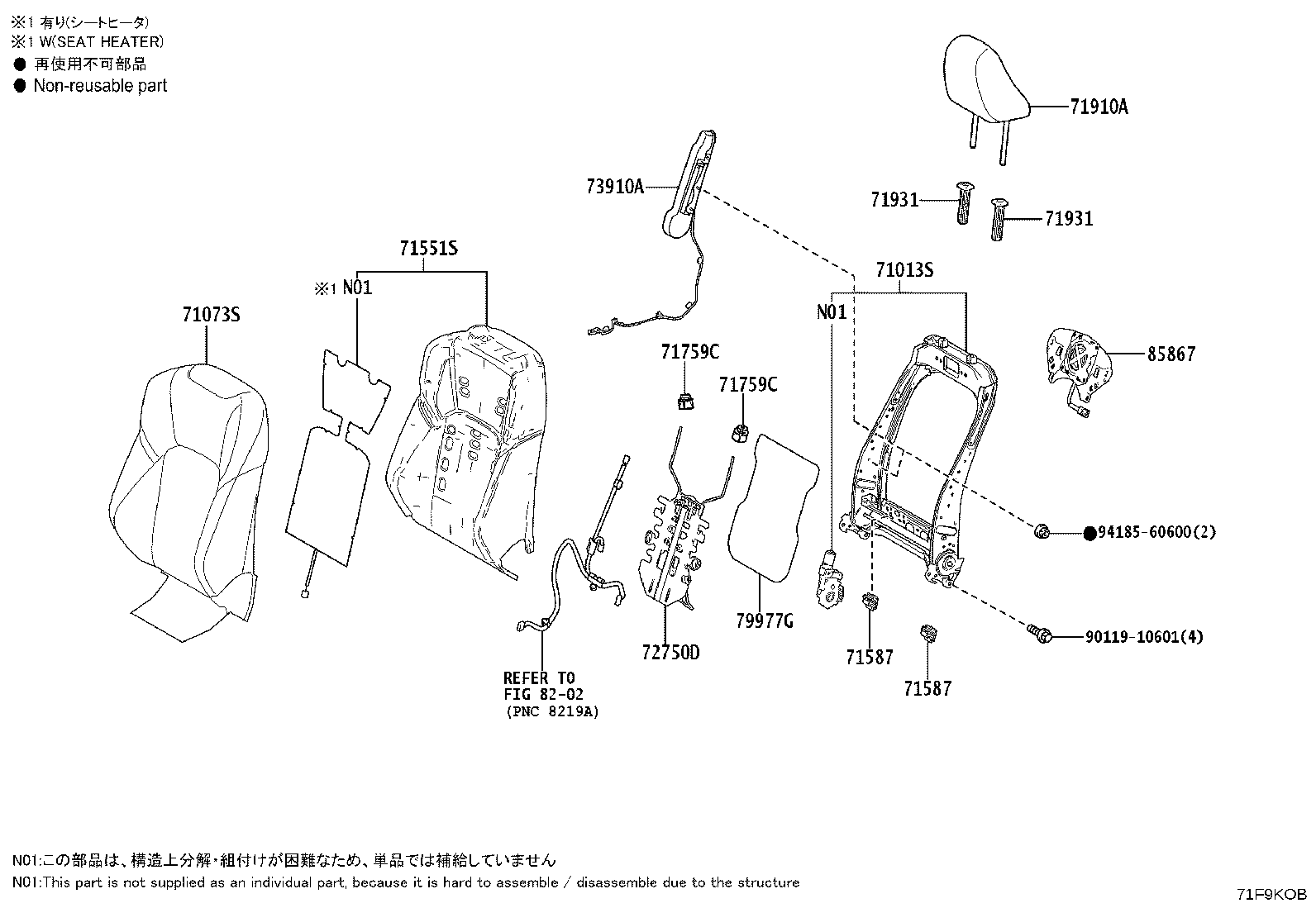

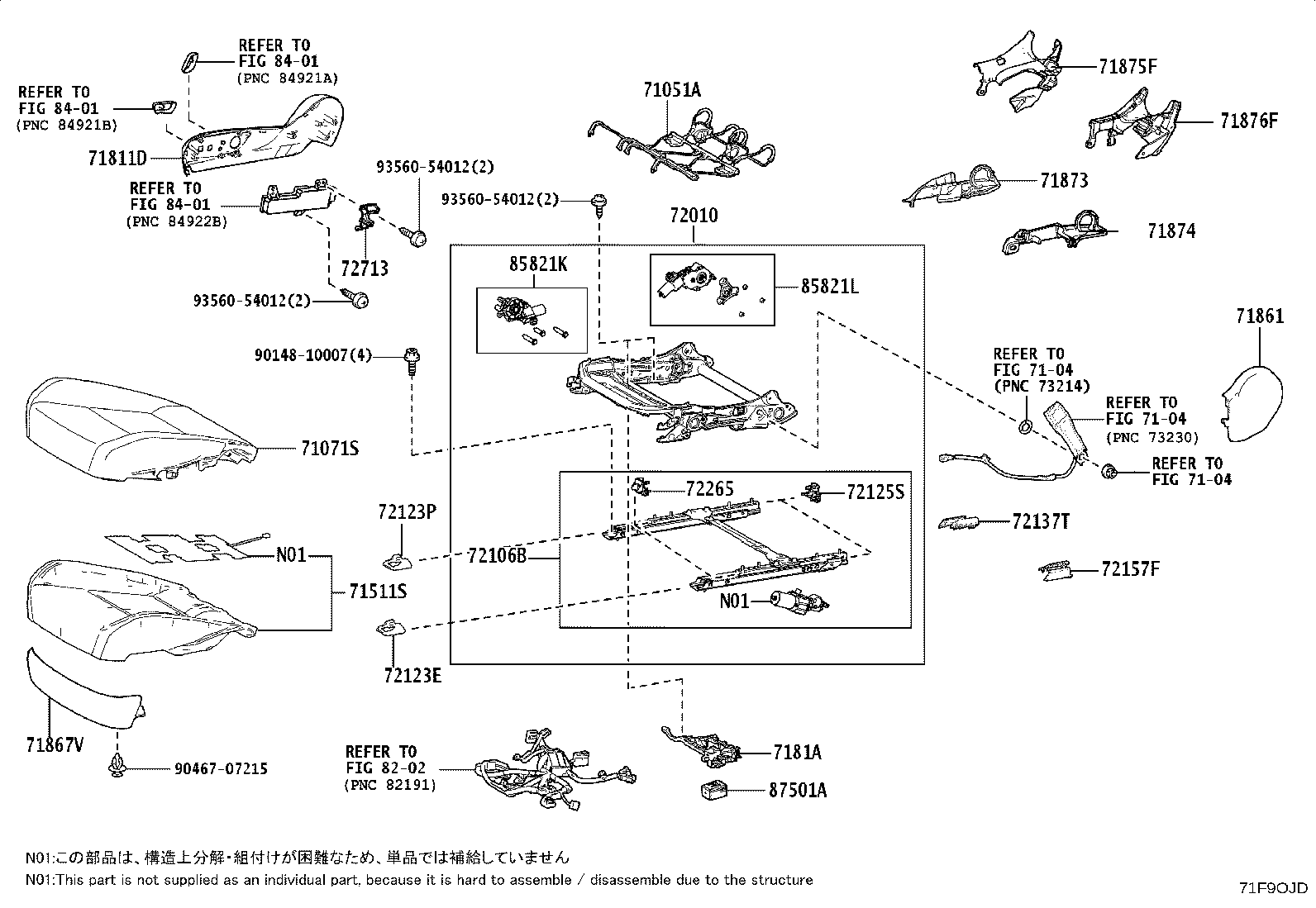

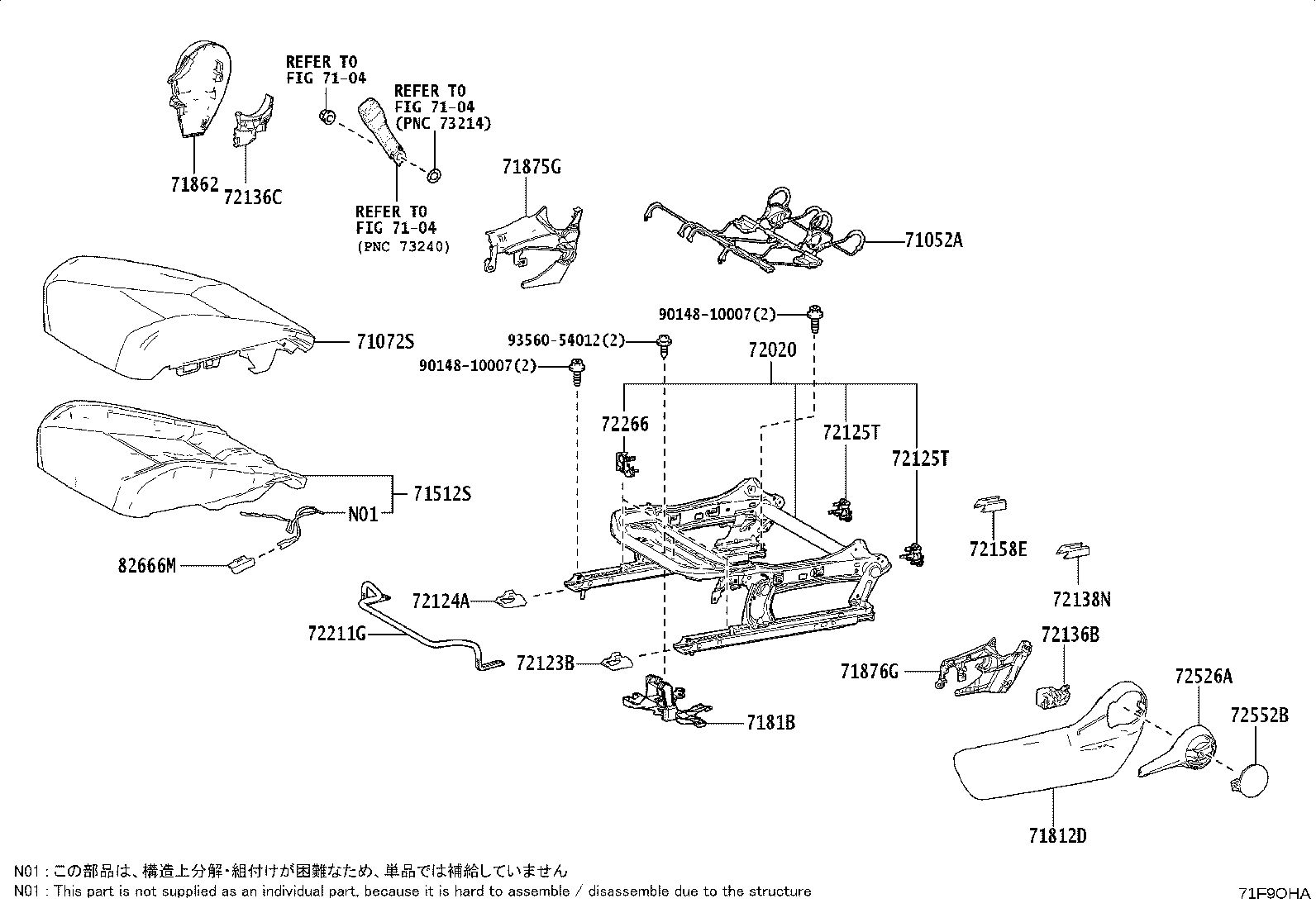

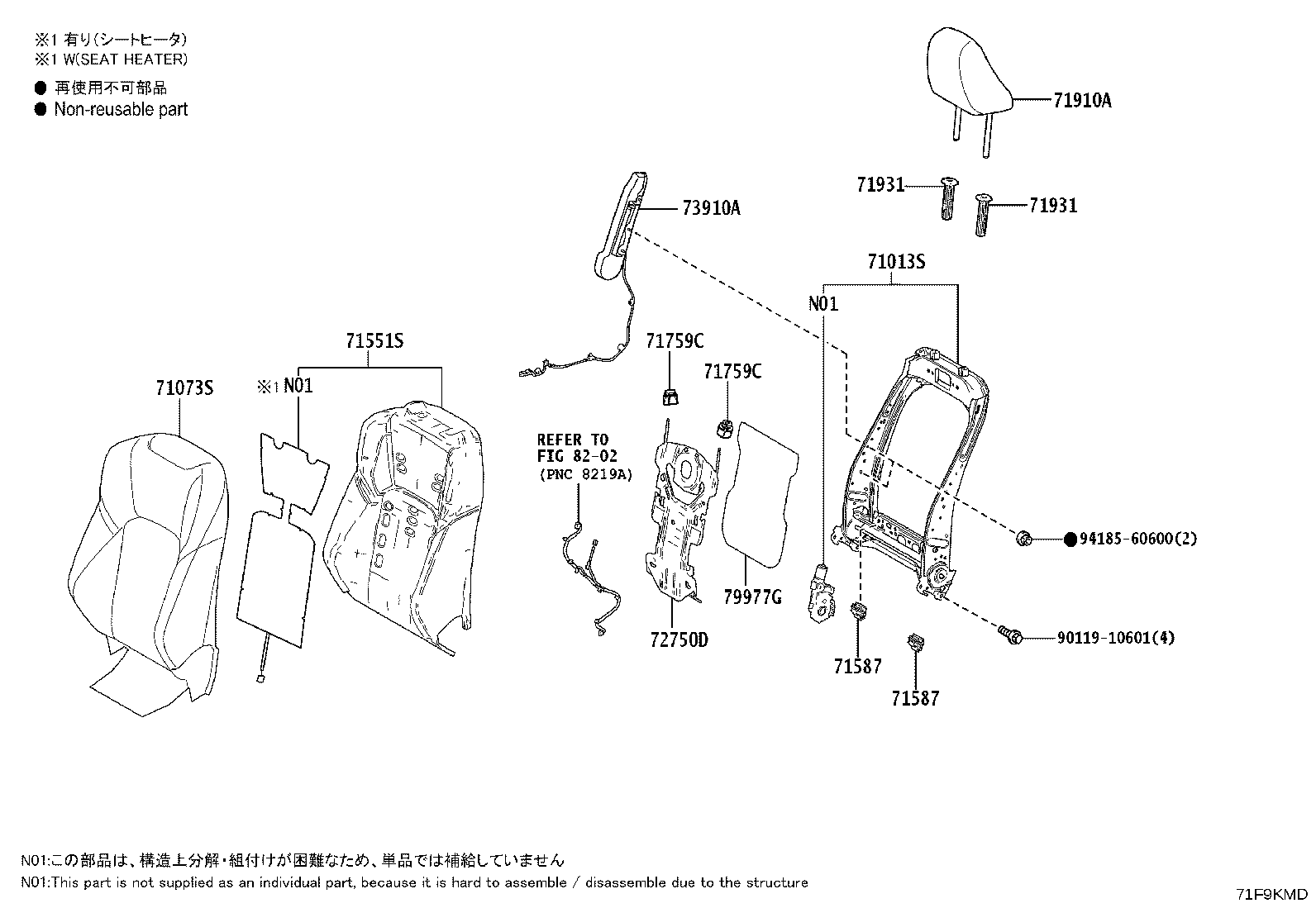

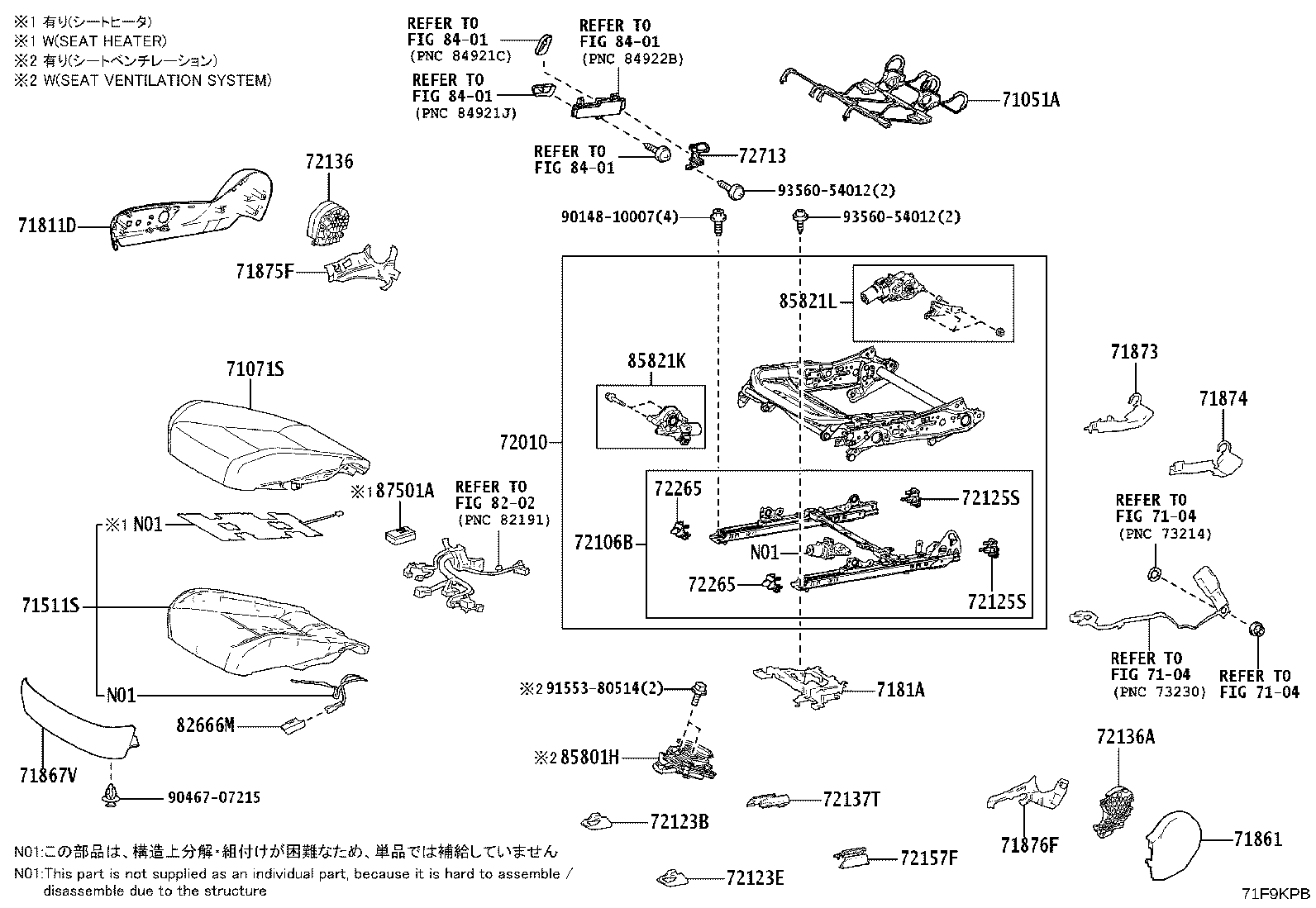

Figure 71F9KIF 71F9KIF 2024-06 → — Figure 71F9KKB 71F9KKB 2024-06 → — Figure 71F9KLD 71F9KLD 2024-06 → — Figure 71F9KJB 71F9KJB 2024-06 → — Figure 71F9KMD 71F9KMD 2024-06 → — Figure 71F9KND 71F9KND 2024-06 → — Figure 71F9KOB 71F9KOB 2024-06 → — Figure 71F9KPB 71F9KPB 2024-06 → — Figure 71F9OEB 71F9OEB 2024-06 → — Figure 71F9OFB 71F9OFB 2024-06 → — Figure 71F9OIB 71F9OIB 2024-06 → — Figure 71F9OJD 71F9OJD 2024-06 → — Figure 71F9OGA 71F9OGA 2024-06 → — Figure 71F9OHA 71F9OHA 2024-06 → — Figure 71F9OMB 71F9OMB 2024-06 → — Figure 71F9ONC 71F9ONC 2024-06 → — Figure 71F9OKB 71F9OKB 2024-06 → — Figure 71F9OLE 71F9OLE 2024-06 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71751 Hanger, Seat Cover
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71848D Cap, Seat Adjuster Cover, RH(FOR RH SEAT)
71849F Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72106B Rail Sub-assy, Seat Track, Upper RH
72108 Rail Sub-assy, Seat Track, Upper LH
72123B Cover, Seat Track Bracket, Outer Front
72123E Cover, Seat Track Bracket, Inner Front RH
72123P Cover, Seat Track Bracket, Outer Front, NO.2
72124A Cover, Seat Track Bracket, Inner Front LH
72125S Cover, Front Seat Track, Upper Rear RH
72125T Cover, Front Seat Track, Upper Rear LH
72136 Spacer, Seat Track, Lower NO.1
72136A Spacer, Seat Track, Lower NO.2
72136B Spacer, Seat Track, Lower NO.3
72136C Spacer, Seat Track, Lower NO.4
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72211F Handle, Seat Track Adjusting, RH
72211G Handle, Seat Track Adjusting, LH
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72443A Gear, Vertical Adjuster, RH
72443B Gear, Vertical Adjuster, LH
72494A Handle, Front Seat Vertical Adjuster, RH
72495A Handle, Front Seat Vertical Adjuster, LH
72498 Cover, Vertical Adjuster Bracket
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
739H0 Airbag Assy, Front Seat Center, RH
739J0 Airbag Assy, Front Seat Center, LH
79197 Hook, Seatback Cover
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
79977X Felt, Seatback, RH
79977Y Felt, Seatback, LH
82666M Holder, Connector
85801H Blower Sub-assy, Seat Cushion Climate, RH
85802B Blower Sub-assy, Seat Cushion Climate, LH
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
