Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

5 part groups · 2 illustrations

Illustrations

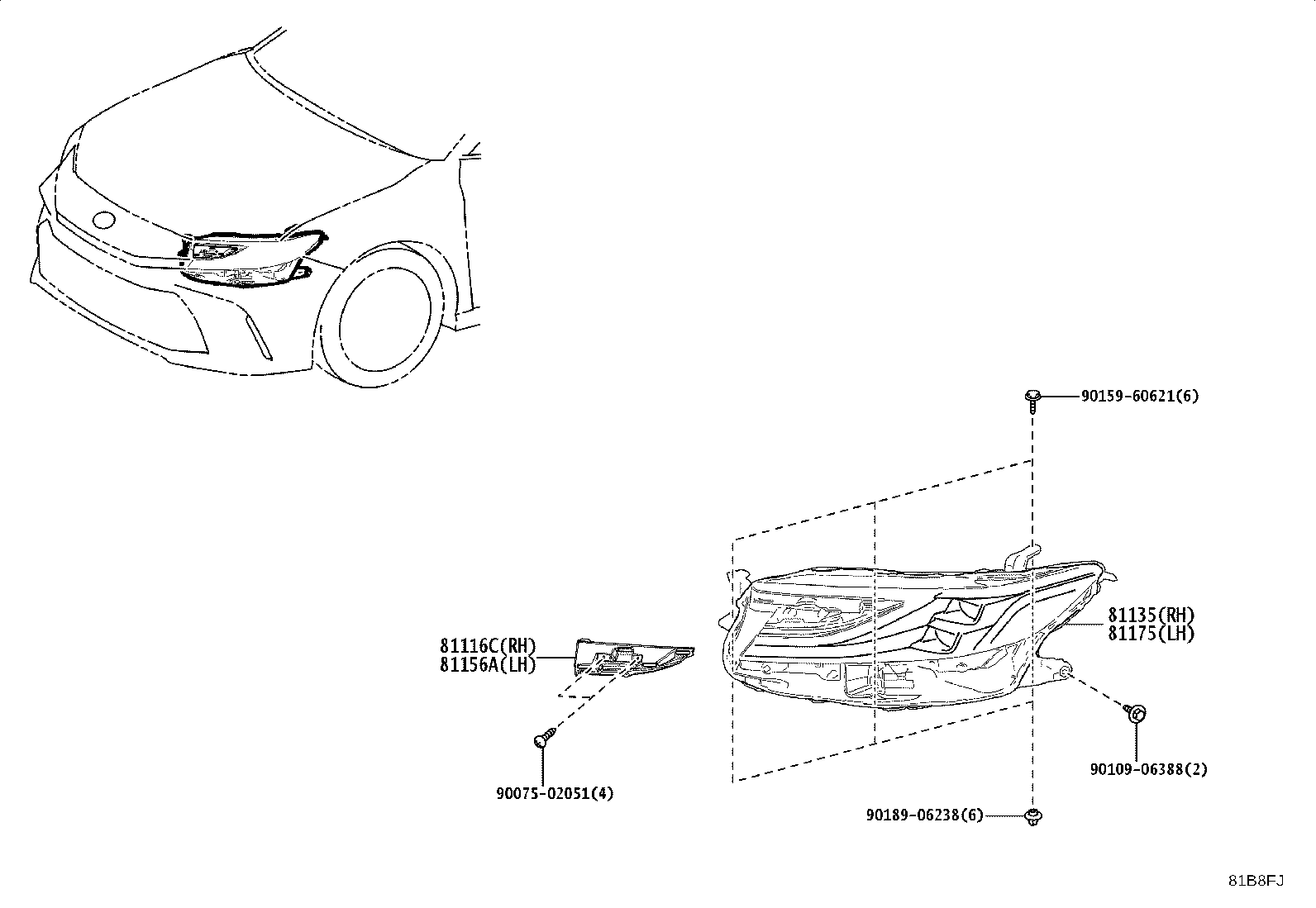

Figure 81B8FI 81B8FI 2024-06 → — Figure 81B8FJ 81B8FJ 2024-06 → —

Part groups

PNCDescription
81116C Bracket, Headlamp, RH
81135 Unit Assy, Headlamp, RH
8113A Led, Headlamp Front Turn Signal
81156A Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
