Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

9 part groups · 3 illustrations

Illustrations

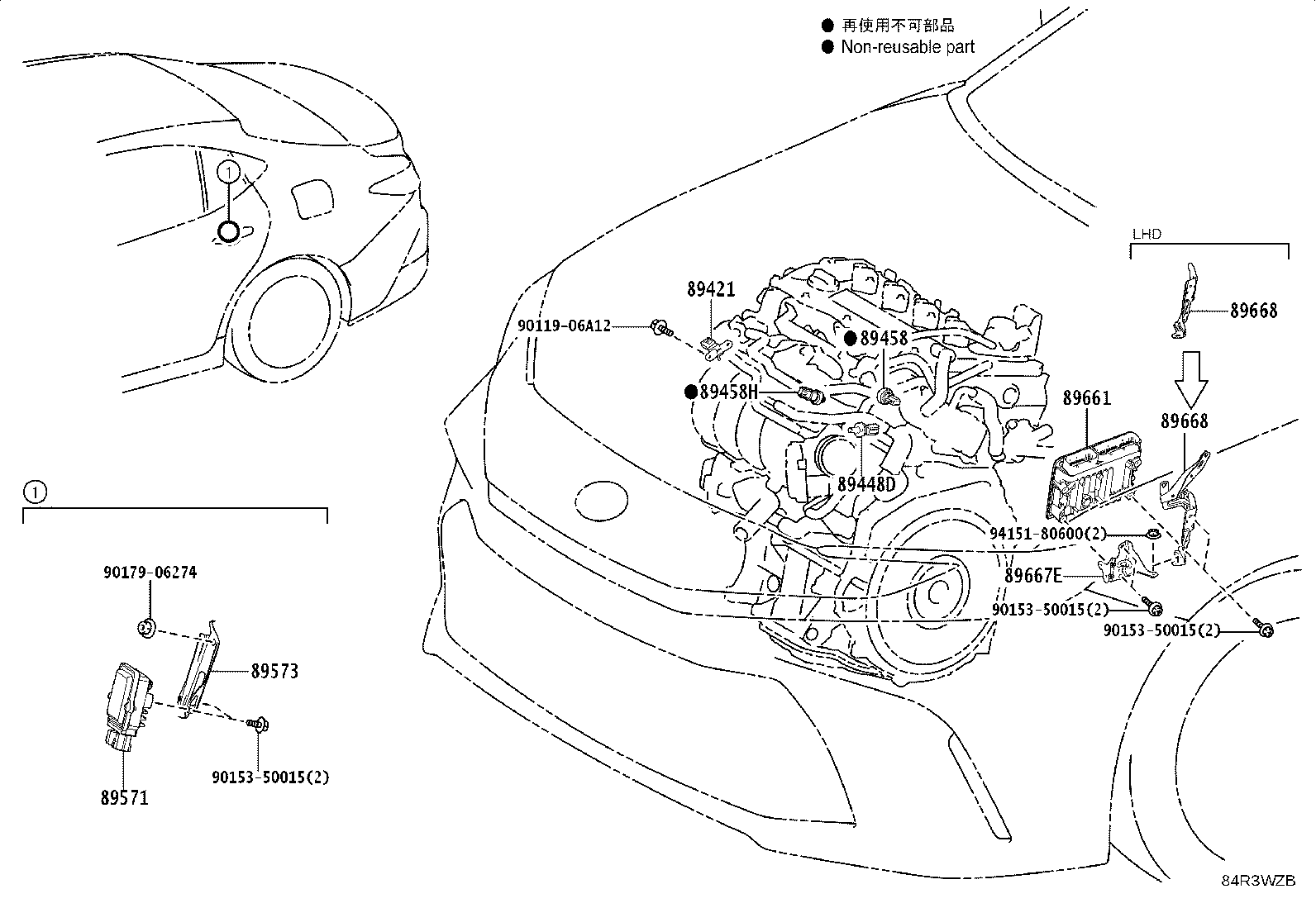

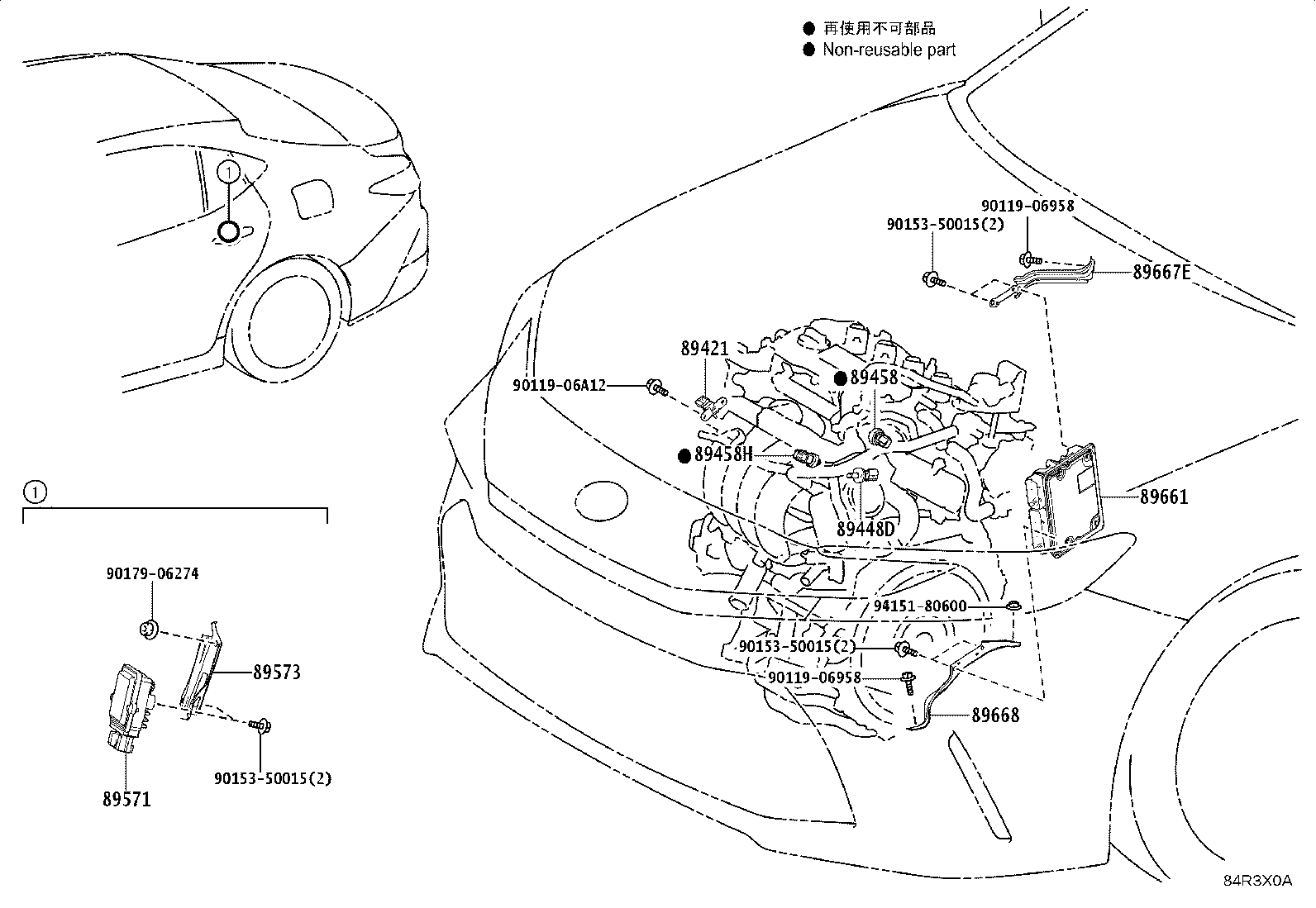

Figure 84R3WYA 84R3WYA 2024-06 → — Figure 84R3WZB 84R3WZB 2024-06 → — Figure 84R3X0A 84R3X0A 2024-06 → —

Part groups

PNCDescription
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89448D Sensor, Oil Pressure & Temperature
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
