Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

10 part groups · 2 illustrations

Illustrations

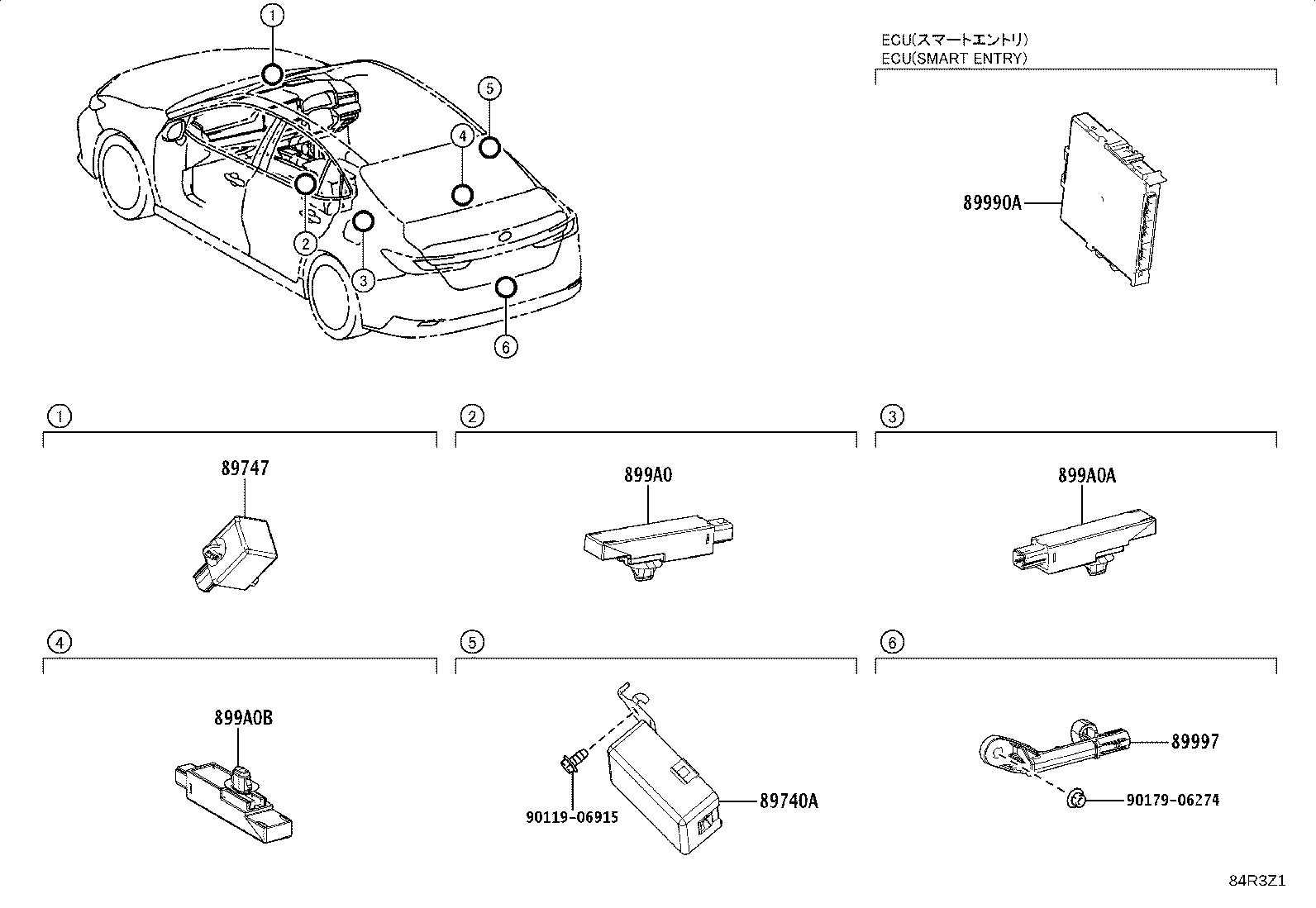

Figure 84R3Z0A 84R3Z0A 2024-06 → — Figure 84R3Z1 84R3Z1 2024-06 → —

Part groups

PNCDescription
89000 Computer Assy, Digital Key
890F0 Receiver Assy, Ble Luggage Digital Key
890G0 Receiver Assy, Ble Indoor Digital Key
89740A Receiver Assy, Smart Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
