Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

16 part groups · 2 illustrations

Illustrations

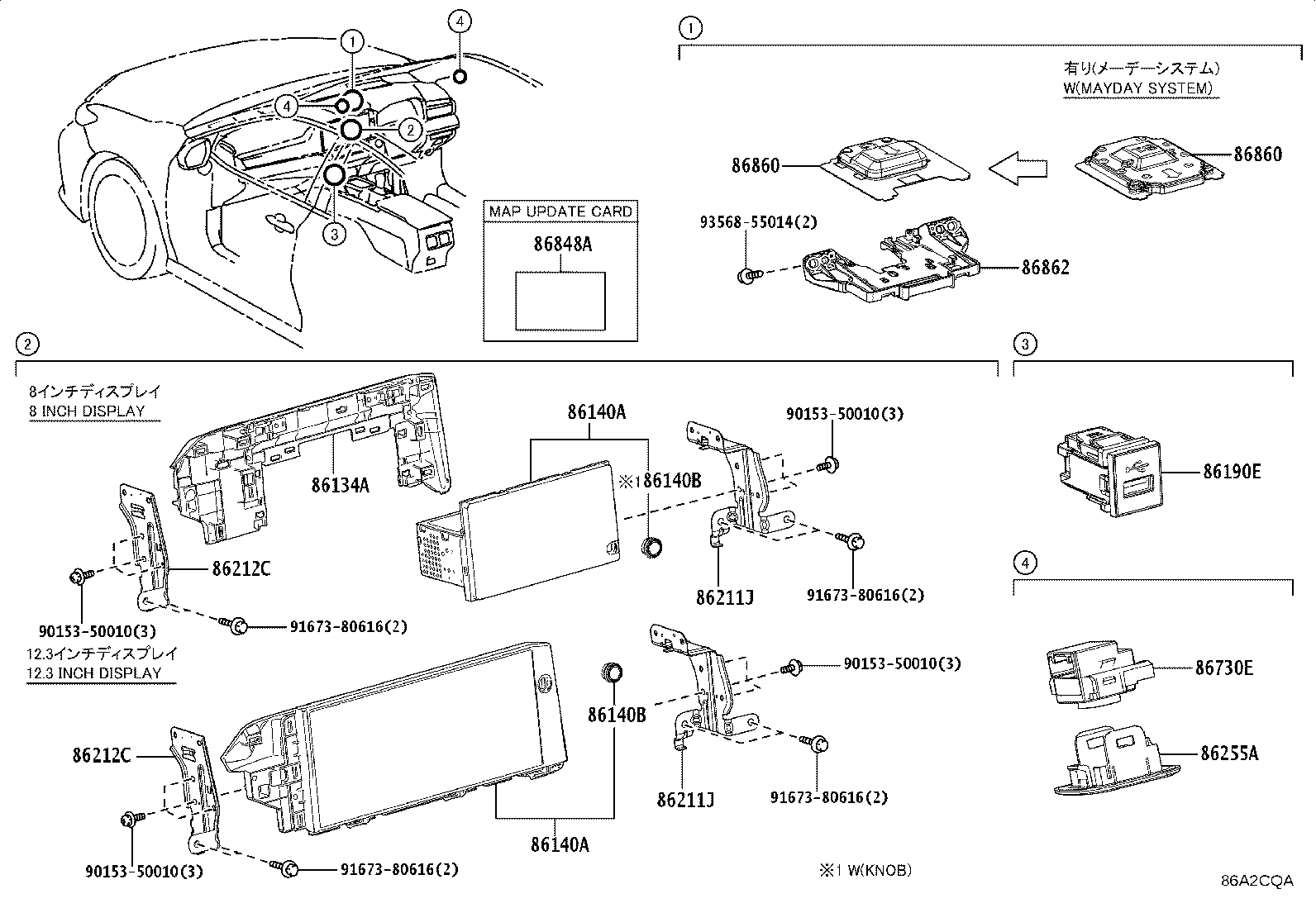

Figure 86A2CRB 86A2CRB 2024-06 → — Figure 86A2CQA 86A2CQA 2024-06 → —

Part groups

PNCDescription
86134A Parts, Multi-display
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86190E Adapter Assy, Stereo Jack
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86255A Case, Microphone, NO.1
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86457B Bracket, Multi-media Module NO.3
86457D Bracket, Multi-media Module NO.4
86730E Microphone Assy
86840B Computer Assy, Navigation
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
