Toyota Camry

2024-06 → present · chassis AXVA80,AXVH80,MXVA80 · catalogue 2842B0 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

14 part groups · 2 illustrations

Illustrations

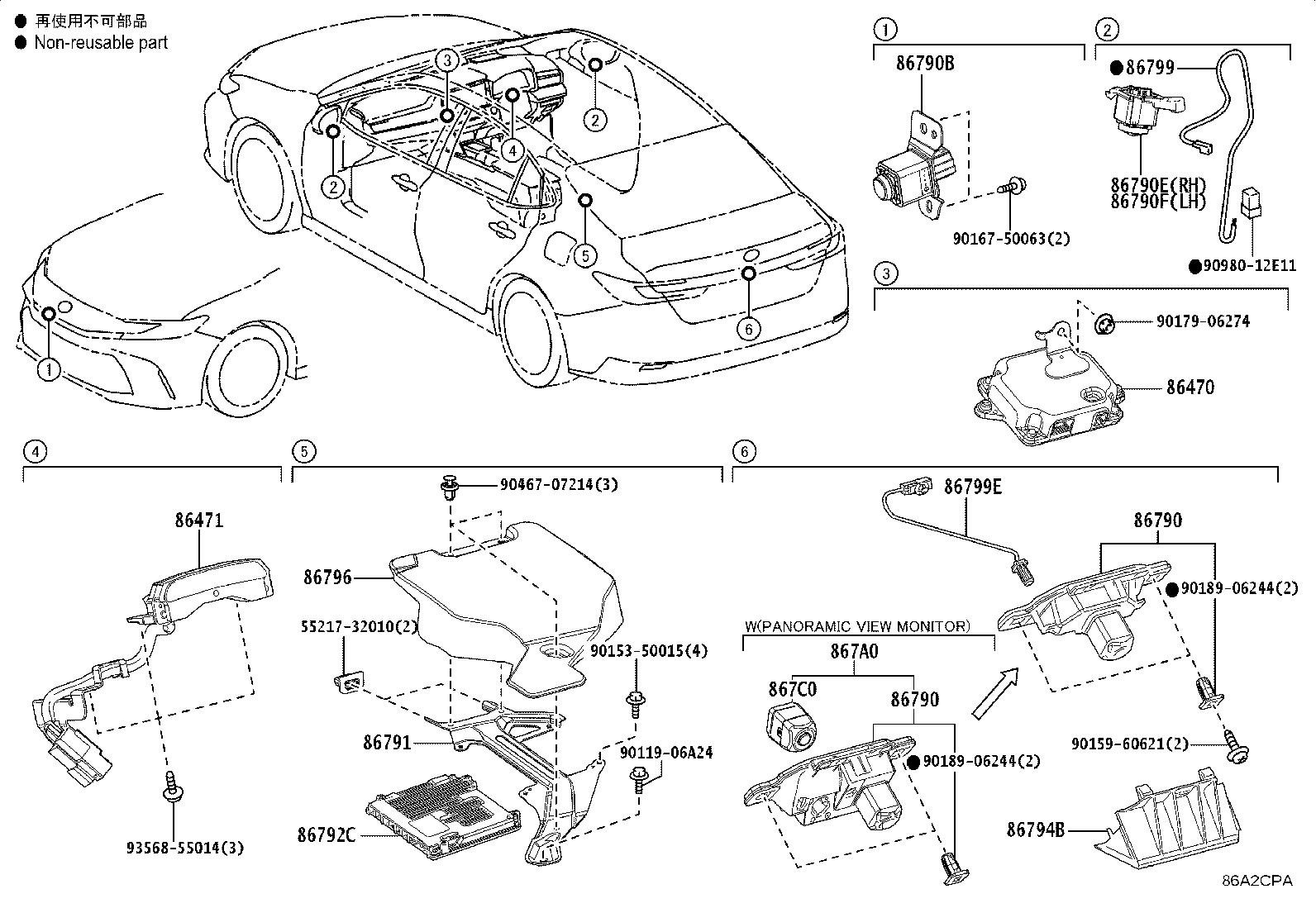

Figure 86A2COA 86A2COA 2024-06 → — Figure 86A2CPA 86A2CPA 2024-06 → —

Part groups

PNCDescription
86470 Computer Assy, Driver Monitor
86471 Camera, Driver Monitor
86790 Camera Assy, Television
86790B Camera Assy, Television, FR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86791 Bracket, Television Camera
86792C Computer, Parking Assist
86794B Cover, Television Camera
86796 Cover, Computer Parking Assist
86799 Wire, Television Camera
86799E Wire, Television Camera, Rear
867A0 Camera Assy, Television & Inner Rear View Mirror
867C0 Camera Assy, Inner Mirror
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
