Toyota Camry
2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe
Discontinued model
Data version 2006-09

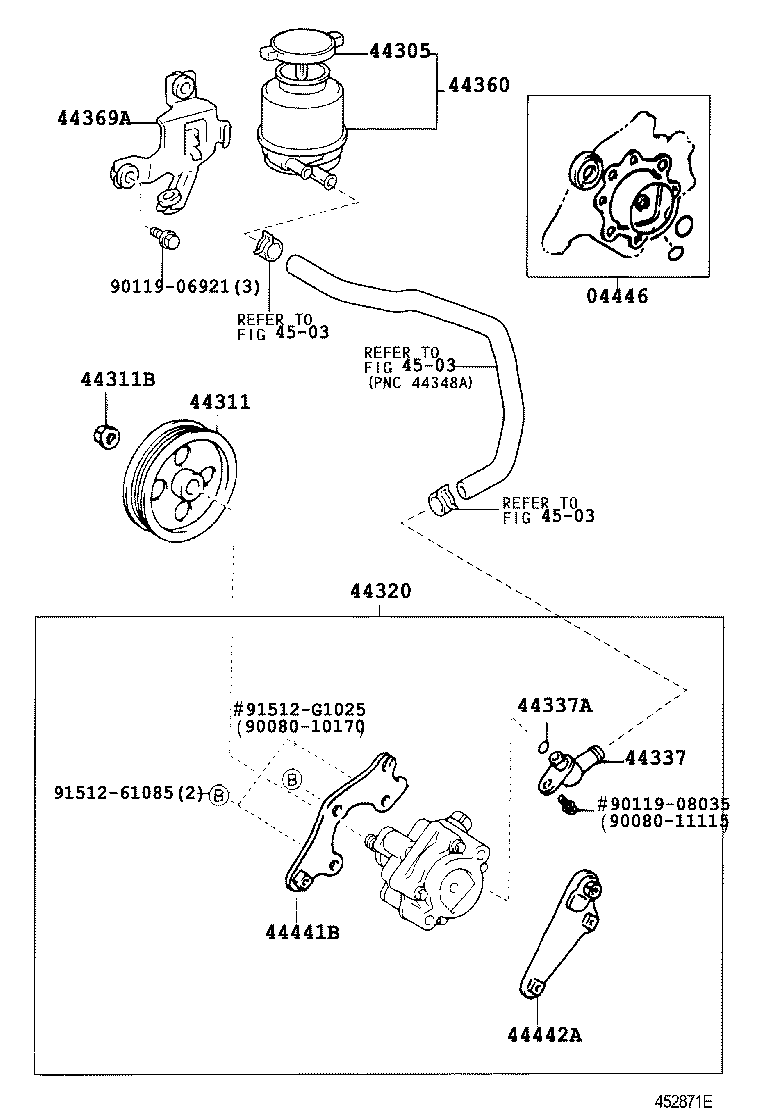

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-06040 note |
Gasket Kit, Power Steering Pump
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 04446-06050 note |
Gasket Kit, Power Steering Pump
2001-08 → 2004-06
ended
|
ACV3# | — | |
| 04446-32050 |
Gasket Kit, Power Steering Pump
2001-08 → 2004-06
ended
|
ACV3# | — | |
| 04446-34010 note |
Gasket Kit, Power Steering Pump
2001-08 → 2003-07
ended
|
MCV30 | — | |
| 04446-53030 note |
Gasket Kit, Power Steering Pump
2003-07 → 2004-06
ended
|
MCV30 | — | |
| 04446-32050 |
Gasket Kit, Power Steering Pump
2004-06 → —
|
ACV3# | — | |
| 04446-53030 |
Gasket Kit, Power Steering Pump
2004-06 → —
|
MCV30 | — | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-28030 |
Cap Sub-assy, Vane Pump Oil Reservoir
2001-08 → 2004-06
ended
|
ACV3#,MCV30 | — | |
| 44305-28030 |
Cap Sub-assy, Vane Pump Oil Reservoir
2004-06 → —
|
ACV3#,MCV30 | — | |
| 44311 — Pulley, Vane Pump | ||||
| 44311-28110 |
Pulley, Vane Pump
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44311-28110 |
Pulley, Vane Pump
2004-06 → —
|
MCV30 | — | |
| 44311B — Nut(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
Nut(FOR VANE PUMP PULLEY)
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 90178-12003 |
Nut(FOR VANE PUMP PULLEY)
2004-06 → —
|
MCV30 | — | |
| 44320 — Pump Assy, Vane | ||||
| 44310-06070 note |
Pump Assy, Vane
2001-08 → 2004-05
ended
|
ACV3# | — | |
| 44310-06080 note |
Pump Assy, Vane
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44310-33150 note |
Pump Assy, Vane
2001-08 → 2004-06
ended
|
ACV3# | — | |
| 44320-33140 note |
Pump Assy, Vane
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44310-06071 note |
Pump Assy, Vane
2004-06 → —
|
ACV3# | — | |
| 44310-06080 note |
Pump Assy, Vane
2004-06 → —
|
MCV30 | — | |
| 44310-06080 note |
Pump Assy, Vane
2004-06 → —
|
MCV30 | — | |
| 44310-33150 note |
Pump Assy, Vane
2004-06 → —
|
ACV3# | — | |
| 44320-33140 note |
Pump Assy, Vane
2004-06 → —
|
MCV30 | — | |
| 44320-33140 note |
Pump Assy, Vane
2004-06 → —
|
MCV30 | — | |
| 44337 — Union, Power Steering Suction Port | ||||
| 44337-06040 note |
Union, Power Steering Suction Port
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44337-32110 |
Union, Power Steering Suction Port
2001-08 → 2004-06
ended
|
ACV3# | — | |
| 44337-33040 note |
Union, Power Steering Suction Port
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44337-06040 note |
Union, Power Steering Suction Port
2004-06 → —
|
MCV30 | — | |
| 44337-32110 |
Union, Power Steering Suction Port
2004-06 → —
|
ACV3# | — | |
| 44337-33040 note |
Union, Power Steering Suction Port
2004-06 → —
|
MCV30 | — | |
| 44337A — Ring, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30034 note |
Ring, O(FOR POWER STEERING SUCTION PORT)
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 90301-11016 note |
Ring, O(FOR POWER STEERING SUCTION PORT)
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 90301-11016 note |
Ring, O(FOR POWER STEERING SUCTION PORT)
2004-06 → —
|
MCV30 | — | |
| 90301-11020 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2001-08 → 2004-06
ended
|
ACV3# | — | |
| 90080-30034 note |
Ring, O(FOR POWER STEERING SUCTION PORT)
2004-06 → —
|
MCV30 | — | |
| 90301-11020 |
Ring, O(FOR POWER STEERING SUCTION PORT)
2004-06 → —
|
ACV3# | — | |
| 44360 — Reservoir Assy, Vane Pump Oil | ||||
| 44360-33040 |
Reservoir Assy, Vane Pump Oil
2001-08 → 2004-06
ended
|
ACV3#,MCV30 | — | |
| 44360-33040 |
Reservoir Assy, Vane Pump Oil
2004-06 → —
|
ACV3#,MCV30 | — | |
| 44369A — Bracket, Oil Reservoir, NO.1 | ||||
| 44390-33010 |
Bracket, Oil Reservoir, NO.1
2001-08 → 2004-06
ended
|
ACV3#,MCV30 | — | |
| 44390-33010 |
Bracket, Oil Reservoir, NO.1
2004-06 → —
|
ACV3#,MCV30 | — | |
| 44441B — Bracket, Pump, Front | ||||
| 44441-06040 note |
Bracket, Pump, Front
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44441-28020 note |
Bracket, Pump, Front
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44441-06040 note |
Bracket, Pump, Front
2004-06 → —
|
MCV30 | — | |
| 44441-28020 note |
Bracket, Pump, Front
2004-06 → —
|
MCV30 | — | |
| 44442A — Bracket, Vane Pump, Rear | ||||
| 44442-07010 note |
Bracket, Vane Pump, Rear
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44442-33021 note |
Bracket, Vane Pump, Rear
2001-08 → 2004-06
ended
|
MCV30 | — | |
| 44442-07010 note |
Bracket, Vane Pump, Rear
2004-06 → —
|
MCV30 | — | |
| 44442-33021 note |
Bracket, Vane Pump, Rear
2004-06 → —
|
MCV30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
