Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

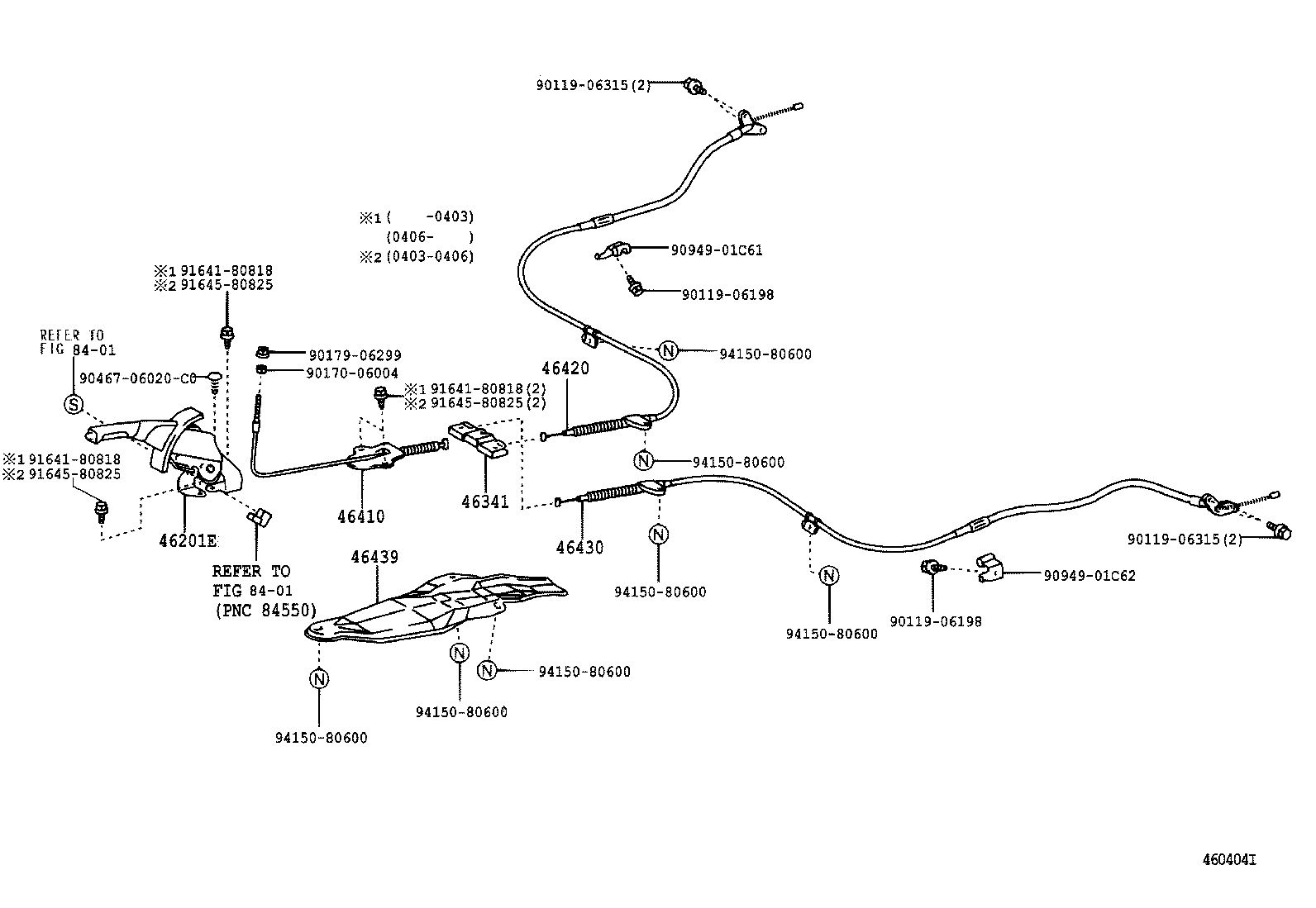

Exploded illustration 460404I 8401 — not listed in this catalogue 9415080600 — not listed in this catalogue 46201E — LEVER SUB-ASSY, PARKING BRAKE (6 parts) 9017906299 — not listed in this catalogue 9017006004 — not listed in this catalogue 46410 — CABLE ASSY, PARKING BRAKE, NO.1 (6 parts) 46439 — INSULATOR, PARKING BRAKE CABLE HEAT (2 parts) 46341 — EQUALIZER, PARKING BRAKE (2 parts) 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (2 parts) 9011906315 — not listed in this catalogue 9011906315 — not listed in this catalogue 9094901C62 — not listed in this catalogue 9011906198 — not listed in this catalogue 9011906198 — not listed in this catalogue 9094901C61 — not listed in this catalogue 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (2 parts) 9415080600 — not listed in this catalogue 9415080600 — not listed in this catalogue 9415080600 — not listed in this catalogue 9415080600 — not listed in this catalogue 9415080600 — not listed in this catalogue 9415080600 — not listed in this catalogue 9046706020C0 — not listed in this catalogue 9164180818 — not listed in this catalogue 9164580825 — not listed in this catalogue 9164580825 — not listed in this catalogue 9164180818 — not listed in this catalogue 9164180818 — not listed in this catalogue 9164580825 — not listed in this catalogue 8401 — not listed in this catalogue
460404I · 6 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
46201E — Lever Sub-assy, Parking Brake
46201-33180-B0 note Lever Sub-assy, Parking Brake
2001-08 → 2003-07 ended
ACV30 MTM —
46201-33180-E0 note Lever Sub-assy, Parking Brake
2001-08 → 2003-07 ended
ACV30 MTM —
46201-33181-B0 note Lever Sub-assy, Parking Brake
2003-07 → 2004-06 ended
ACV30 MTM —
46201-33181-E0 note Lever Sub-assy, Parking Brake
2003-07 → 2004-06 ended
ACV30 MTM —
46201-33181-B0 note Lever Sub-assy, Parking Brake
2004-06 → —
ACV30 MTM —
46201-33181-E0 note Lever Sub-assy, Parking Brake
2004-06 → —
ACV30 MTM —
46341 — Equalizer, Parking Brake
46341-20070 Equalizer, Parking Brake
2001-08 → 2004-06 ended
ACV3#,MCV30 —
46341-20070 Equalizer, Parking Brake
2004-06 → —
ACV3#,MCV30 —
46410 — Cable Assy, Parking Brake, NO.1
46410-33120 Cable Assy, Parking Brake, NO.1
2001-08 → 2004-06 ended
ACV3#,MCV30 LHD ATM —
46410-33130 Cable Assy, Parking Brake, NO.1
2001-08 → 2004-06 ended
ACV30 MTM —
46410-33140 Cable Assy, Parking Brake, NO.1
2001-09 → 2004-06 ended
ACV3#,MCV30 RHD ATM —
46410-33120 Cable Assy, Parking Brake, NO.1
2004-06 → —
ACV3#,MCV30 LHD ATM —
46410-33130 Cable Assy, Parking Brake, NO.1
2004-06 → —
ACV30 MTM —
46410-33140 Cable Assy, Parking Brake, NO.1
2004-06 → —
ACV3#,MCV30 RHD ATM —
46420 — Cable Assy, Parking Brake, NO.2
46420-33100 Cable Assy, Parking Brake, NO.2
2001-08 → 2004-06 ended
ACV3#,MCV30 —
46420-33100 Cable Assy, Parking Brake, NO.2
2004-06 → —
ACV3#,MCV30 —
46430 — Cable Assy, Parking Brake, NO.3
46430-33100 Cable Assy, Parking Brake, NO.3
2001-08 → 2004-06 ended
ACV3#,MCV30 —
46430-33100 Cable Assy, Parking Brake, NO.3
2004-06 → —
ACV3#,MCV30 —
46439 — Insulator, Parking Brake Cable Heat
46439-33020 Insulator, Parking Brake Cable Heat
2001-08 → 2004-06 ended
ACV3#,MCV30 —
46439-33020 Insulator, Parking Brake Cable Heat
2004-06 → —
ACV3#,MCV30 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
