Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 2 illustrations

Illustrations

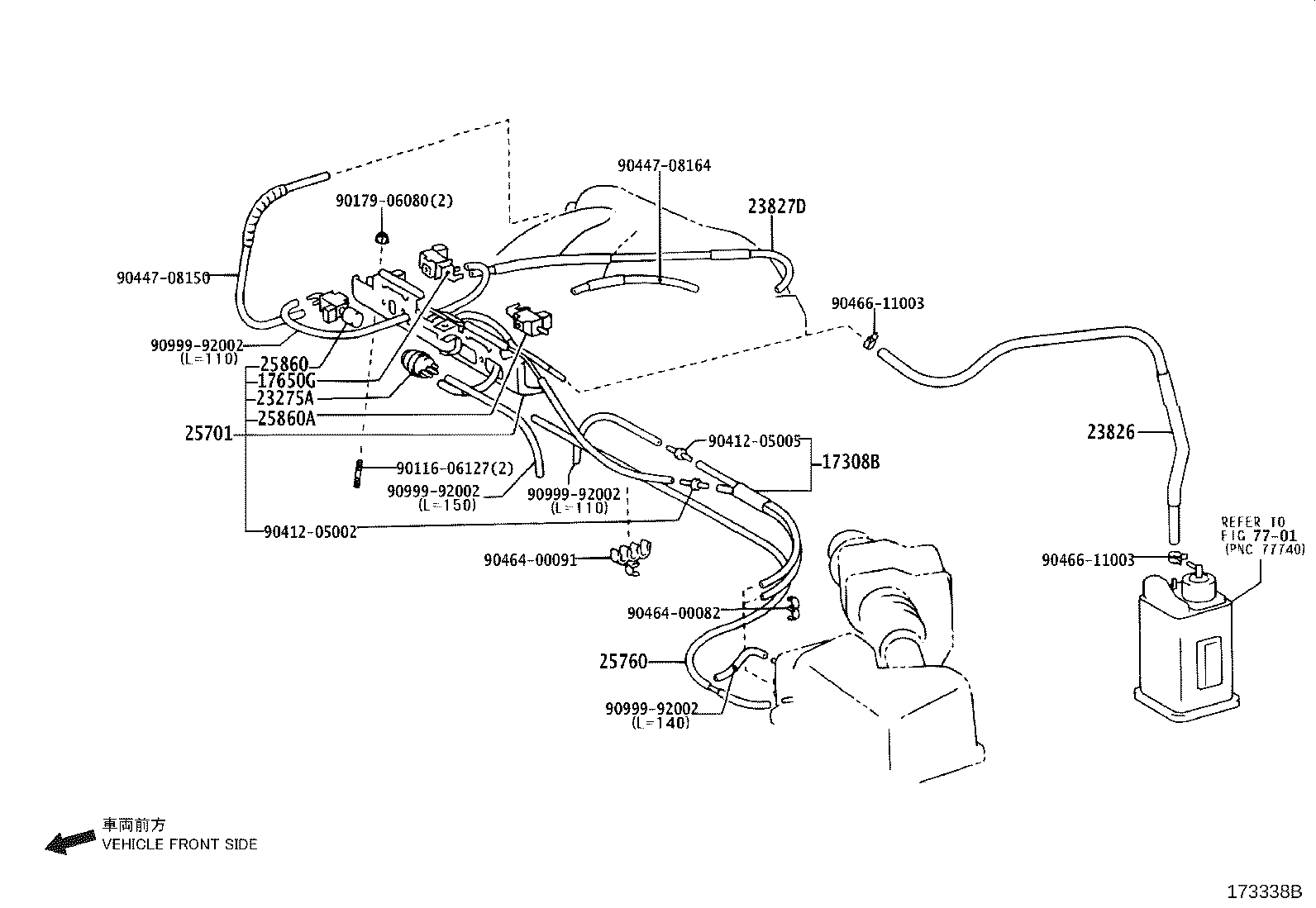

Figure 173073B 173073B 2001-08 → — Figure 173338B 173338B 2001-08 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17650G Valve, Duty Vacuum Switching
23275A Valve, Vacuum Control
23826 Hose, Fuel Vapor Feed, NO.1
23827D Hose, Fuel Vapor Feed, NO.2
25701 Valve Set, Emission Control
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
