Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

25 part groups · 3 illustrations

Illustrations

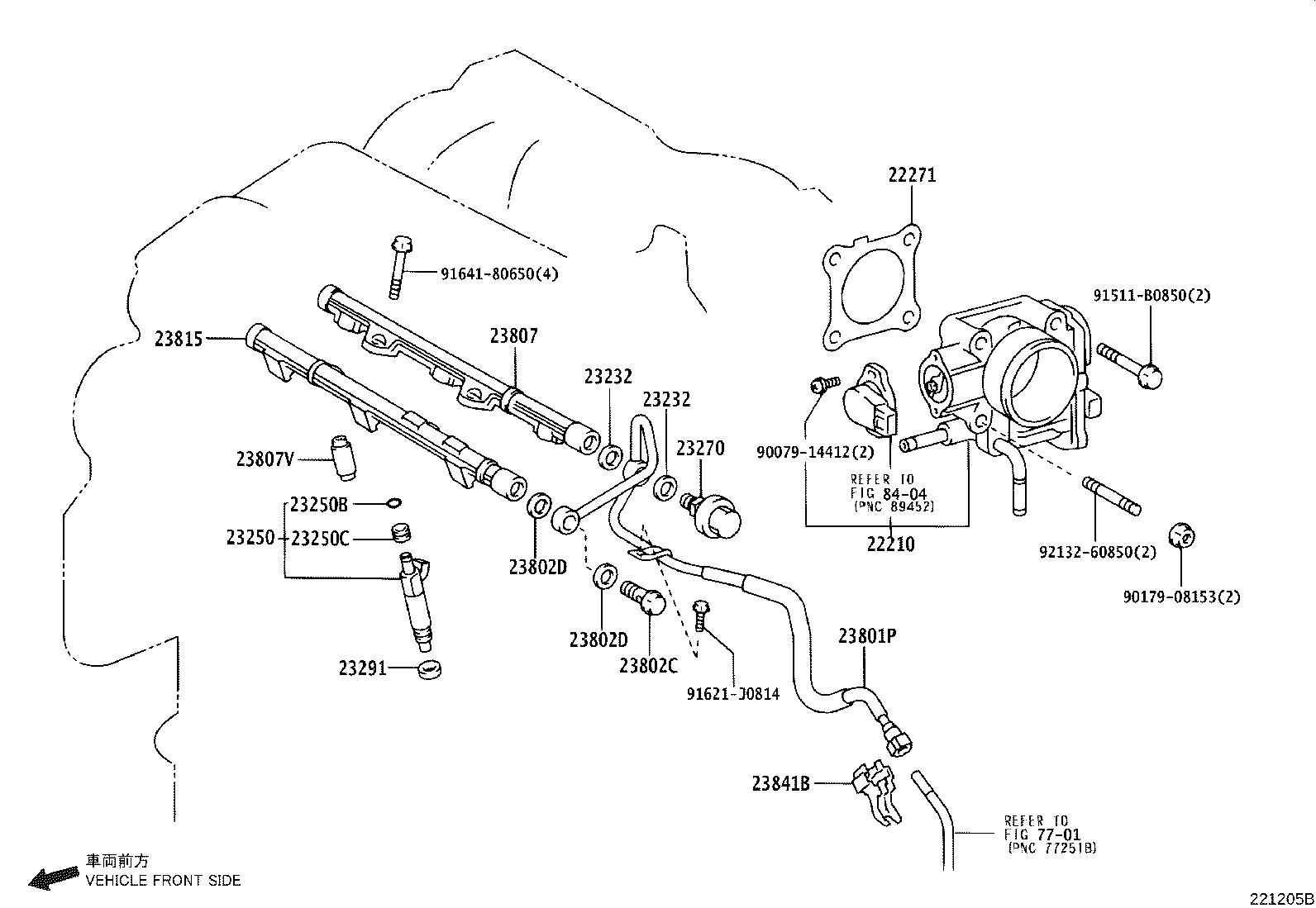

Figure 221206J 221206J 2001-08 → — Figure 223560 223560 2001-08 → — Figure 221205B 221205B 2001-08 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22231B Hose, Throttle Body
22231C Hose, Throttle Body, NO.1
22231D Clamp OR Clip(FOR THROTTLE BODY HOSE)
22232 Hose, Throttle Body, NO.2
22232A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22271 Gasket, Throttle Body
23232 Gasket(FOR FUEL PUMP HOSE)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23291 Insulator, Injector Vibration
23801P Pipe Sub-assy, Fuel, NO.1
23802C Bolt, Union(FOR FUEL PIPE NO.2)
23802D Gasket(FOR FUEL PIPE NO.2)
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23815 Pipe, Fuel Delivery, NO.2
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23849A Support, Fuel Pipe
23901 Tube Sub-assy, Fuel
25719B Tank, Vacuum Surge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
