Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

25 part groups · 3 illustrations

Illustrations

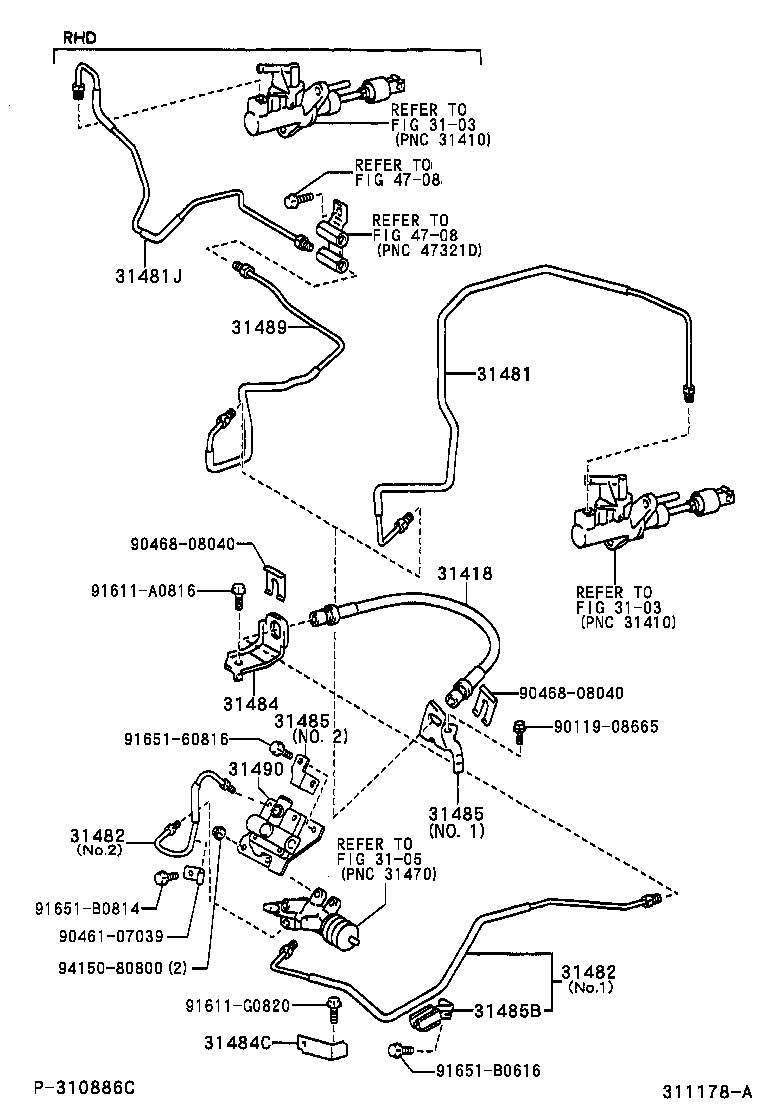

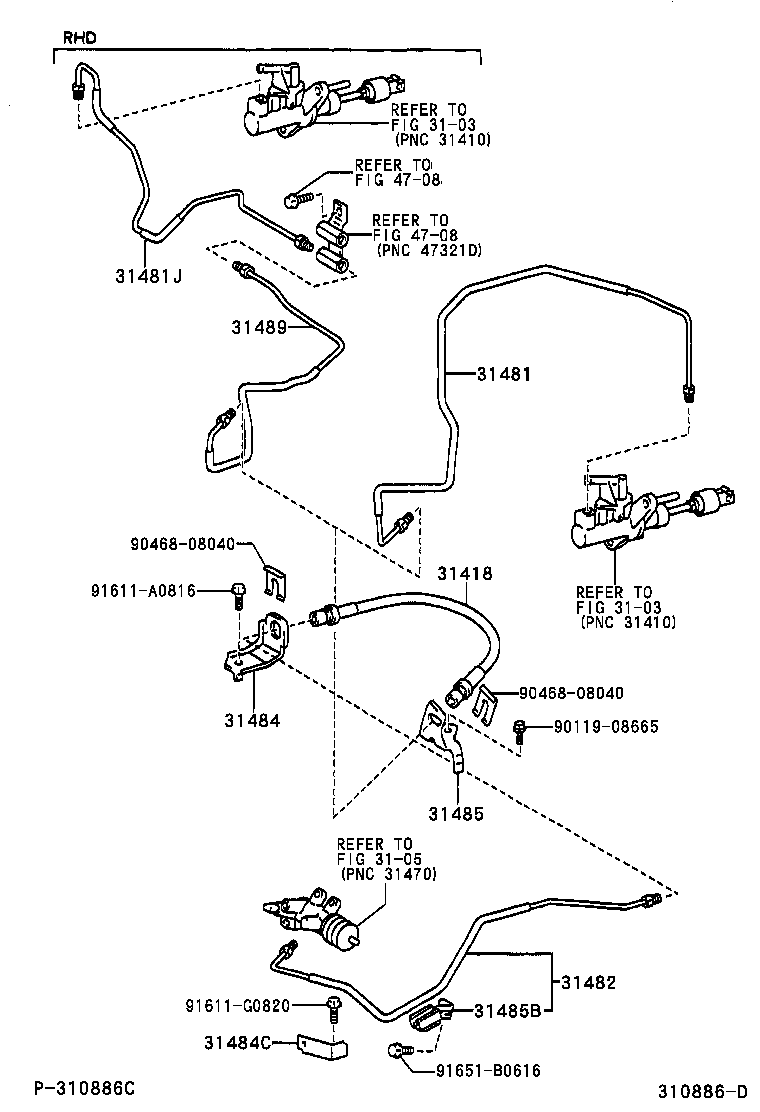

Figure 310837 310837 2001-08 → 2006-01 Figure 310886D 310886D 2001-08 → 2003-07 Figure 311178A 311178A 2003-07 → 2006-01

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31301R Spring, Compression(FOR TURNOVER SPRING SEAT)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31353 Holder, Clutch Pedal Spring
31358 Cap, Over Center Spring
31395 Hook, Pedal Spring
31418 Hose, Clutch
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481J Tube, Clutch Master Cylinder TO 2 Way
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
31485B Bracket, Tube Clamp
31489 Tube, Tube Connector TO Flexible Hose
31490 Accumulator Assy, Clutch
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
