Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake NO.3, 1ST & Reverse Brake (ATM)

7 part groups · 2 illustrations

Illustrations

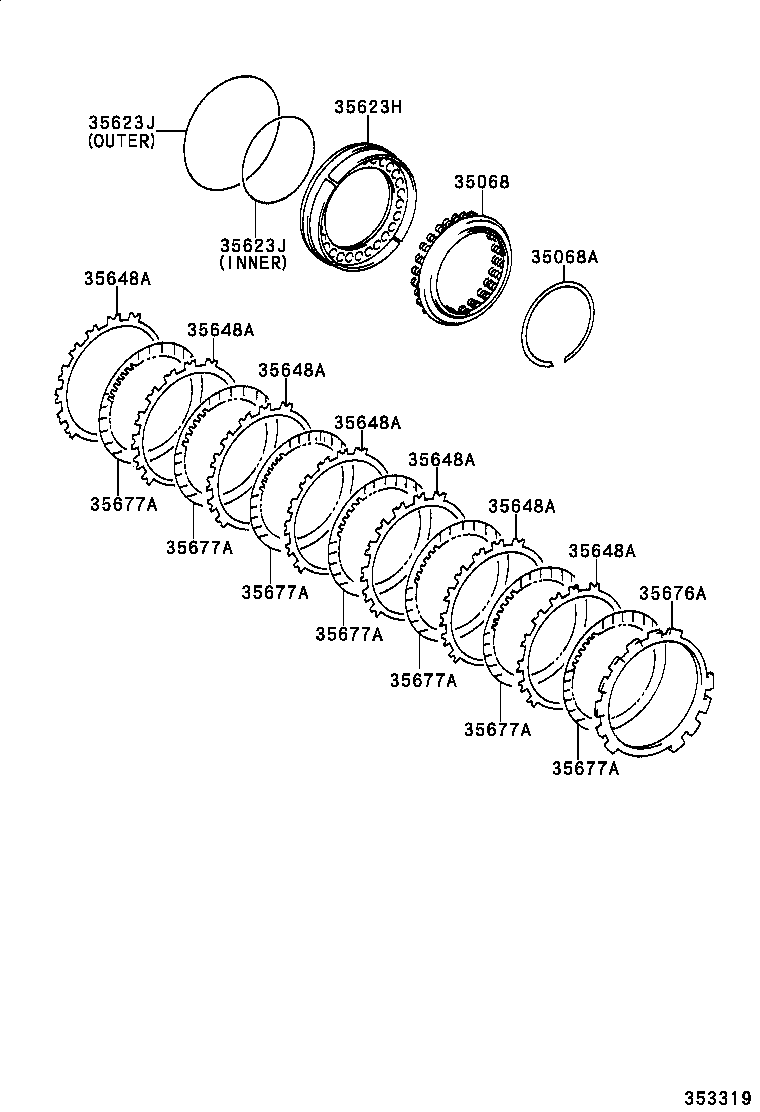

Figure 353318 353318 2001-08 → — Figure 353319 353319 2001-08 → —

Part groups

PNCDescription
35068 Spring Sub-assy, 1ST & Reverse Brake Return
35068A Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623H Piston, 1ST & Reverse Brake
35623J Ring, O (FOR 1ST & REVERSE BRAKE)
35648A Plate, Clutch (FOR 1ST & REVERSE BRAKE)
35676A Flange, Brake (FOR 1ST & REVERSE BRAKE)
35677A Disc, Clutch (FOR 1ST & REVERSE BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
