Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

12 part groups · 2 illustrations

Illustrations

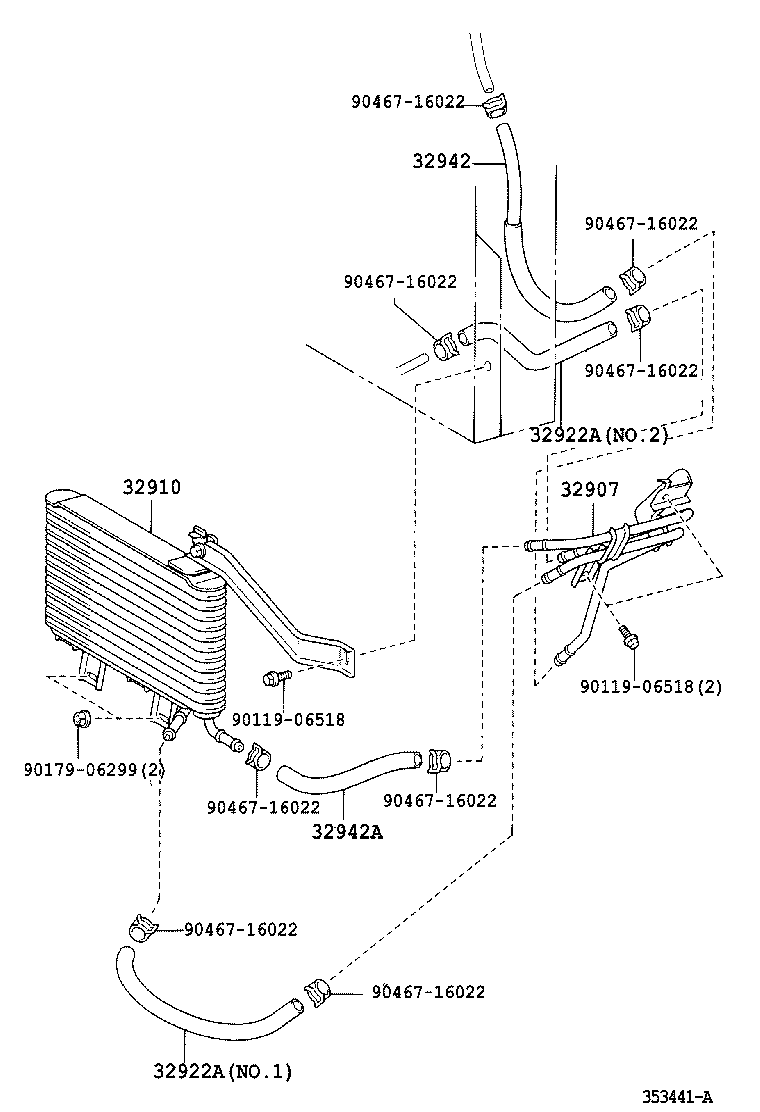

Figure 353440B 353440B 2001-08 → — Figure 353441A 353441A 2001-08 → —

Part groups

PNCDescription
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32910 Cooler Assy, Oil
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923A Clamp, Automatic Transmission Oil Cooler Tube
32926 Cushion, Oil Cooler Tube(ATM)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
