Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

24 part groups · 3 illustrations

Illustrations

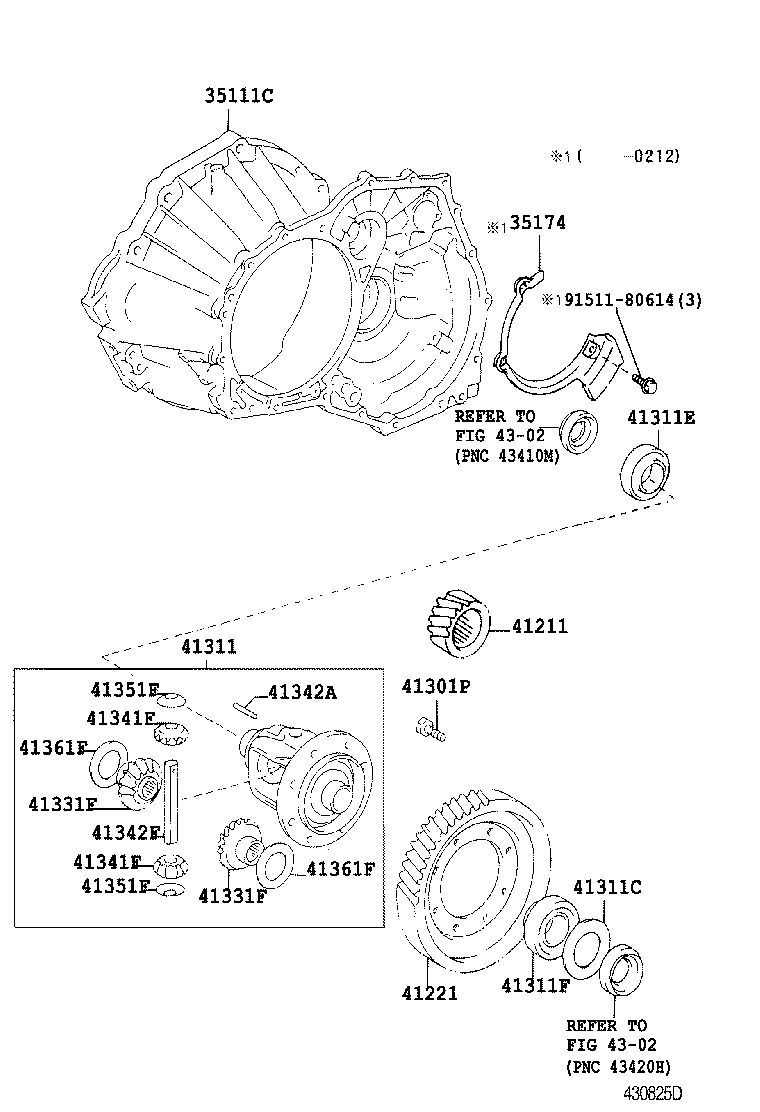

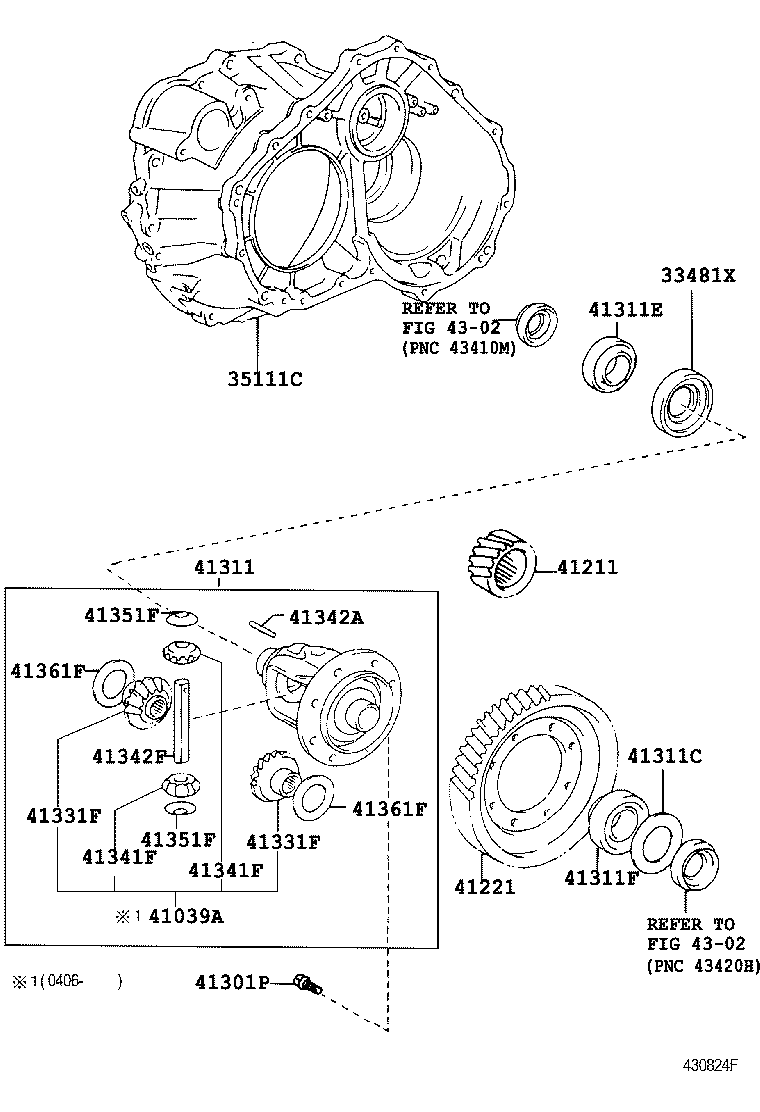

Figure 430823A 430823A 2001-08 → — Figure 430824F 430824F 2001-08 → — Figure 430825D 430825D 2001-08 → —

Part groups

PNCDescription
31105D Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE)
31115C Case, Front Transaxle(MTM)
33143C Baffle, Front Differential Oil
33449 Magnet, Transmission
33481 Gear, Speedometer Drive (MTM)
33481X Gear, Speedometer Drive
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
41039A Gear Kit, Differential
41211 Pinion, Differential Drive
41221 Gear, Front Differential Ring
41222B Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
41301L Case Sub-assy, Front Differential, NO.1
41301P Screw(FOR FRONT DIFFERENTIAL CASE)
41311 Case, Front Differential
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41331F Gear, Front Differential Side
41341F Pinion, Front Differential
41342A Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342F Shaft, Front Differential Pinion, NO.1
41351F Washer, Front Differential Pinion Thrust
41361F Washer, Front Differential Side Gear Thrust, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
