Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

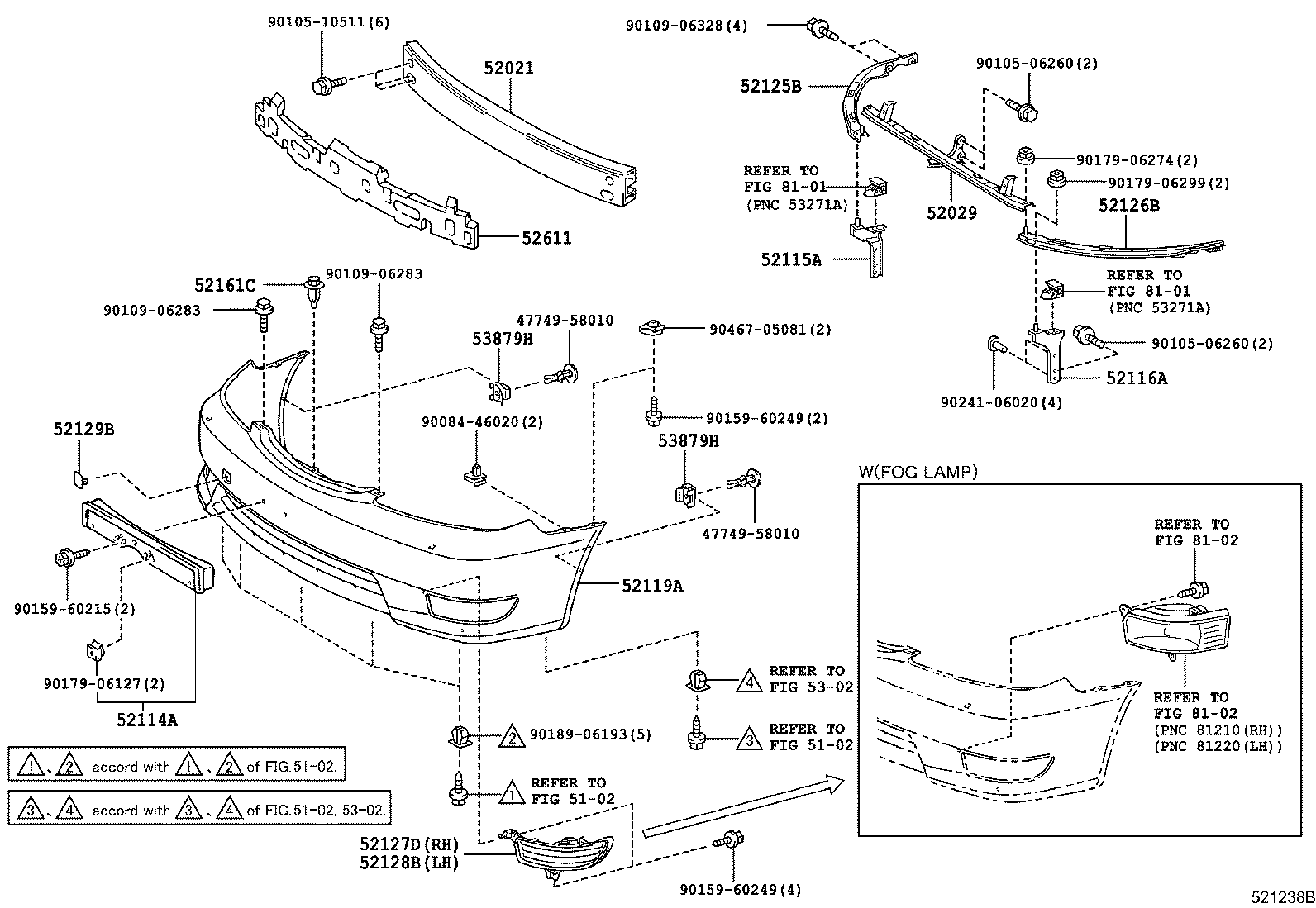

Figure 520786E 520786E 2001-08 → 2004-06 Figure 521238B 521238B 2004-06 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52029 Reinforcement Sub-assy, Front Bumper, Upper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52125B Extension, Front Bumper Reinforcement, RH
52126B Extension, Front Bumper Reinforcement, LH
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52611 Absorber, Front Bumper Energy
53879H Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
