Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 3 illustrations

Illustrations

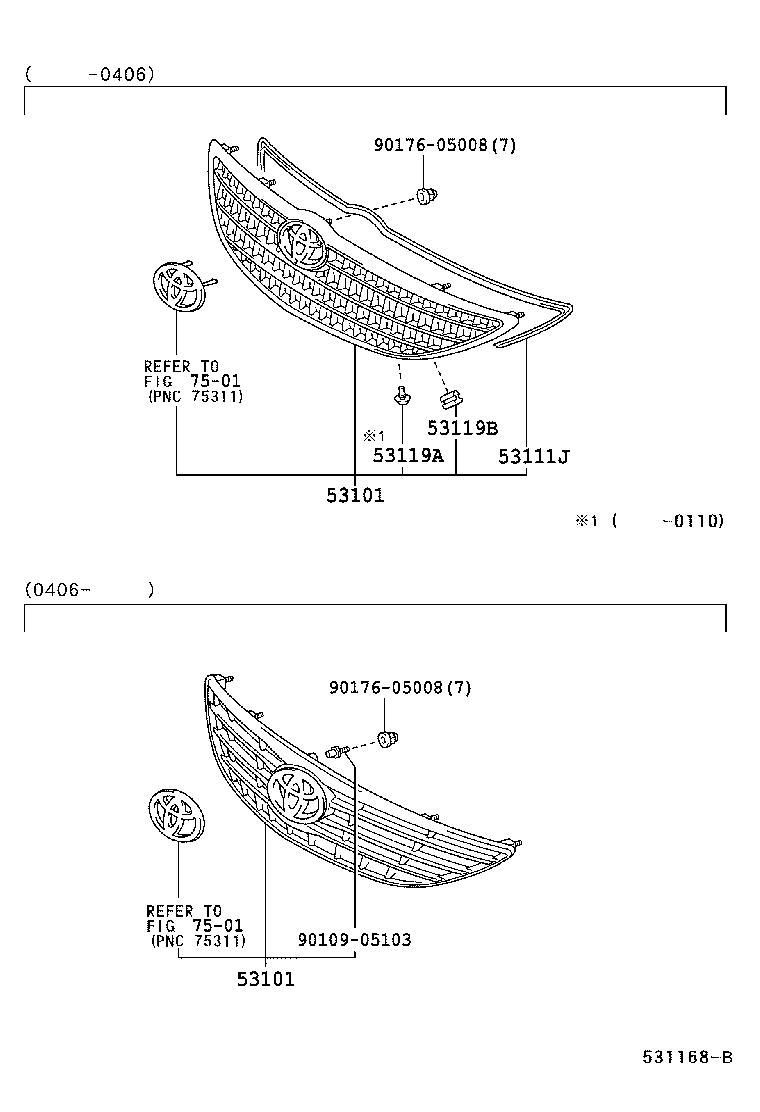

Figure 531120 531120 2001-08 → 2004-06 Figure 531168B 531168B 2001-08 → 2004-06 Figure 531168B 531168B 2004-06 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53111J Protector, Radiator Grille
53119A Cushion, Radiator Grille TO Front Valance Panel
53119B Protector, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
