Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

9 part groups · 2 illustrations

Illustrations

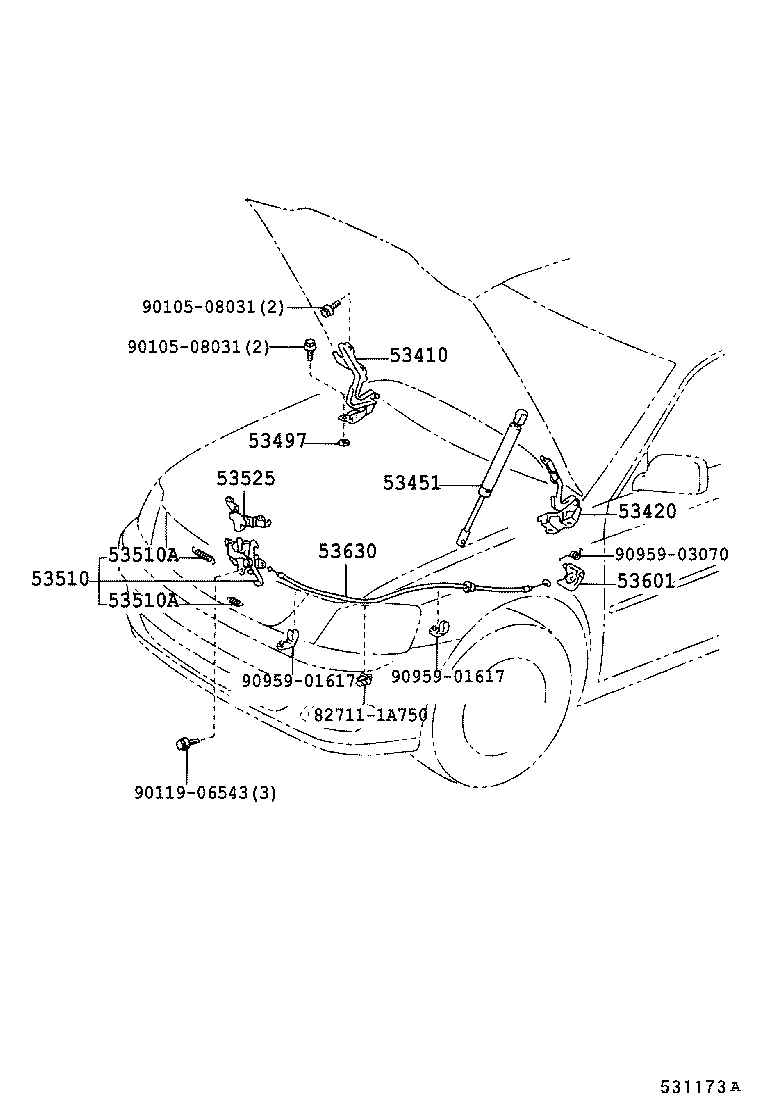

Figure 531780B 531780B 2001-09 → — Figure 531173A 531173A 2001-08 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53525 Protector, Hood Lock Release Lever
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
