Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 4 illustrations

Illustrations

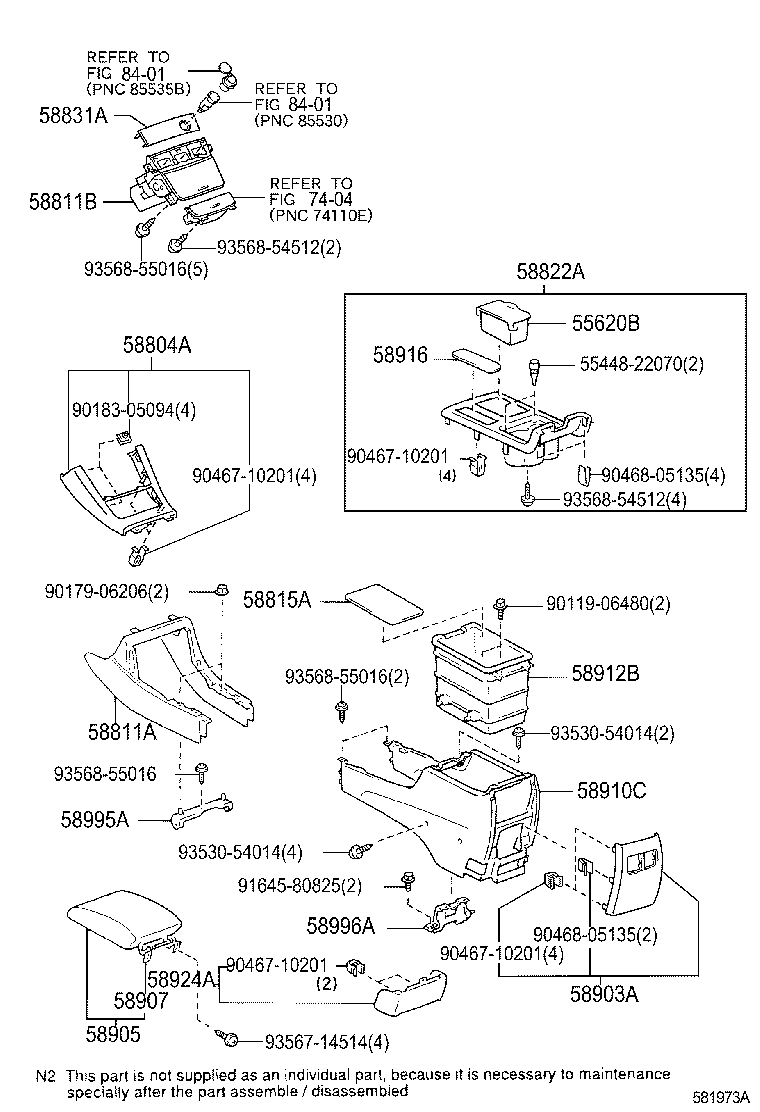

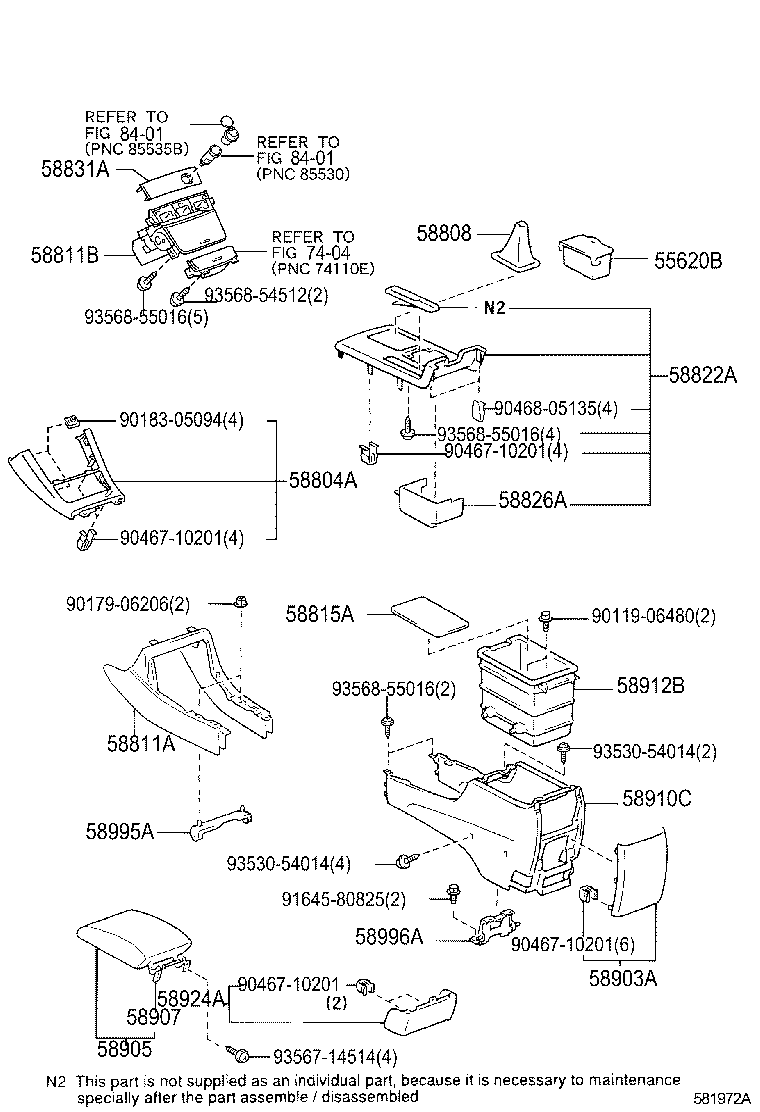

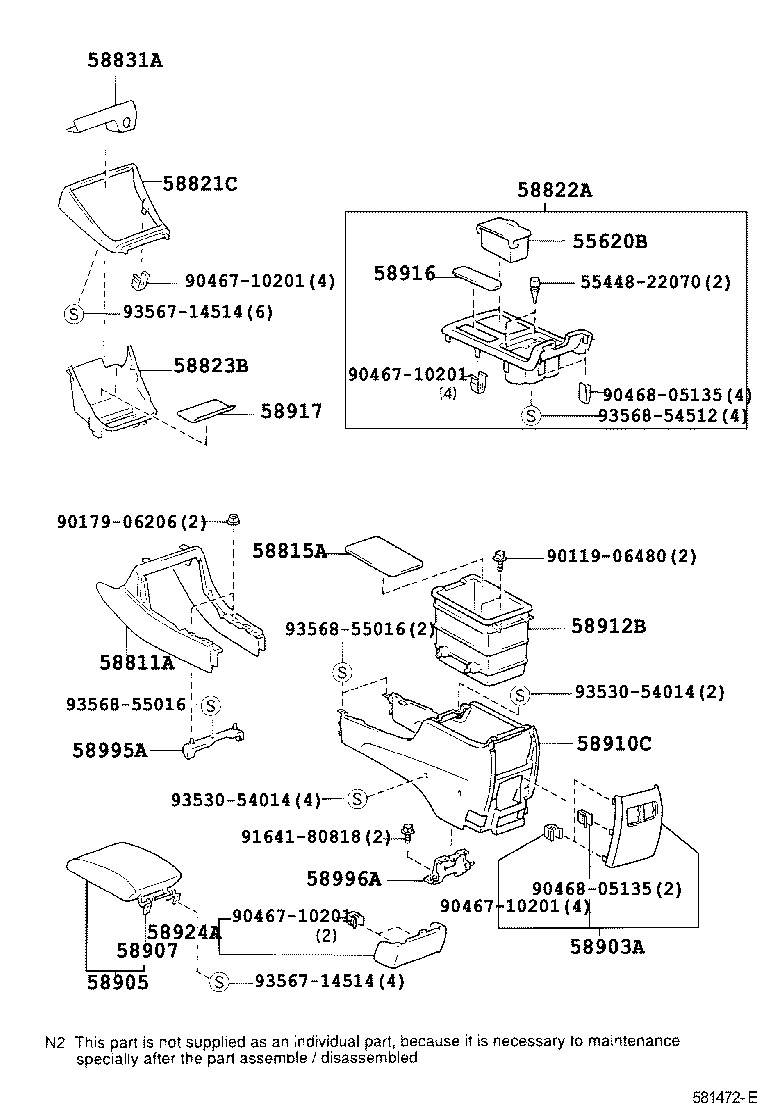

Figure 581971A 581971A 2001-08 → 2004-06 Figure 581472E 581472E 2001-08 → 2004-06 Figure 581972A 581972A 2004-06 → — Figure 581973A 581973A 2004-06 → —

Part groups

PNCDescription
55620B Holder, Instrument Panel Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58811B Box, Console
58815A Carpet, Console Box
58821C Panel, Console, Upper
58822A Panel, Console, Upper Rear
58823B Box, Console Compartment
58826A Pocket, Console Box, Lower
58831A Garnish, Console Upper Panel, Front
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58912B Box, Rear Console, Lower
58916 Mat, Box Bottom
58917 Mat, Box Bottom, NO.2
58924A Panel, Console Rear End, NO.2
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
