Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

25 part groups · 2 illustrations

Illustrations

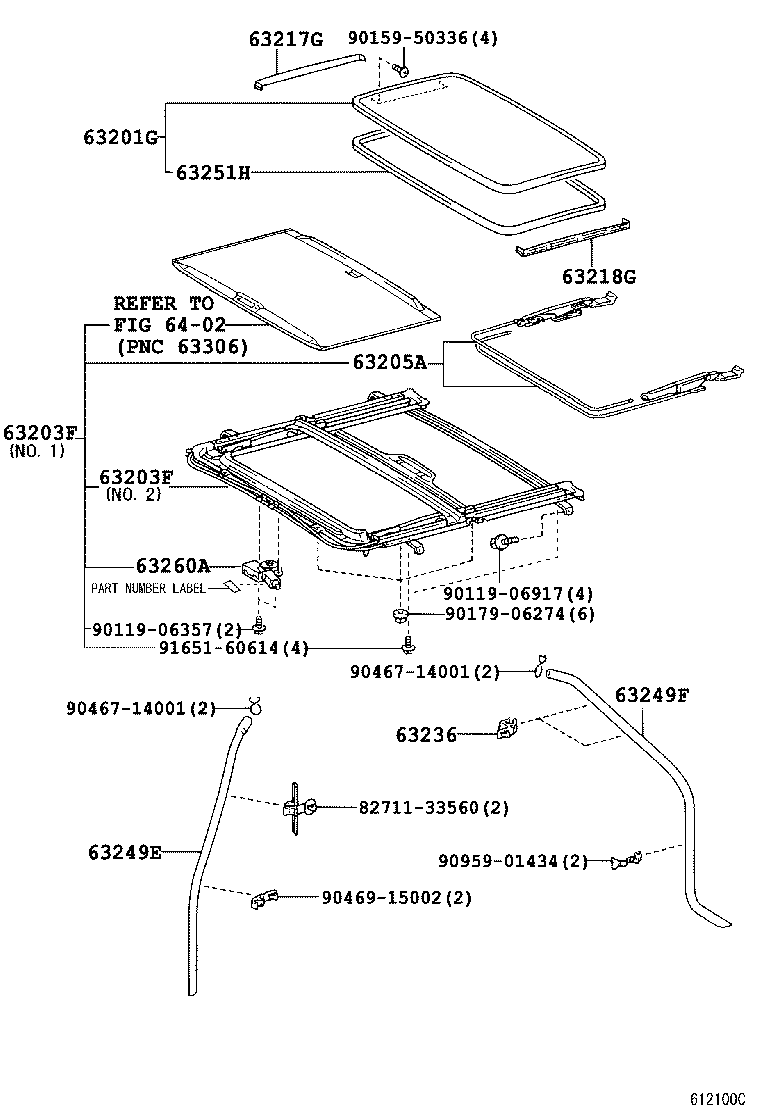

Figure 611431B 611431B 2001-08 → — Figure 612100C 612100C 2001-08 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63132 Panel, Windshield Header, Inner
63133B Frame, Back Window
63137A Bracket, Dome Lamp, NO.1
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63236 Clamp, Sliding Roof OR Removable Roof Drain Hose
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
64101 Panel Sub-assy, Upper Back
64165B Cover, Upper Back Panel Hole, NO.1
64811 Glass, Back Window
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
