Toyota Camry
2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe
Discontinued model
Data version 2006-09

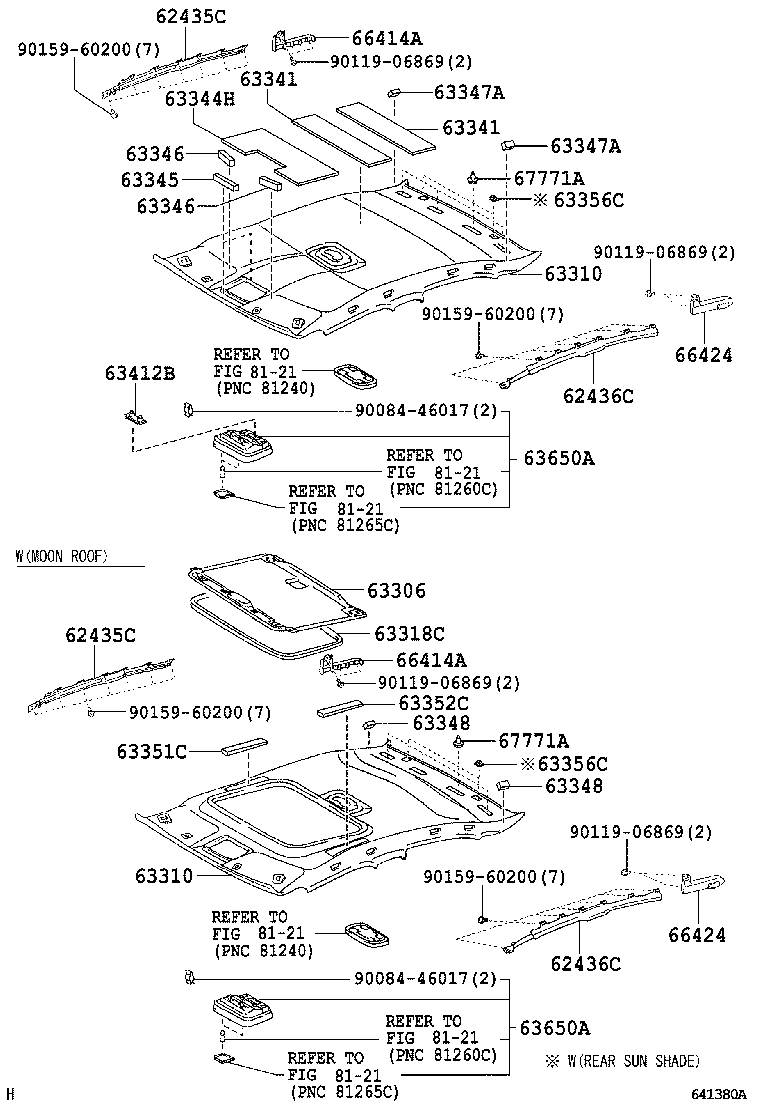

Roof Headlining & Silencer Pad
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62435C | Pad, Roof Side Rail Garnish, RH |
| 62436C | Pad, Roof Side Rail Garnish, LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63344H | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63346 | Pad, Roof Silencer, NO.6 |
| 63347A | Pad, Roof Silencer, NO.7 |
| 63348 | Pad, Roof Silencer, NO.8 |
| 63351C | Pad, Roof Headlining |
| 63352C | Pad, Roof Headlining, End |
| 63356C | Holder, Sunshade Trim |
| 63412B | Retainer, Roof Console |
| 63650A | Box Assy, Roof Console |
| 66414A | Spacer, Side Rail, Rear RH |
| 66424 | Spacer, Side Rail, Rear LH |
| 67771A | Retainer, Roof Headlining |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
