Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 2 illustrations

Illustrations

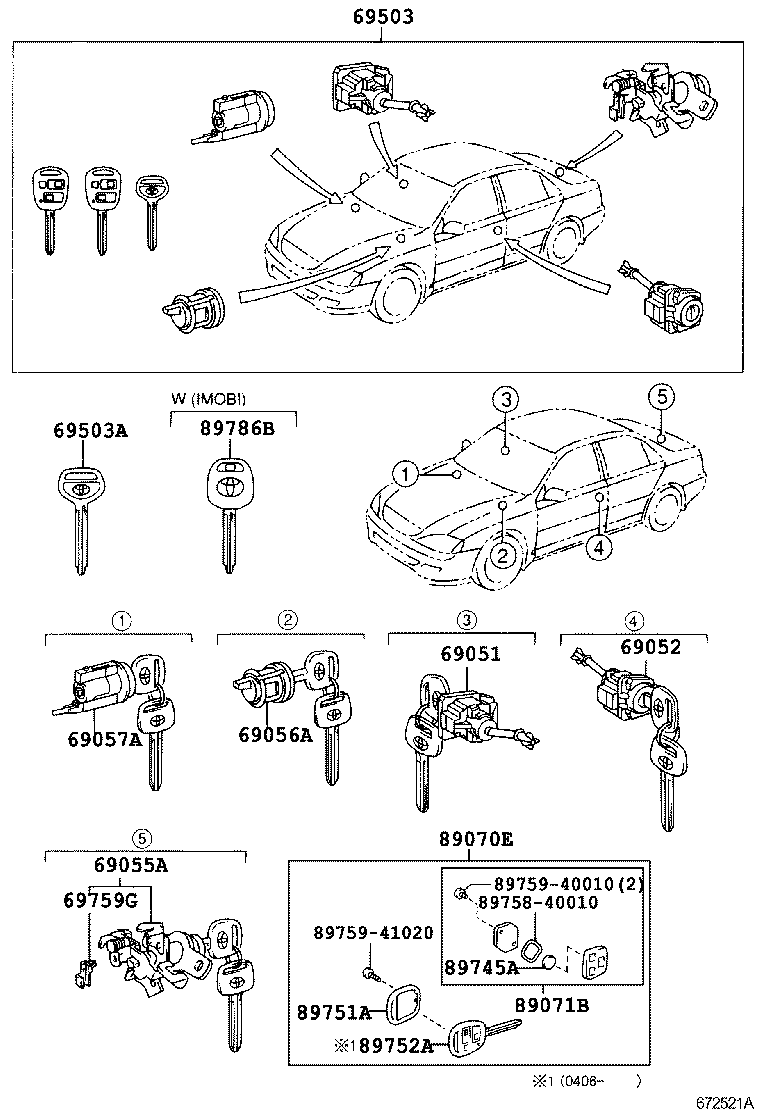

Figure 672520C 672520C 2001-08 → — Figure 672521A 672521A 2001-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69759G Snap, Luggage Door Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
