Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

16 part groups · 3 illustrations

Illustrations

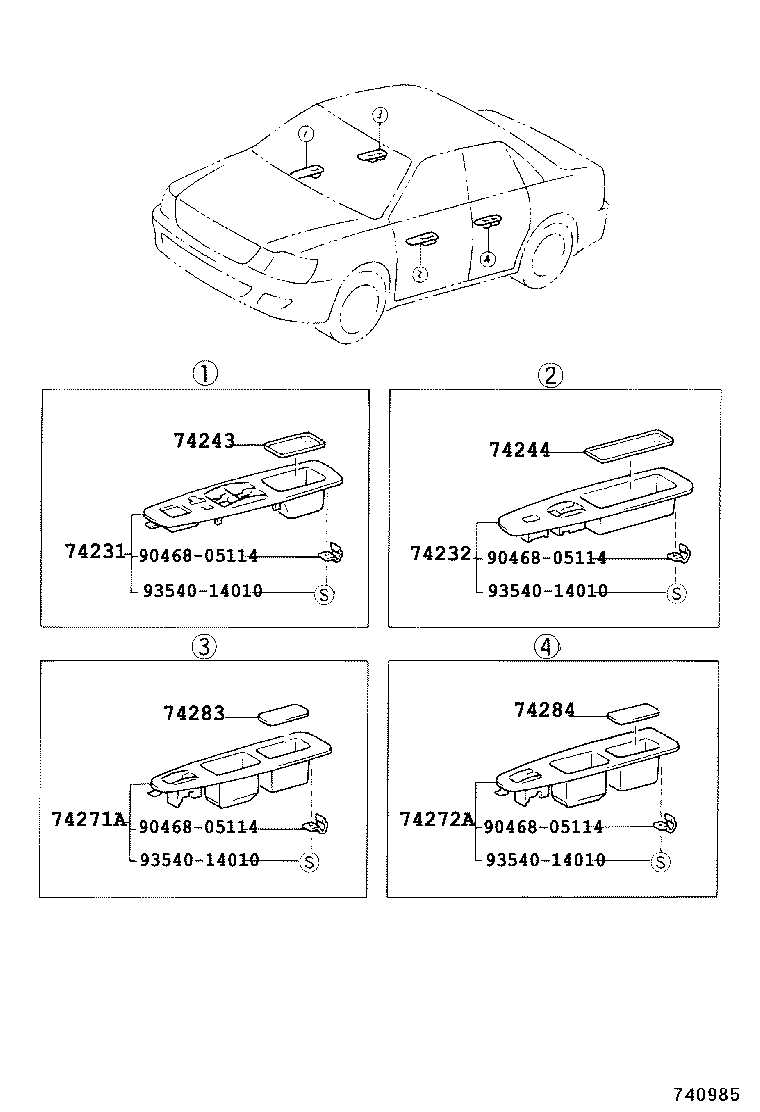

Figure 740937A 740937A 2001-08 → — Figure 740985 740985 2001-08 → — Figure 740988B 740988B 2001-08 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74243 Cover, Front Door Armrest Base, Lower RH
74244 Cover, Front Door Armrest Base, Lower LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74283 Cover, Rear Door Armrest Base, Lower RH
74284 Cover, Rear Door Armrest Base, Lower LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74620B Grip Assy, Assist, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
