Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 19 illustrations

Illustrations

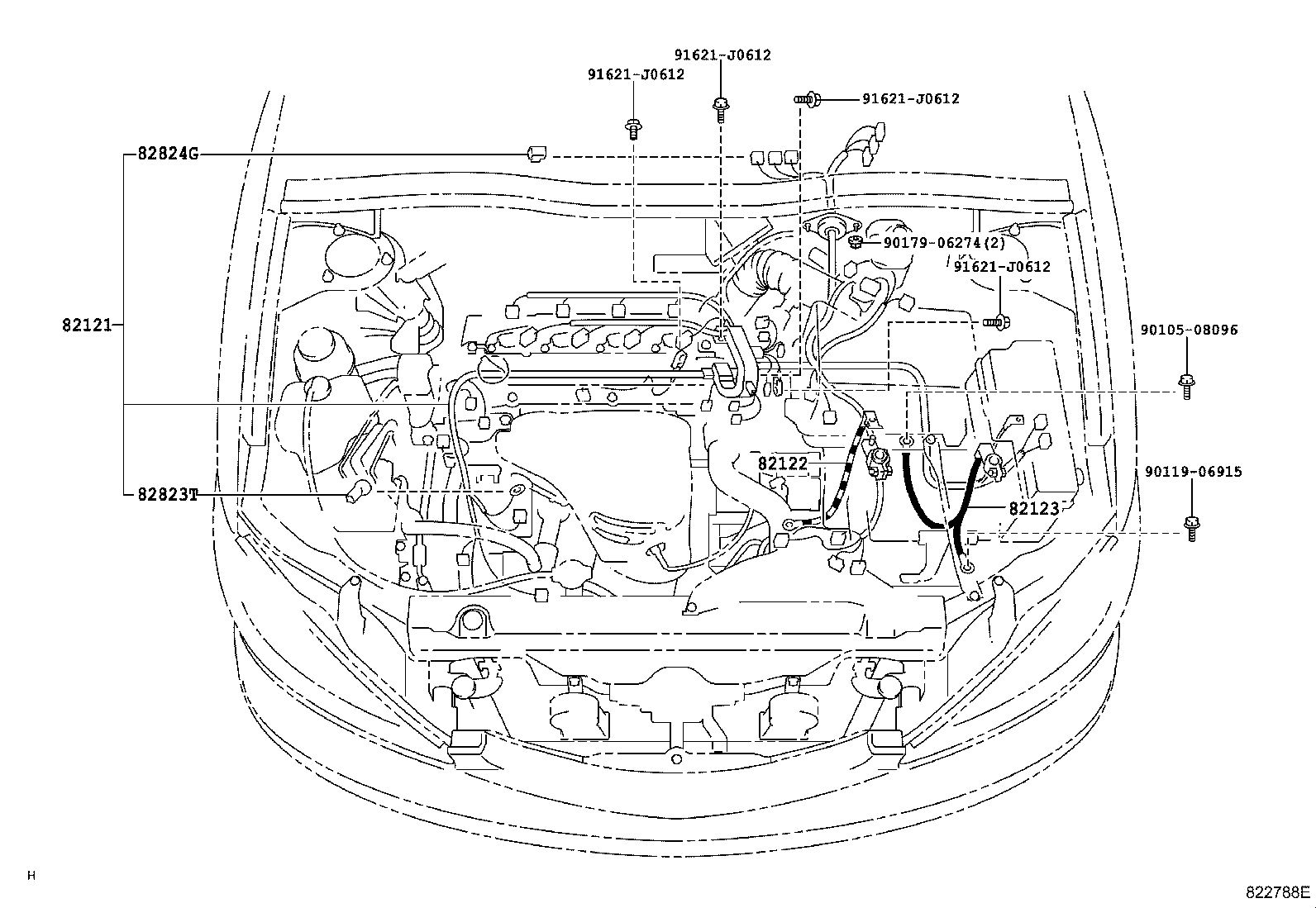

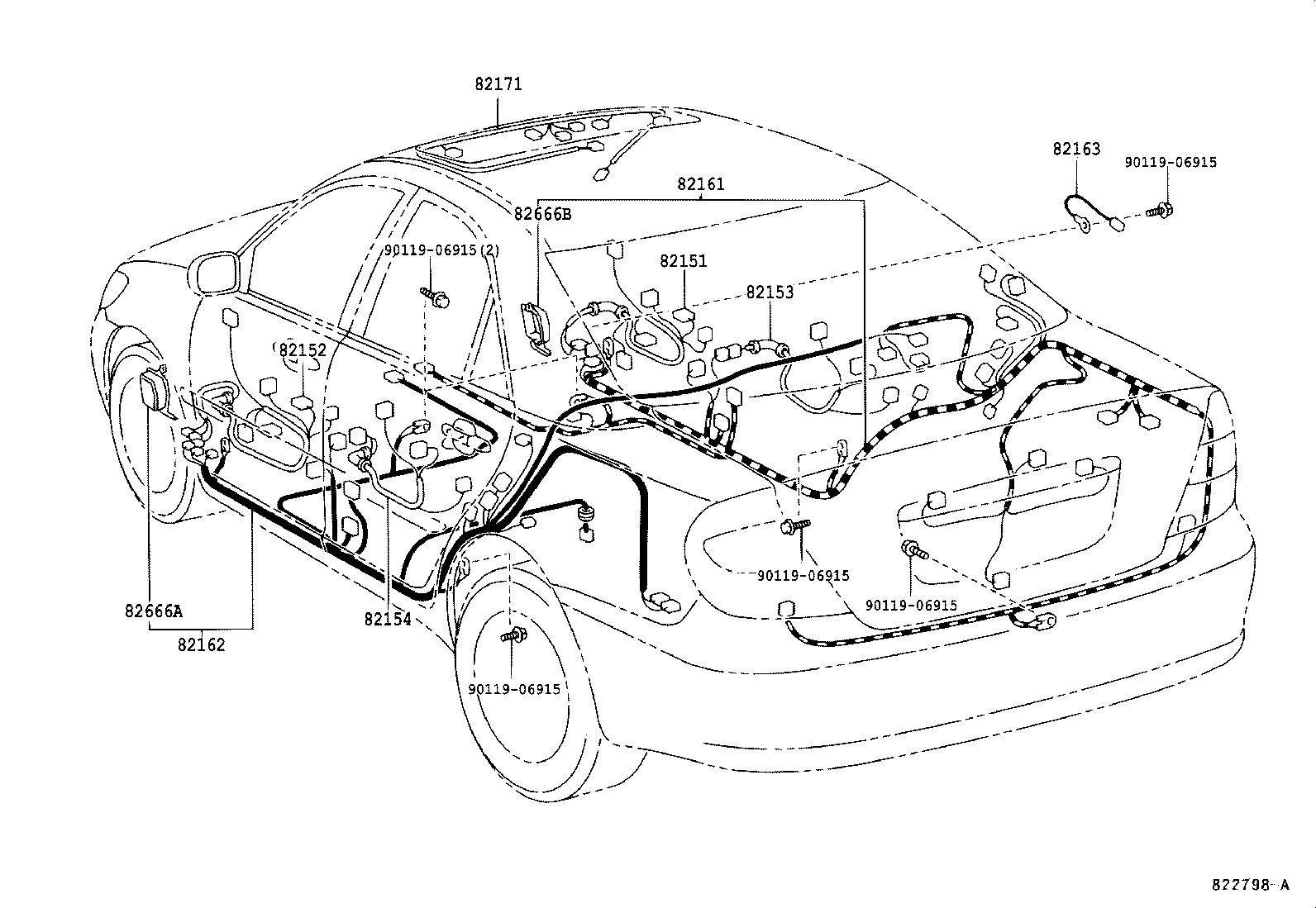

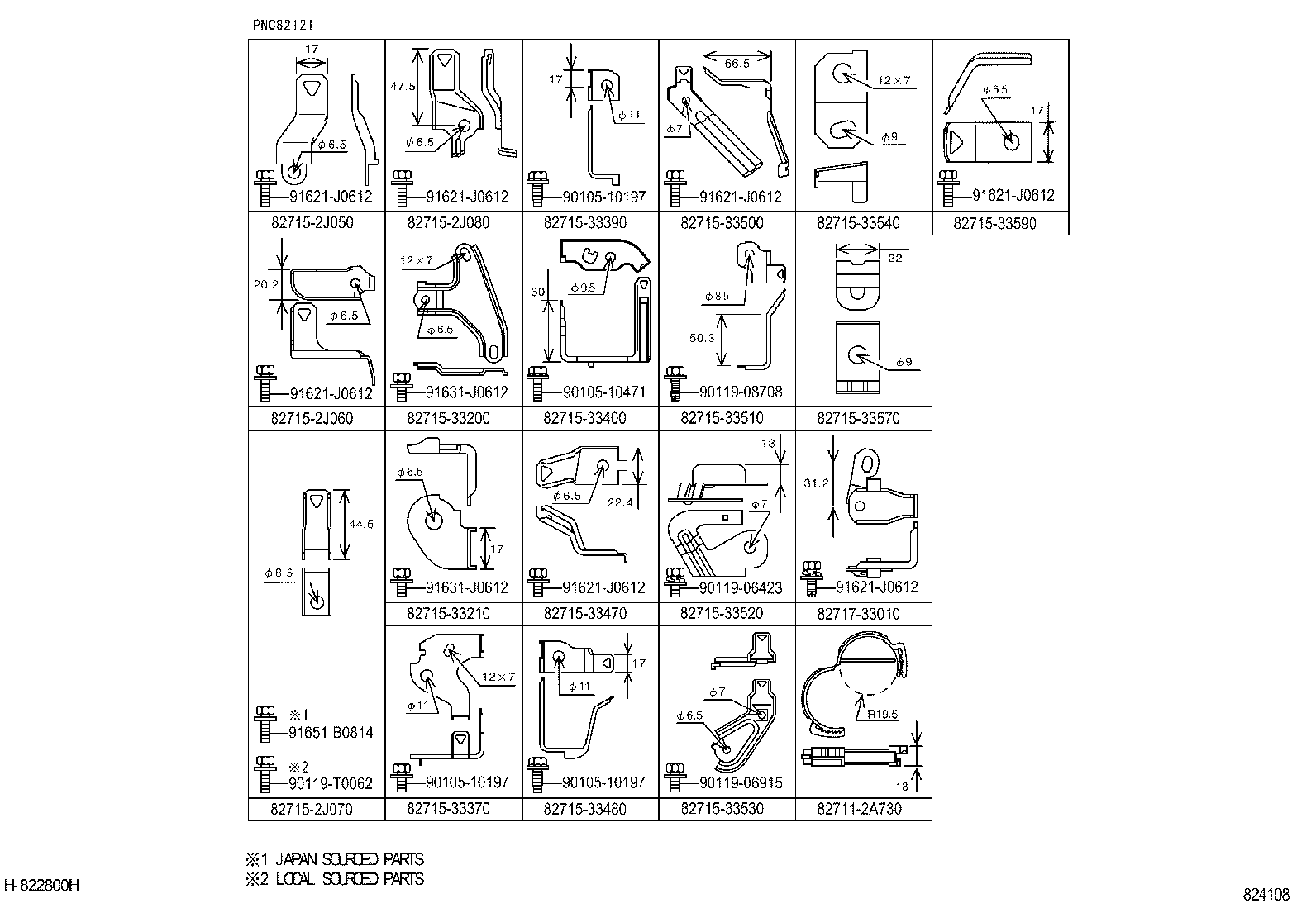

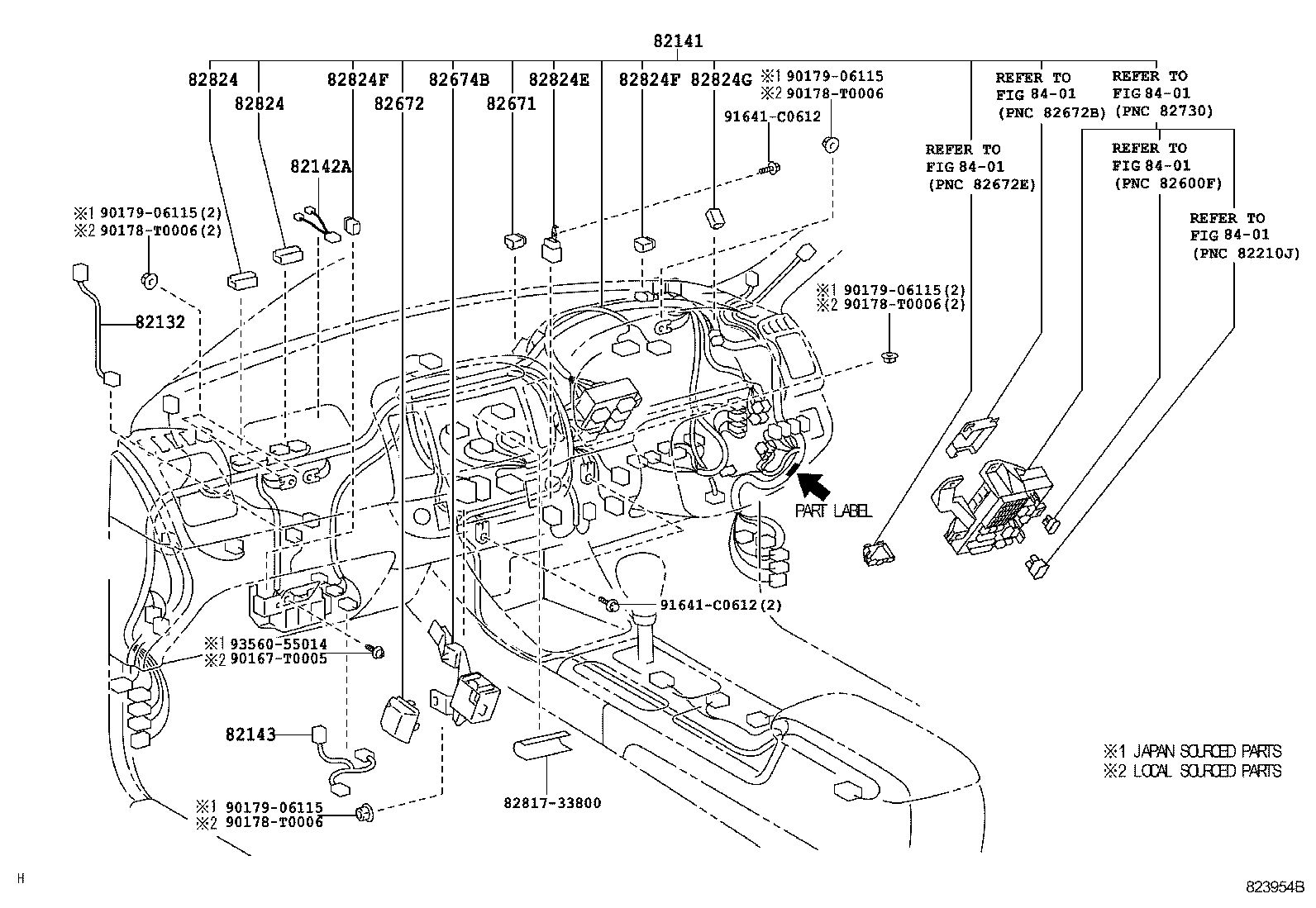

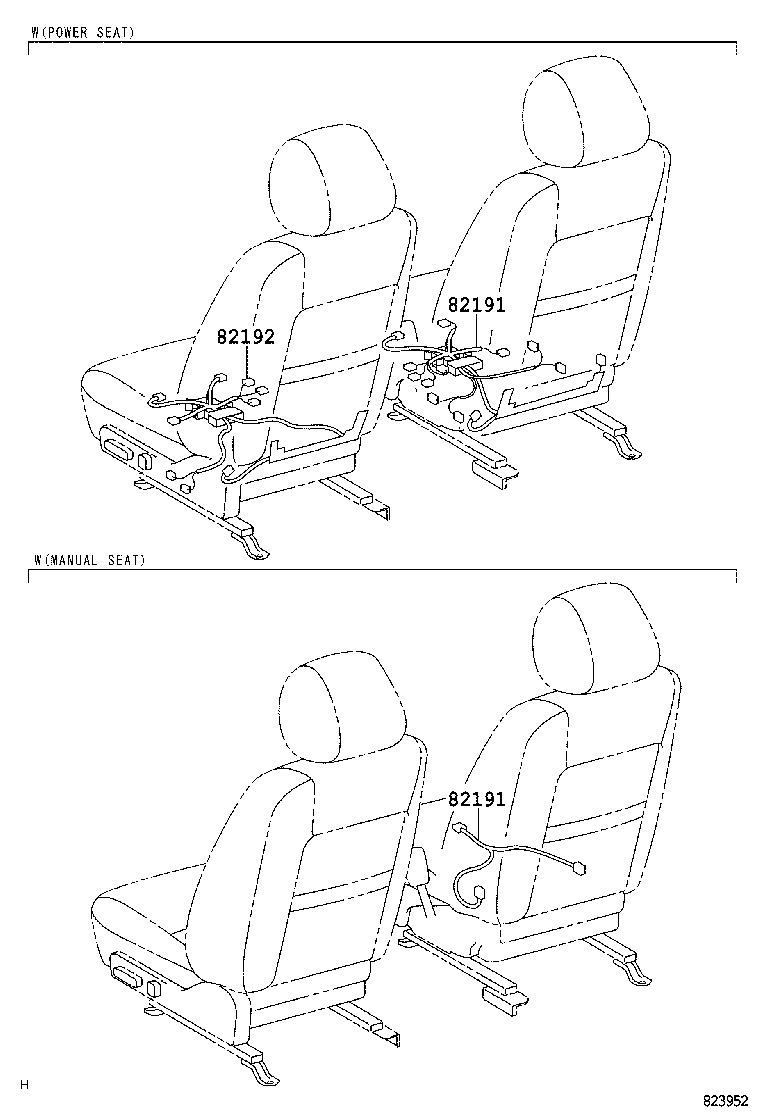

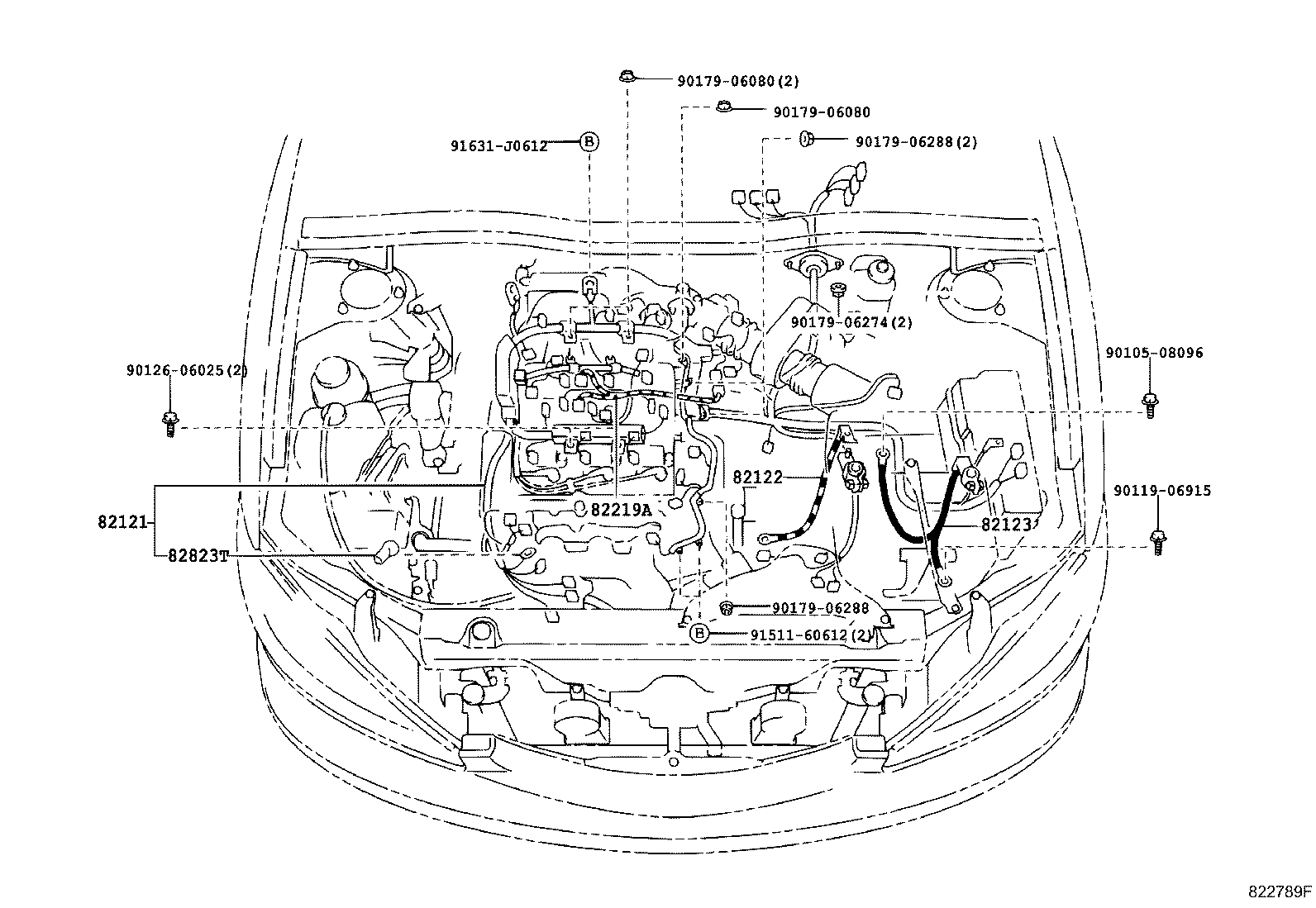

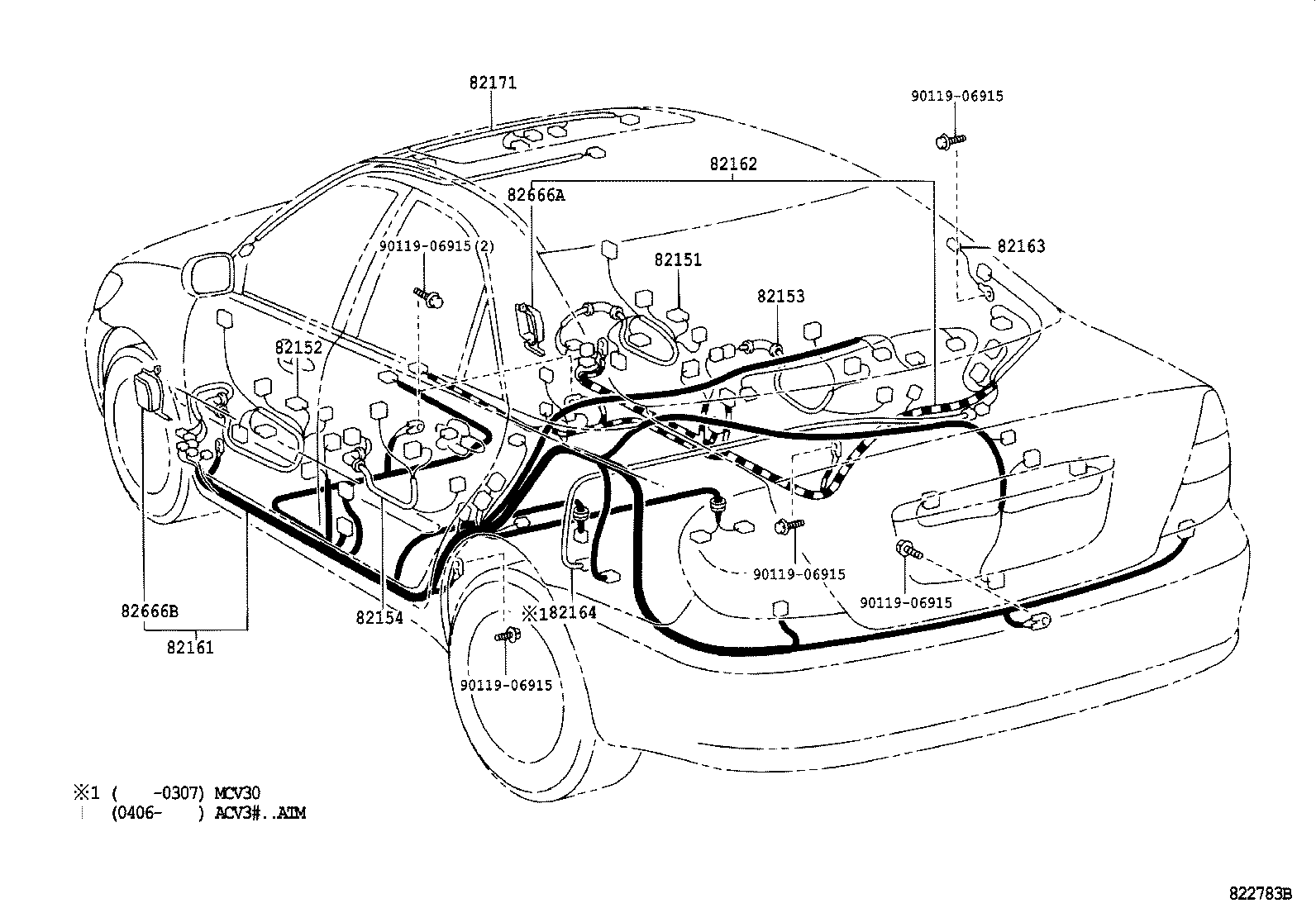

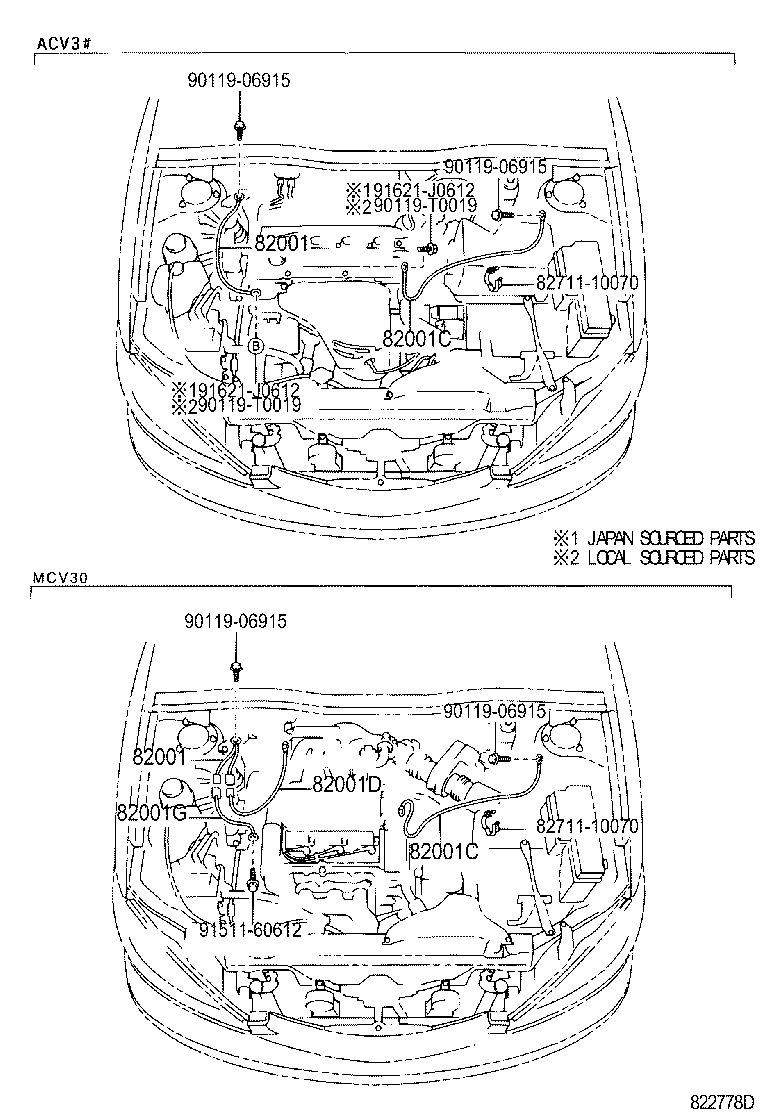

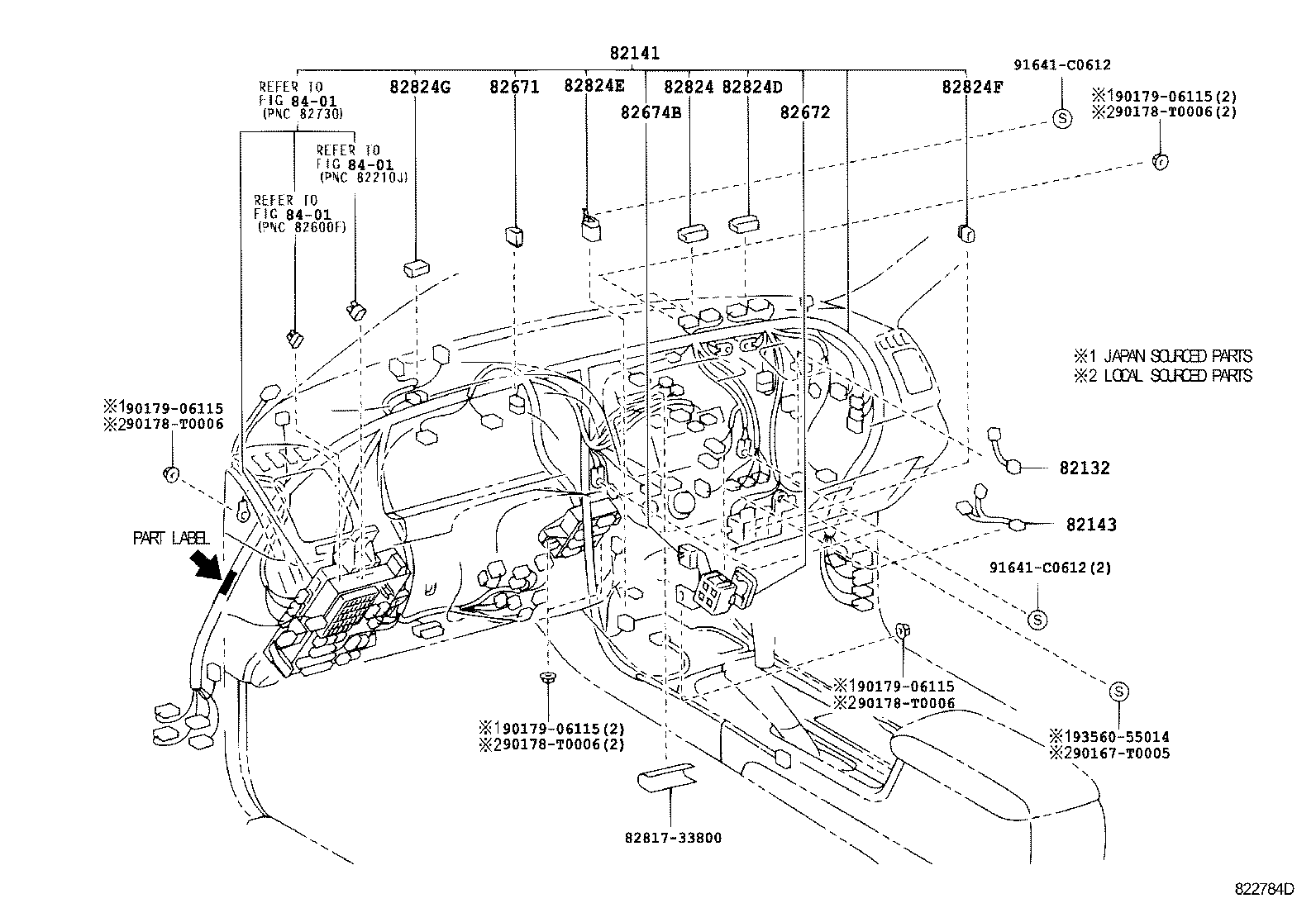

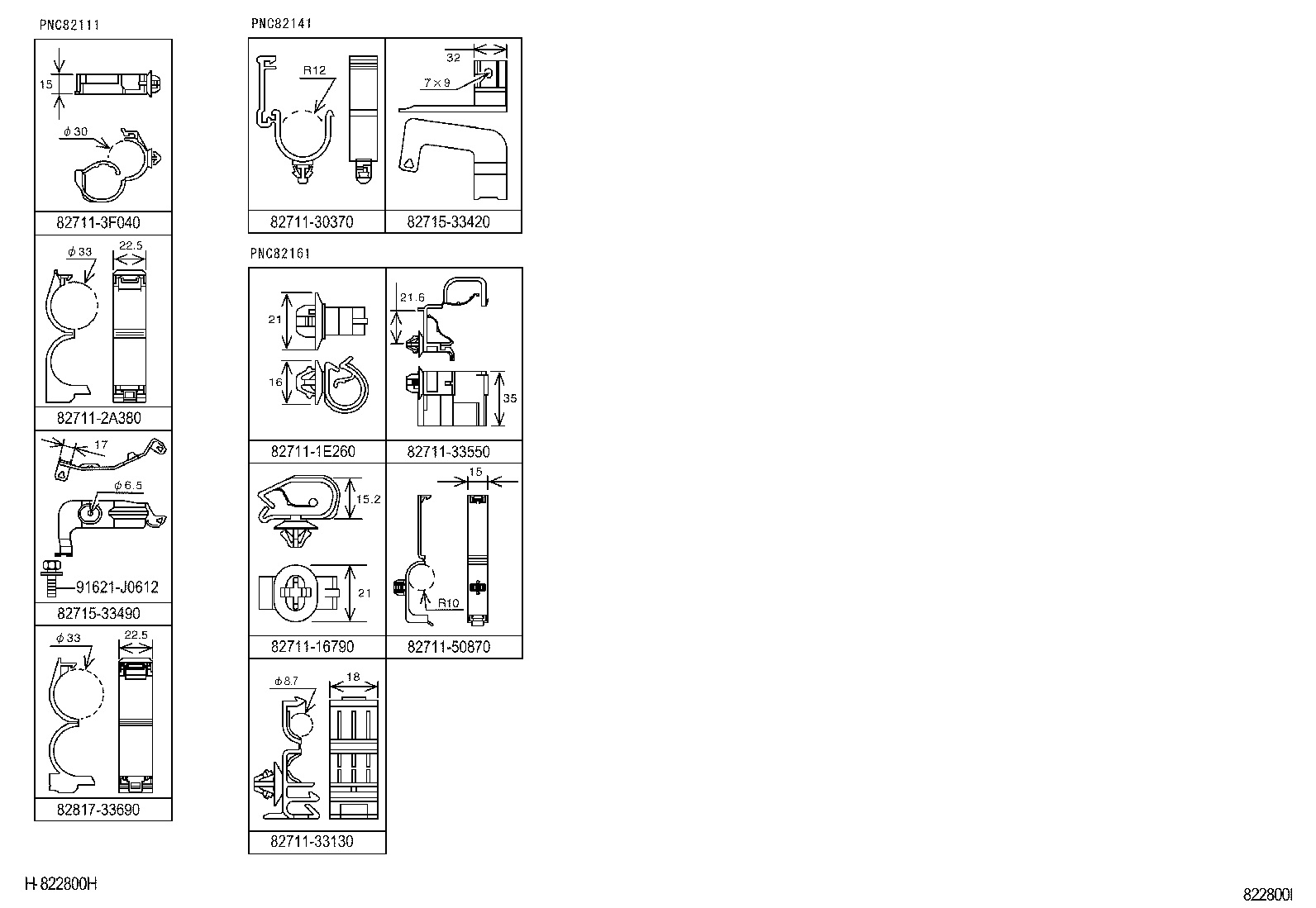

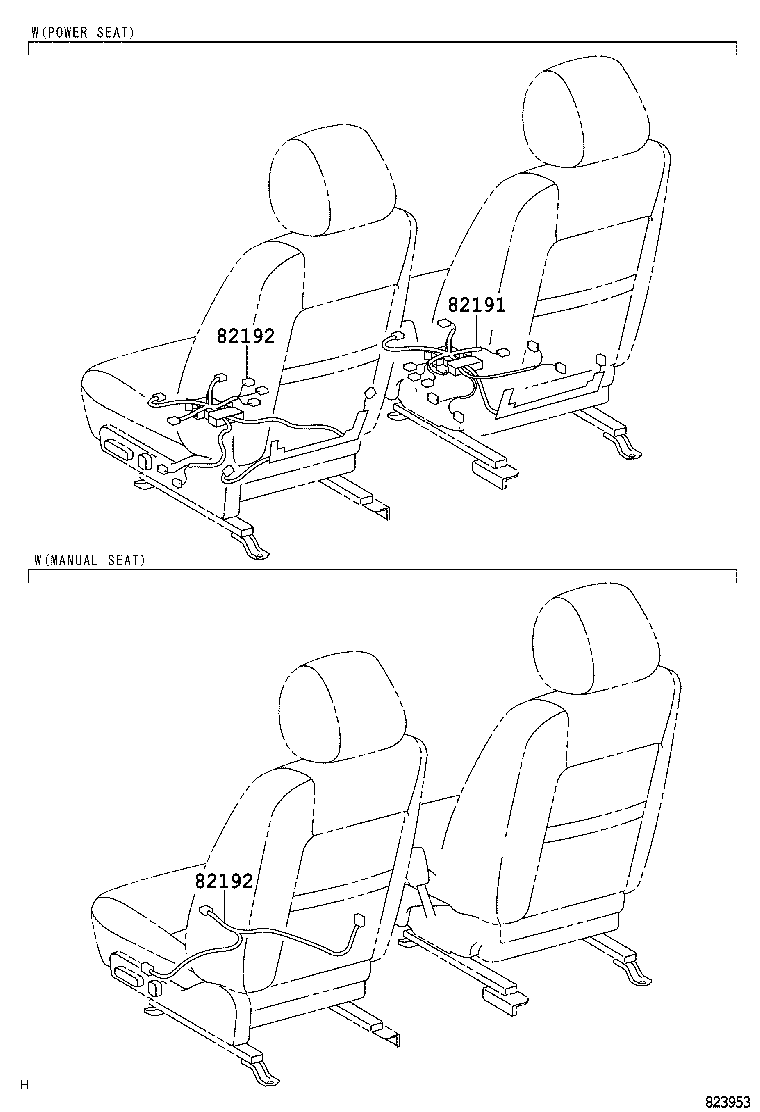

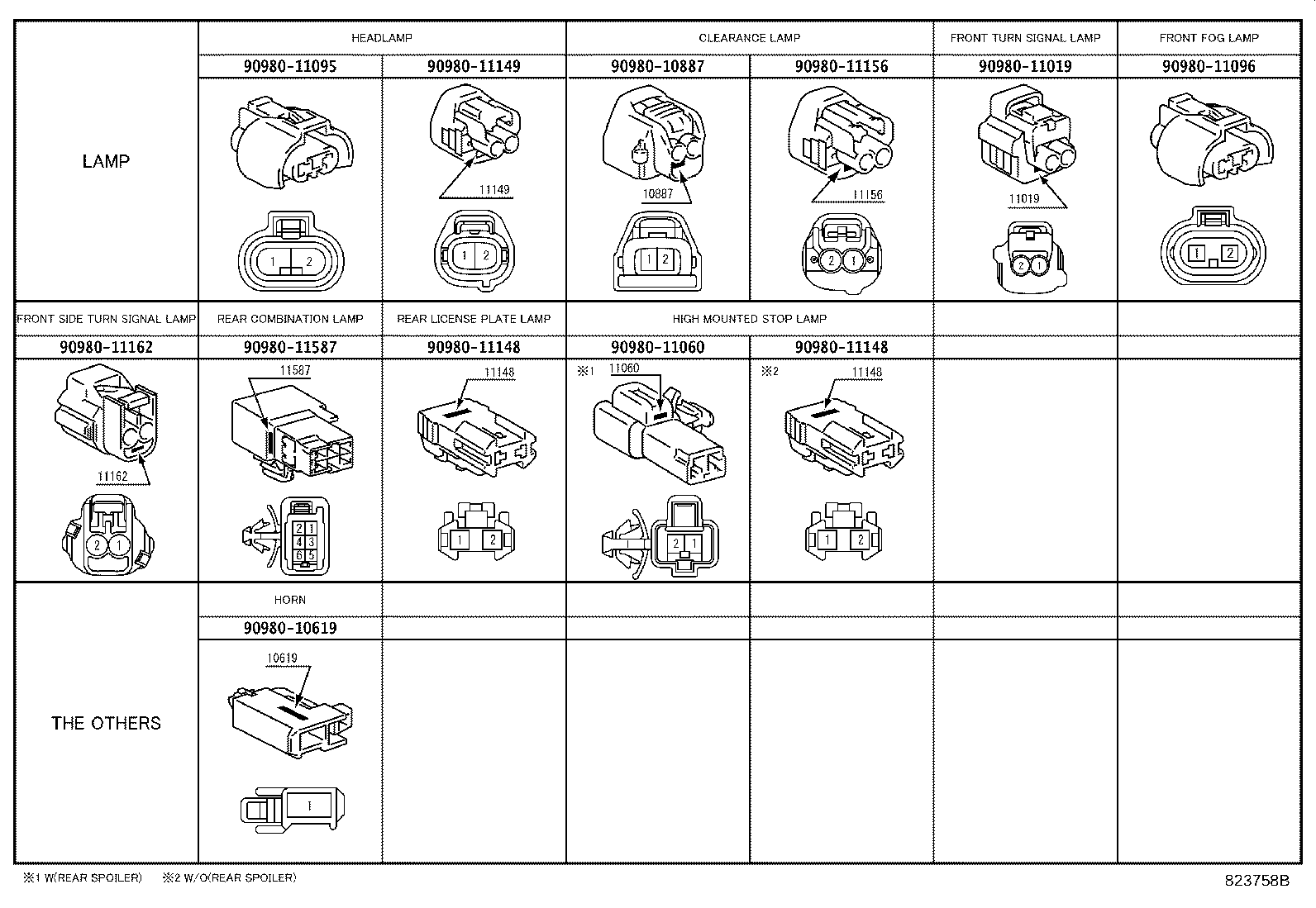

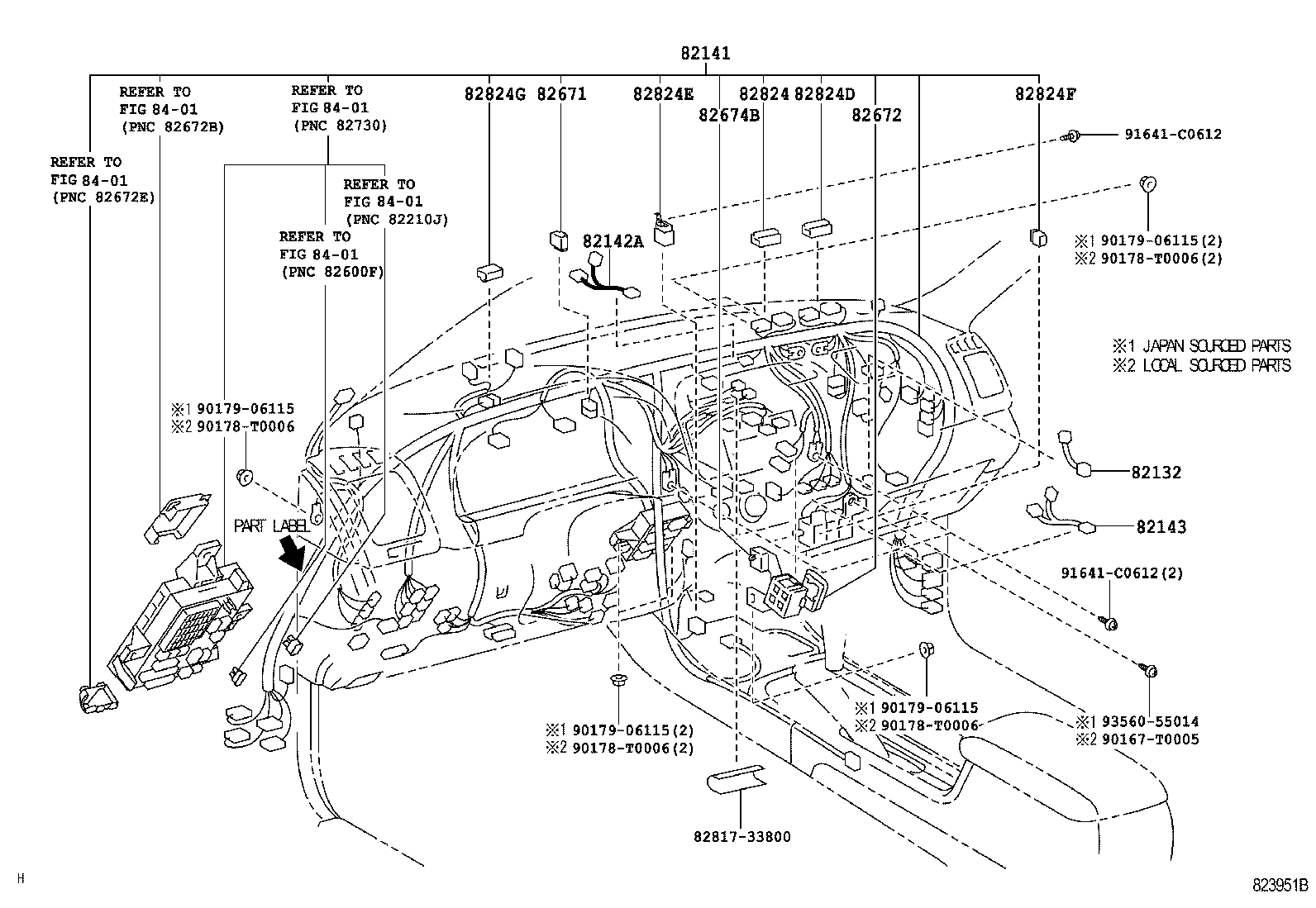

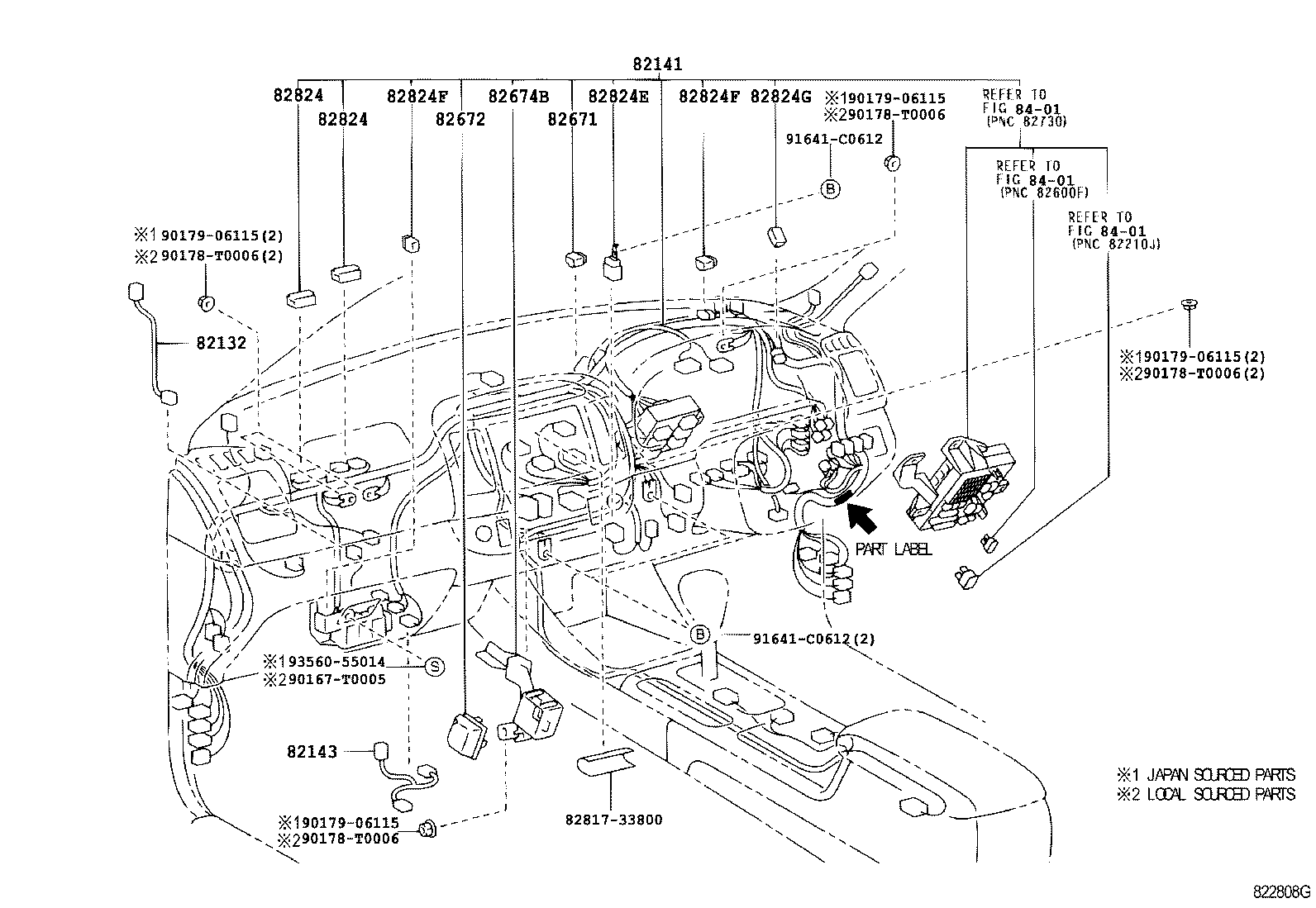

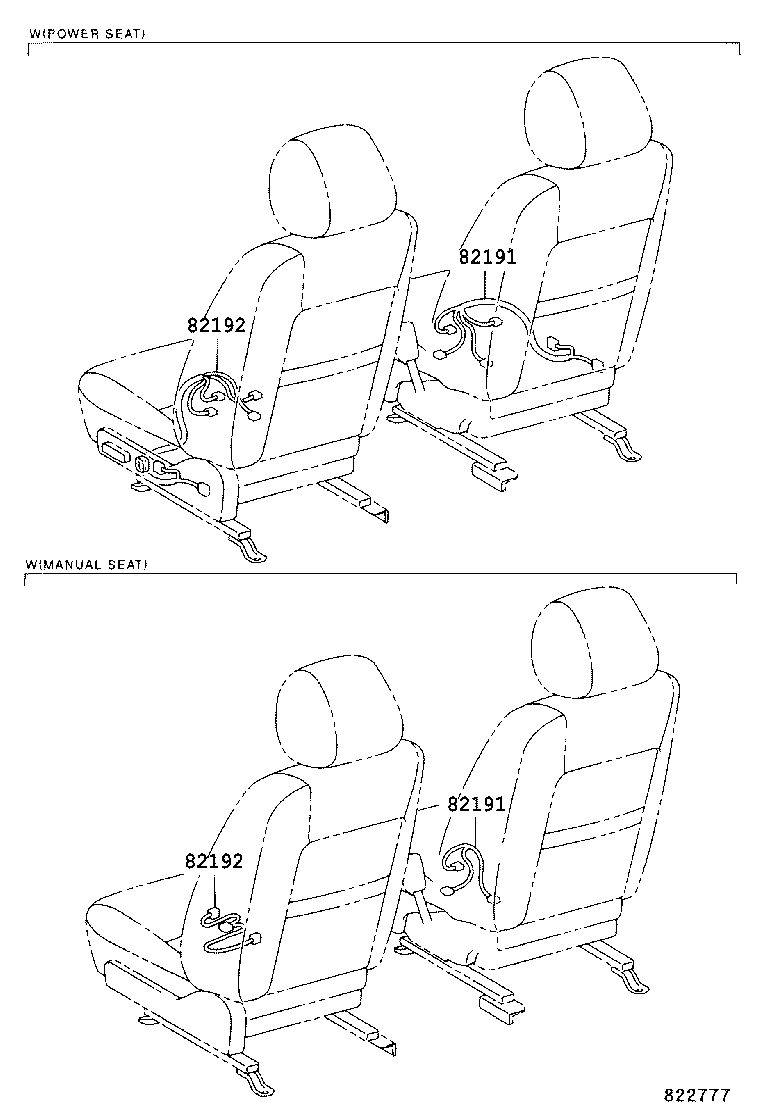

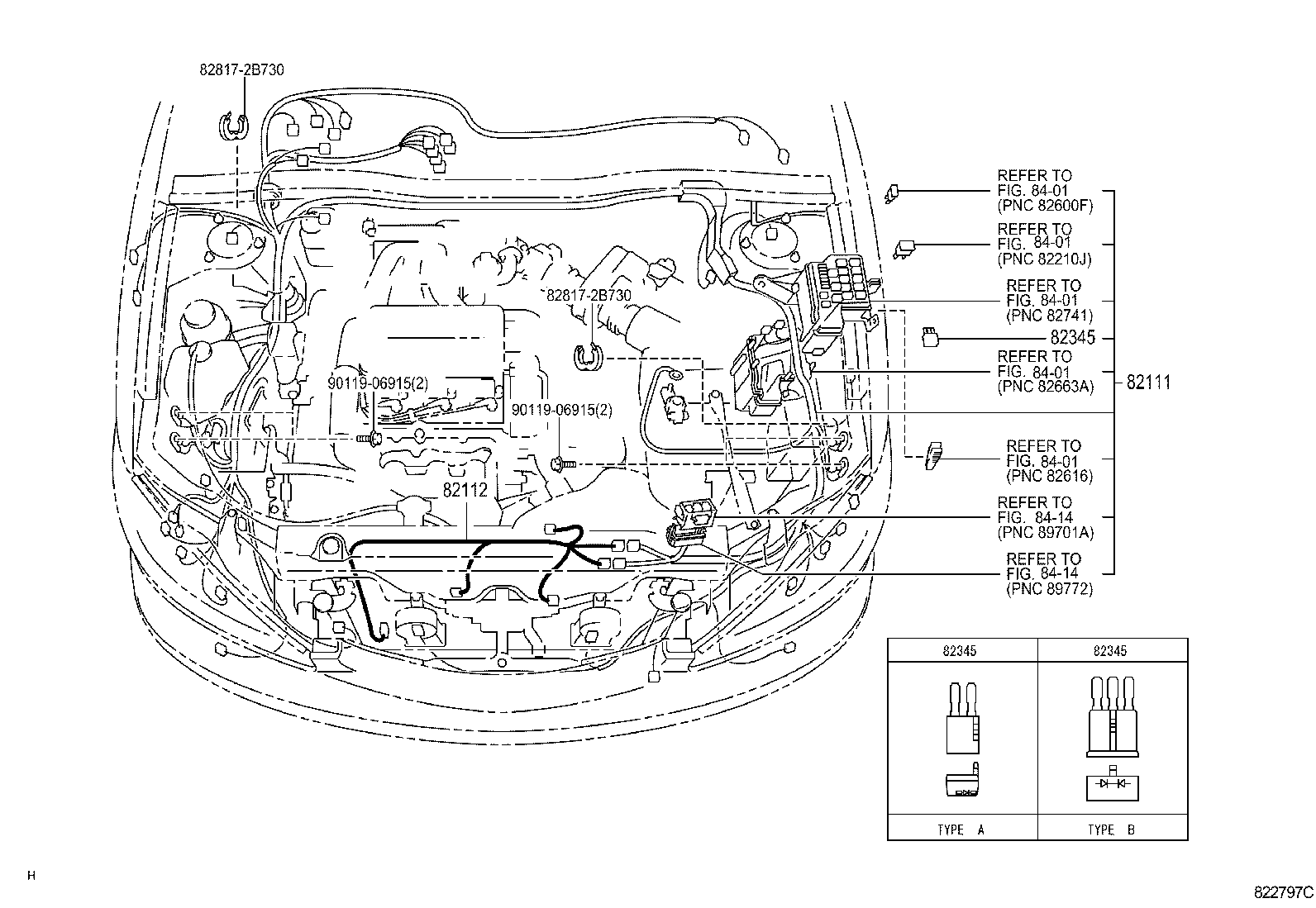

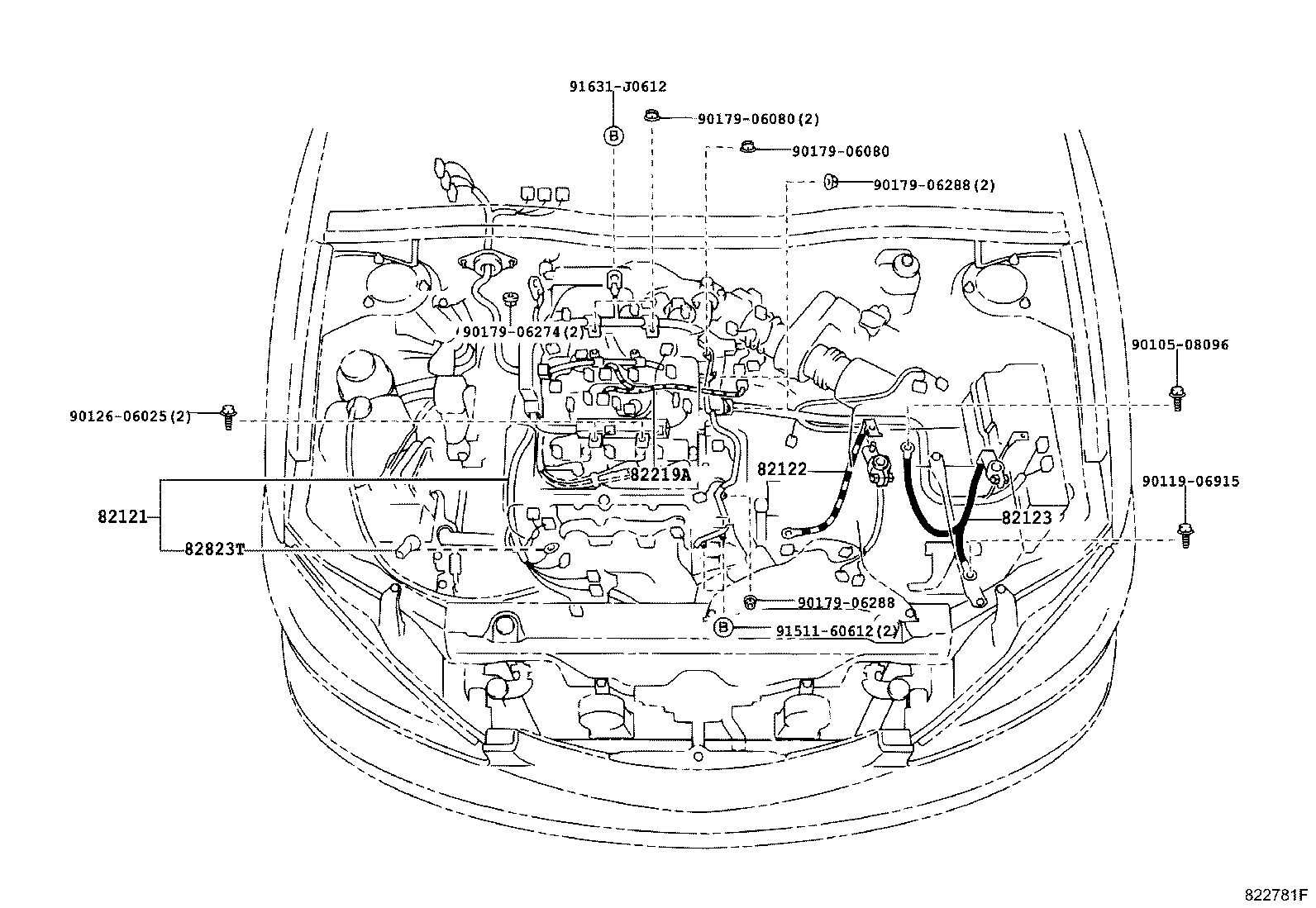

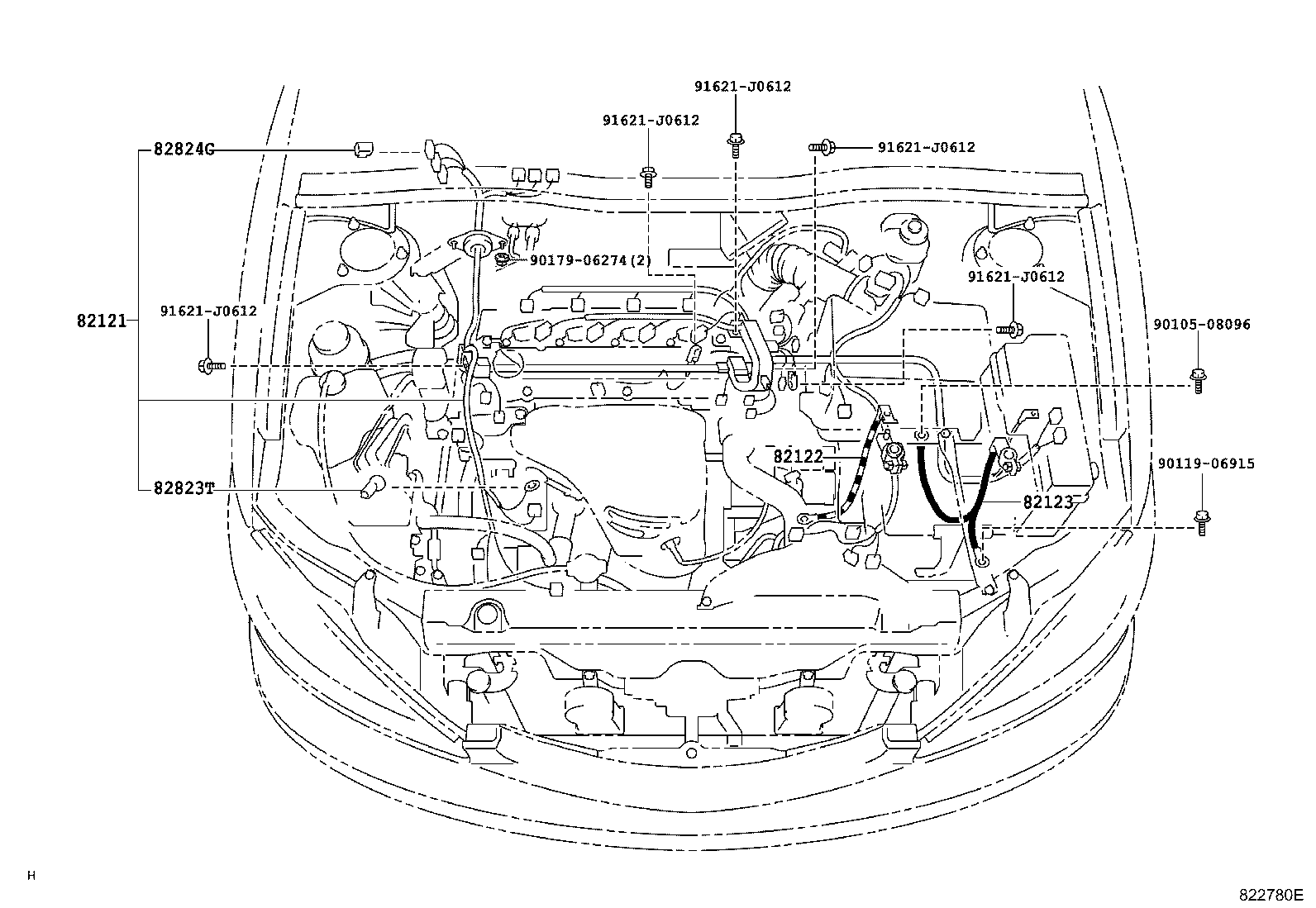

Figure 822782C 822782C 2001-08 → — Figure 822797C 822797C 2001-09 → — Figure 822781F 822781F 2001-08 → — Figure 822789F 822789F 2001-09 → — Figure 822780E 822780E 2001-08 → — Figure 822788E 822788E 2001-09 → — Figure 822784D 822784D 2001-08 → 2004-06 Figure 822808G 822808G 2001-09 → 2004-06 Figure 823951B 823951B 2004-06 → — Figure 823954B 823954B 2004-06 → — Figure 822783B 822783B 2001-08 → — Figure 822798A 822798A 2001-09 → — Figure 822777 822777 2001-08 → 2004-06 Figure 823953 823953 2004-06 → — Figure 823952 823952 2004-06 → — Figure 822800I 822800I 2001-08 → — Figure 824108 824108 2001-08 → — Figure 822778D 822778D 2001-08 → — Figure 823758B 823758B 2001-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82001G Cable, Bond, NO.4
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82671 Block, Junction
82672 Cover, Junktion Block
82674B Cover, Junction Block, Lower
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
