Toyota Camry

2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe

Discontinued model Data version 2006-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 2 illustrations

Illustrations

Figure 830734C

830734C 2001-08 → 2004-06

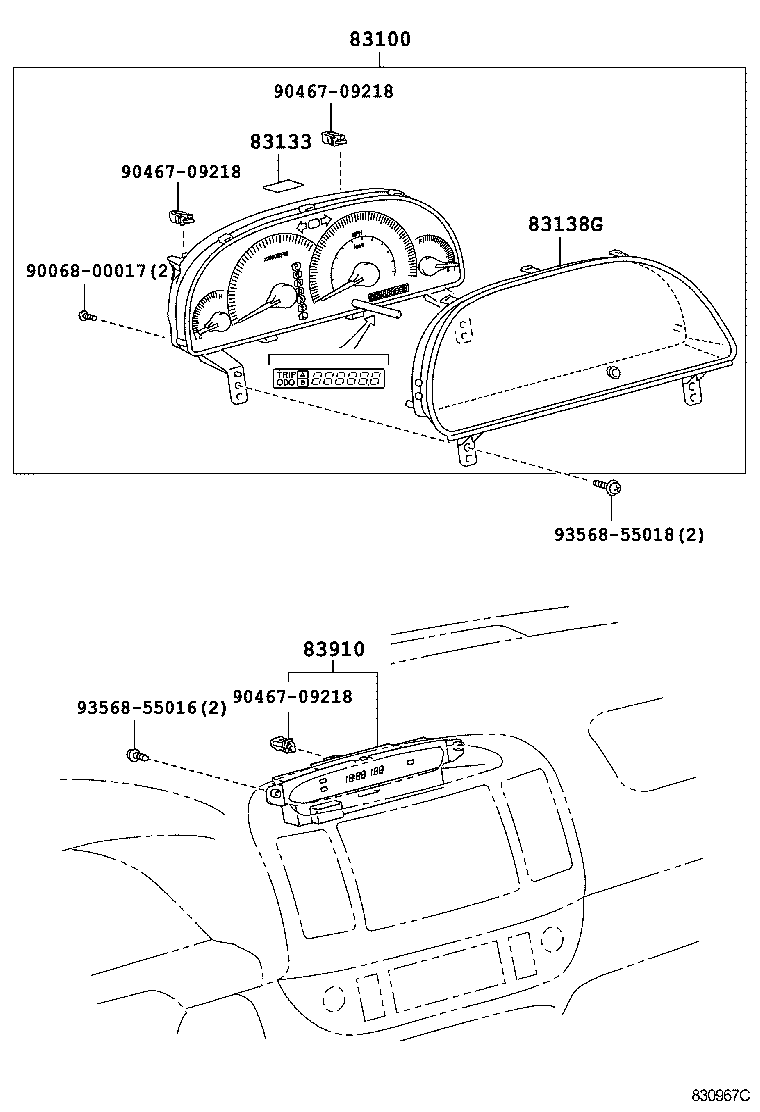

Figure 830967C

830967C 2004-06 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83133	Plate, Combination Meter, NO.1
83138G	Glass, Combination Meter
83910	Clock Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
