Toyota Camry
2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe
Discontinued model
Data version 2006-09
Overdrive & Electronic Controlled Transmission
6 part groups · 4 illustrations

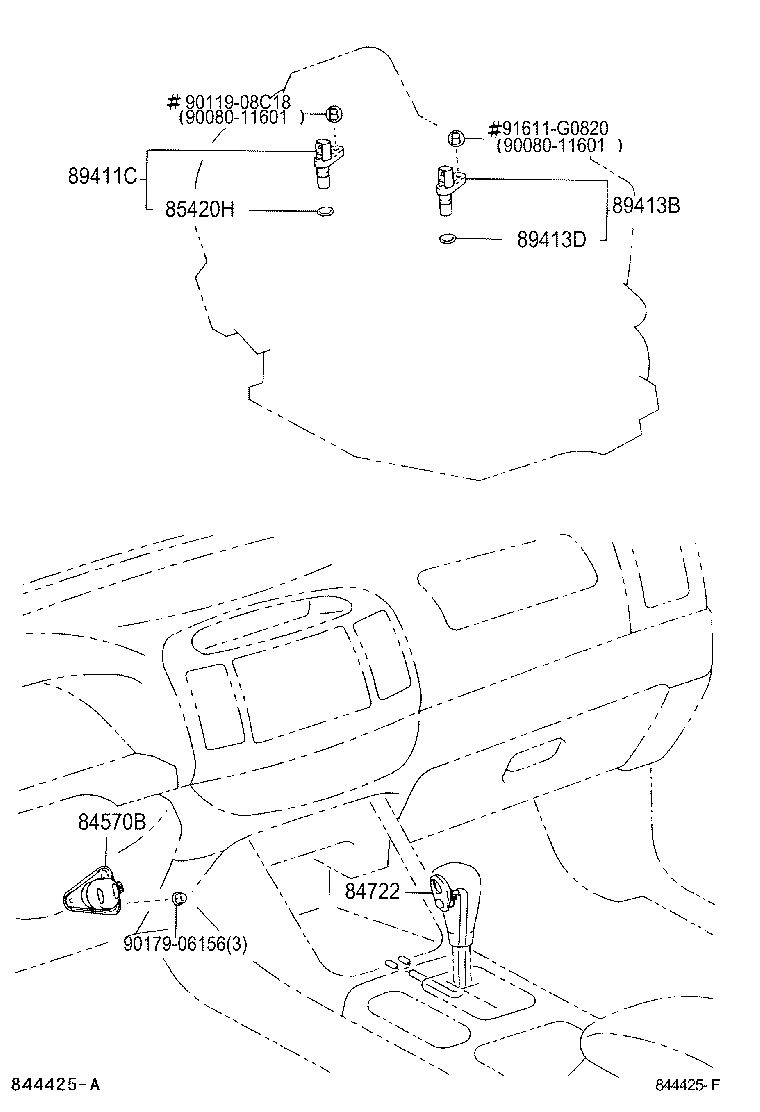

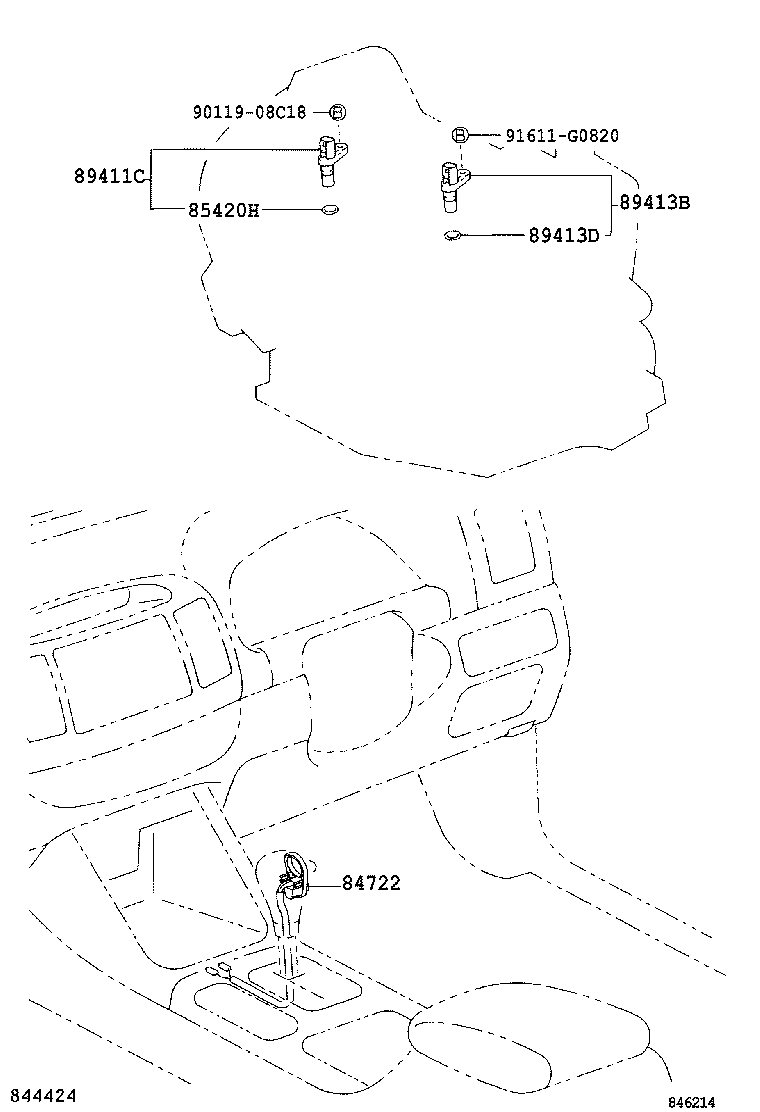

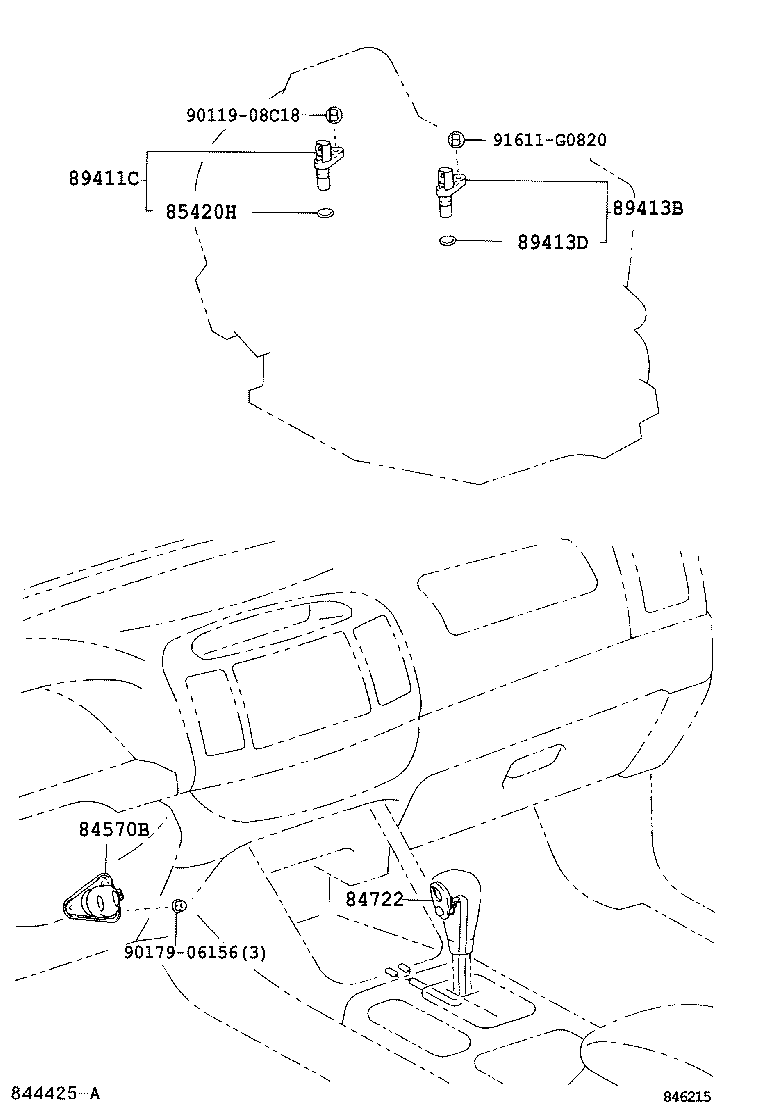

Part groups
| PNC | Description |
|---|---|
| 84570B | Switch Assy, Kick Down |
| 84722 | Switch, Transmission Control |
| 85420H | Ring, O(FOR SPEED SENSOR) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
