Heating & Air Conditioning - Cooler Piping

17 part groups · 7 illustrations

Illustrations

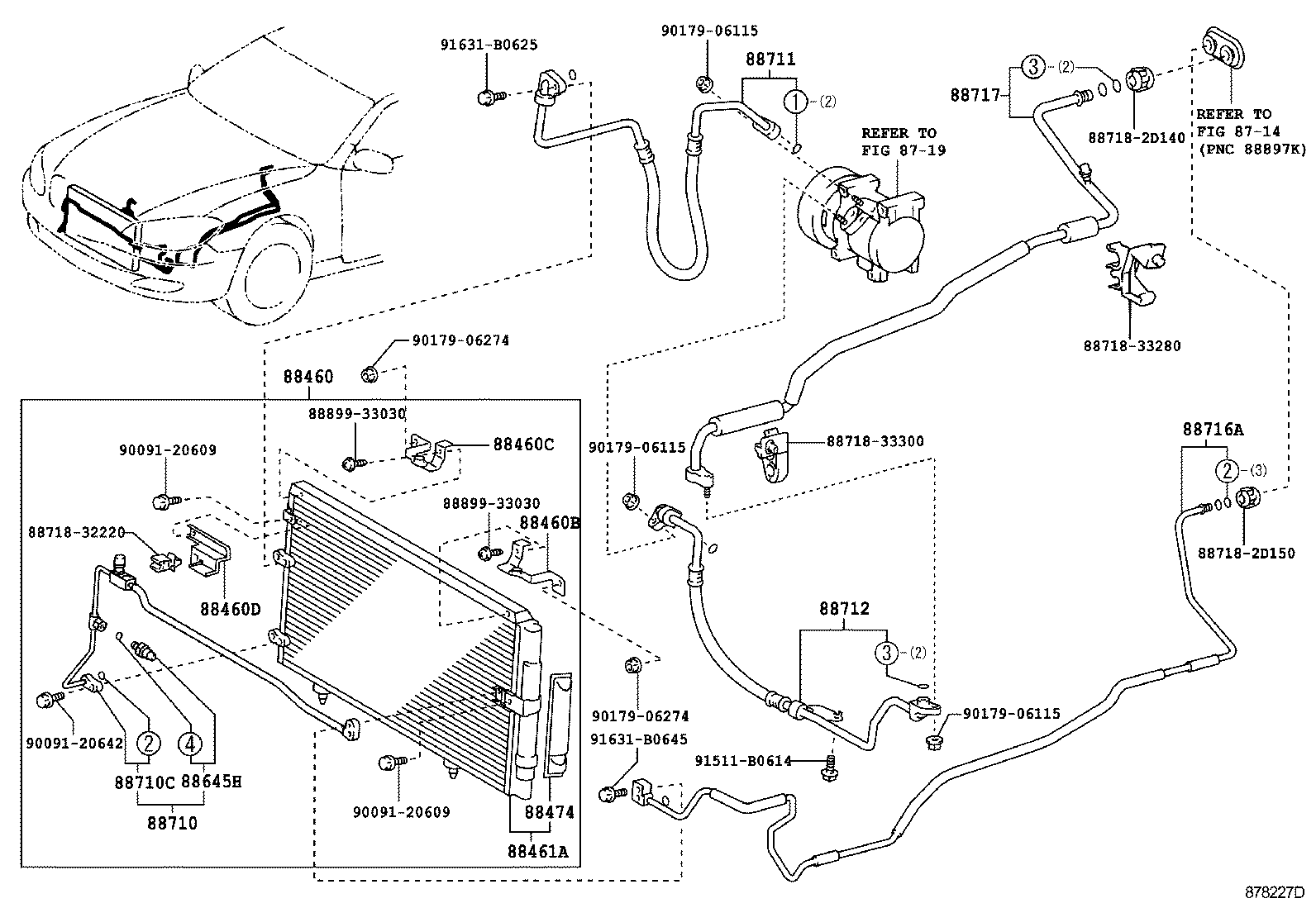

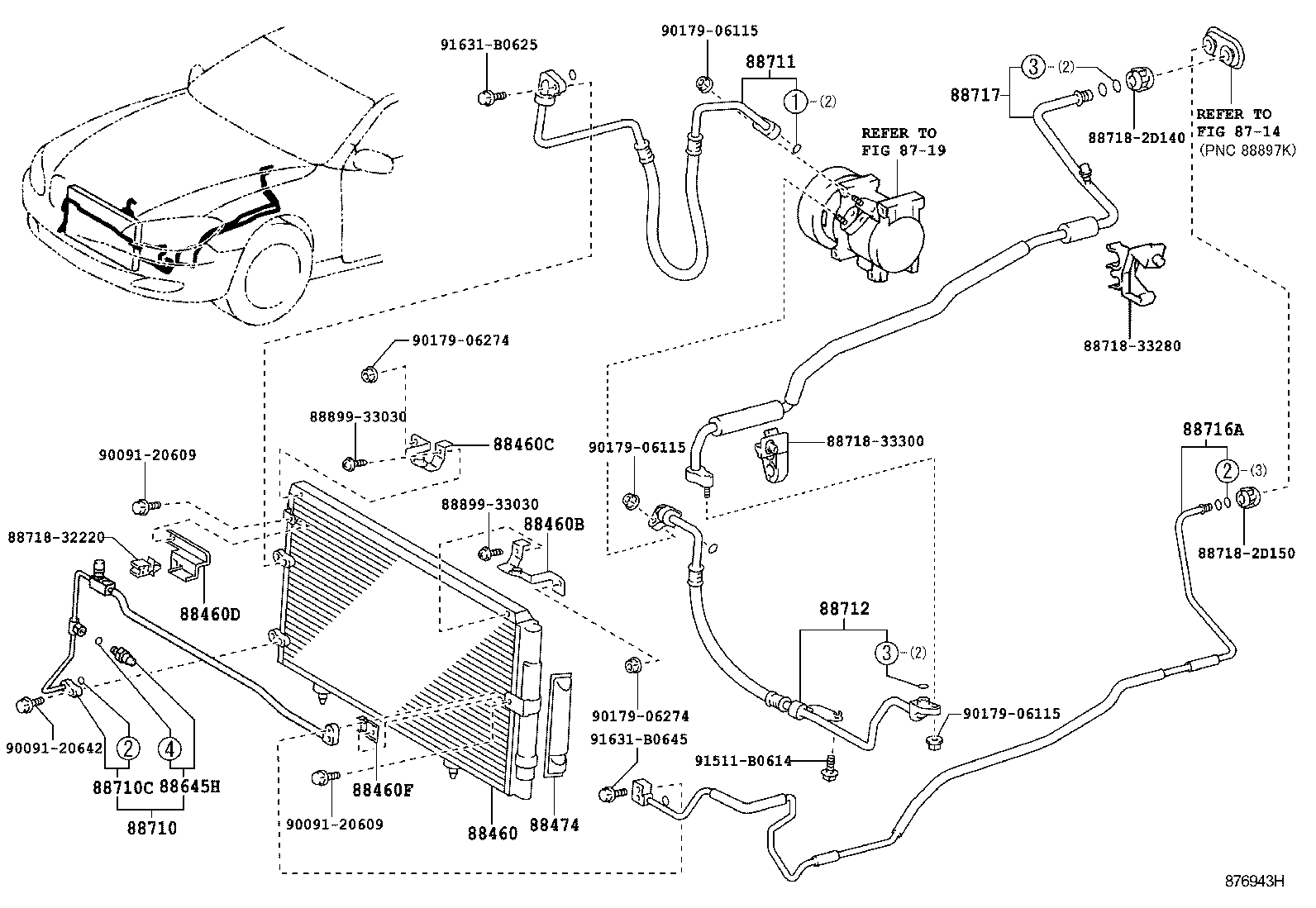

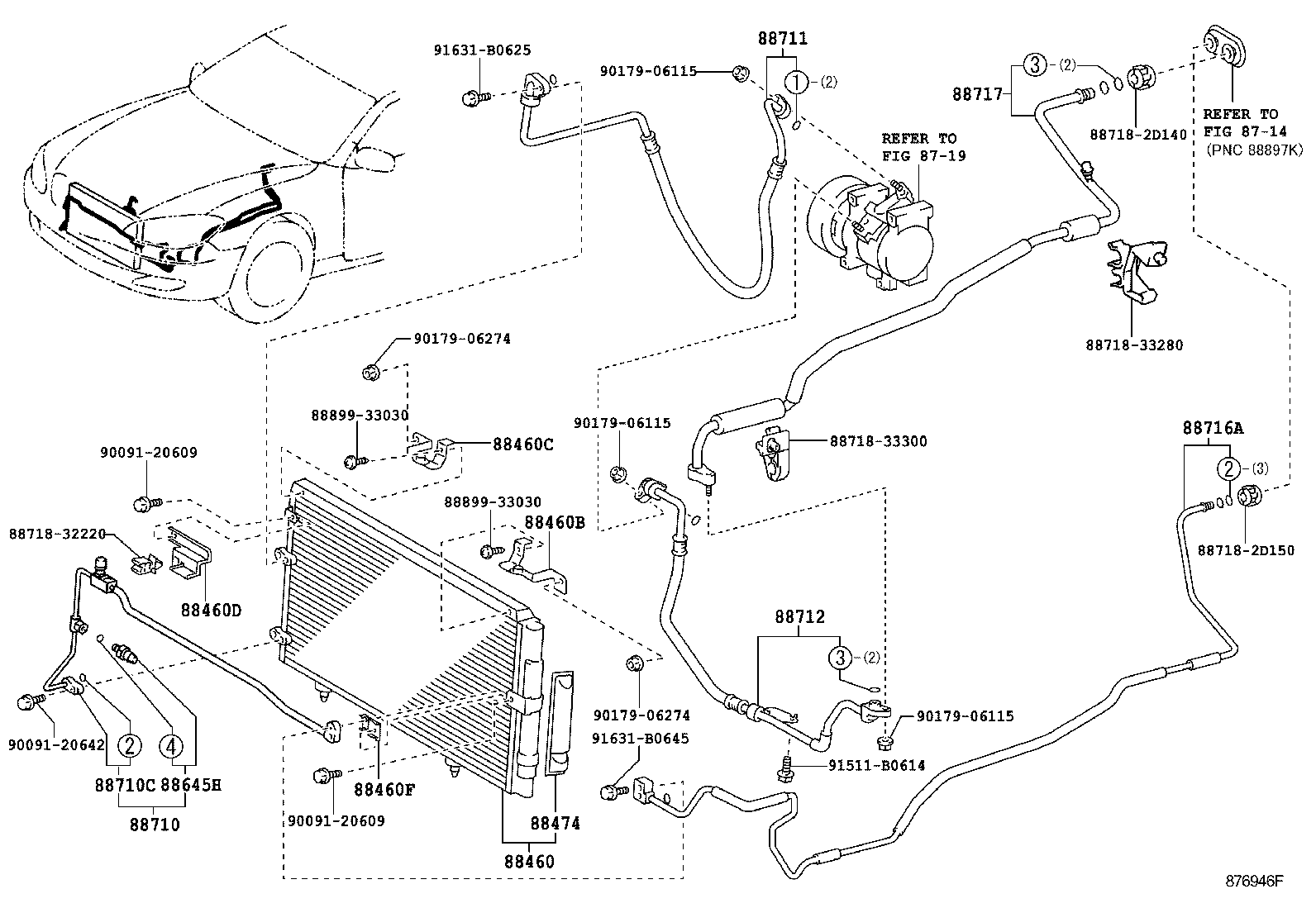

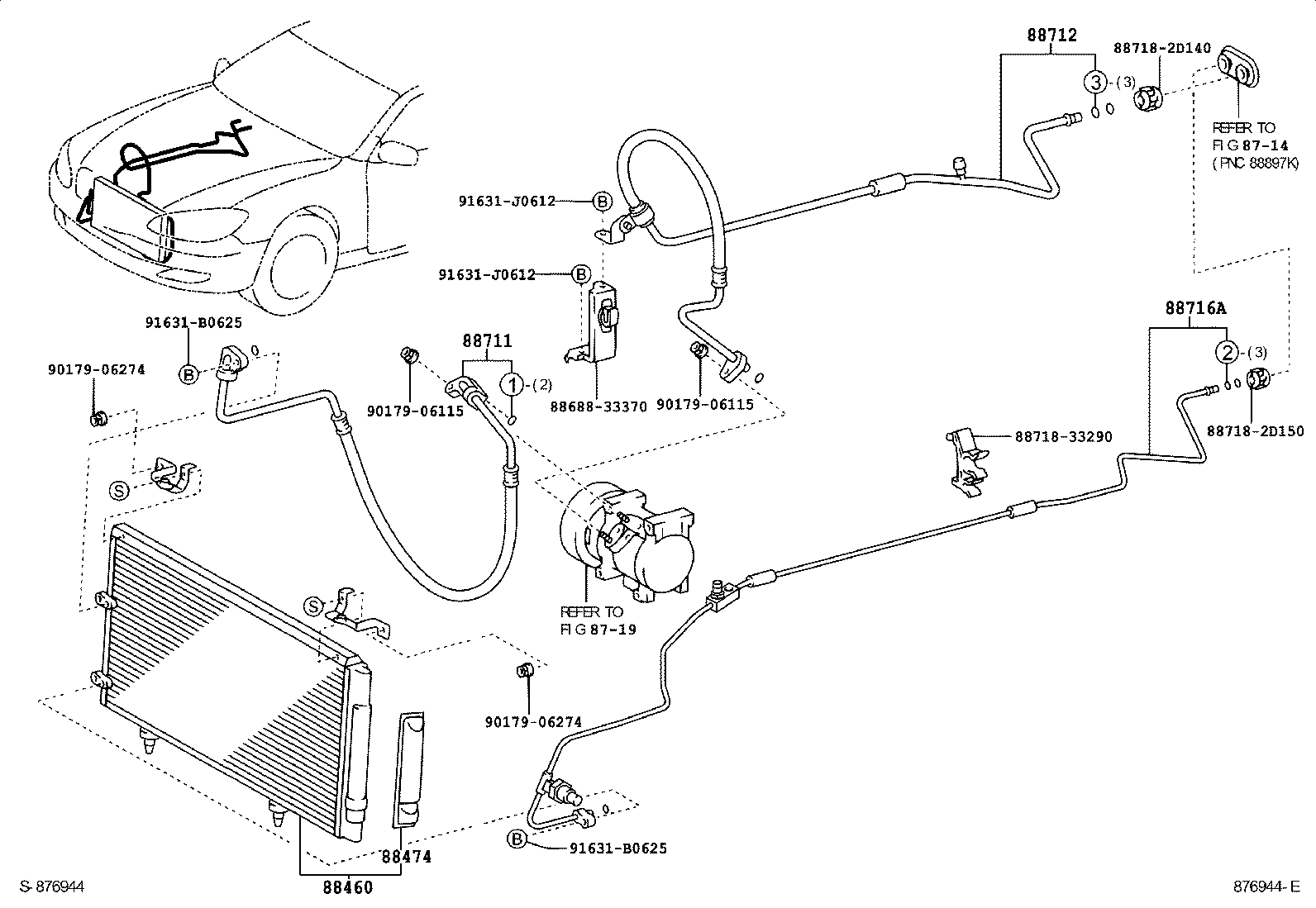

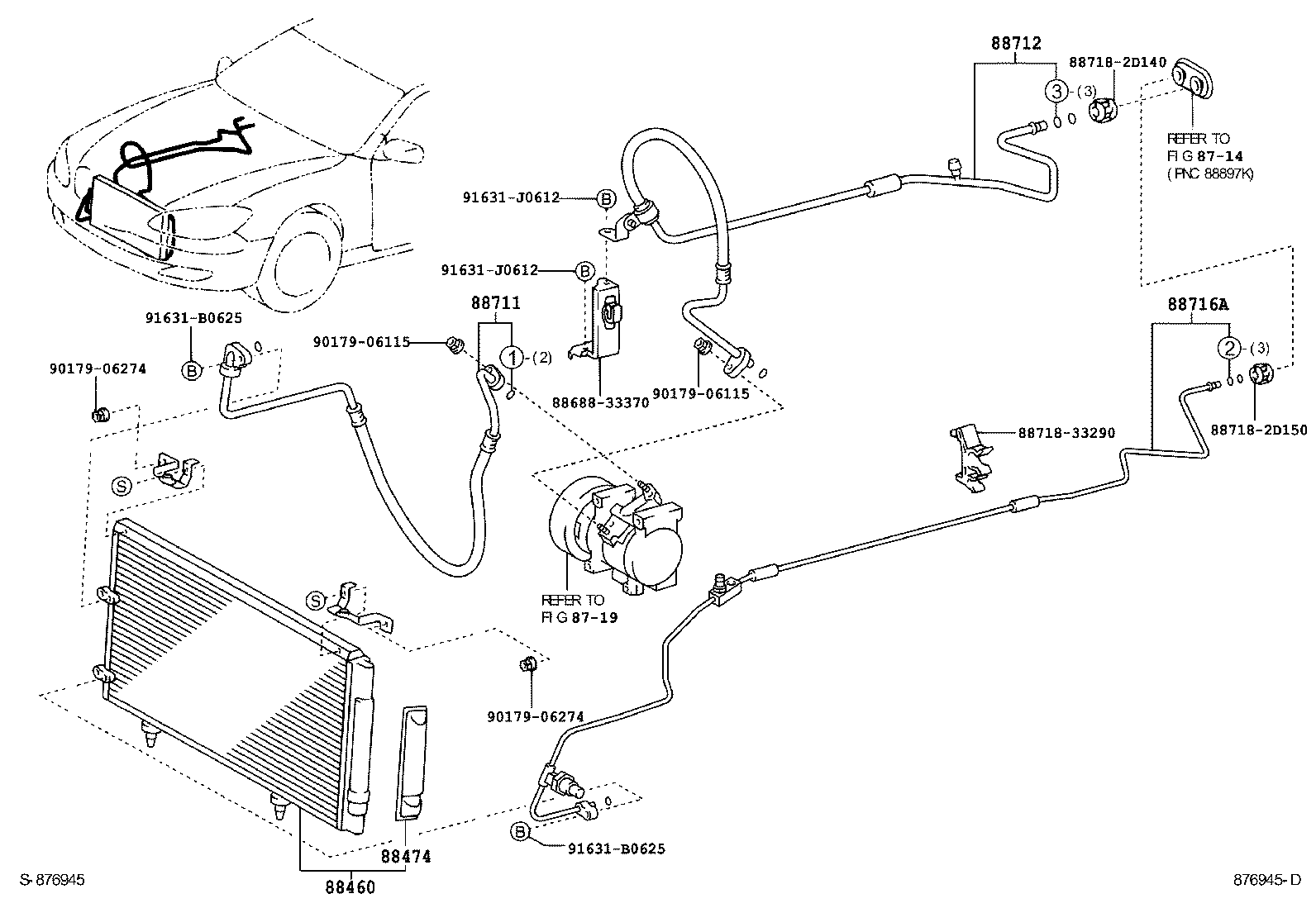

Figure 875135I 875135I 2001-08 → 2004-06 Figure 878227D 878227D 2001-09 → 2003-12 Figure 876944E 876944E 2004-06 → — Figure 876943H 876943H 2003-12 → — Figure 876945D 876945D 2004-06 → — Figure 876946F 876946F 2003-12 → — Figure 875854B 875854B 2001-08 → —

Part groups

PNCDescription
88374C Valve, Service, NO.2
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88717 Pipe, Cooler Refrigerant Suction, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
