Toyota Camry
2001-08 → 2006-01 · chassis ACV3#,MCV30 · catalogue 284570 · Europe
Discontinued model
Data version 2006-09

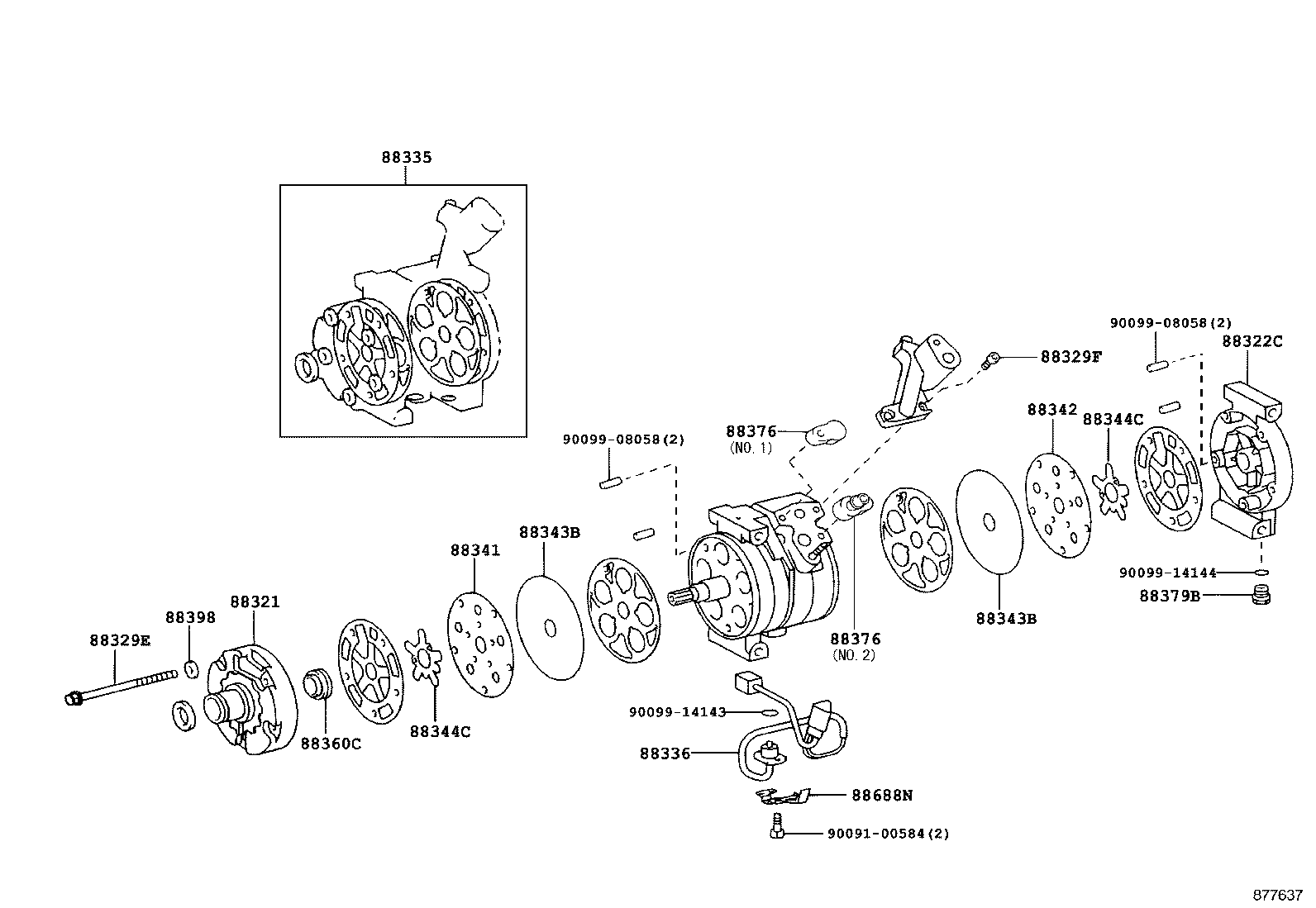

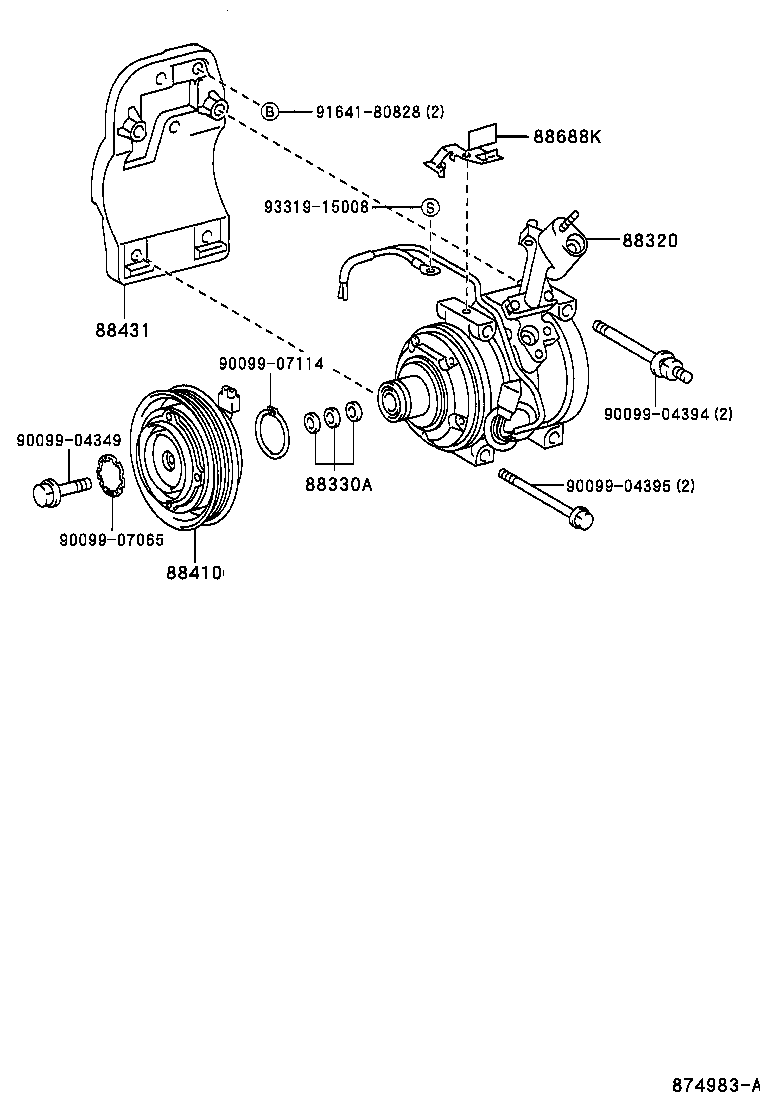

Heating & Air Conditioning - Compressor
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88321 | Head, Cooler Compressor Cylinder |
| 88322C | Head, Cylinder, Rear |
| 88329E | Bolt, Compressor, NO.1 |
| 88329F | Bolt, Compressor, NO.2 |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88336 | Sensor, Compressor |
| 88341 | Plate, Front Valve |
| 88342 | Plate, Compressor Valve, RR |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88360C | Seal Assy, Shaft |
| 88376 | Cap, Blind |
| 88379B | Valve, Pressure Relief |
| 88398 | Packing, Compressor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88688K | Bracket, Cooler Compressor |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
