Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

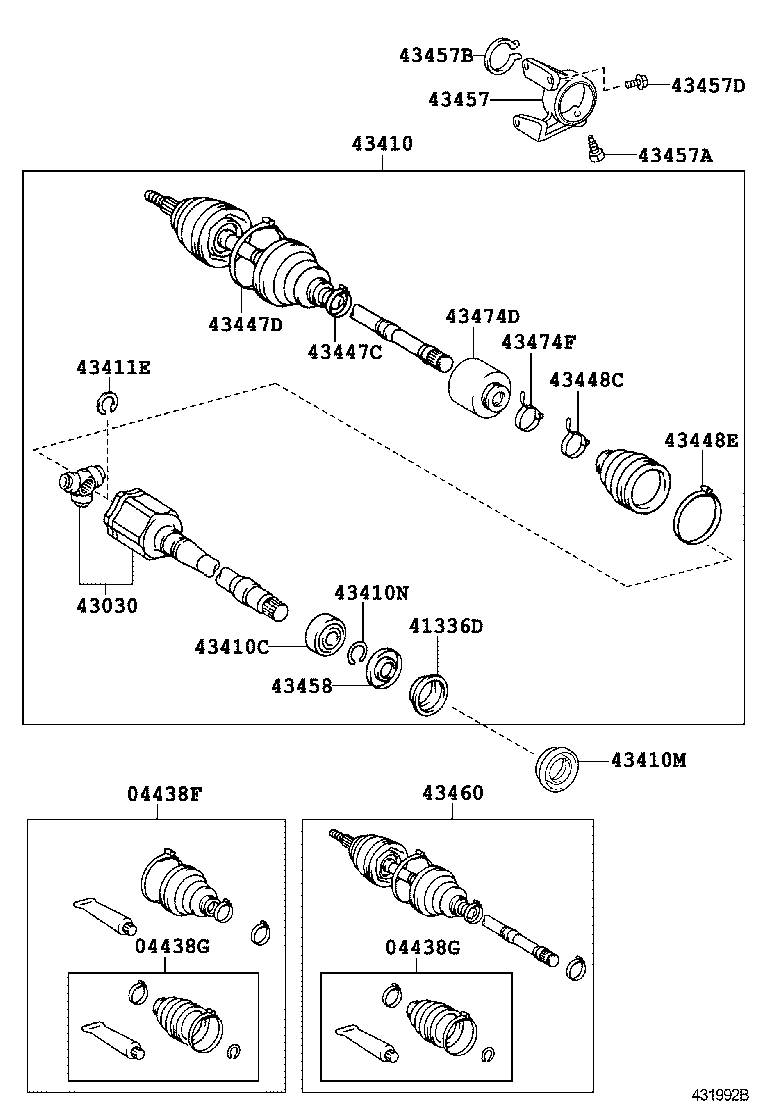

Exploded illustration 431992B 43457B — RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) (2 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (4 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (2 parts) 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (2 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (6 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (8 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (10 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (9 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (7 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (6 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (9 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (7 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (10 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (4 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (4 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (4 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (5 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (7 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (5 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (5 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (10 parts)
431992B · 22 callouts Full size ↗
123 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-06290 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2007-12 → 2009-03 ended
ACV40 COMF —
04427-06300 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2006-01 → 2008-11 ended
GSV40 —
04427-0E030 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2008-11 → 2009-03 ended
GSV40 —
04427-44040 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2006-06 → 2009-03 ended
ACV40 5F LE —
04428-42070 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2006-01 → 2006-06 ended
ACV40 5F —
04428-42070 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2006-01 → 2009-03 ended
ACV40 5FC LE —
04427-06290 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-03 → 2011-09 ended
ACV40 COMF —
04427-44040 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-01 → 2011-08 ended
ACV40 LE —
04428-0E060 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2009-01 → 2010-04 ended
GSV40 —
04428-0W070 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2010-04 → 2011-09 ended
GSV40 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-06110 Boot Kit, Front Drive Shaft Inboard Joint, RH
2006-01 → 2008-08 ended
GSV40 —
04438-07010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2007-12 → 2009-03 ended
ACV40 COMF —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RH
2008-08 → 2009-03 ended
GSV40 —
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint, RH
2006-01 → 2009-03 ended
ACV40 LE —
04438-07010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-03 → 2011-09 ended
ACV40 COMF —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-01 → 2011-09 ended
GSV40 —
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint, RH
2009-01 → 2011-08 ended
ACV40 LE —
41336D — Cover, Front Drive Shaft Dust, RH
41336-06020 Cover, Front Drive Shaft Dust, RH
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
41336-12020 Cover, Front Drive Shaft Dust, RH
2006-01 → 2009-03 ended
ACV40 LE —
41336-06020 Cover, Front Drive Shaft Dust, RH
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
41336-12020 Cover, Front Drive Shaft Dust, RH
2009-01 → 2011-08 ended
ACV40 LE —
43030 — Joint Assy, Front Drive Inboard, RH
43030-06190 note Joint Assy, Front Drive Inboard, RH
2006-08 → 2009-03 ended
ACV40 5FC LE —
43030-06280 Joint Assy, Front Drive Inboard, RH
2007-12 → 2009-03 ended
ACV40 COMF —
43030-0W040 Joint Assy, Front Drive Inboard, RH
2006-01 → 2009-03 ended
GSV40 —
43030-33051 note Joint Assy, Front Drive Inboard, RH
2006-01 → 2009-03 ended
ACV40 LE —
43030-06280 Joint Assy, Front Drive Inboard, RH
2009-03 → 2011-09 ended
ACV40 COMF —
43030-0W040 Joint Assy, Front Drive Inboard, RH
2009-01 → 2011-09 ended
GSV40 —
43030-33051 Joint Assy, Front Drive Inboard, RH
2009-01 → 2011-08 ended
ACV40 LE —
43410 — Shaft Assy, Front Drive, RH
43410-06670 note Shaft Assy, Front Drive, RH
2006-08 → 2009-01 ended
ACV40 5FC LE —
43410-06680 Shaft Assy, Front Drive, RH
2007-12 → 2009-03 ended
ACV40 COMF —
43410-0W180 Shaft Assy, Front Drive, RH
2006-01 → 2009-03 ended
GSV40 —
43410-33290 note Shaft Assy, Front Drive, RH
2006-08 → 2009-01 ended
ACV40 5FC LE —
43410-33290 Shaft Assy, Front Drive, RH
2006-01 → 2006-08 ended
ACV40 5FC —
43410-33290 Shaft Assy, Front Drive, RH
2006-01 → 2009-01 ended
ACV40 5F LE —
43410-06680 Shaft Assy, Front Drive, RH
2009-03 → 2011-09 ended
ACV40 COMF —
43410-0W180 Shaft Assy, Front Drive, RH
2009-01 → 2011-09 ended
GSV40 —
43410-33290 Shaft Assy, Front Drive, RH
2009-01 → 2011-08 ended
ACV40 LE —
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90080-36133 Bearing (FOR FRONT DRIVE SHAFT)
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
90363-41003 note Bearing (FOR FRONT DRIVE SHAFT)
2006-01 → 2009-03 ended
ACV40 LE —
90363-C0001 note Bearing (FOR FRONT DRIVE SHAFT)
2006-08 → 2009-03 ended
ACV40 5FC LE —
90080-36133 Bearing (FOR FRONT DRIVE SHAFT)
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
90363-41003 Bearing (FOR FRONT DRIVE SHAFT)
2009-01 → 2011-08 ended
ACV40 LE —
43410M — Oil Seal, Front Drive Shaft, RH
90311-40029 Oil Seal, Front Drive Shaft, RH
2006-01 → 2009-03 ended
GSV40 —
90311-40030 Oil Seal, Front Drive Shaft, RH
2006-01 → 2009-03 ended
ACV40 5F —
90311-40031 Oil Seal, Front Drive Shaft, RH
2006-01 → 2009-03 ended
ACV40 5FC COMF —
90311-40031 Oil Seal, Front Drive Shaft, RH
2006-10 → 2009-03 ended
ACV40 5FC LE —
90311-40031 Oil Seal, Front Drive Shaft, RH
2006-09 → 2006-10 ended
ACV40 5FC —
90311-40031 Oil Seal, Front Drive Shaft, RH
2006-01 → 2006-09 ended
ACV40 5FC —
90311-40029 Oil Seal, Front Drive Shaft, RH
2009-01 → 2011-09 ended
GSV40 —
90311-40030 Oil Seal, Front Drive Shaft, RH
2009-01 → 2011-02 ended
ACV40 5F —
90311-40031 Oil Seal, Front Drive Shaft, RH
2009-01 → 2011-09 ended
ACV40 5FC —
90311-40036 Oil Seal, Front Drive Shaft, RH
2011-02 → 2011-09 ended
ACV40 5F —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90080-52013 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
90520-38015 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2006-01 → 2009-03 ended
ACV40 LE —
90080-52013 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
90520-38015 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2009-01 → 2011-08 ended
ACV40 LE —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2006-01 → 2009-03 ended
GSV40 —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2006-01 → 2009-03 ended
ACV40 LE —
90080-52118 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2007-12 → 2009-03 ended
ACV40 COMF —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2009-01 → 2011-09 ended
GSV40 —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2009-01 → 2011-08 ended
ACV40 LE —
90080-52118 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2009-03 → 2011-09 ended
ACV40 COMF —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
ACV40 LE —
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-01 → 2011-08 ended
ACV40 LE —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-06080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2007-12 → 2009-03 ended
ACV40 COMF —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
GSV40 —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
ACV40 LE —
42345-06080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-03 → 2011-09 ended
ACV40 COMF —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-01 → 2011-09 ended
GSV40 —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2009-01 → 2011-08 ended
ACV40 LE —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-07020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-12 → 2009-03 ended
ACV40 COMF —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
GSV40 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-01 → 2006-08 ended
ACV40 5FC —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-08 → 2009-03 ended
ACV40 5FC LE —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
ACV40 5F LE —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
ACV40 LE —
42345-07020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-03 → 2011-09 ended
ACV40 COMF —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-01 → 2011-09 ended
GSV40 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-01 → 2011-08 ended
ACV40 LE —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-01 → 2011-08 ended
ACV40 LE —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
GSV40 —
42345-07010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2007-12 → 2009-03 ended
ACV40 COMF —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-01 → 2006-08 ended
ACV40 5FC —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-01 → 2009-03 ended
ACV40 5F LE —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2006-08 → 2009-03 ended
ACV40 5FC LE —
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-01 → 2011-09 ended
GSV40 —
42345-07010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-03 → 2011-09 ended
ACV40 COMF —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2009-01 → 2011-08 ended
ACV40 LE —
43457 — Bracket, Drive Shaft Bearing
43457-33020 Bracket, Drive Shaft Bearing
2006-01 → 2009-03 ended
ACV40 5FC —
43457-33030 Bracket, Drive Shaft Bearing
2006-01 → 2009-03 ended
GSV40 —
43457-33020 Bracket, Drive Shaft Bearing
2009-01 → 2011-09 ended
ACV40 5FC —
43457-33030 Bracket, Drive Shaft Bearing
2009-01 → 2011-09 ended
GSV40 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2006-01 → 2009-03 ended
ACV40,GSV40 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2009-01 → 2011-09 ended
ACV40,GSV40 —
43457B — Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2006-01 → 2009-03 ended
ACV40,GSV40 —
90521-78002 Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
2009-01 → 2011-09 ended
ACV40,GSV40 —
43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2006-01 → 2009-03 ended
ACV40,GSV40 ATM —
90105-10381 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2009-01 → 2011-09 ended
ACV40,GSV40 ATM —
43458 — Cover, Front Drive Shaft Dust
43458-06020 Cover, Front Drive Shaft Dust
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
43458-12010 Cover, Front Drive Shaft Dust
2006-01 → 2009-03 ended
ACV40 LE —
43458-06020 Cover, Front Drive Shaft Dust
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
43458-12010 Cover, Front Drive Shaft Dust
2009-01 → 2011-08 ended
ACV40 LE —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-09M20 Shaft Assy, Front Drive Outboard Joint, RH
2006-01 → 2009-03 ended
GSV40 —
43470-09V10 Shaft Assy, Front Drive Outboard Joint, RH
2007-12 → 2009-03 ended
ACV40 COMF —
43470-39545 Shaft Assy, Front Drive Outboard Joint, RH
2006-01 → 2009-03 ended
ACV40 5F LE —
43470-39545 Shaft Assy, Front Drive Outboard Joint, RH
2006-01 → 2006-08 ended
ACV40 5FC —
43470-39545 Shaft Assy, Front Drive Outboard Joint, RH
2008-01 → 2009-03 ended
ACV40 5FC LE —
43470-39545 note Shaft Assy, Front Drive Outboard Joint, RH
2006-08 → 2008-01 ended
ACV40 5FC LE —
43460-09M20 Shaft Assy, Front Drive Outboard Joint, RH
2009-01 → 2011-09 ended
GSV40 —
43470-09V10 Shaft Assy, Front Drive Outboard Joint, RH
2009-03 → 2011-09 ended
ACV40 COMF —
43470-39545 Shaft Assy, Front Drive Outboard Joint, RH
2009-01 → 2011-08 ended
ACV40 LE —
43474D — Damper, Front Drive Shaft, RH
43474-06140 note Damper, Front Drive Shaft, RH
2006-08 → 2009-03 ended
ACV40 5FC LE —
43474-0W030 Damper, Front Drive Shaft, RH
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
43474-48020 note Damper, Front Drive Shaft, RH
2006-01 → 2009-03 ended
ACV40 LE —
43474-0W030 Damper, Front Drive Shaft, RH
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
43474-48020 Damper, Front Drive Shaft, RH
2009-01 → 2011-08 ended
ACV40 LE —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2006-08 → 2009-03 ended
ACV40 5FC LE —
42345-14010 note Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2006-01 → 2009-03 ended
ACV40 LE —
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
42345-14010 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2009-01 → 2011-08 ended
ACV40 LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
