Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

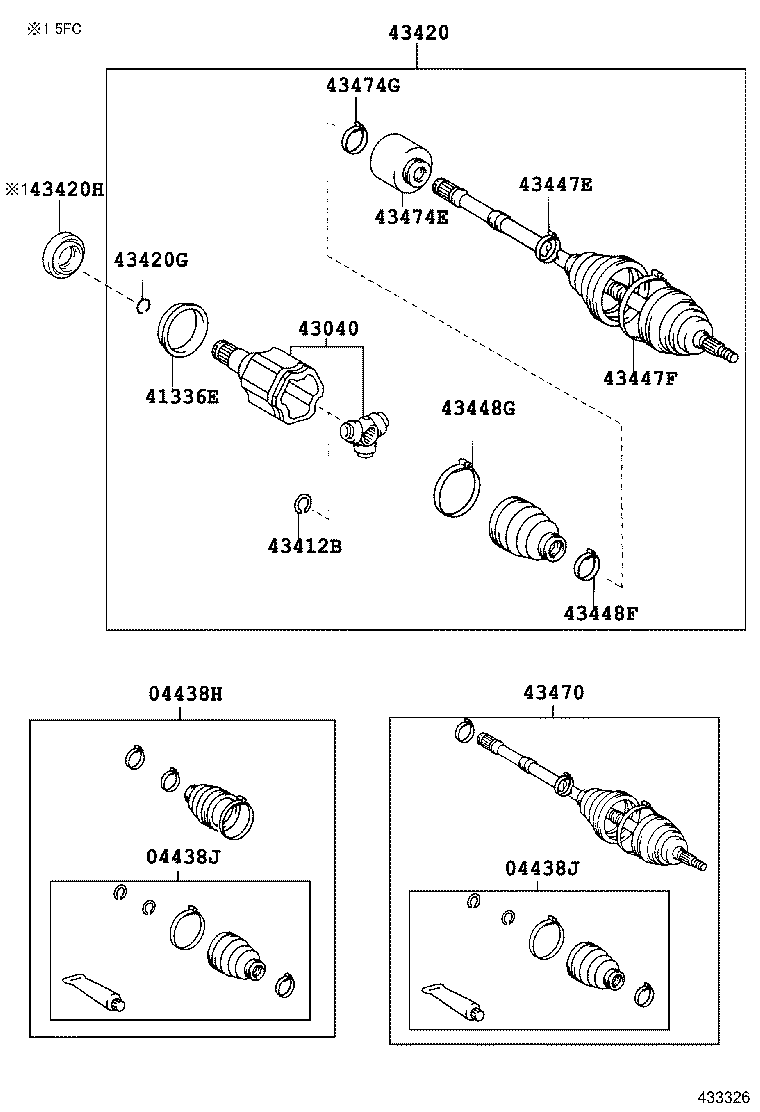

Exploded illustration 433326 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (9 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (12 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (4 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (7 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (5 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (4 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (6 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (8 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (9 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (6 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (7 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (4 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (7 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (13 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (5 parts) 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (9 parts)
433326 · 16 callouts Full size ↗
108 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-06340 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-12 → 2009-03 ended
ACV40 5F COMF —
04428-06460 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2007-12 → 2009-03 ended
ACV40 5FC COMF —
04428-08080 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-01 → 2008-11 ended
GSV40 —
04428-0W030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2008-11 → 2009-03 ended
GSV40 —
04428-28140 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-08 → 2009-01 ended
ACV40 5FC LE —
04428-33030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-01 → 2006-08 ended
ACV40 5FC —
04428-42070 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-01 → 2009-01 ended
ACV40 5F LE —
04428-06340 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-03 → 2011-09 ended
ACV40 5F COMF —
04428-06460 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-03 → 2011-09 ended
ACV40 5FC COMF —
04428-0W030 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-01 → 2010-04 ended
GSV40 —
04428-0W070 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-04 → 2011-09 ended
GSV40 —
04428-42070 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-01 → 2011-08 ended
ACV40 5F LE —
04428-42110 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-01 → 2011-08 ended
ACV40 5FC LE —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-06400 Boot Kit, Front Drive Shaft Inboard Joint, LH
2007-12 → 2009-03 ended
ACV40 COMF —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-01 → 2009-03 ended
GSV40 —
04438-33120 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-01 → 2009-03 ended
ACV40 5FC LE —
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-01 → 2009-03 ended
ACV40 5F LE —
04438-06400 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-03 → 2011-09 ended
ACV40 COMF —
04438-08130 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-01 → 2011-09 ended
GSV40 —
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-01 → 2011-08 ended
ACV40 LE —
41336E — Cover, Front Drive Shaft Dust, LH
41336-06060 Cover, Front Drive Shaft Dust, LH
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
41336-28020 Cover, Front Drive Shaft Dust, LH
2006-01 → 2009-03 ended
ACV40 LE —
41336-06060 Cover, Front Drive Shaft Dust, LH
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
41336-28020 Cover, Front Drive Shaft Dust, LH
2009-01 → 2011-08 ended
ACV40 LE —
43040 — Joint Assy, Front Drive Inboard, LH
43040-0W010 Joint Assy, Front Drive Inboard, LH
2007-12 → 2009-03 ended
ACV40 COMF —
43040-0W030 Joint Assy, Front Drive Inboard, LH
2006-01 → 2009-03 ended
GSV40 —
43040-28011 Joint Assy, Front Drive Inboard, LH
2006-01 → 2009-03 ended
ACV40 5F LE —
43040-28011 note Joint Assy, Front Drive Inboard, LH
2006-01 → 2009-03 ended
ACV40 5FC LE —
43040-06190 note Joint Assy, Front Drive Inboard, LH
2009-01 → 2011-08 ended
ACV40 5FC LE —
43040-0W010 Joint Assy, Front Drive Inboard, LH
2009-03 → 2011-09 ended
ACV40 COMF —
43040-0W030 Joint Assy, Front Drive Inboard, LH
2009-01 → 2011-09 ended
GSV40 —
43040-28011 note Joint Assy, Front Drive Inboard, LH
2009-01 → 2011-08 ended
ACV40 5FC LE —
43040-28011 Joint Assy, Front Drive Inboard, LH
2009-01 → 2011-08 ended
ACV40 5F LE —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2006-01 → 2009-03 ended
GSV40 —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2006-01 → 2009-03 ended
ACV40 LE —
90080-52118 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2007-12 → 2009-03 ended
ACV40 COMF —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-01 → 2011-09 ended
GSV40 —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-01 → 2011-08 ended
ACV40 LE —
90080-52118 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-03 → 2011-09 ended
ACV40 COMF —
43420 — Shaft Assy, Front Drive, LH
43420-06740 Shaft Assy, Front Drive, LH
2007-12 → 2009-03 ended
ACV40 5FC COMF —
43420-06750 Shaft Assy, Front Drive, LH
2007-12 → 2009-03 ended
ACV40 5F COMF —
43420-0W210 Shaft Assy, Front Drive, LH
2006-01 → 2009-03 ended
GSV40 —
43420-33250 note Shaft Assy, Front Drive, LH
2006-08 → 2009-01 ended
ACV40 5FC LE —
43420-33250 Shaft Assy, Front Drive, LH
2006-01 → 2006-08 ended
ACV40 5FC —
43420-33280 Shaft Assy, Front Drive, LH
2006-01 → 2009-01 ended
ACV40 5F LE —
43420-06700 note Shaft Assy, Front Drive, LH
2009-01 → 2011-08 ended
ACV40 5FC LE —
43420-06740 Shaft Assy, Front Drive, LH
2009-03 → 2011-09 ended
ACV40 5FC COMF —
43420-06750 Shaft Assy, Front Drive, LH
2009-03 → 2011-09 ended
ACV40 5F COMF —
43420-0W210 Shaft Assy, Front Drive, LH
2009-01 → 2011-09 ended
GSV40 —
43420-33250 note Shaft Assy, Front Drive, LH
2009-01 → 2011-08 ended
ACV40 5FC LE —
43420-33280 Shaft Assy, Front Drive, LH
2009-01 → 2011-08 ended
ACV40 5F LE —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2006-01 → 2009-01 ended
ACV40 LE —
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2009-01 → 2011-08 ended
ACV40 LE —
43420H — Oil Seal, Front Drive Shaft, LH
90311-50033 Oil Seal, Front Drive Shaft, LH
2006-01 → 2006-09 ended
ACV40 5FC —
90311-50033 Oil Seal, Front Drive Shaft, LH
2006-10 → 2009-03 ended
ACV40 5FC LE —
90311-50033 Oil Seal, Front Drive Shaft, LH
2006-09 → 2006-10 ended
ACV40 5FC —
90311-50033 Oil Seal, Front Drive Shaft, LH
2006-01 → 2009-03 ended
ACV40,GSV40 ATM (COMF,PREM,XLE) —
90311-50035 Oil Seal, Front Drive Shaft, LH
2006-01 → 2009-03 ended
ACV40 5F —
90311-50033 Oil Seal, Front Drive Shaft, LH
2009-01 → 2011-09 ended
GSV40 —
90311-50033 note Oil Seal, Front Drive Shaft, LH
2009-01 → 2011-09 ended
ACV40 5FC —
90311-50035 Oil Seal, Front Drive Shaft, LH
2009-01 → 2010-10 ended
ACV40 5F —
90311-50047 Oil Seal, Front Drive Shaft, LH
2010-10 → 2011-09 ended
ACV40 5F —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
ACV40,GSV40 COMF,PREM,XLE —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
ACV40 LE —
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-01 → 2011-09 ended
ACV40,GSV40 COMF,PREM,XLE —
42345-42100 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-01 → 2011-08 ended
ACV40 LE —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-06080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2007-12 → 2009-03 ended
ACV40 COMF —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
GSV40 —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
ACV40 LE —
42345-06080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-03 → 2011-09 ended
ACV40 COMF —
42345-06250 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-01 → 2011-09 ended
GSV40 —
42345-42090 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-01 → 2011-08 ended
ACV40 LE —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-07020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-12 → 2009-03 ended
ACV40 COMF —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
GSV40 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
ACV40 LE —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
ACV40 LE —
42345-07020 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-03 → 2011-09 ended
ACV40 COMF —
42345-08070 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-01 → 2011-09 ended
GSV40 —
42345-42010 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-01 → 2011-08 ended
ACV40 LE —
90949-01559 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-01 → 2011-08 ended
ACV40 LE —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
GSV40 —
42345-07010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2007-12 → 2009-03 ended
ACV40 COMF —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-01 → 2009-03 ended
ACV40 LE —
42345-06240 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-01 → 2011-09 ended
GSV40 —
42345-07010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-03 → 2011-09 ended
ACV40 COMF —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-01 → 2011-08 ended
ACV40 5F LE —
42345-12160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-01 → 2011-08 ended
ACV40 5FC LE —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-09M60 Shaft Assy, Front Drive Outboard Joint, LH
2006-01 → 2009-03 ended
GSV40 —
43470-09V10 Shaft Assy, Front Drive Outboard Joint, LH
2007-12 → 2009-03 ended
ACV40 COMF —
43470-39545 Shaft Assy, Front Drive Outboard Joint, LH
2006-01 → 2009-03 ended
ACV40 5F LE —
43470-39545 Shaft Assy, Front Drive Outboard Joint, LH
2006-01 → 2006-08 ended
ACV40 5FC —
43470-39545 Shaft Assy, Front Drive Outboard Joint, LH
2008-01 → 2009-03 ended
ACV40 5FC LE —
43470-39545 note Shaft Assy, Front Drive Outboard Joint, LH
2006-08 → 2008-01 ended
ACV40 5FC LE —
43470-09M60 Shaft Assy, Front Drive Outboard Joint, LH
2009-01 → 2011-09 ended
GSV40 —
43470-09V10 Shaft Assy, Front Drive Outboard Joint, LH
2009-03 → 2011-09 ended
ACV40 COMF —
43470-39545 Shaft Assy, Front Drive Outboard Joint, LH
2009-01 → 2011-08 ended
ACV40 LE —
43474E — Damper, Front Drive Shaft, LH
43474-06090 Damper, Front Drive Shaft, LH
2006-01 → 2009-03 ended
ACV40,GSV40 ATM (COMF,PREM,XLE) —
43474-33050 note Damper, Front Drive Shaft, LH
2006-01 → 2009-03 ended
ACV40 5FC LE —
43474-06090 Damper, Front Drive Shaft, LH
2009-01 → 2011-09 ended
ACV40,GSV40 ATM (COMF,PREM,XLE) —
43474-06150 note Damper, Front Drive Shaft, LH
2009-01 → 2011-08 ended
ACV40 5FC LE —
43474-33050 note Damper, Front Drive Shaft, LH
2009-01 → 2011-08 ended
ACV40 5FC LE —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2006-01 → 2009-03 ended
ACV40,GSV40 ATM (COMF,PREM,XLE) —
42345-14010 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2006-01 → 2009-03 ended
ACV40 5FC LE —
42345-06100 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2009-01 → 2011-09 ended
ACV40,GSV40 ATM (COMF,PREM,XLE) —
42345-06420 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2009-01 → 2011-08 ended
ACV40 5FC LE —
42345-14010 note Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2009-01 → 2011-08 ended
ACV40 5FC LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
