Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

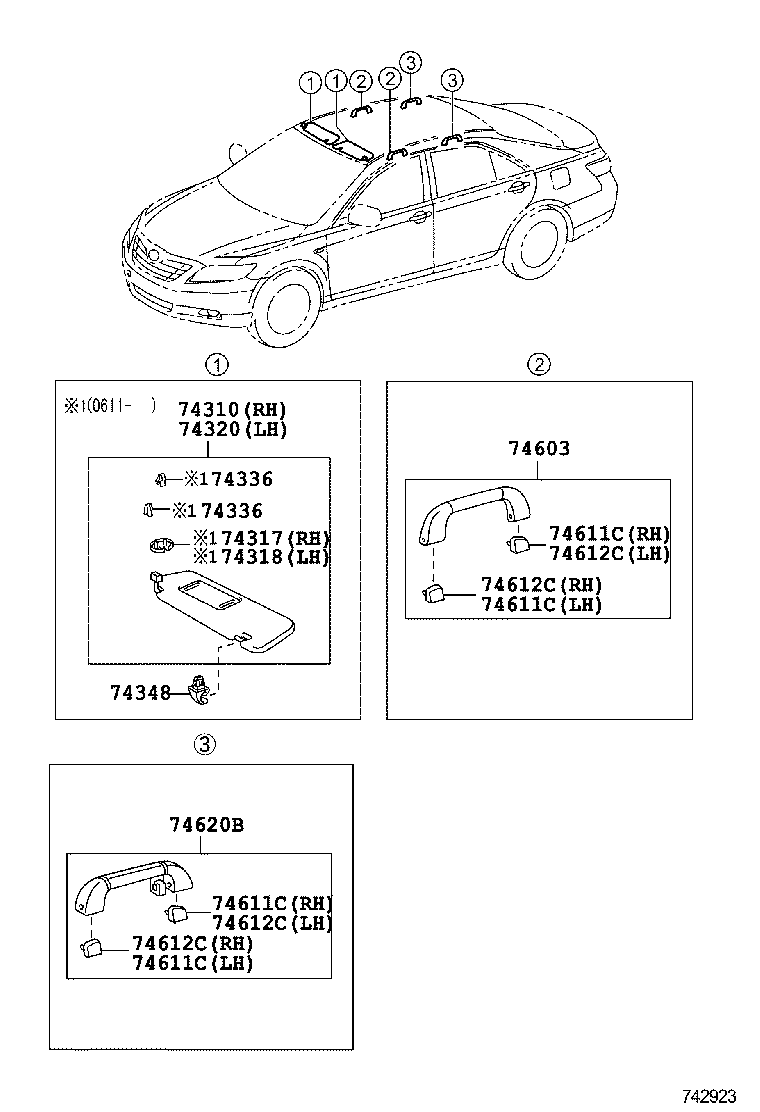

Exploded illustration 742923 74318 — COVER, VISOR BRACKET, LH (8 parts) 74336 — CLIP, VISOR ARM SET (4 parts) 74336 — CLIP, VISOR ARM SET (4 parts) 74317 — COVER, VISOR BRACKET, RH (8 parts) 74320 — VISOR ASSY, LH (16 parts) 74348 — HOLDER, VISOR (4 parts) 74310 — VISOR ASSY, RH (16 parts) 74603 — GRIP SUB-ASSY, ASSIST, FRONT (4 parts) 74611C — COVER, ASSIST GRIP, LH (2 parts) 74612C — COVER, ASSIST GRIP, RH (2 parts) 74612C — COVER, ASSIST GRIP, RH (2 parts) 74611C — COVER, ASSIST GRIP, LH (2 parts) 74620B — GRIP ASSY, ASSIST, REAR (8 parts) 74611C — COVER, ASSIST GRIP, LH (2 parts) 74612C — COVER, ASSIST GRIP, RH (2 parts) 74612C — COVER, ASSIST GRIP, RH (2 parts) 74611C — COVER, ASSIST GRIP, LH (2 parts)
742923 · 17 callouts Full size ↗
72 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-33A20-B1 note Visor Assy, RH
2006-01 → 2009-01 ended
ACV40,GSV40 RHD —
74310-33A20-E1 note Visor Assy, RH
2006-01 → 2009-01 ended
ACV40,GSV40 RHD —
74310-33A80-B1 note Visor Assy, RH
2006-01 → 2009-03 ended
ACV40,GSV40 LHD —
74310-33A80-E1 note Visor Assy, RH
2006-01 → 2009-03 ended
ACV40,GSV40 LHD —
74310-33A20-B1 note Visor Assy, RH
2009-01 → 2009-04 ended
ACV40,GSV40 RHD —
74310-33A20-E1 note Visor Assy, RH
2009-01 → 2009-04 ended
ACV40,GSV40 RHD —
74310-33A80-B1 note Visor Assy, RH
2009-01 → 2009-04 ended
ACV40,GSV40 LHD —
74310-33A80-E1 note Visor Assy, RH
2009-01 → 2009-04 ended
ACV40,GSV40 LHD —
74310-33C00-B0 note Visor Assy, RH
2009-04 → 2009-09 ended
ACV40,GSV40 RHD —
74310-33C00-E0 note Visor Assy, RH
2009-04 → 2009-09 ended
ACV40,GSV40 RHD —
74310-33C01-B0 note Visor Assy, RH
2009-09 → 2011-08 ended
ACV40,GSV40 RHD —
74310-33C01-E0 note Visor Assy, RH
2009-09 → 2011-08 ended
ACV40,GSV40 RHD —
74310-33C10-B0 note Visor Assy, RH
2009-04 → 2009-09 ended
ACV40,GSV40 LHD —
74310-33C10-E0 note Visor Assy, RH
2009-04 → 2009-09 ended
ACV40,GSV40 LHD —
74310-33C11-B0 note Visor Assy, RH
2009-09 → 2011-09 ended
ACV40,GSV40 LHD —
74310-33C11-E0 note Visor Assy, RH
2009-09 → 2011-09 ended
ACV40,GSV40 LHD —
74317 — Cover, Visor Bracket, RH
74317-52010-B0 note Cover, Visor Bracket, RH
2006-11 → 2009-03 ended
ACV40,GSV40 —
74317-52010-E0 note Cover, Visor Bracket, RH
2006-11 → 2009-03 ended
ACV40,GSV40 —
74317-33010-B0 note Cover, Visor Bracket, RH
2009-04 → 2011-09 ended
ACV40,GSV40 —
74317-33010-E0 note Cover, Visor Bracket, RH
2009-04 → 2011-09 ended
ACV40,GSV40 —
74317-52010-B0 note Cover, Visor Bracket, RH
2009-01 → 2009-03 ended
ACV40,GSV40 LE,XLE —
74317-52010-B0 note Cover, Visor Bracket, RH
2009-01 → 2009-04 ended
ACV40,GSV40 COMF,PREM —
74317-52010-E0 note Cover, Visor Bracket, RH
2009-01 → 2009-03 ended
ACV40,GSV40 LE,XLE —
74317-52010-E0 note Cover, Visor Bracket, RH
2009-01 → 2009-04 ended
ACV40,GSV40 COMF,PREM —
74318 — Cover, Visor Bracket, LH
74318-52020-B0 note Cover, Visor Bracket, LH
2006-11 → 2009-03 ended
ACV40,GSV40 —
74318-52020-E0 note Cover, Visor Bracket, LH
2006-11 → 2009-03 ended
ACV40,GSV40 —
74318-33010-B0 note Cover, Visor Bracket, LH
2009-04 → 2011-09 ended
ACV40,GSV40 —
74318-33010-E0 note Cover, Visor Bracket, LH
2009-04 → 2011-09 ended
ACV40,GSV40 —
74318-52020-B0 note Cover, Visor Bracket, LH
2009-01 → 2009-03 ended
ACV40,GSV40 LE,XLE —
74318-52020-B0 note Cover, Visor Bracket, LH
2009-01 → 2009-04 ended
ACV40,GSV40 COMF,PREM —
74318-52020-E0 note Cover, Visor Bracket, LH
2009-01 → 2009-03 ended
ACV40,GSV40 LE,XLE —
74318-52020-E0 note Cover, Visor Bracket, LH
2009-01 → 2009-04 ended
ACV40,GSV40 COMF,PREM —
74320 — Visor Assy, LH
74320-33A10-B1 note Visor Assy, LH
2006-01 → 2009-01 ended
ACV40,GSV40 RHD —
74320-33A10-E1 note Visor Assy, LH
2006-01 → 2009-01 ended
ACV40,GSV40 RHD —
74320-33A70-B1 note Visor Assy, LH
2006-01 → 2009-03 ended
ACV40,GSV40 LHD —
74320-33A70-E1 note Visor Assy, LH
2006-01 → 2009-03 ended
ACV40,GSV40 LHD —
74320-33A10-B1 note Visor Assy, LH
2009-01 → 2009-04 ended
ACV40,GSV40 RHD —
74320-33A10-E1 note Visor Assy, LH
2009-01 → 2009-04 ended
ACV40,GSV40 RHD —
74320-33A70-B1 note Visor Assy, LH
2009-01 → 2009-04 ended
ACV40,GSV40 LHD —
74320-33A70-E1 note Visor Assy, LH
2009-01 → 2009-04 ended
ACV40,GSV40 LHD —
74320-33B90-B0 note Visor Assy, LH
2009-04 → 2009-09 ended
ACV40,GSV40 RHD —
74320-33B90-E0 note Visor Assy, LH
2009-04 → 2009-09 ended
ACV40,GSV40 RHD —
74320-33B91-B0 note Visor Assy, LH
2009-09 → 2011-08 ended
ACV40,GSV40 RHD —
74320-33B91-E0 note Visor Assy, LH
2009-09 → 2011-08 ended
ACV40,GSV40 RHD —
74320-33C00-B0 note Visor Assy, LH
2009-04 → 2009-09 ended
ACV40,GSV40 LHD —
74320-33C00-E0 note Visor Assy, LH
2009-04 → 2009-09 ended
ACV40,GSV40 LHD —
74320-33C01-B0 note Visor Assy, LH
2009-09 → 2011-09 ended
ACV40,GSV40 LHD —
74320-33C01-E0 note Visor Assy, LH
2009-09 → 2011-09 ended
ACV40,GSV40 LHD —
74336 — Clip, Visor Arm Set
74336-52010 Clip, Visor Arm Set
2006-11 → 2009-03 ended
ACV40,GSV40 —
74336-33020 Clip, Visor Arm Set
2009-04 → 2011-09 ended
ACV40,GSV40 —
74336-52010 Clip, Visor Arm Set
2009-01 → 2009-03 ended
ACV40,GSV40 LE,XLE —
74336-52010 Clip, Visor Arm Set
2009-01 → 2009-04 ended
ACV40,GSV40 COMF,PREM —
74348 — Holder, Visor
74348-33040-B0 note Holder, Visor
2006-01 → 2009-03 ended
ACV40,GSV40 —
74348-33040-E0 note Holder, Visor
2006-01 → 2009-03 ended
ACV40,GSV40 —
74348-33040-B0 note Holder, Visor
2009-01 → 2011-09 ended
ACV40,GSV40 —
74348-33040-E0 note Holder, Visor
2009-01 → 2011-09 ended
ACV40,GSV40 —
74603 — Grip Sub-assy, Assist, Front
74610-30240-B1 note Grip Sub-assy, Assist, Front
2006-01 → 2009-03 ended
ACV40,GSV40 —
74610-30240-E0 note Grip Sub-assy, Assist, Front
2006-01 → 2009-03 ended
ACV40,GSV40 —
74610-30240-B1 note Grip Sub-assy, Assist, Front
2009-01 → 2011-09 ended
ACV40,GSV40 —
74610-30240-E0 note Grip Sub-assy, Assist, Front
2009-01 → 2011-09 ended
ACV40,GSV40 —
74611C — Cover, Assist Grip, LH
74611-60050-B1 note Cover, Assist Grip, LH
2009-01 → 2011-09 ended
ACV40,GSV40 —
74611-60050-E1 note Cover, Assist Grip, LH
2009-01 → 2011-09 ended
ACV40,GSV40 —
74612C — Cover, Assist Grip, RH
74612-60100-B1 note Cover, Assist Grip, RH
2009-01 → 2011-09 ended
ACV40,GSV40 —
74612-60100-E1 note Cover, Assist Grip, RH
2009-01 → 2011-09 ended
ACV40,GSV40 —
74620B — Grip Assy, Assist, Rear
74610-30320-B1 note Grip Assy, Assist, Rear
2006-01 → 2009-03 ended
ACV40,GSV40 —
74610-30320-E1 note Grip Assy, Assist, Rear
2006-01 → 2009-03 ended
ACV40,GSV40 —
74610-30330-B1 note Grip Assy, Assist, Rear
2006-01 → 2009-03 ended
ACV40,GSV40 —
74610-30330-E1 note Grip Assy, Assist, Rear
2006-01 → 2009-03 ended
ACV40,GSV40 —
74610-30320-B1 note Grip Assy, Assist, Rear
2009-01 → 2011-09 ended
ACV40,GSV40 —
74610-30320-E1 note Grip Assy, Assist, Rear
2009-01 → 2011-09 ended
ACV40,GSV40 —
74610-30330-B1 note Grip Assy, Assist, Rear
2009-01 → 2011-09 ended
ACV40,GSV40 —
74610-30330-E1 note Grip Assy, Assist, Rear
2009-01 → 2011-09 ended
ACV40,GSV40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
