Toyota Camry
2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe
Supported model
Data version 2011-10

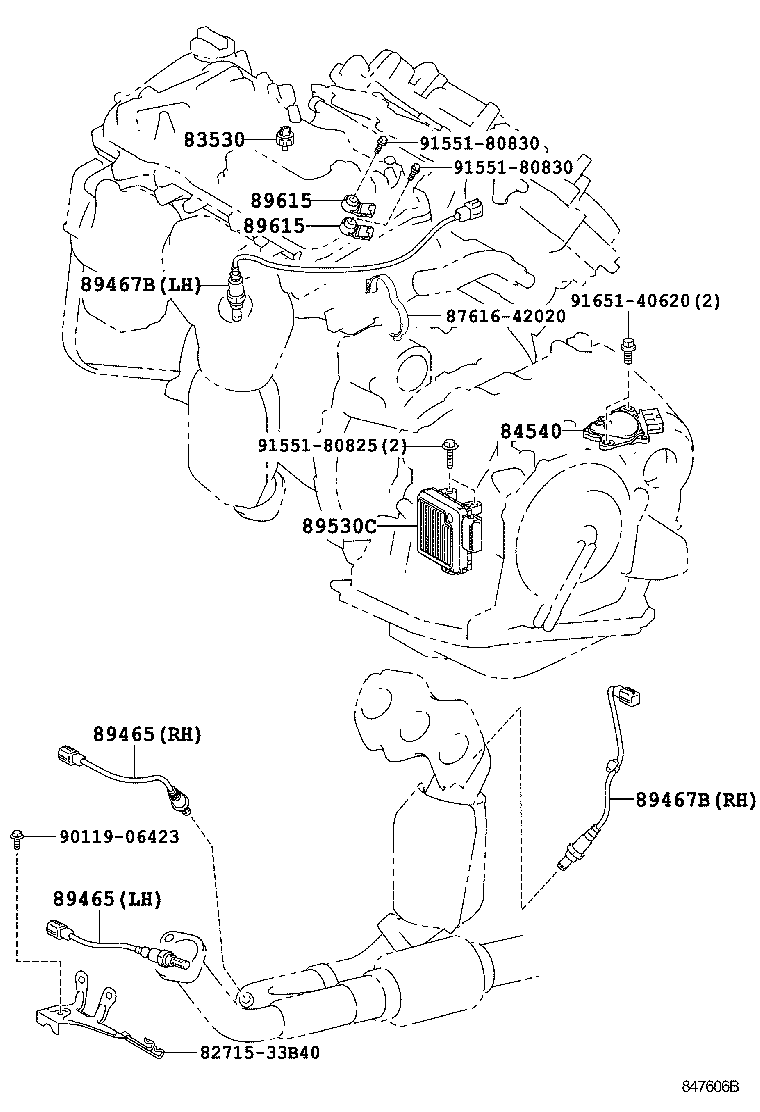

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 83530-AA011 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2007-04 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-01 → 2011-09
ended
|
ACV40,GSV40 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2009-01 → 2011-09
ended
|
ACV40,GSV40 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-33010 |
Switch Assy, Neutral Start
2006-01 → 2009-03
ended
|
GSV40 | — | |
| 84540-48010 |
Switch Assy, Neutral Start
2006-01 → 2009-03
ended
|
ACV40 5FC | — | |
| 84540-33010 |
Switch Assy, Neutral Start
2009-01 → 2011-09
ended
|
GSV40 | — | |
| 84540-48010 |
Switch Assy, Neutral Start
2009-01 → 2011-09
ended
|
ACV40 5FC | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-33360 note |
Sensor, Oxygen
2006-01 → 2009-03
ended
|
GSV40 | — | |
| 89465-33420 note |
Sensor, Oxygen
2006-01 → 2009-03
ended
|
GSV40 | — | |
| 89465-33440 |
Sensor, Oxygen
2006-01 → 2009-03
ended
|
ACV40 | — | |
| 89465-33360 note |
Sensor, Oxygen
2009-01 → 2011-09
ended
|
GSV40 | — | |
| 89465-33420 note |
Sensor, Oxygen
2009-01 → 2011-09
ended
|
GSV40 | — | |
| 89465-33440 |
Sensor, Oxygen
2009-01 → 2011-09
ended
|
ACV40 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-33080 |
Sensor, Air Fuel Ratio
2006-01 → 2007-05
ended
|
ACV40 | — | |
| 89467-33090 note |
Sensor, Air Fuel Ratio
2006-01 → 2007-07
ended
|
GSV40 | — | |
| 89467-33130 note |
Sensor, Air Fuel Ratio
2006-01 → 2007-07
ended
|
GSV40 | — | |
| 89467-33160 |
Sensor, Air Fuel Ratio
2007-06 → 2009-03
ended
|
ACV40 | — | |
| 89467-33170 note |
Sensor, Air Fuel Ratio
2007-07 → 2009-03
ended
|
GSV40 | — | |
| 89467-33180 note |
Sensor, Air Fuel Ratio
2007-07 → 2009-03
ended
|
GSV40 | — | |
| 89467-33160 |
Sensor, Air Fuel Ratio
2009-01 → 2011-09
ended
|
ACV40 | — | |
| 89467-33170 note |
Sensor, Air Fuel Ratio
2009-01 → 2011-09
ended
|
GSV40 | — | |
| 89467-33180 note |
Sensor, Air Fuel Ratio
2009-01 → 2011-09
ended
|
GSV40 | — | |
| 89530C — Computer Assy, Transmission Control | ||||
| 89530-33020 note |
Computer Assy, Transmission Control
2006-01 → 2007-07
ended
|
GSV40 LHD | — | |
| 89530-33020 note |
Computer Assy, Transmission Control
2006-01 → 2007-09
ended
|
GSV40 RHD | — | |
| 89530-33020 note |
Computer Assy, Transmission Control
2007-07 → 2007-09
ended
|
GSV40 LHD | — | |
| 89530-33020 note |
Computer Assy, Transmission Control
2007-07 → 2007-09
ended
|
GSV40 LHD | — | |
| 89530-33021 note |
Computer Assy, Transmission Control
2008-09 → 2009-03
ended
|
GSV40 LHD XLE | — | |
| 89530-33021 |
Computer Assy, Transmission Control
2007-12 → 2009-03
ended
|
GSV40 PREM | — | |
| 89530-33021 note |
Computer Assy, Transmission Control
2009-01 → 2009-03
ended
|
GSV40 LHD XLE | — | |
| 89530-33021 note |
Computer Assy, Transmission Control
2007-10 → 2009-03
ended
|
GSV40 LHD XLE | — | |
| 89530-33021 note |
Computer Assy, Transmission Control
2007-10 → 2009-03
ended
|
GSV40 RHD | — | |
| 89530-33021 note |
Computer Assy, Transmission Control
2007-10 → 2009-03
ended
|
GSV40 LHD XLE | — | |
| 89530-33030 |
Computer Assy, Transmission Control
2006-01 → 2007-09
ended
|
GSV40 | — | |
| 89530-33031 |
Computer Assy, Transmission Control
2007-10 → 2009-03
ended
|
GSV40 XLE | — | |
| 89530-33031 |
Computer Assy, Transmission Control
2009-01 → 2011-08
ended
|
GSV40 XLE | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2009-01 → 2010-08
ended
|
GSV40 LHD XLE | — | |
| 89530-33160 |
Computer Assy, Transmission Control
2009-03 → 2011-09
ended
|
GSV40 PREM | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2010-08 → 2011-08
ended
|
GSV40 LHD XLE | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2010-08 → 2011-08
ended
|
GSV40 XLE | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2010-08 → 2011-08
ended
|
GSV40 LHD XLE | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2009-01 → 2011-08
ended
|
GSV40 RHD | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2009-07 → 2010-08
ended
|
GSV40 LHD XLE | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2009-01 → 2010-08
ended
|
GSV40 LHD XLE | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2009-01 → 2010-08
ended
|
GSV40 LHD XLE | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2009-01 → 2010-08
ended
|
GSV40 LHD XLE | — | |
| 89530-33160 note |
Computer Assy, Transmission Control
2009-01 → 2010-08
ended
|
GSV40 LHD XLE | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2006-01 → 2009-03
ended
|
ACV40 | — | |
| 89615-20090 |
Sensor, Knock Control
2006-01 → 2009-03
ended
|
GSV40 | — | |
| 89615-20090 |
Sensor, Knock Control
2009-01 → 2011-09
ended
|
ACV40 | — | |
| 89615-20090 |
Sensor, Knock Control
2009-01 → 2011-09
ended
|
GSV40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
