Toyota Camry
2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe
Supported model
Data version 2011-10

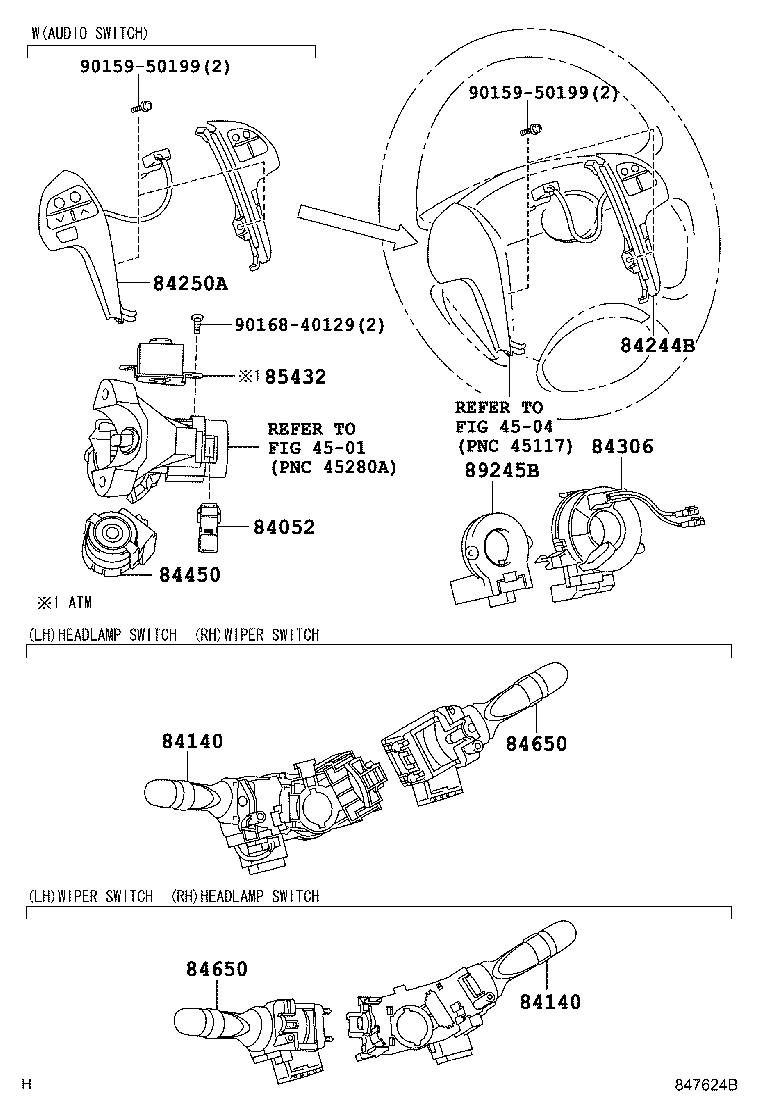

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-71010 |
Switch Assy, Un-lock Warning
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2009-01 → 2011-09
ended
|
ACV40 | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-42070 note |
Switch Assy, Headlamp Dimmer
2006-01 → 2009-03
ended
|
ACV40,GSV40 RHD ATM | — | |
| 84140-42080 |
Switch Assy, Headlamp Dimmer
2006-01 → 2009-03
ended
|
ACV40,GSV40 RHD | — | |
| 84140-42110 |
Switch Assy, Headlamp Dimmer
2006-01 → 2009-03
ended
|
ACV40,GSV40 LHD | — | |
| 84140-48130 note |
Switch Assy, Headlamp Dimmer
2006-01 → 2009-03
ended
|
ACV40,GSV40 LHD ATM (LE,XLE) | — | |
| 84140-42070 note |
Switch Assy, Headlamp Dimmer
2009-01 → 2011-08
ended
|
ACV40,GSV40 RHD ATM | — | |
| 84140-42080 |
Switch Assy, Headlamp Dimmer
2009-01 → 2011-08
ended
|
ACV40,GSV40 RHD | — | |
| 84140-42111 |
Switch Assy, Headlamp Dimmer
2009-01 → 2011-09
ended
|
ACV40,GSV40 LHD | — | |
| 84140-48200 note |
Switch Assy, Headlamp Dimmer
2009-01 → 2011-08
ended
|
ACV40,GSV40 LHD ATM (LE,XLE) | — | |
| 84244B — Switch, Steering Pad, RH | ||||
| 84244-33160 |
Switch, Steering Pad, RH
2006-01 → 2009-01
ended
|
ACV40,GSV40 LE,XLE | — | |
| 84244-33160 |
Switch, Steering Pad, RH
2009-01 → 2011-08
ended
|
ACV40,GSV40 LE,XLE | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-33010 note |
Switch Assy, Steering Pad
2006-01 → 2009-01
ended
|
ACV40,GSV40 LHD (LE,XLE) | — | |
| 84250-33010 note |
Switch Assy, Steering Pad
2006-01 → 2009-01
ended
|
ACV40,GSV40 LE,XLE | — | |
| 84250-33010 note |
Switch Assy, Steering Pad
2006-01 → 2009-01
ended
|
ACV40,GSV40 LE,XLE | — | |
| 84250-33010 note |
Switch Assy, Steering Pad
2006-01 → 2009-01
ended
|
ACV40,GSV40 LE,XLE | — | |
| 84250-33010 |
Switch Assy, Steering Pad
2007-12 → 2009-03
ended
|
ACV40,GSV40 COMF,PREM | — | |
| 84250-33010 note |
Switch Assy, Steering Pad
2009-01 → 2011-08
ended
|
ACV40,GSV40 LE,XLE | — | |
| 84250-33010 note |
Switch Assy, Steering Pad
2009-01 → 2011-08
ended
|
ACV40,GSV40 LE,XLE | — | |
| 84250-33010 note |
Switch Assy, Steering Pad
2009-01 → 2011-08
ended
|
ACV40,GSV40 LE,XLE | — | |
| 84250-33130 note |
Switch Assy, Steering Pad
2009-01 → 2011-08
ended
|
ACV40,GSV40 LHD (LE,XLE) | — | |
| 84250-33130 note |
Switch Assy, Steering Pad
2009-01 → 2011-08
ended
|
ACV40,GSV40 LHD ATM (LE,XLE) | — | |
| 84250-33130 |
Switch Assy, Steering Pad
2009-03 → 2011-09
ended
|
ACV40,GSV40 COMF,PREM | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-48030 |
Cable Sub-assy, Spiral
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 84306-48030 |
Cable Sub-assy, Spiral
2009-01 → 2011-09
ended
|
ACV40,GSV40 | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-71010 |
Switch Assy, Ignition OR Starter
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 84450-71010 |
Switch Assy, Ignition OR Starter
2009-01 → 2011-09
ended
|
ACV40 | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-33440 |
Switch Assy, Windshield Wiper
2006-01 → 2009-03
ended
|
ACV40,GSV40 LHD | — | |
| 84652-33450 |
Switch Assy, Windshield Wiper
2006-01 → 2009-01
ended
|
ACV40,GSV40 RHD | — | |
| 84652-33441 |
Switch Assy, Windshield Wiper
2009-01 → 2011-09
ended
|
ACV40,GSV40 LHD | — | |
| 84652-33450 |
Switch Assy, Windshield Wiper
2009-01 → 2011-08
ended
|
ACV40,GSV40 RHD | — | |
| 85432 — Solenoid, Key Interlock | ||||
| 85432-71010 |
Solenoid, Key Interlock
2006-01 → 2009-03
ended
|
ACV40,GSV40 ATM | — | |
| 85432-71010 |
Solenoid, Key Interlock
2009-01 → 2011-09
ended
|
ACV40 5FC | — | |
| 89245B — Sensor, Steering | ||||
| 89245-33050 |
Sensor, Steering
2006-01 → 2009-03
ended
|
GSV40 | — | |
| 89245-33050 note |
Sensor, Steering
2006-01 → 2009-03
ended
|
ACV40 LE;ACV40 5FC COMF | — | |
| 89245-33050 |
Sensor, Steering
2009-01 → 2011-09
ended
|
GSV40 | — | |
| 89245-33050 note |
Sensor, Steering
2009-01 → 2011-09
ended
|
ACV40 5FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
