Toyota Camry
2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe
Supported model
Data version 2011-10

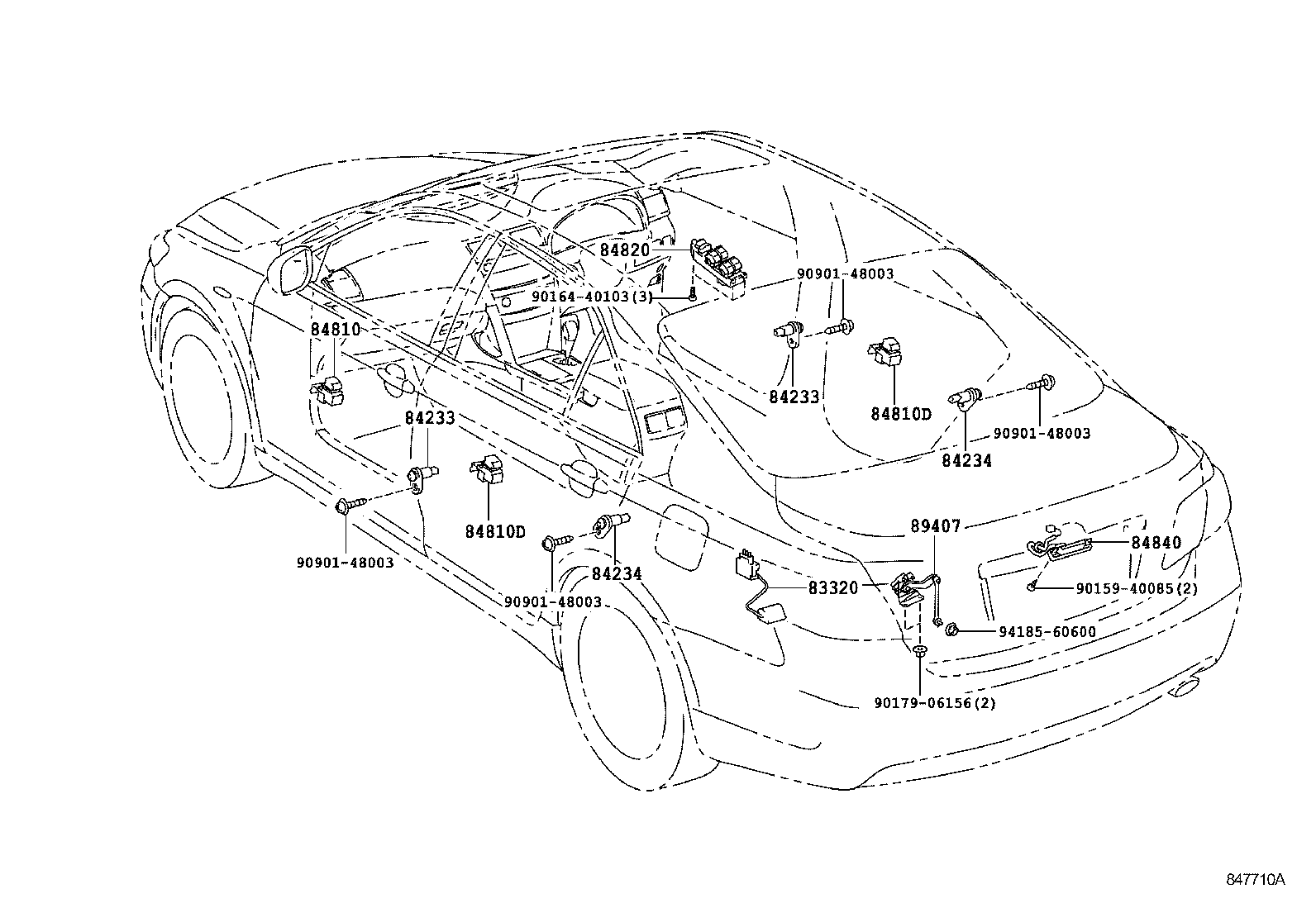

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-33100 |
Gage Assy, Fuel Sender
2006-01 → 2009-03
ended
|
ACV40 | — | |
| 83320-33110 |
Gage Assy, Fuel Sender
2006-01 → 2009-03
ended
|
GSV40 | — | |
| 83320-33100 |
Gage Assy, Fuel Sender
2009-01 → 2011-09
ended
|
ACV40 | — | |
| 83320-33110 |
Gage Assy, Fuel Sender
2009-01 → 2011-09
ended
|
GSV40 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2009-01 → 2011-09
ended
|
ACV40,GSV40 | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2009-01 → 2011-09
ended
|
ACV40,GSV40 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 84810-33120 |
Switch Assy, Power Window Regulator
2009-01 → 2011-09
ended
|
ACV40,GSV40 LHD | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator
2009-01 → 2011-08
ended
|
ACV40,GSV40 RHD | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2006-01 → 2009-03
ended
|
ACV40,GSV40 | — | |
| 84810-33120 |
Switch Assy, Power Window Regulator, Rear
2009-01 → 2011-09
ended
|
ACV40,GSV40 LHD | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2009-01 → 2011-08
ended
|
ACV40,GSV40 RHD | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-33250 |
Master Switch Assy, Power Window Regulator
2006-01 → 2006-08
ended
|
ACV40,GSV40 LHD | — | |
| 84820-33251 |
Master Switch Assy, Power Window Regulator
2006-08 → 2009-03
ended
|
ACV40,GSV40 LHD | — | |
| 84820-33260 |
Master Switch Assy, Power Window Regulator
2006-08 → 2009-01
ended
|
ACV40,GSV40 RHD | — | |
| 84820-52200 |
Master Switch Assy, Power Window Regulator
2006-01 → 2006-08
ended
|
ACV40,GSV40 RHD | — | |
| 84040-33100 |
Master Switch Assy, Power Window Regulator
2009-01 → 2011-09
ended
|
ACV40,GSV40 LHD | — | |
| 84820-33260 |
Master Switch Assy, Power Window Regulator
2009-01 → 2011-08
ended
|
ACV40,GSV40 RHD | — | |
| 84840 — Switch Assy, Luggage Compartment Door Opening | ||||
| 84840-33090 |
Switch Assy, Luggage Compartment Door Opening
2009-01 → 2011-08
ended
|
GSV40 XLE | — | |
| 84905-33010 note |
Switch Assy, Luggage Compartment Door Opening
2009-01 → 2011-08
ended
|
GSV40 LHD XLE | — | |
| 84905-33010 |
Switch Assy, Luggage Compartment Door Opening
2009-03 → 2011-09
ended
|
GSV40 PREM | — | |
| 89407 — Sensor Sub-assy, Height Control, Rear RH | ||||
| 89407-41010 |
Sensor Sub-assy, Height Control, Rear RH
2006-01 → 2009-03
ended
|
GSV40 PREM;ACV40,GSV40 RHD | — | |
| 89407-41010 note |
Sensor Sub-assy, Height Control, Rear RH
2006-01 → 2009-03
ended
|
ACV40 5FC COMF;ACV40,GSV40 LHD +1 | — | |
| 89407-41010 |
Sensor Sub-assy, Height Control, Rear RH
2009-01 → 2011-09
ended
|
GSV40;ACV40 RHD | — | |
| 89407-41010 note |
Sensor Sub-assy, Height Control, Rear RH
2009-01 → 2011-09
ended
|
ACV40 LHD 5FC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
