Toyota Camry
2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe
Supported model
Data version 2011-10

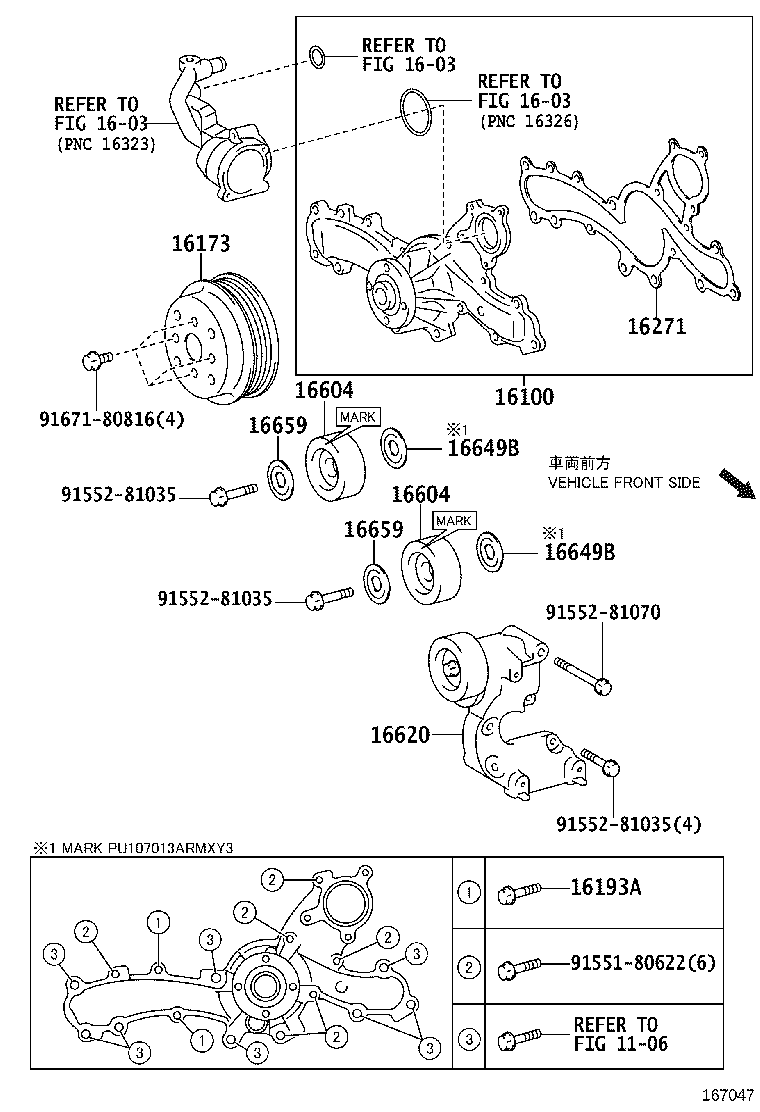

Water Pump
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16173 | Pulley, Water Pump |
| 16193A | Bolt(FOR WATER PUMP COVER) |
| 16271 | Gasket, Water Pump |
| 16601 | Tensioner Sub-assy, V-ribbed Belt |
| 16604 | Pulley Sub-assy, Idler, NO.2 |
| 16620 | Tensioner Assy, V-ribbed Belt |
| 16649B | Plate, Idler Pulley Cover |
| 16659 | Plate, Idler Pulley Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
