Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10

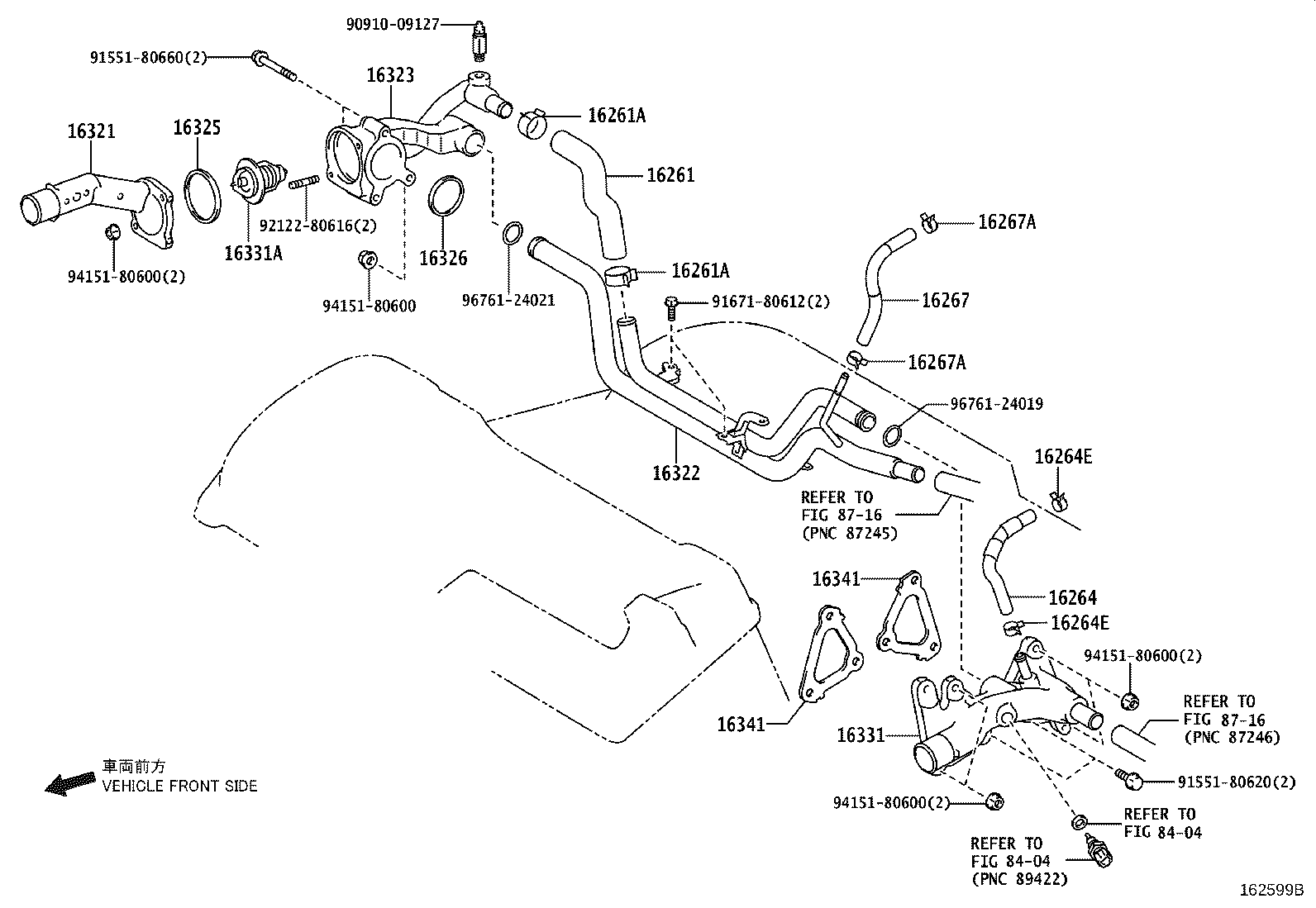

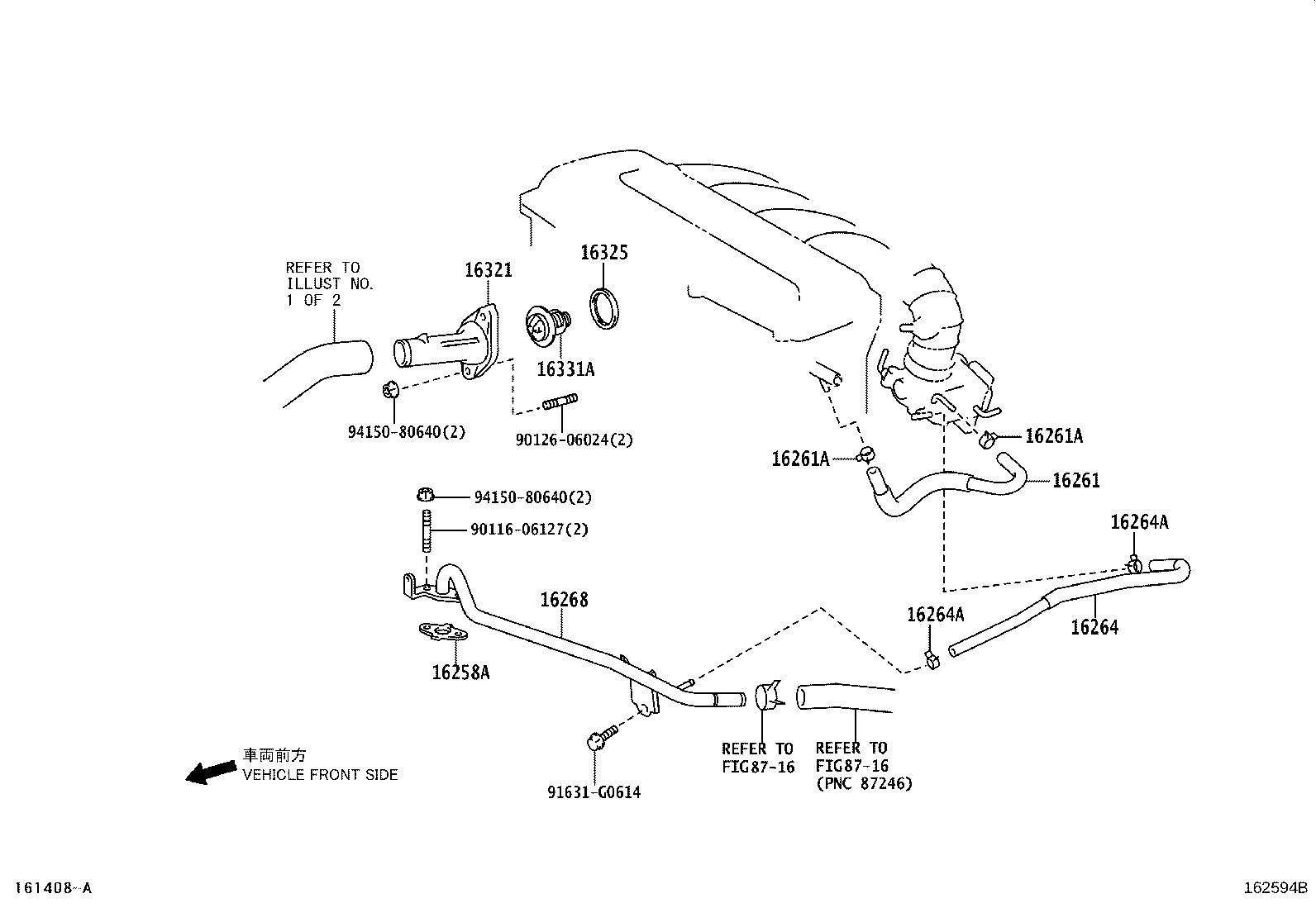

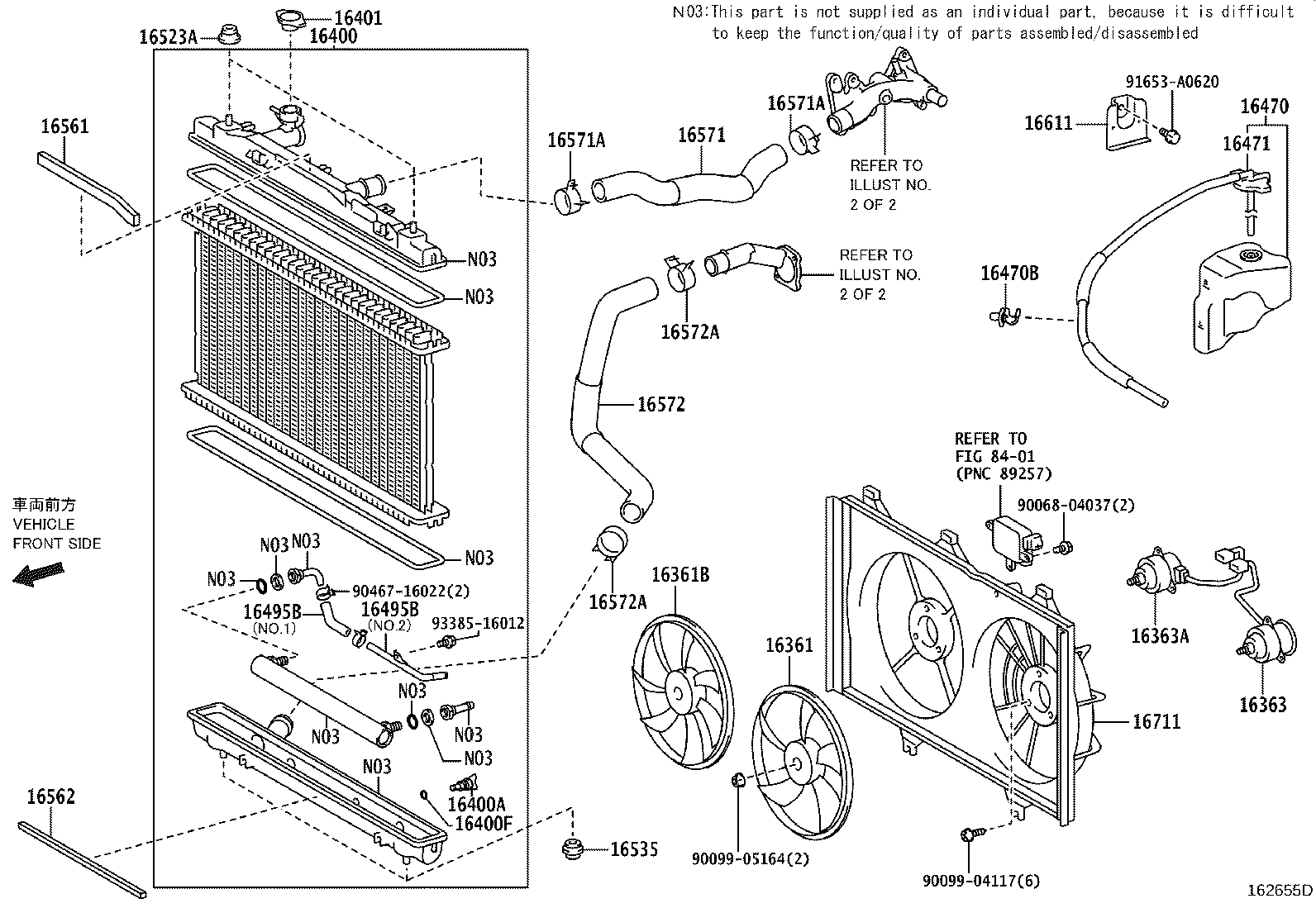

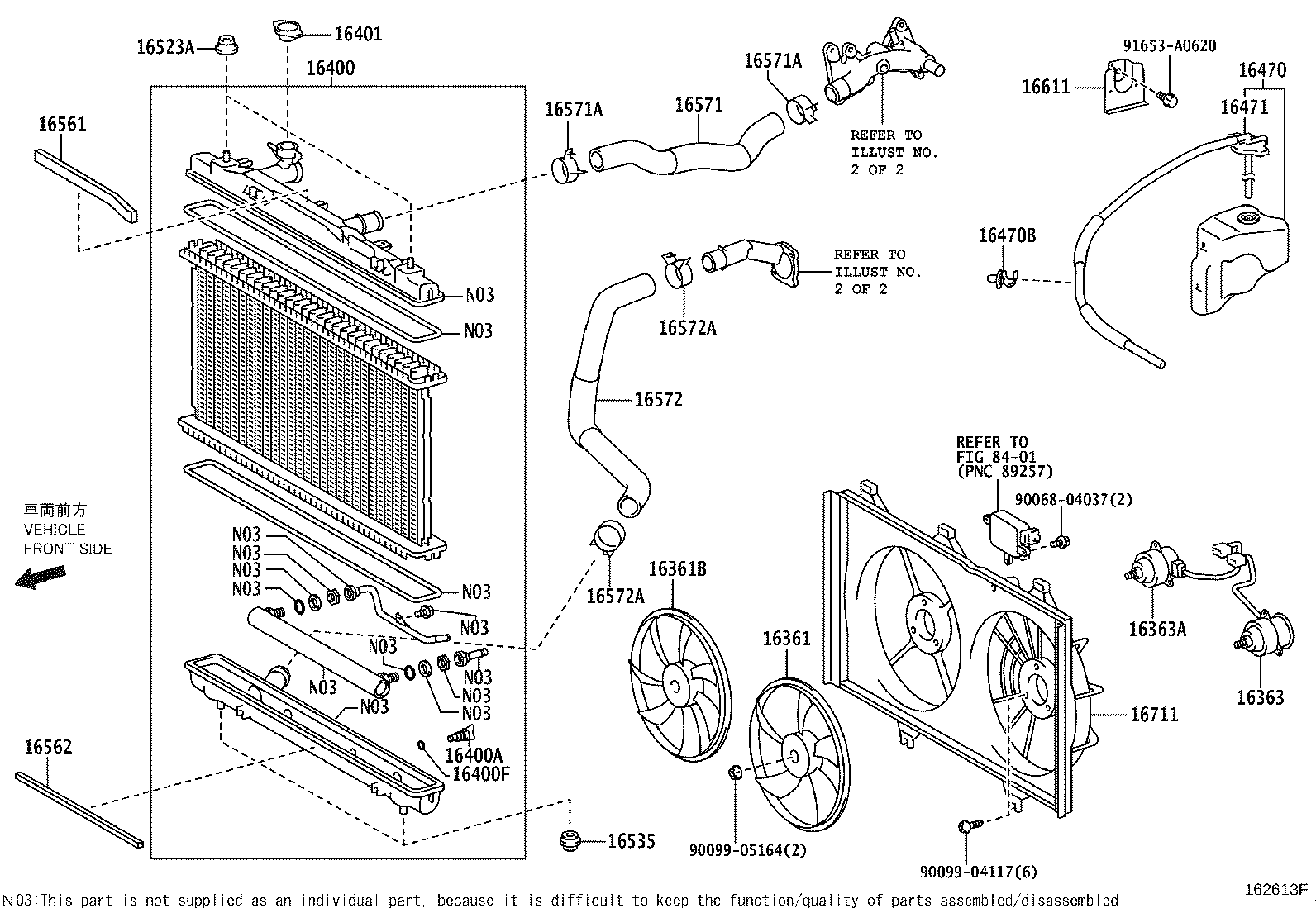

Radiator & Water Outlet

46 part groups · 5 illustrations

PNC	Description
16258A	Gasket(FOR HEATER RETURN)
16261	Hose, Water By-pass
16261A	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264	Hose, Water By-pass, NO.2
16264A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264E	Clip(FOR WATER BY-PASS HOSE NO.2)
16267	Hose, Water By-pass, NO.3
16267A	Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268	Pipe, Water By-pass, NO.1
16321	Inlet, Water
16322	Pipe, Water Inlet
16323	Housing, Water Inlet
16325	Gasket, Water Inlet Housing, NO.1
16326	Gasket, Water Inlet Housing, NO.2
16331	Outlet, Water
16331A	Thermostat
16341	Gasket, Water Outlet
16361	Fan
16361B	Fan, NO.2
16363	Motor, Cooling Fan
16363A	Motor, Cooling Fan, NO.2
16374	Insulator, Cooling Fan Motor
16400	Radiator Assy
16400A	Cock Sub-assy, Radiator Drain
16400B	Plug, Radiator Drain Cock
16400F	Packing(FOR RADIATOR DRAIN COCK)
16401	Cap Sub-assy, Radiator
16470	Tank Assy, Radiator Reserve
16470B	Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16471	Cap Sub-assy, Reserve Tank
16495B	Pipe (FOR ATM OIL COOLER)
16523A	Cushion, Radiator Support
16535	Support, Radiator, Lower
16561	Seal, Radiator TO Support, NO.1
16562	Seal, Radiator TO Support, NO.2
16571	Hose, Radiator, Inlet
16571A	Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C	Hose, Radiator, NO.1
16571D	Clip, Radiator Hose, NO.1
16572	Hose, Radiator, Outlet
16572A	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D	Hose, Radiator, NO.2
16572E	Clip, Radiator Hose, NO.2
16611	Bracket, Radiator Reserve Tank
16711	Shroud, Fan
16715	Bracket, Fan Shroud

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
