Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

16 part groups · 2 illustrations

Illustrations

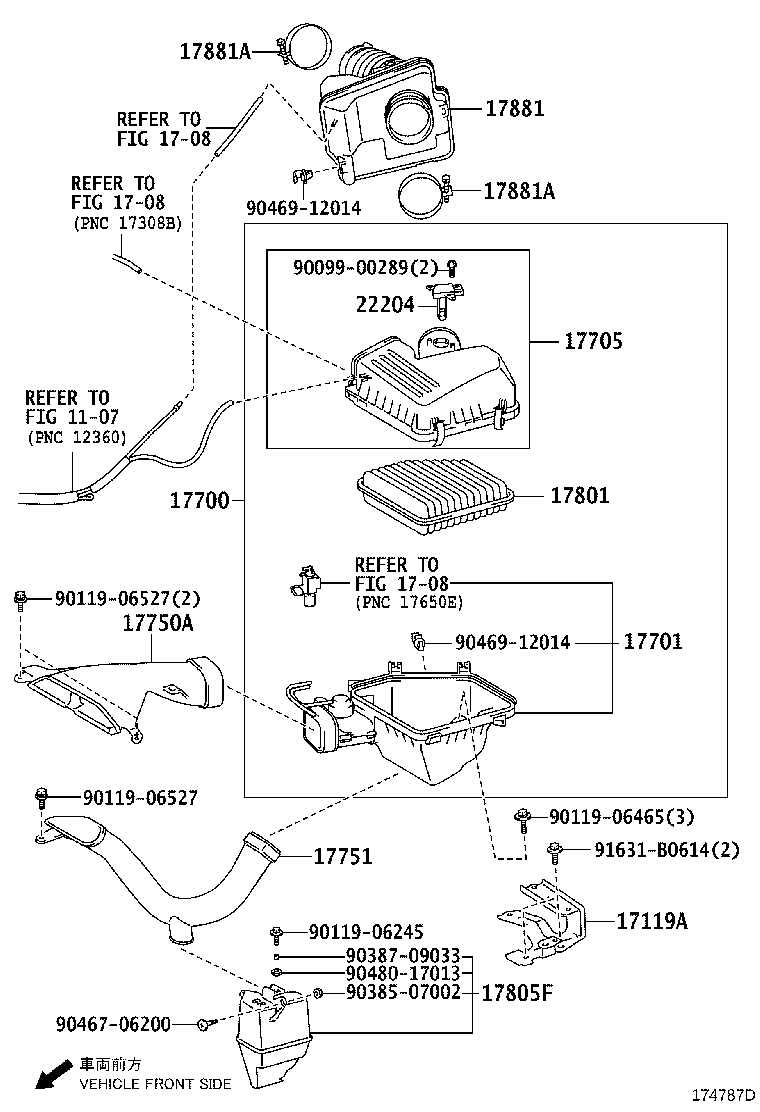

Figure 174772J 174772J 2006-01 → — Figure 174787D 174787D 2006-01 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17750A Inlet Assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805F Resonator Sub-assy, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
