Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

14 part groups · 2 illustrations

Illustrations

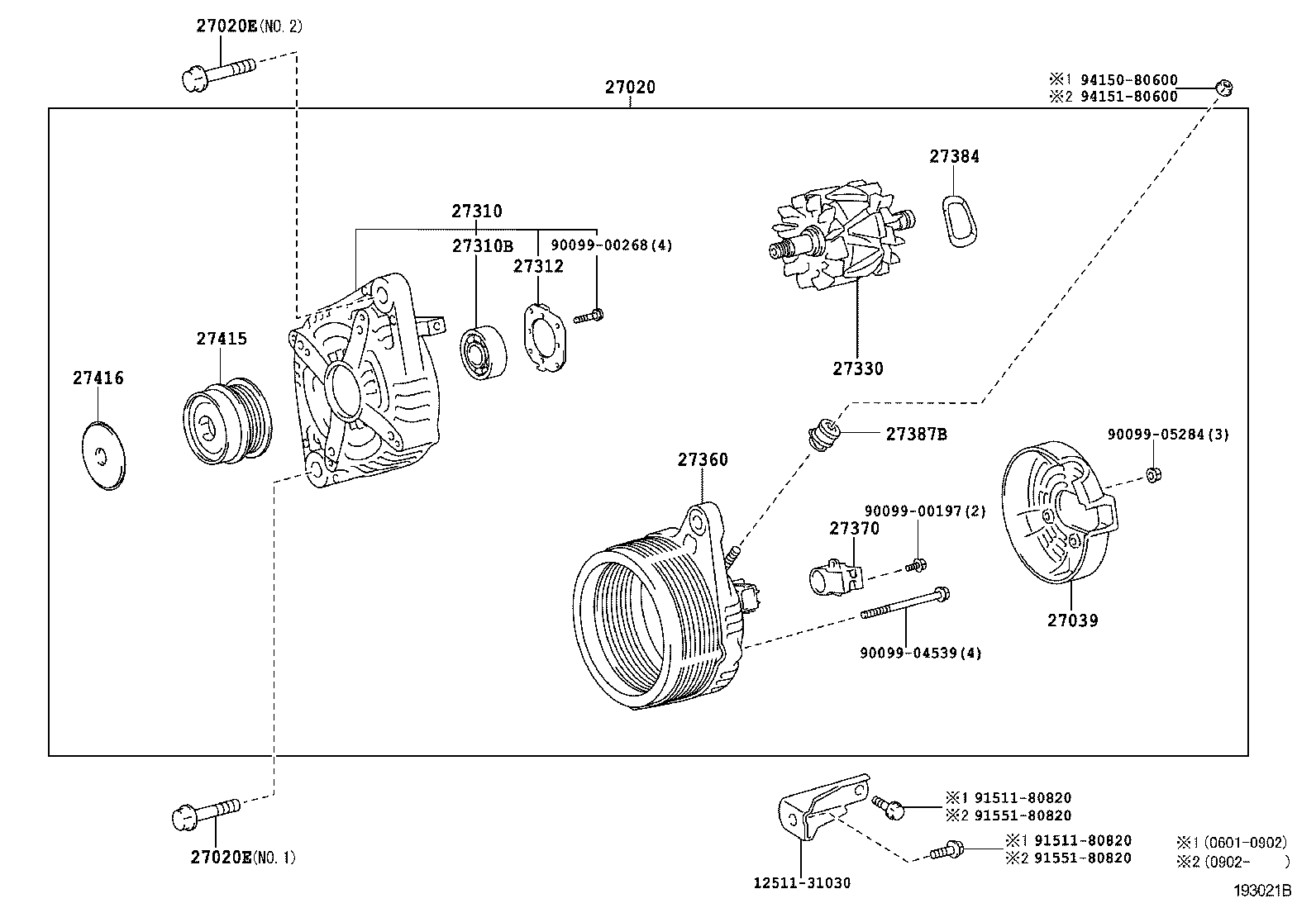

Figure 193541A 193541A 2006-01 → — Figure 193021B 193021B 2006-01 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27384 Washer
27387B Insulator, Alternator Terminal
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27446A Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
