Toyota Camry
2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe
Supported model
Data version 2011-10

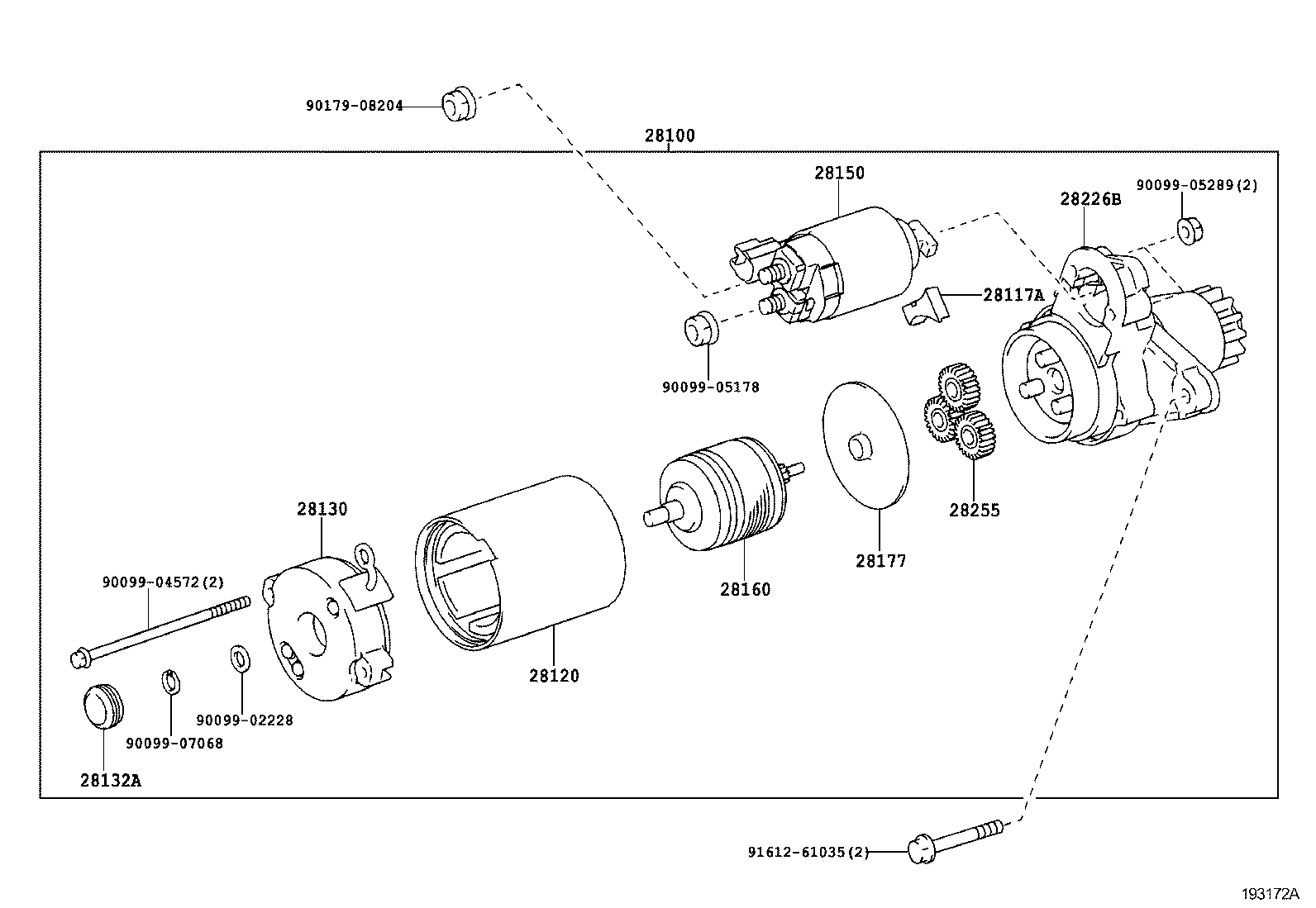

Starter
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28100 | Starter Assy |
| 28117A | Seal, Rubber |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28132 | Cover, Starter Bearing(FOR DRIVE HOUSING) |
| 28132A | Cover, Starter Commutator End Frame |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28177 | Plate(FOR STARTER ARMATURE) |
| 28226A | Starter Kit, Motor Terminal |
| 28226B | Starter Kit, Repair Service |
| 28255 | Gear, Planet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
